2010 Mazak Nexus QTN 450-IIMY/3000 with 7.28" Bore, 19" Air Chuck Package, Rear Chuck Mount, Hydr. Steady Rest
2010 Mazak Nexus QTN 450-IIMY/3000 with 7.28" Bore, 19" Air Chuck Package, Rear Chuck Mount, Hydr. Steady Rest
$199,500 (USD)
Location:Quebec City, Canada
or
Call (863) 439-6066
Description
19.25" 3 Jaw ATS Model BT-7.3 Air Chuck with 7.3" Through Hole Long Bed Machine Option Full C Axis Spindle Rotation Milling/Drilling Capability Y Axis Capable Mount on Rear of Spindle for a Rear Chuck
SMW Hydraulic Steady Rest
Mazak 1000 PSI SuperFlow V8 Variable Speed High Pressure Coolant Automatic Tool Eye Chip Conveyor Programmable Tailstock Mill Synchronous Tapping (rigid tapping)
Auto Door Open/Close Multi Tap Transformer All Available Manuals and Tooling
**Machine has 5,800 Cutting Hours**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-IIMY/3000 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 120114 |

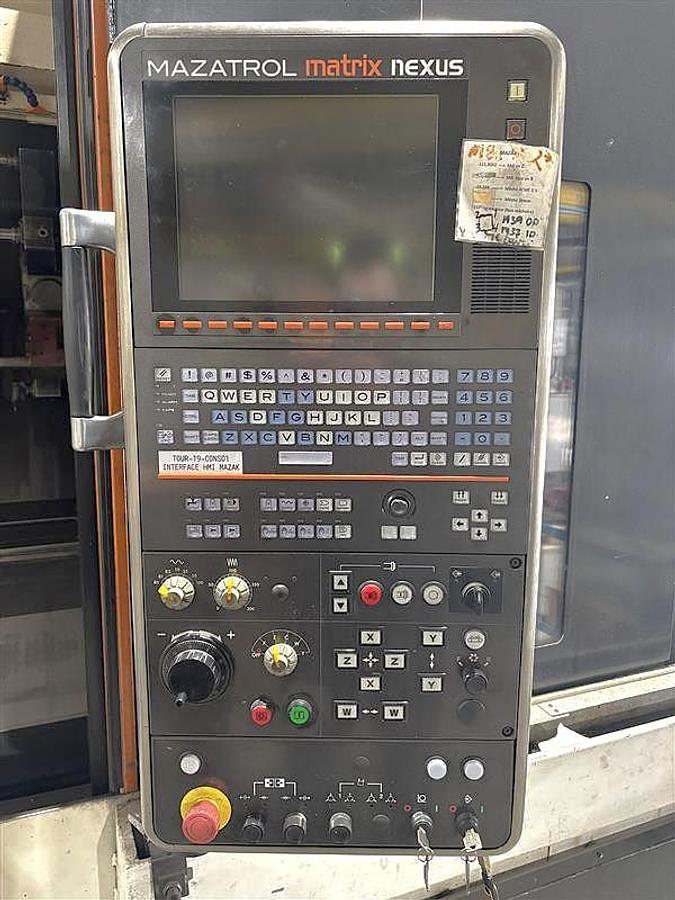

| Control | Mazatrol Matrix Nexus Control |
| Chuck Size | 19.25" 3 Jaw Air Chuck |
| Maximum Swing | 29.5" |
| Maximum Swing Over Cross Slide | 22.835" |
| Maximum Cutting Diameter | 22.835" |
| Maximum Cutting Length | 122.6" |
| Maximum Bar Capacity | 7.2" |
| X-Axis Travel | 13.3758" |
| Y-Axis Travel | +/- 5.91" |
| Z-Axis Travel | 123.25" |
| C Axis Spindle Rotation | 360,000 Positions |
| Spindle Nose / Spindle Bore | A2-15" / 7.23" |
| Spindle Speeds | 1,300 RPM |
| Spindle Motor | 50 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 10 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel | 113.4" |
| Tailstock Quill Diameter / Center | 3.94" / MT #5 |
| Machine Dimensions | 244" x 110" x 104" |
| Machine Weight | 47,888 lbs. |
