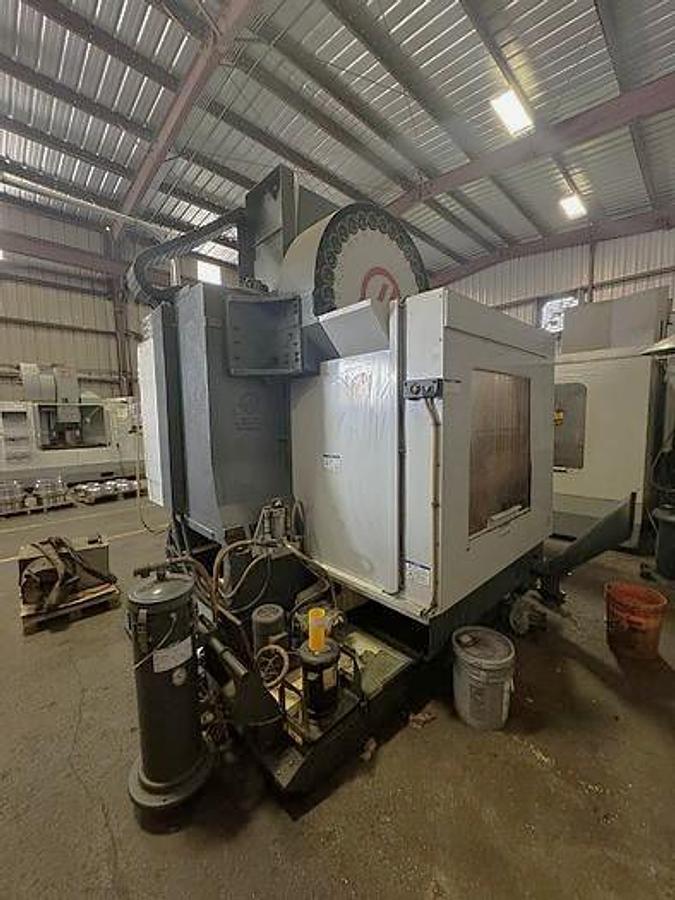

2011 Haas VF3YT/50 with Coolant Through Spindle, 4th Axis Drive, 50 Taper, 7500 RPM, 30 Station ATC
2011 Haas VF3YT/50 with Coolant Through Spindle, 4th Axis Drive, 50 Taper, 7500 RPM, 30 Station ATC
$39,500 (USD)
Location:Louisiana
or
Call (863) 439-6066
Description
Extended Y Axis Travel
30+1 Position Side Mounted Tool Changer
Coolant Through the Spindle
Programmable Coolant Nozzle
4th Axis Interface
High Speed Machining
Auger Style Chip Conveyor
2 Speed Gearbox
Remote Jog Handle
High Intensity Lighting
Rigid Tapping
Early Power Failure Detection Module
Auxiliary Coolant Filter System
Coolant Tank with Pump
RS 232C Port Interface for DNC Operation
All Available Manuals
Wired 195/260V Electrics
Specifications
| Manufacturer | Haas |
| Model | VF3YT/50 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120112 |
| Table size | 54" x 24" |
| Max table load | 3,500 lbs. |
| X axis travel | 40" |
| Y axis travel | 26" |
| Z axis travel | 25" |
| Spindle taper | CAT #50 |
| Spindle speed | 7,500 RPM - 2 Speed Geared Head |
| Spindle motor | 40 HP |
| Spindle nose to table top | 4.5" - 29.5" |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Rapid Traverse Rates | 1400 IPM |
| Cutting Feedrates | 710 IPM |
| Machine Dimensions | 156" x 102" x 121" |
| Machine Weight | 16,500 lbs. |
