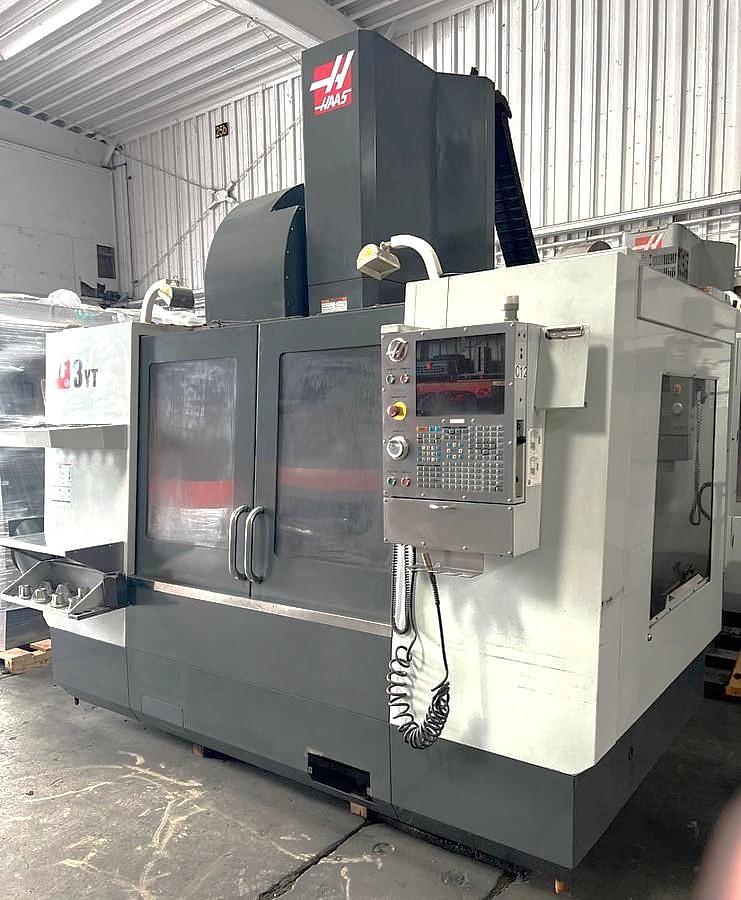

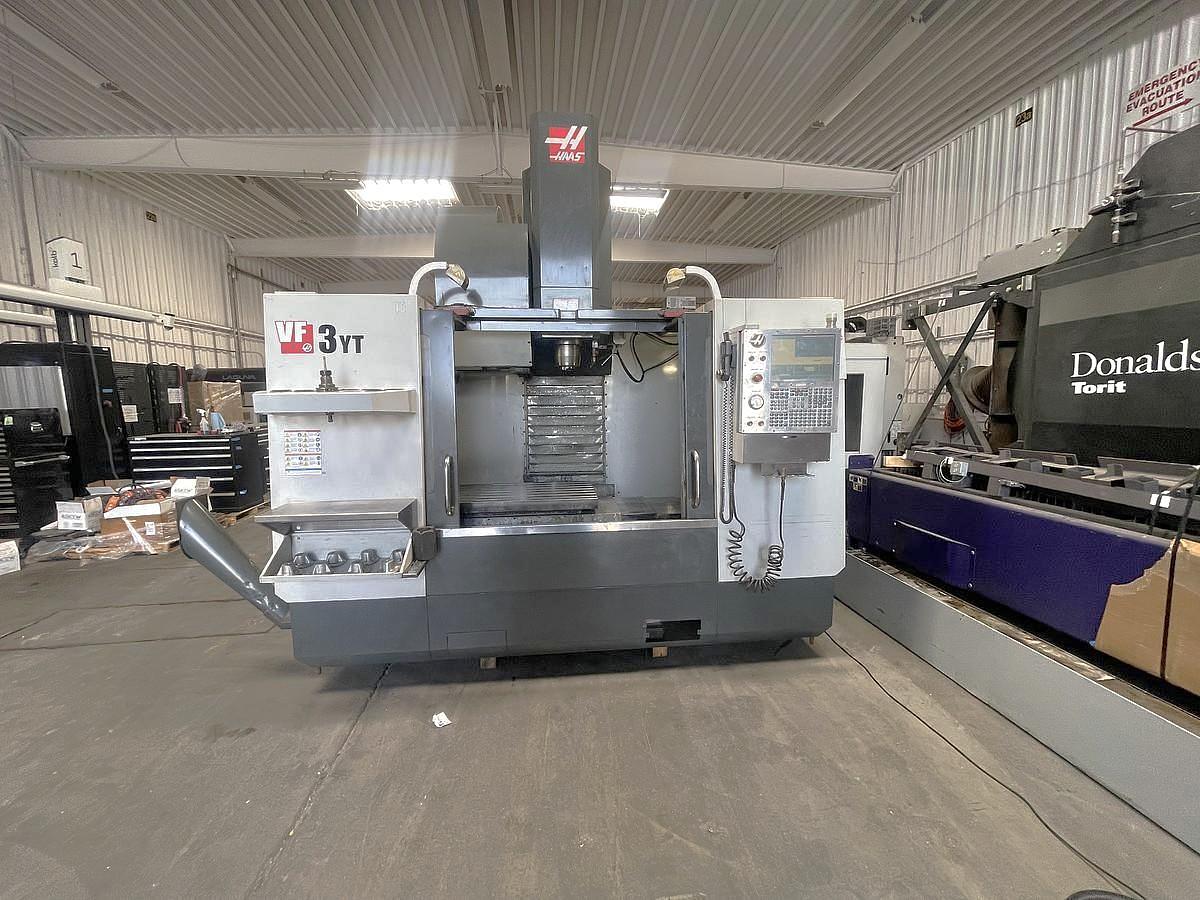

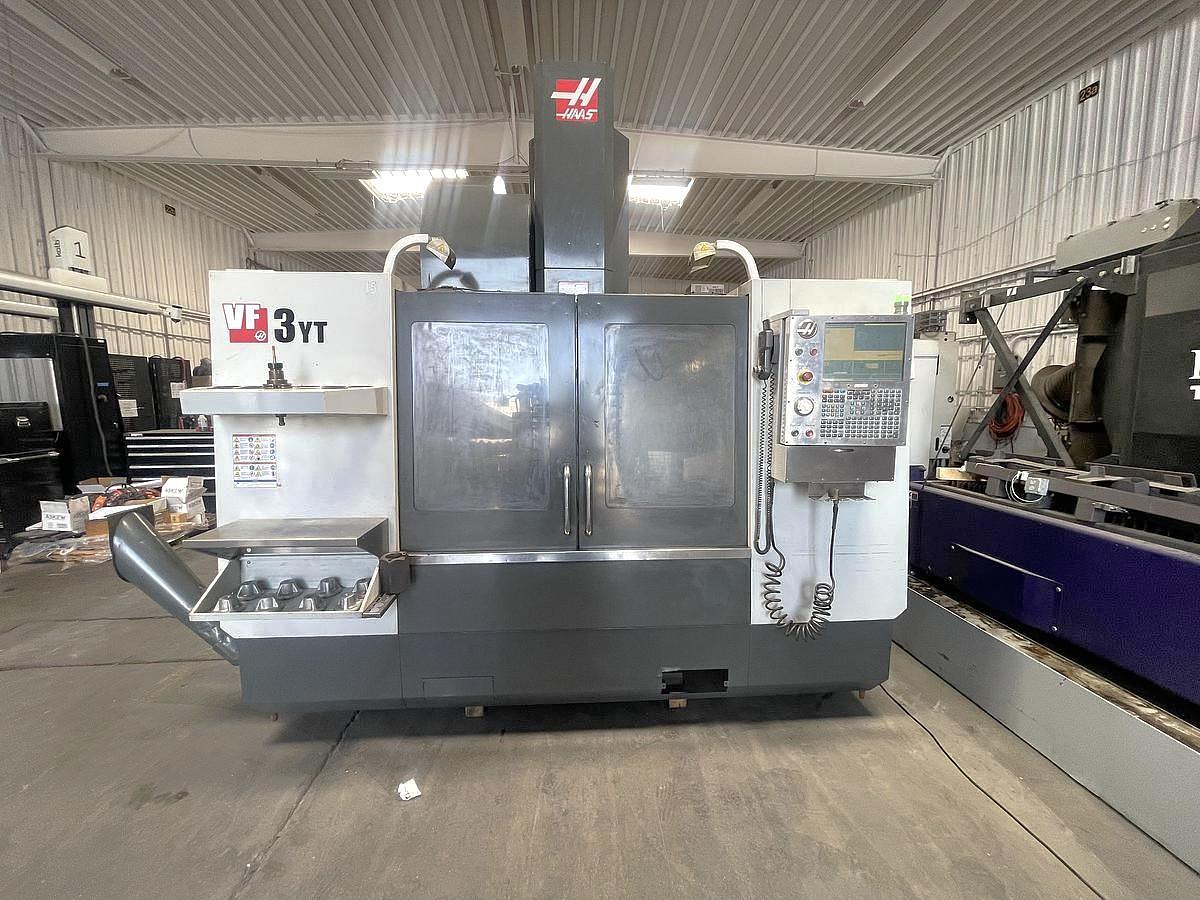

2013 Haas VF3YT/50 with Coolant Through Spindle, 7500 RPM, 50 Taper, High Speed Machining, Programmable Coolant Nozzle
2013 Haas VF3YT/50 with Coolant Through Spindle, 7500 RPM, 50 Taper, High Speed Machining, Programmable Coolant Nozzle
$44,500 (USD)
Location:California
or
Call (863) 439-6066
Description
Extended Y Axis Travel

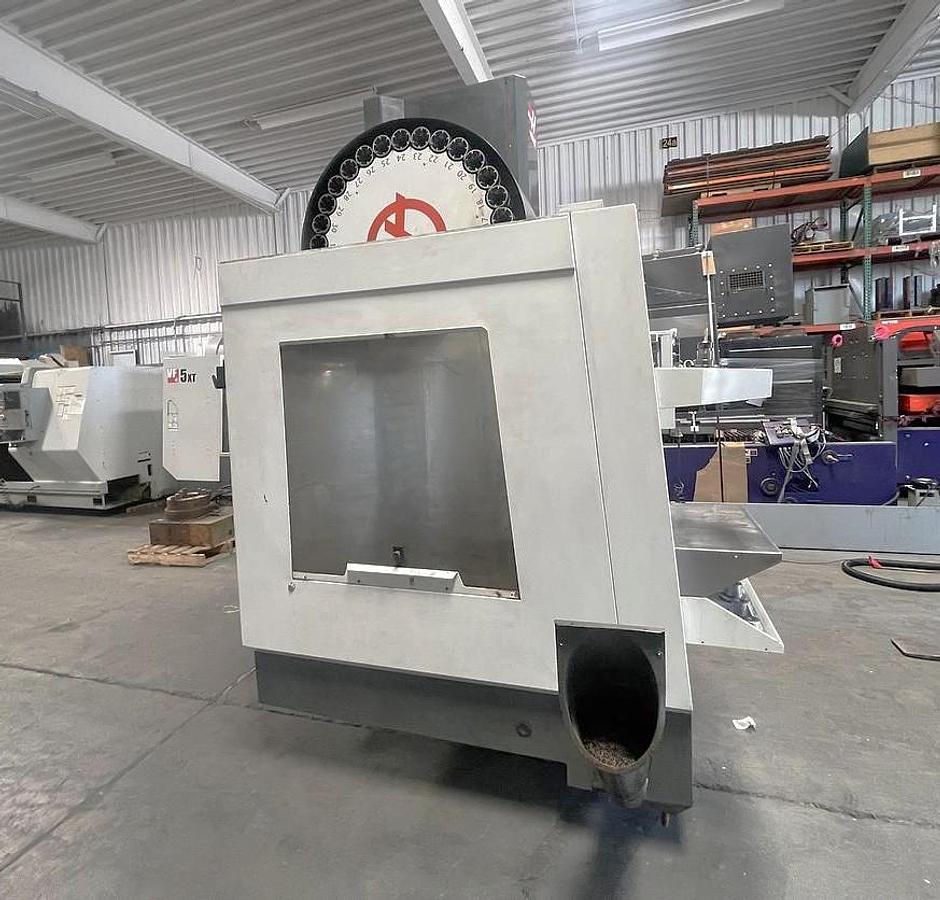

30+1 Position Side Mounted Tool Changer
Coolant Through the Spindle - 300 PSI
Programmable Coolant Nozzle
High Speed Machining
Auger Style Chip Conveyor
2 Speed Gearbox
Remote Jog Handle
Rigid Tapping
High Intensity Lighting
Coolant Tank with Pump
USB Port Interface
RS 232C Port Interface for DNC Operation
Wired 195/260V Electrics
**New in July of 2013**
Specifications
| Manufacturer | Haas |
| Model | VF3YT/50 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 120111 |
| Table size | 54" x 24" |
| Max table load | 3,500 lbs. |
| X axis travel | 40" |
| Y axis travel | 26" |
| Z axis travel | 25" |
| Spindle taper | CAT #50 |
| Spindle speed | 7,500 RPM - 2 Speed Geared Head |
| Spindle motor | 40 HP |
| Spindle nose to table top | 4.5" - 29.5" |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Rapid Traverse Rates | 1400 IPM |
| Cutting Feedrates | 710 IPM |
| Machine Dimensions | 156" x 102" x 121" |
| Machine Weight | 16,500 lbs. |
