2018 Haas ST-15 with Haas Servo 300 Barfeed and Liners, Tailstock, Chip Conveyor, Parts Catcher, Collet Chuck
No longer available
2018 Haas ST-15 with Haas Servo 300 Barfeed and Liners, Tailstock, Chip Conveyor, Parts Catcher, Collet Chuck
$49,900 (USD)
Location:California
Description
Haas Servo 300 Barfeed

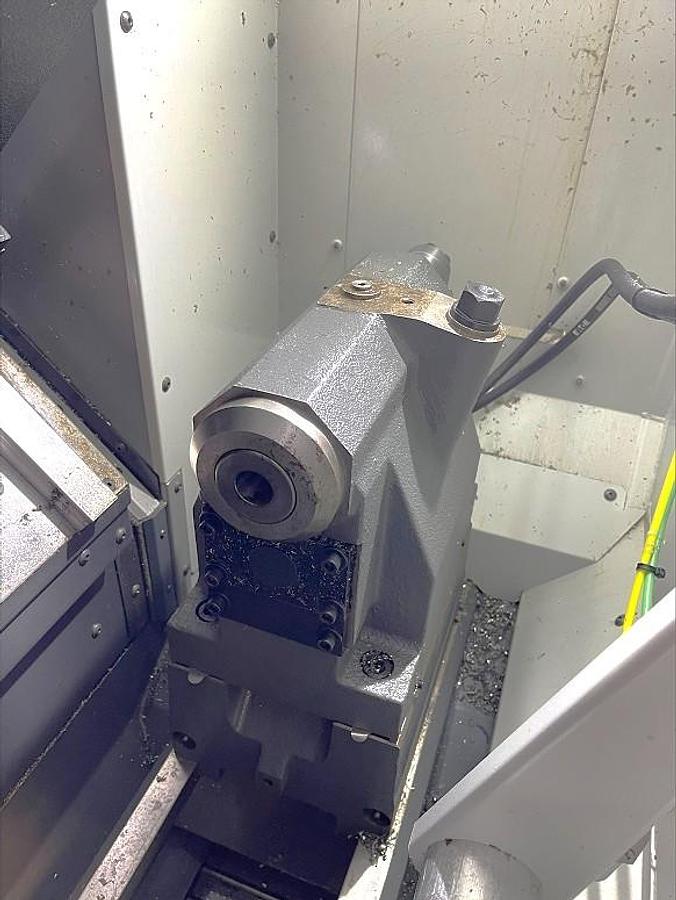

Tailstock
Parts Catcher
Chip Conveyor
Collet Chuck

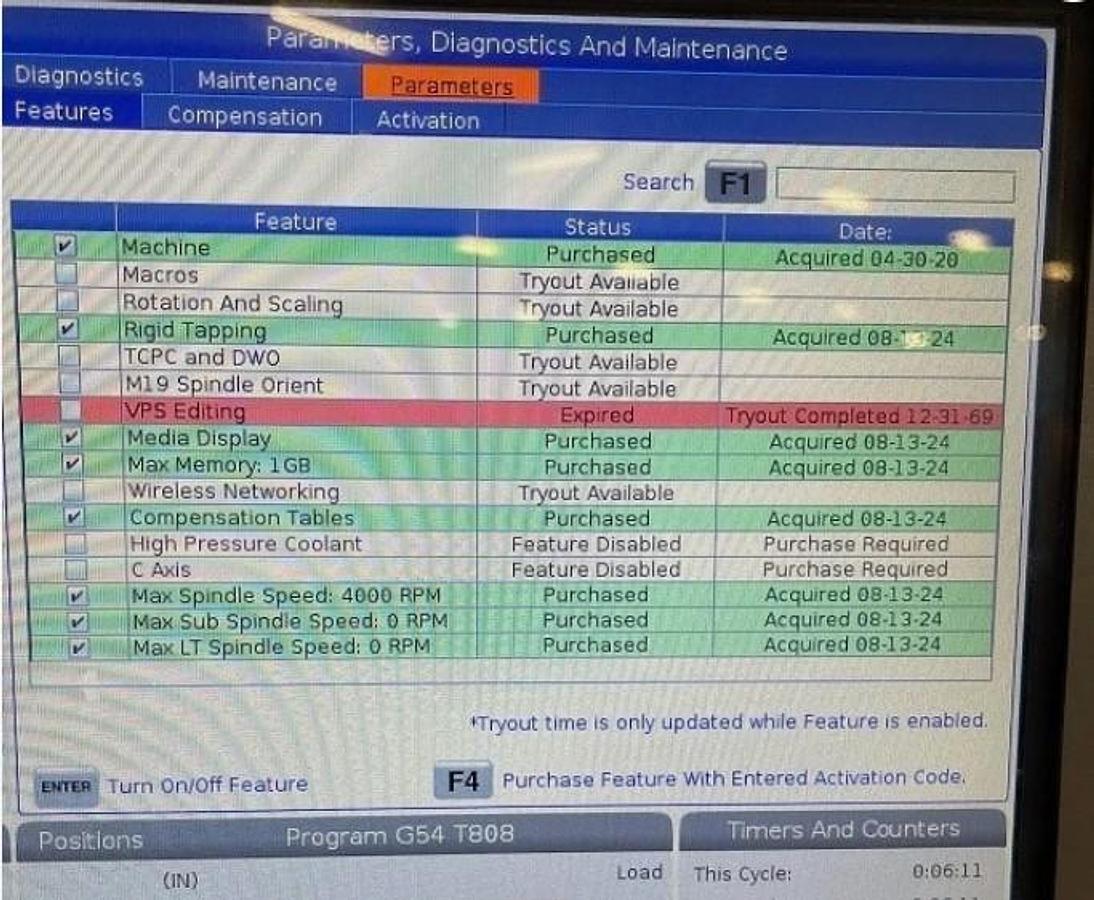

Rigid Tapping
12 Station Block Turret
1 GB Programming Memory
Compensation Tables
Media Display
15" Color LCD Monitor
Coolant System with Tank & Pump
Wired 220V Electrics

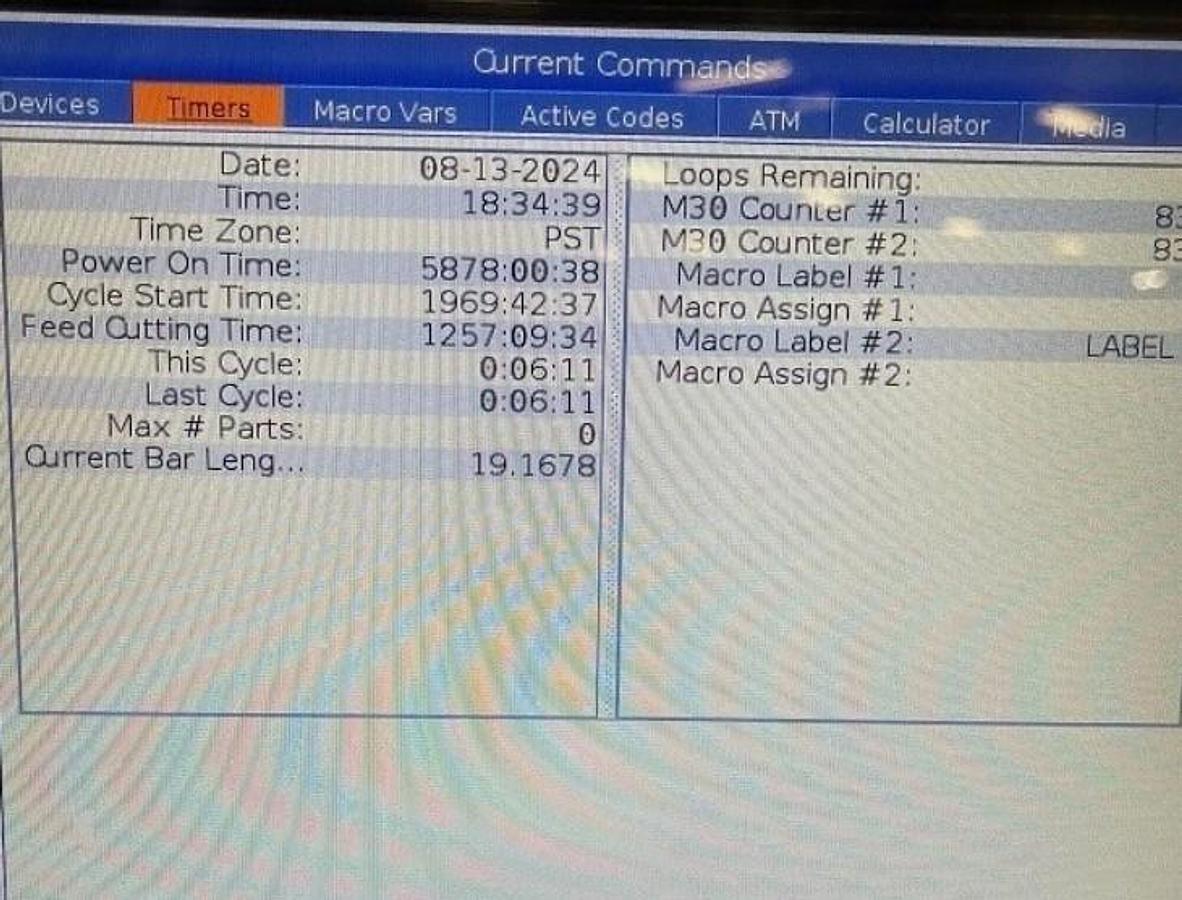

**Power On Hours 5,8978**
**Cycle Start Hours 1,969**
**Feed Cutting Hours 1,257**
Specifications
| Manufacturer | Haas |
| Model | ST-15 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 120102 |
| Chuck Size | Collet Chuck |
| Maximum Swing | 16.5" |
| Maximum Cutting Diameter | 12" |
| Maximum Cutting Length | 16" |
| X-Axis Travel | 7.9" |
| Z-Axis Travel | 16" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3" / 2.5" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 12 Station Bolt on Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Tailstock Quill Travel | 3.8" |
| Tailstock Center | MT #3 |
| Machine Weight | 7,900 lbs |
