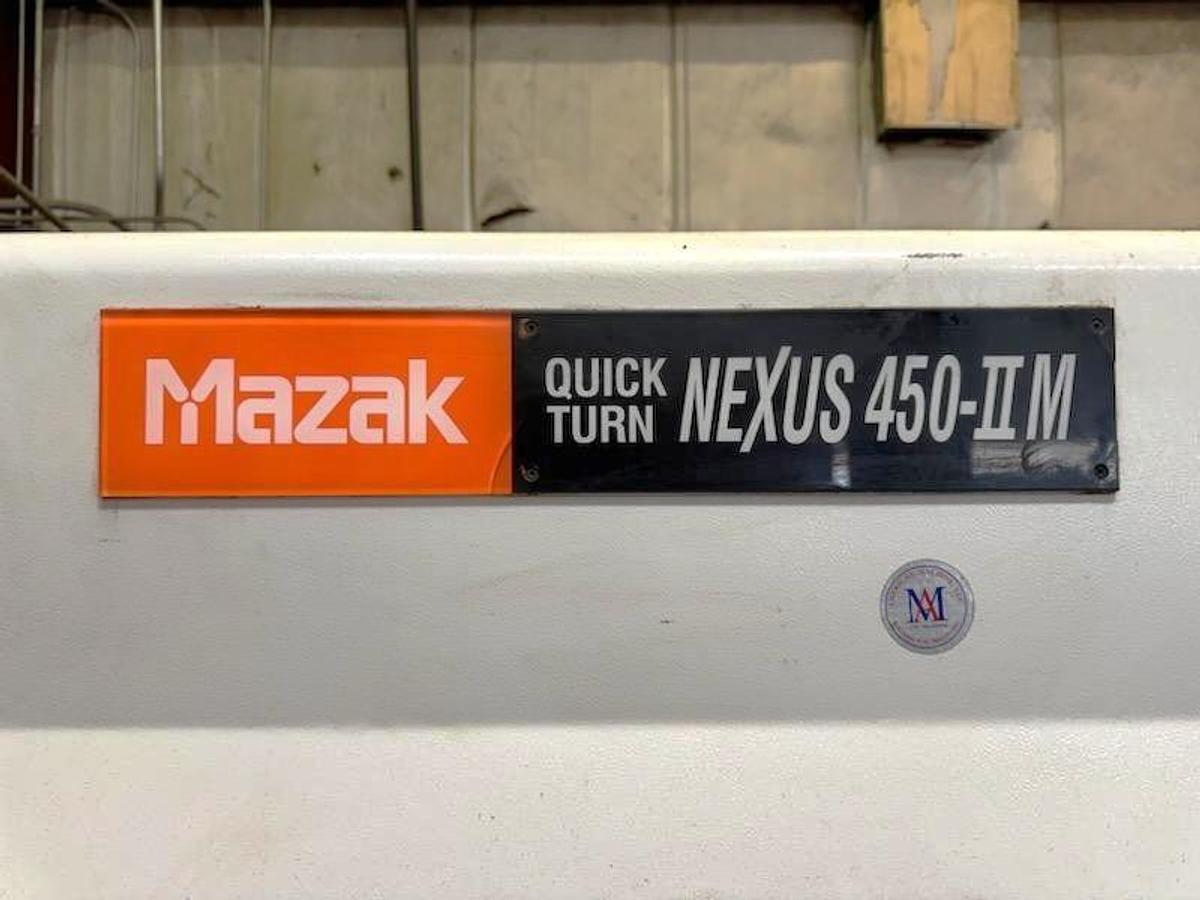

2006 Mazak Nexus QTN 450-IIM/2000 with Milling Capability, 21" SMW Air Chuck, 6.5" Bar Cap.
2006 Mazak Nexus QTN 450-IIM/2000 with Milling Capability, 21" SMW Air Chuck, 6.5" Bar Cap.
$79,950 (USD)
Location:Texas
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Milling/Drilling Capability

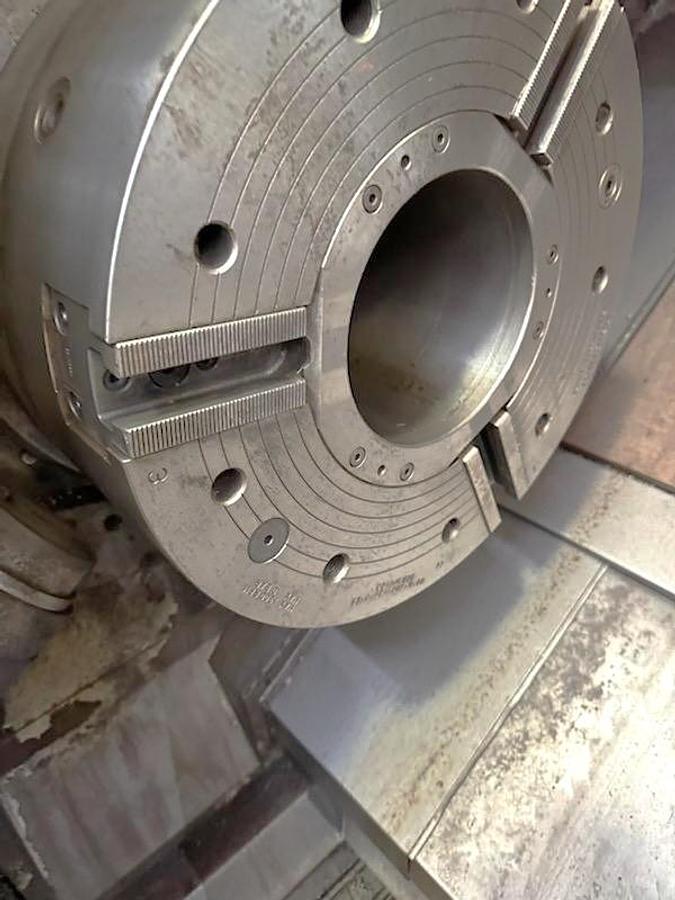

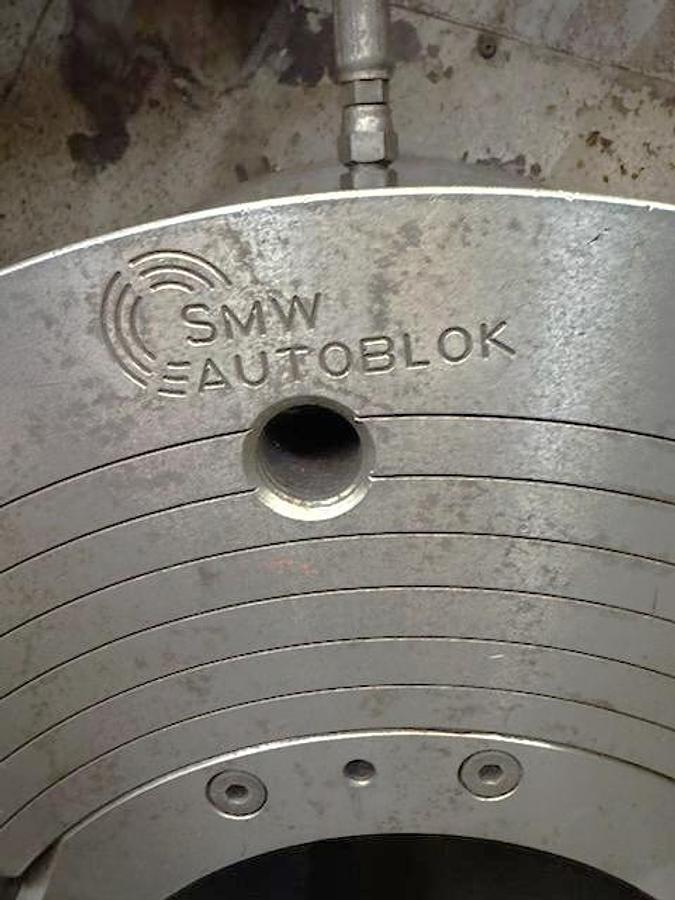

21" 3 Jaw SMW Autoblok Air Chuck
Chip Conveyor
Programmable Tailstock
Automatic Tool Eye
Mill Synchronous Tapping (rigid tapping)
USB Port Interface (2 Slots)
LAN Card Interface
RS 232 Port Interface
Multi Tap Transformer
All Available Manuals

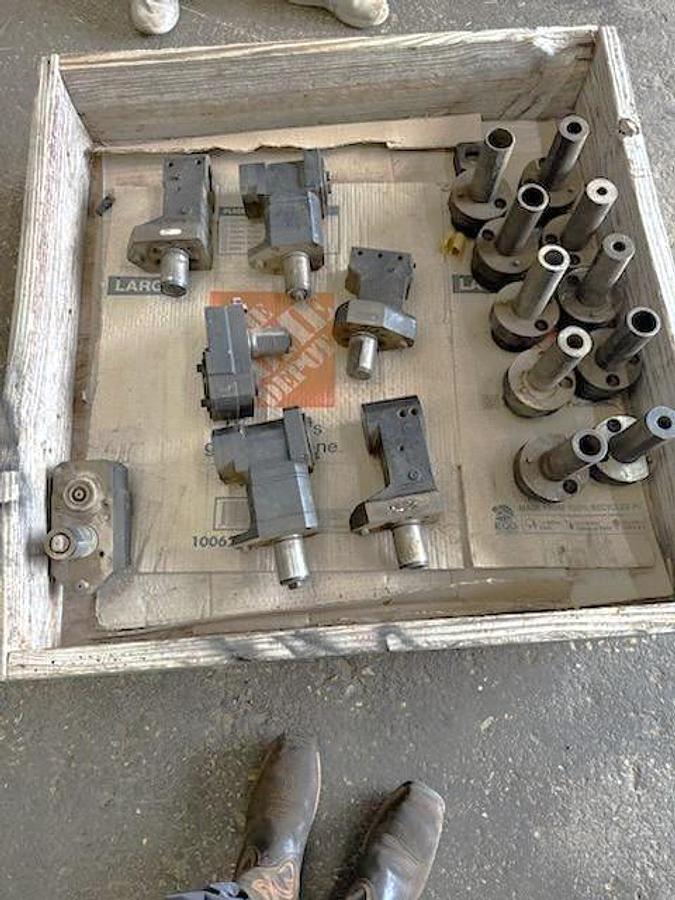

All Available Static Tool Holders
All Available Live Holders
Specifications
| Manufacturer | Mazak |
| Model | Mazak Nexus QTN 450-IIM/2000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 120100 |

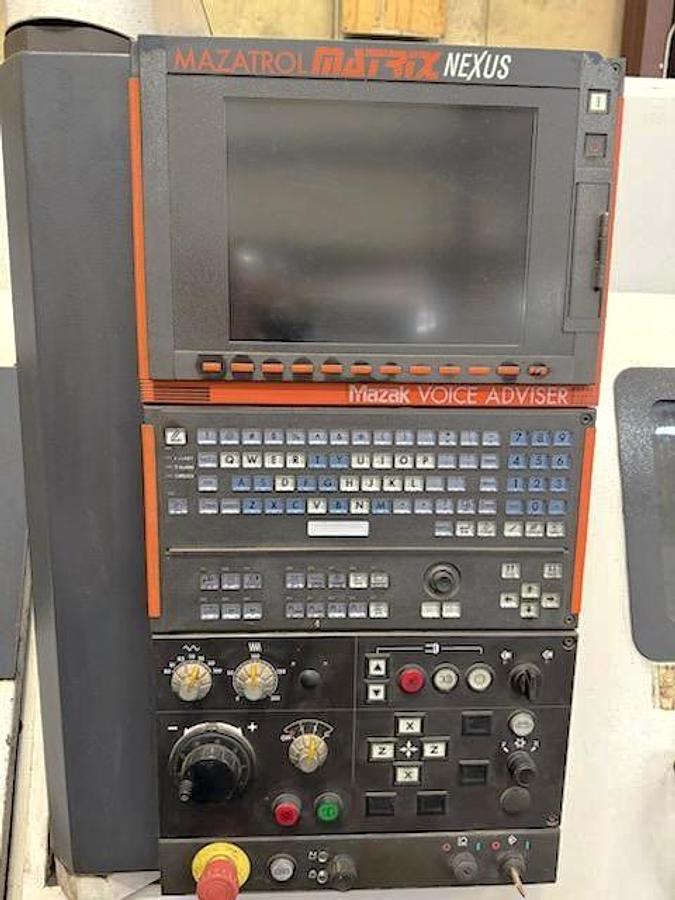

| Machine Control | Mazatrol Matrix Nexus |
| Chuck Size | 21" 3-Jaw SMW Air Chuck |
| Maximum Swing | 33.26" |
| Maximum Cutting Diameter | 22.83" |
| Maximum Swing Over Cross Slide | 18.25" |
| Maximum Turning Length | 78.69" |
| X-Axis Travel | 13.38" |
| Z-Axis Travel | 83.46" |
| C Axis Spindle Rotation | .001 Degree Full C |
| Distance Between Centers | 83.46" |
| Spindle Nose / Bore / Bar Capacity | A2-15" / 6.5" / 6.5" |
| Spindle Motor | 50 HP |
| Spindle Speeds | 2,000 RPM |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 10 HP |

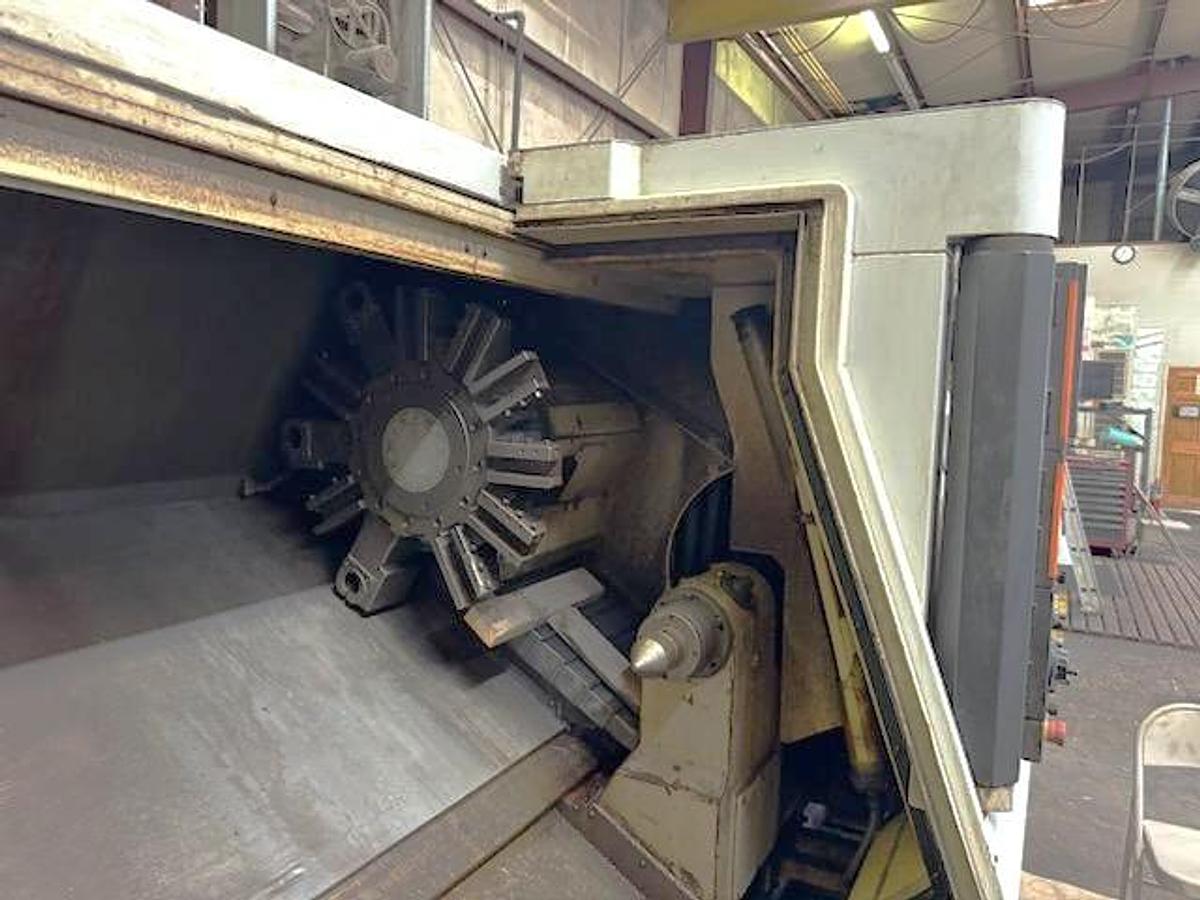

| Number of Turret Positions | 12 Sided / 24 Positions |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Quill Diameter / Center | 5" / #5 MT |
| Machine Dimensions LxWxH | 192" x 90" x 80" |
| Machine Weight | 24,200 lbs. |
