2014 Haas VF2SS with Coolant Thru Spindle, 4th Axis Drive, Prog. Coolant, Chip Auger, 24 ATC, BT #40 Taper
No longer available
2014 Haas VF2SS with Coolant Thru Spindle, 4th Axis Drive, Prog. Coolant, Chip Auger, 24 ATC, BT #40 Taper
Location:New York, NY
Description
24+1 Position Side Mounted Tool Changer
BT #40 Taper Spindle
Coolant Through the Spindle - 300 PSI
4th Axis Drive and Wiring
Auger Style Chip Conveyor
Programmable Coolant Nozzle
USB Port Interface
Coolant System with Tank & Pump
RS 232C Port Interface for DNC Operation
195-260V Electrics

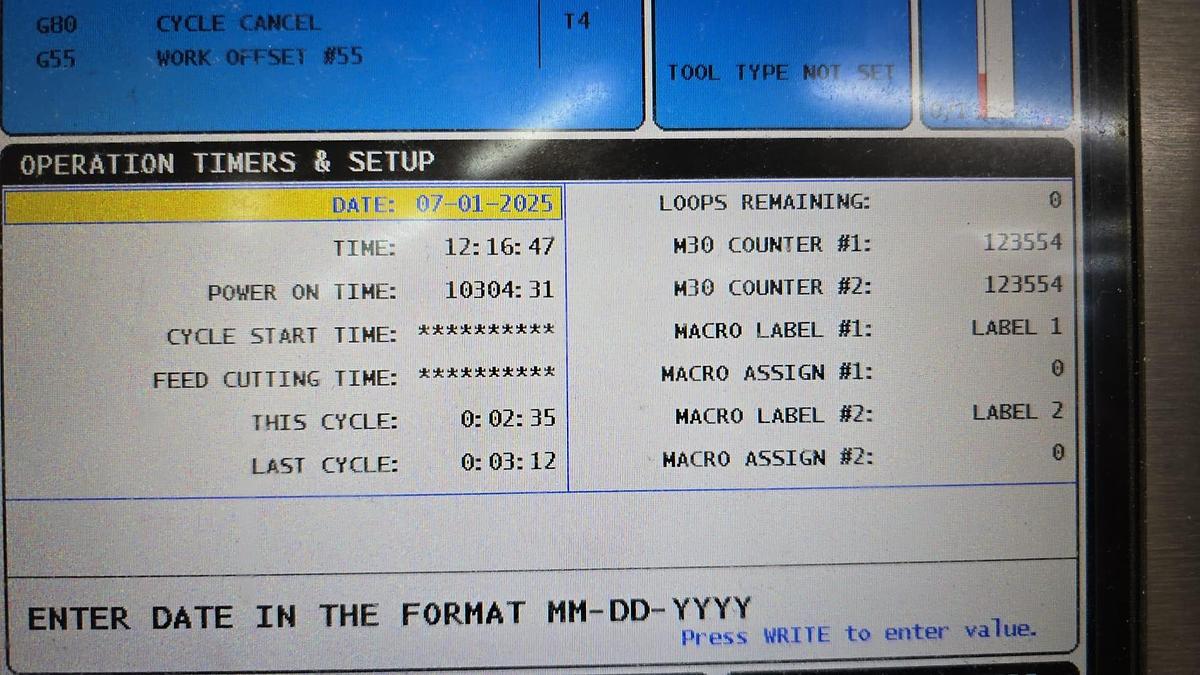

**Power On Hours 10,304**
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120097 |
| Table size | 36" x 14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | BT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 93" x 106"H |
| Machine weight (approximately) | 9,000 lbs. |
