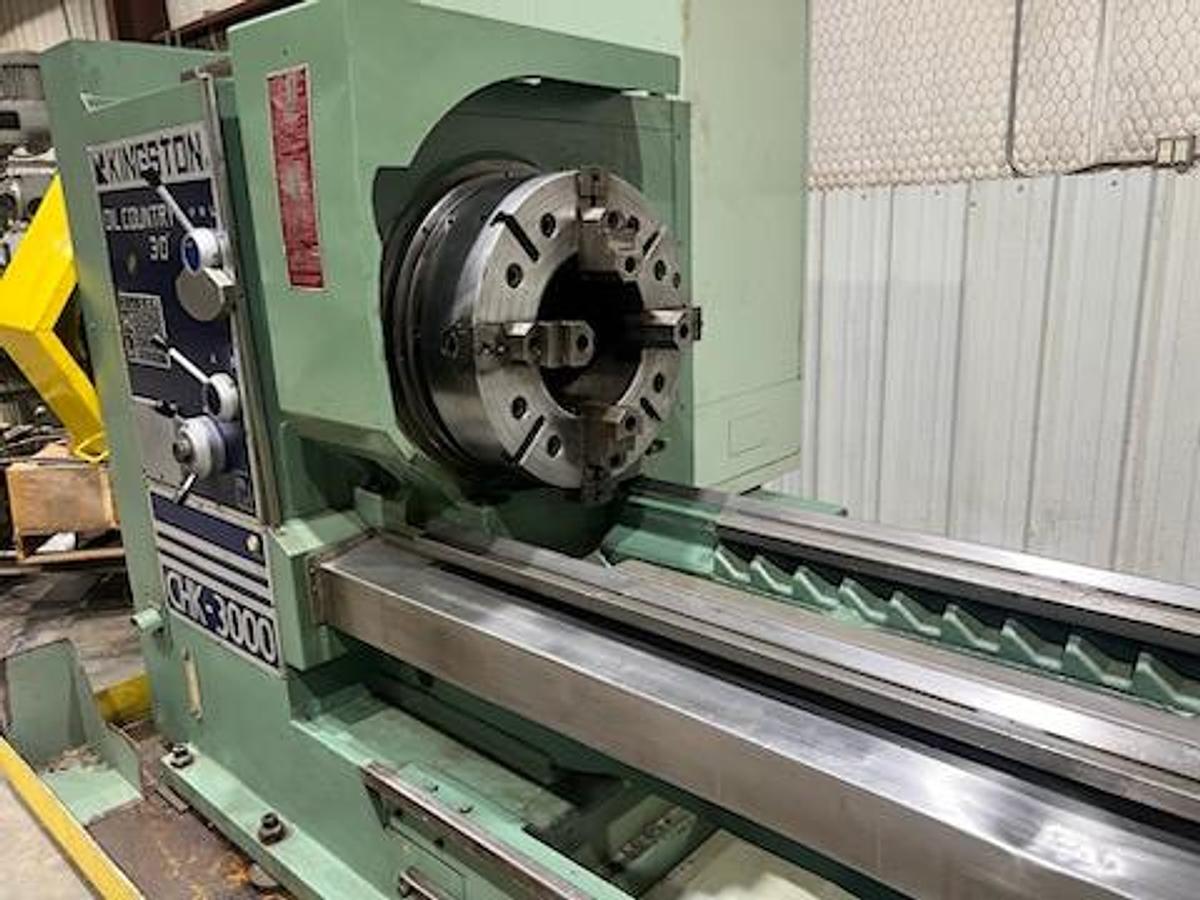

2001 Kingston CHK-3000 w/12.5" Bore
2001 Kingston CHK-3000 w/12.5" Bore
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description

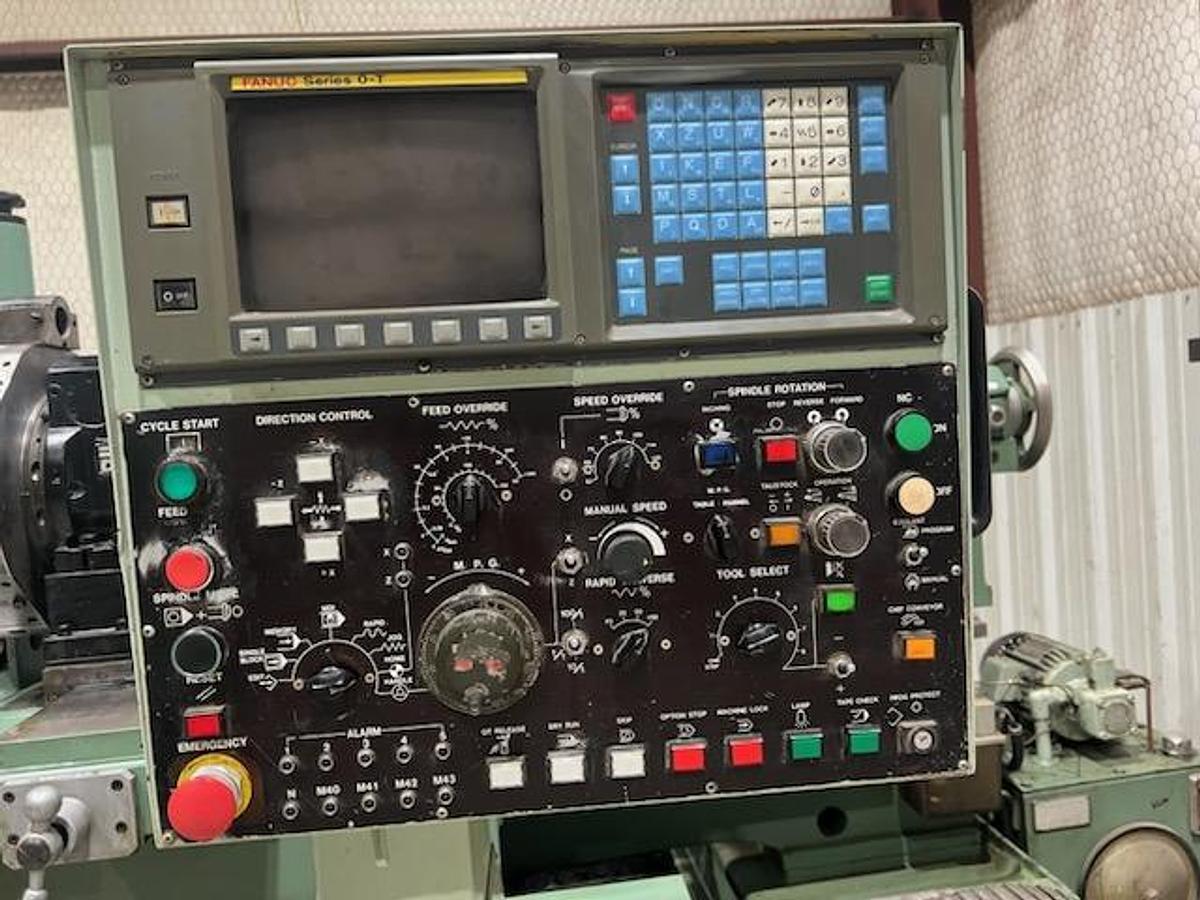

Fanuc OT
Dual 24" 4-Jaws Chucks
Steady Rest
Chip Conveyor
Auto Thread Re-Track
2-Speed Drive Tailstock Quill
Coolant System
All Available Manuals
Specifications
| Manufacturer | Kingston |
| Model | CHK-3000 w/12.5" Bore |
| Year | 2001 |
| Condition | Used |
| Stock Number | 120096 |
| Machine Control | Fanuc OT |
| Chuck Size | (2) 24" 4-Jaw Manual Chuck |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 20.5" |
| X-axis travel | 21.7" |
| Z-Axis Travel | 120" |
| Spindle Nose / Bore / Bar Capacity | A2-20 / 12.5"/ 12.5" |
| Spindle Speeds | 5-300 rpm |
| Spindle Motor | 20 hp |
| Number of Turret Positions | 8 Vertical Front / 6 Horizontal Rear |
| Rapid Traverse Rates | 394 ipm |
| Tailstock Quill Diameter / Quill Travel / Taper | 5.12" / 11.75" / #6 MT |
| Threading Inch | (5) 1-28 TPI |
| Threading Metric | (41) 1-28mm |
| Machine Dimensions LxWxH | 226"x74"x75" |
| Machine Weight | 18,000 lbs |
