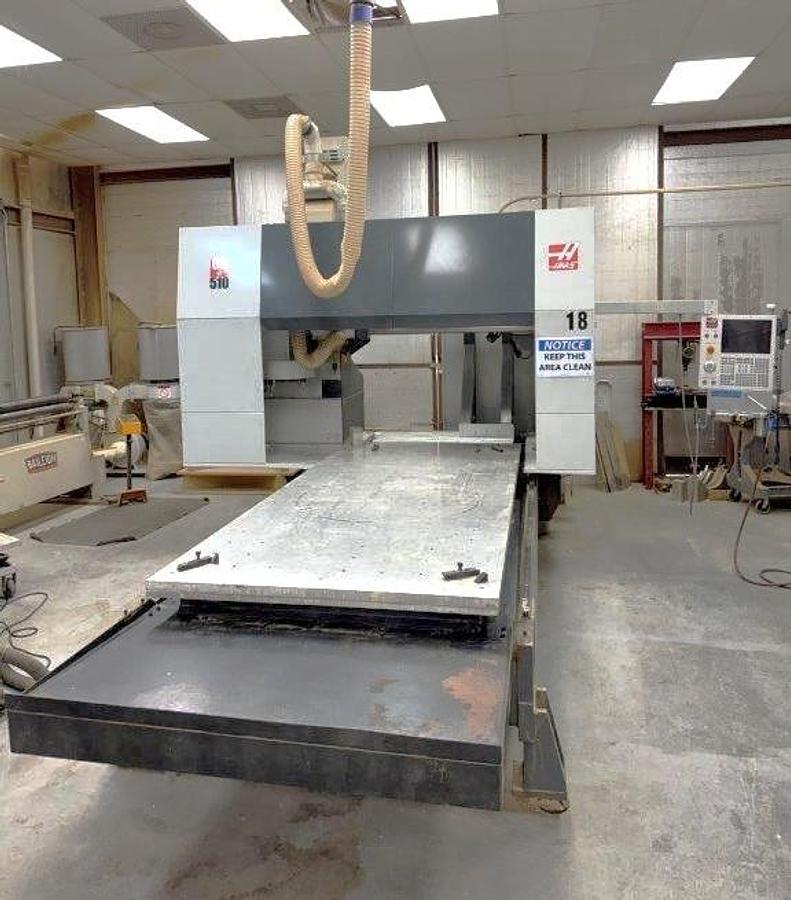

2021 Haas GR-510 with Extended 24" Z Axis Travel, Probing, 10,000 RPM, Aluminum Table, LOW HOURS
2021 Haas GR-510 with Extended 24" Z Axis Travel, Probing, 10,000 RPM, Aluminum Table, LOW HOURS
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
Haas Wireless Probing Package
Extended 24" Z Axis Travel
10,000 RPM Greased Packed Spindle
10 Station Tool Changer
Optional Coolant System with Tank & Pump and Coolant Guarding Spindle Orientation Coordinate Rotation & Scaling User Definable Macros Visual Part Programming System
Remote Jog Handle - XL Touch Screen
Aluminum Table Design Early Power Failure Detection Module
Media Display M130 Haas Connect Haas Drop
Wifi for Haas Machines
Media Display Ethernet Interface
USB Port Interface
RS 232 Port Interface 1 GB Programming Memory
Wired at 220V Electrics
Aluminum Subplate on Table
Low Voltage Transformer
**ONLY 1,700 Spindle Run Hours**
**Price new at $231,975 as equipped**
Specifications
| Manufacturer | Haas |
| Model | GR-510 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 120094 |
| Control | Haas CNC Control |
| Table Size | 122" x 53" |
| Maximum Weight on Table | 6,000 lbs. |
| Distance Between Columns | 62" |
| X-Axis Travel | 121" |
| Y-Axis Travel | 61" |
| Z-Axis Travel | 24" |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 RPM |
| Spindle Motor | 15 HP |
| Number of Tool Positions | 10 Station Tool Changer |
| Maximum Tool Diameter | 3.5" |
| Rapid Traverse Rates X / Y / Z | 800 IPM / 2100 IPM / 1100 IPM |
| Machine Dimensions | 208" x 114" x 125" |
| Machine Weight | 20,000 lbs. |
