2020 Haas CM-1 Compact Mill with 20 Station ATC, 30,000 rpm, ONLY 19 FEED CUT HOURS
2020 Haas CM-1 Compact Mill with 20 Station ATC, 30,000 rpm, ONLY 19 FEED CUT HOURS
$53,500 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description

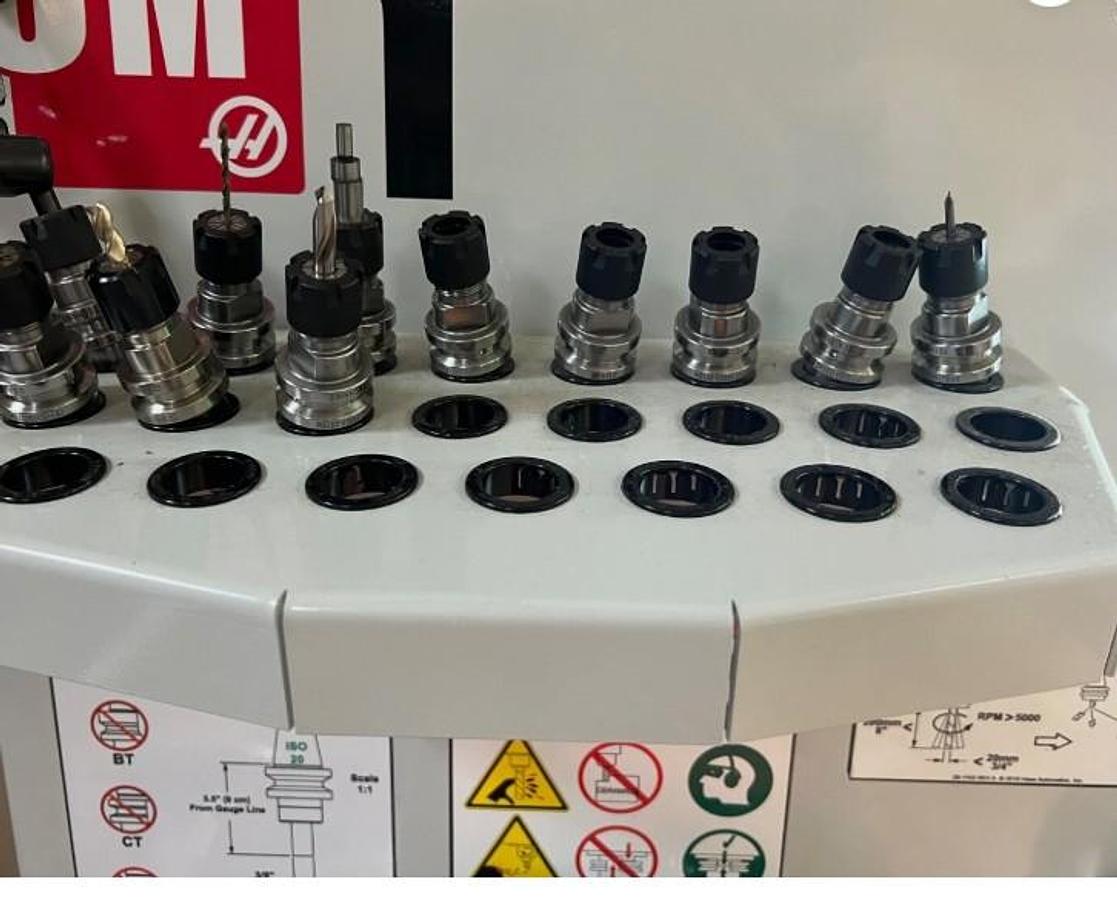

20 Station Tool Changer
Coordinate Rotation & Scaling
User Definable Macros
High Speed Machining
30,000 RPM Spindle
Rigid Tapping
Window Air Blast
1 GB Expanded Programming Memory
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Haas Drop
Haas Connect Remote Monitoring
Wifi for Haas Control
Early Power Failure Detection Module
Advanced Tool Management
Media Display M Code M130
Steel Way Covers
Complete 15 Gallon Coolant System w/ Tank & Pump
Wired 220V and Usable on Either Three Phase or Single Phase Power
Ultra Compact Footprint

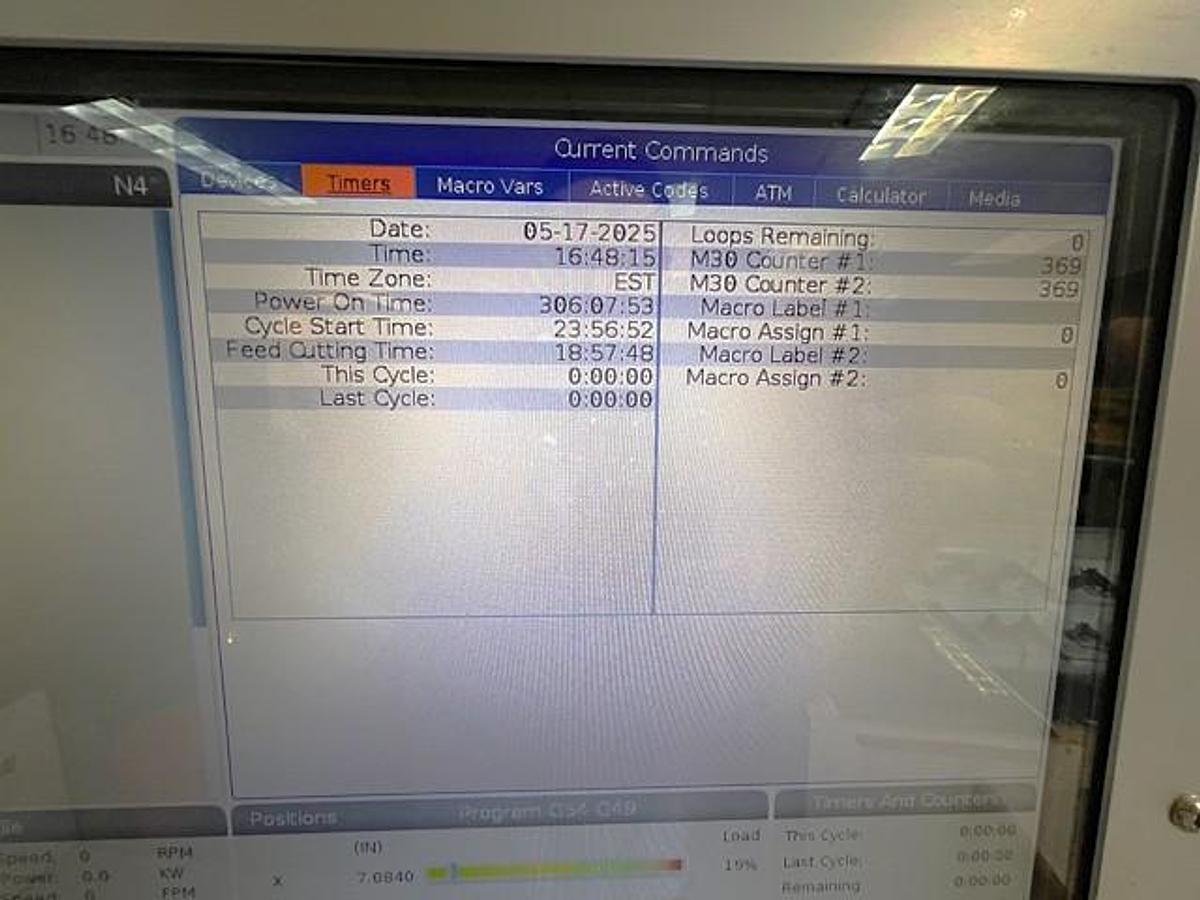

**ALMOST NO USE with ONLY 19 FEED CUT HOURS**
**Price today at $74,995 as equipped**
Specifications
| Manufacturer | Haas |
| Model | CM-1 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120093 |
| Machine Control | Haas CNC Control |
| Table Size | 22.5" x 10" |
| Maximum Table Load | 150 lbs |
| X-Axis Travel | 12" |
| Y-Axis Travel | 10" |
| Z-Axis Travel | 14" |
| Spindle Taper | ISO 20 |
| Spindle Speed | 30,000 RPM |
| Spindle Motor | 5 HP |
| Tool Magazine Capacity | 20 Station Umbrella Style ATC |
| Maximum Tool Diameter / Length / Weight | 2.3" / na / 5 lbs |
| Rapid Traverse Rates | 757 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 62"x78"x92" |
| Machine Weight | 2,200 lbs |
