2010 Haas Super Mini Mill
No longer available
2010 Haas Super Mini Mill
Location:Ohio
Description
Remote Jog Handle
Visual Quick Code
3.5" Floppy Disk Drive
RS 232 Port Interface
Coolant System with Tank & Pump
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill |
| Year | 2010 |
| Condition | Used |
| Stock Number | 120089 |

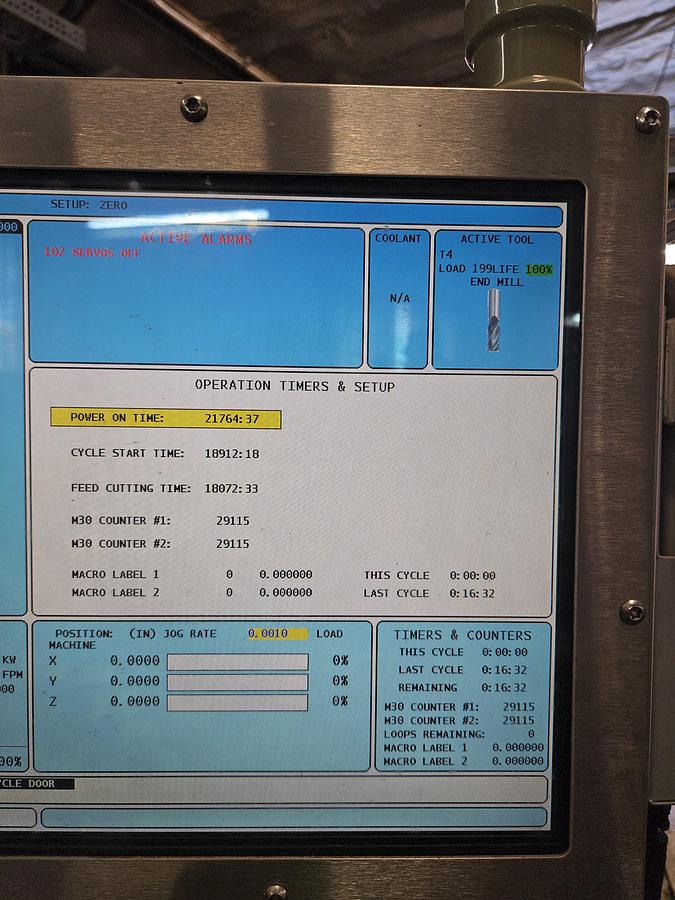

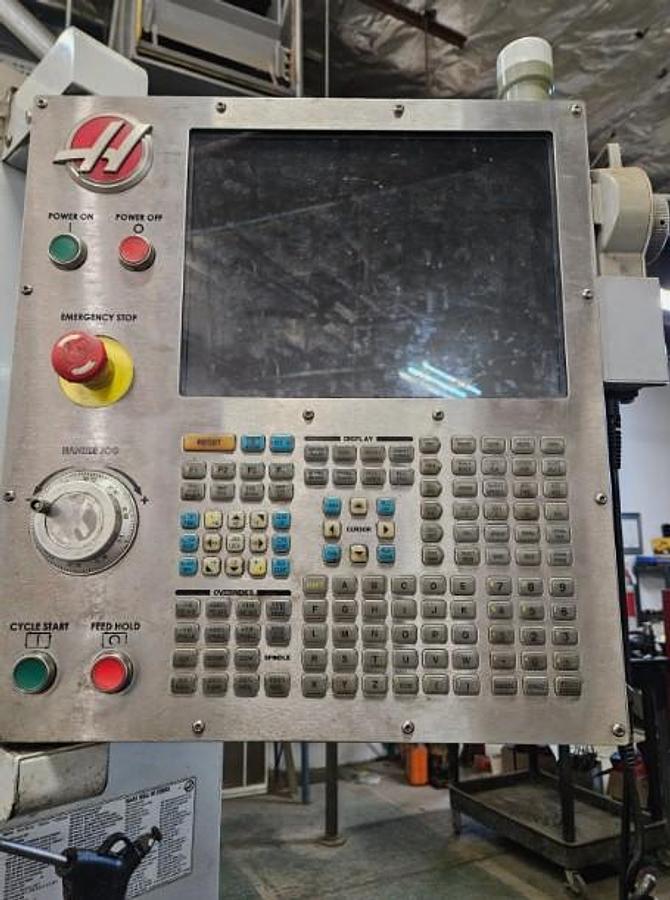

| Machine Control | Haas CNC Control |
| Table Size | 36" x 10" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 10 Station ATC |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 6,000 lbs |
