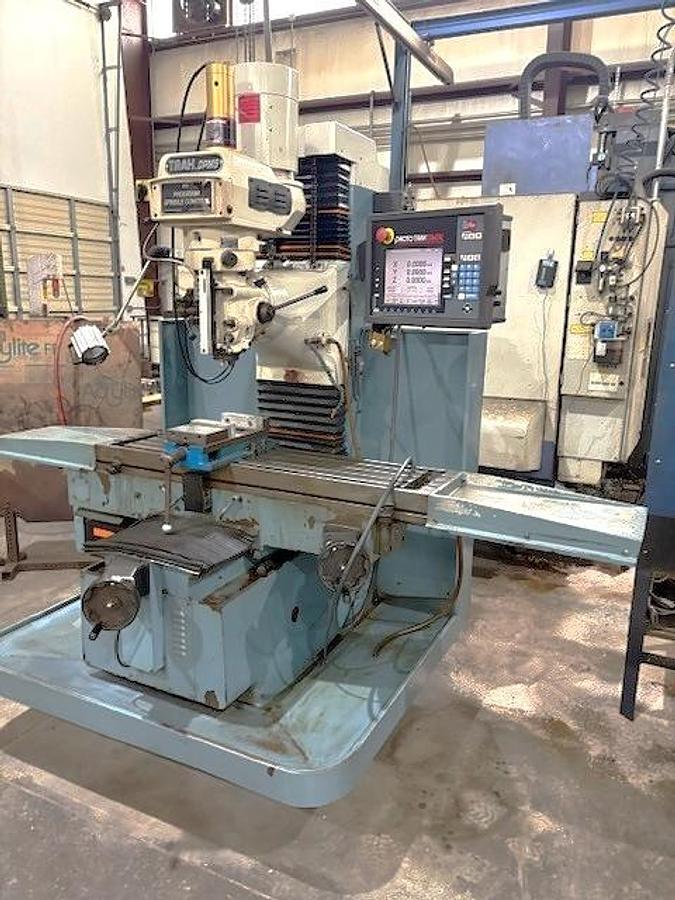

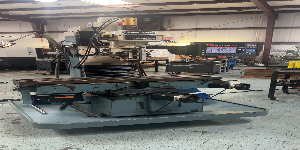

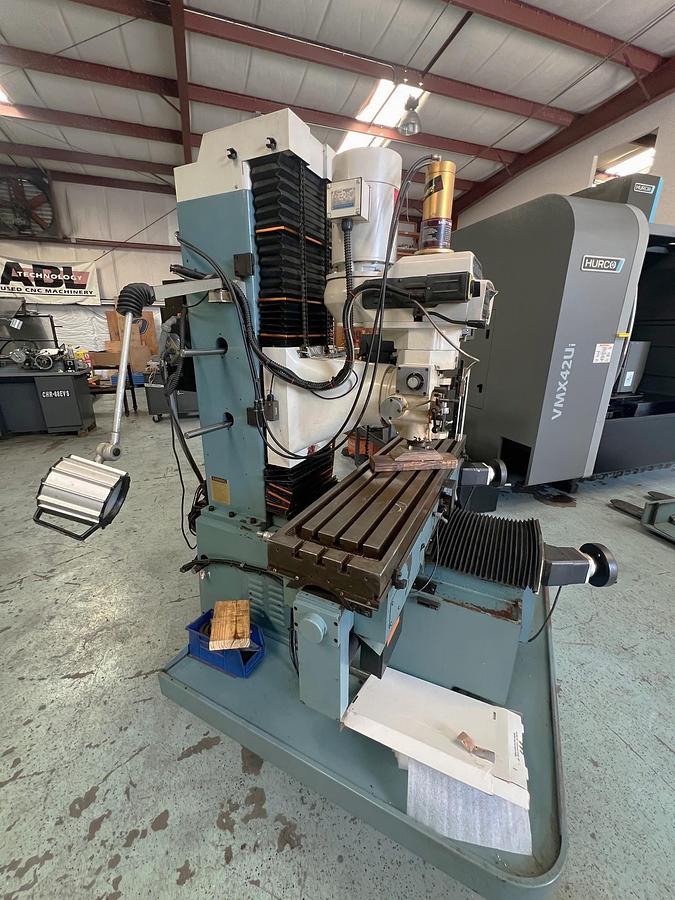

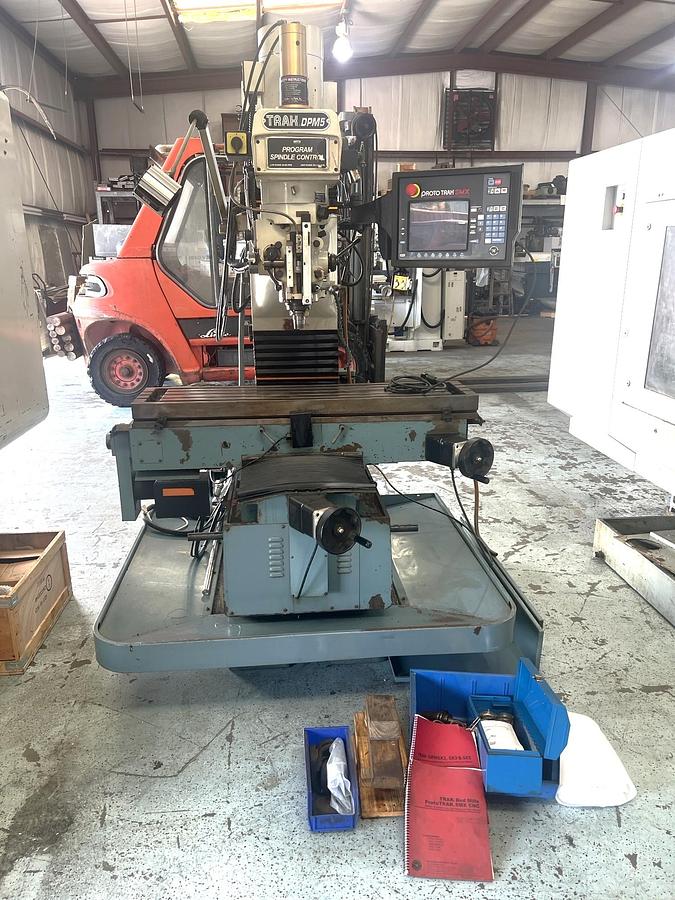

2011 Southwestern Industries Trak DPMSX5P (DPM5), CAT 40, 5 HP Motor, Conversational or G Code, Prototrak SMX Control
PRICE DROP !!
2011 Southwestern Industries Trak DPMSX5P (DPM5), CAT 40, 5 HP Motor, Conversational or G Code, Prototrak SMX Control
$19,500 (USD)
Location:Dundee, FL
or
Call (863) 439-6066
Description

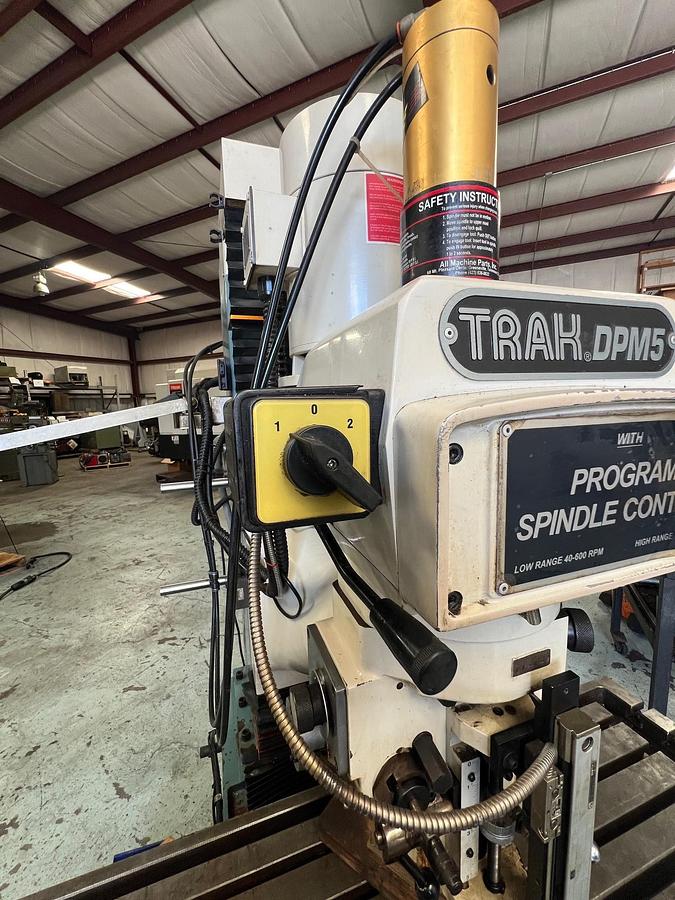

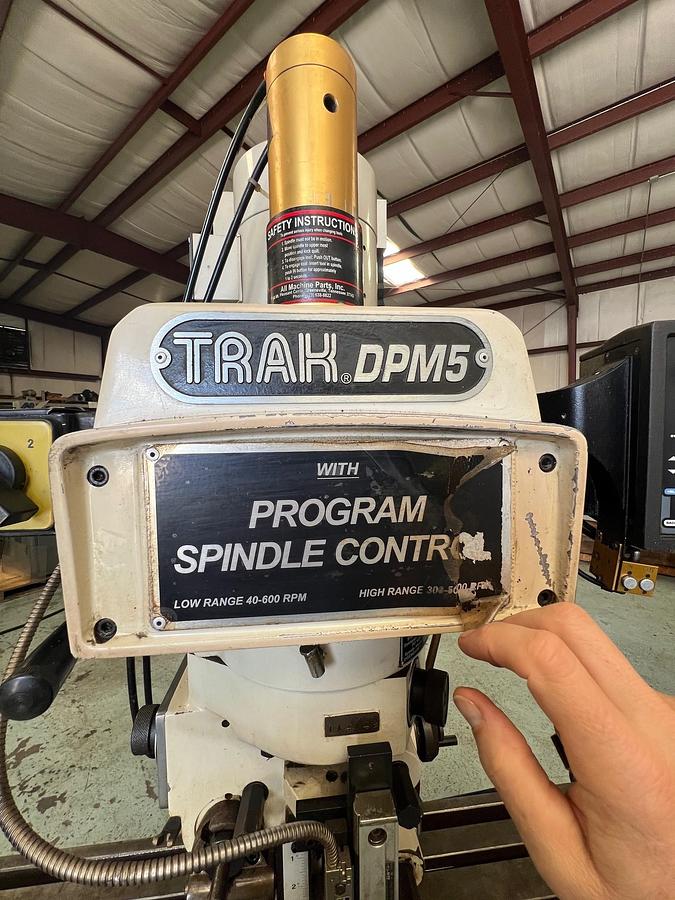

Programmable Spindle Control
Power Draw Bar
Helical Canned Cycles
Tapping Cycles
Conversational Programming Ability
Advanced Features
Networking

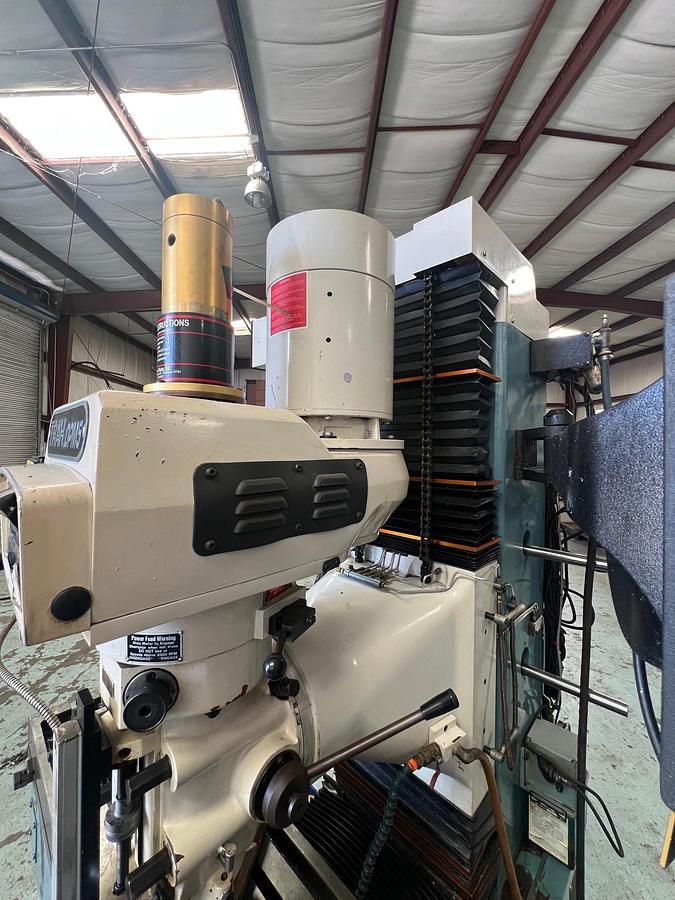

Programmable Electronic Head
Tracking / Electronic Handwheels

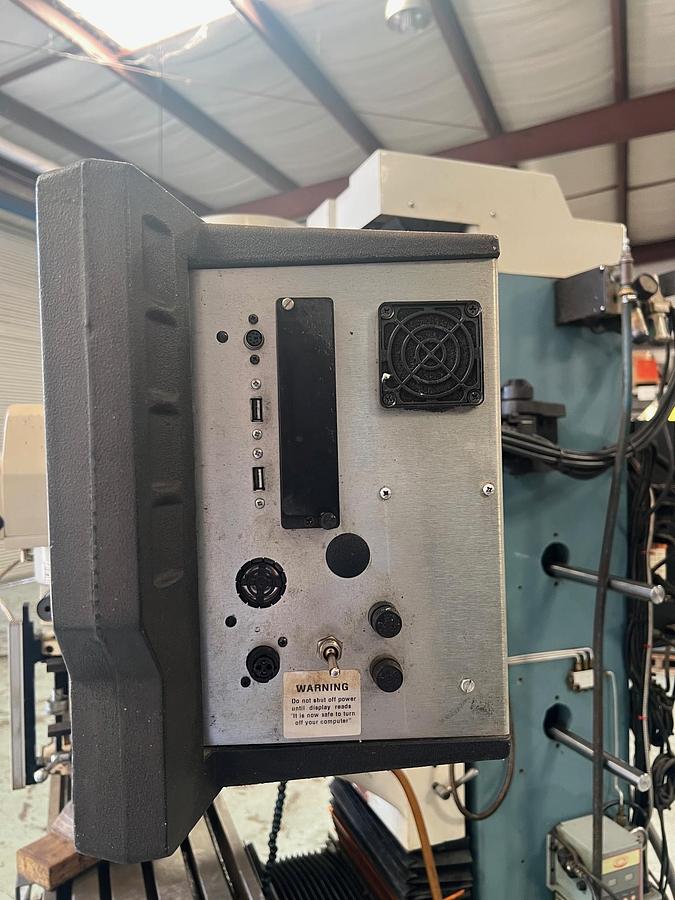

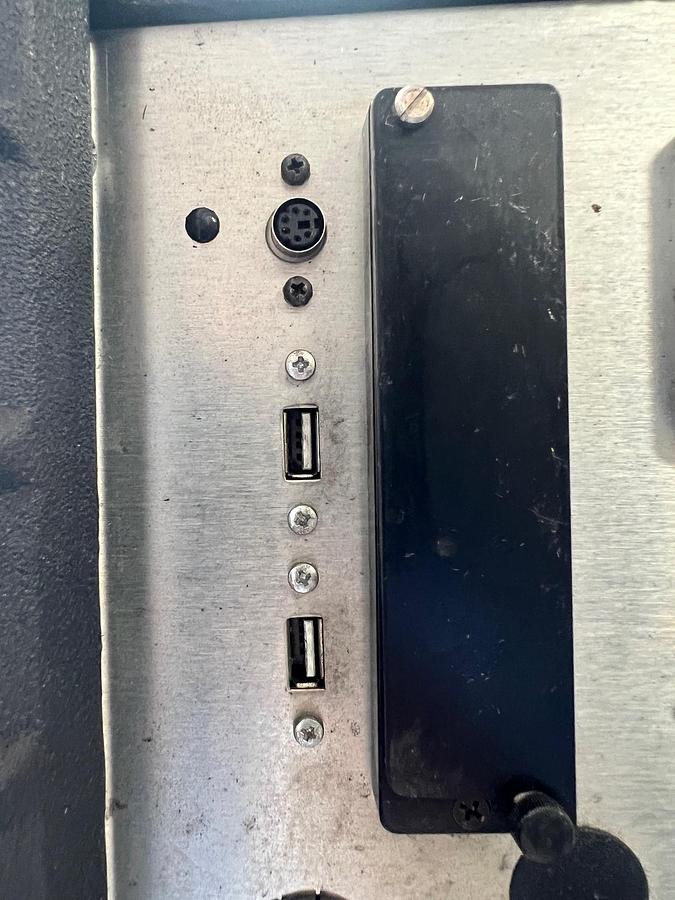

(2) USB Port Interfaces
RS232 Port Interface
DB9 Serial Port Interface
1 GB RAM

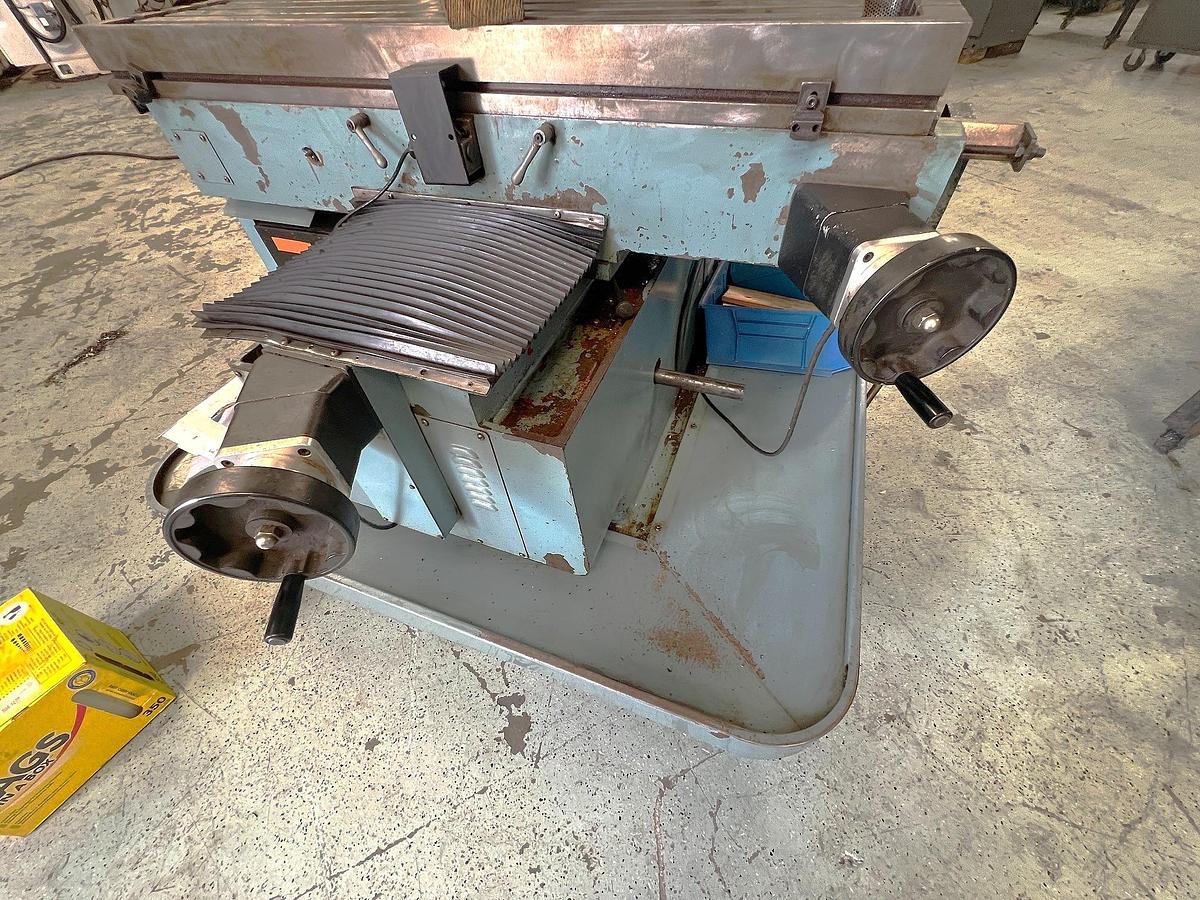

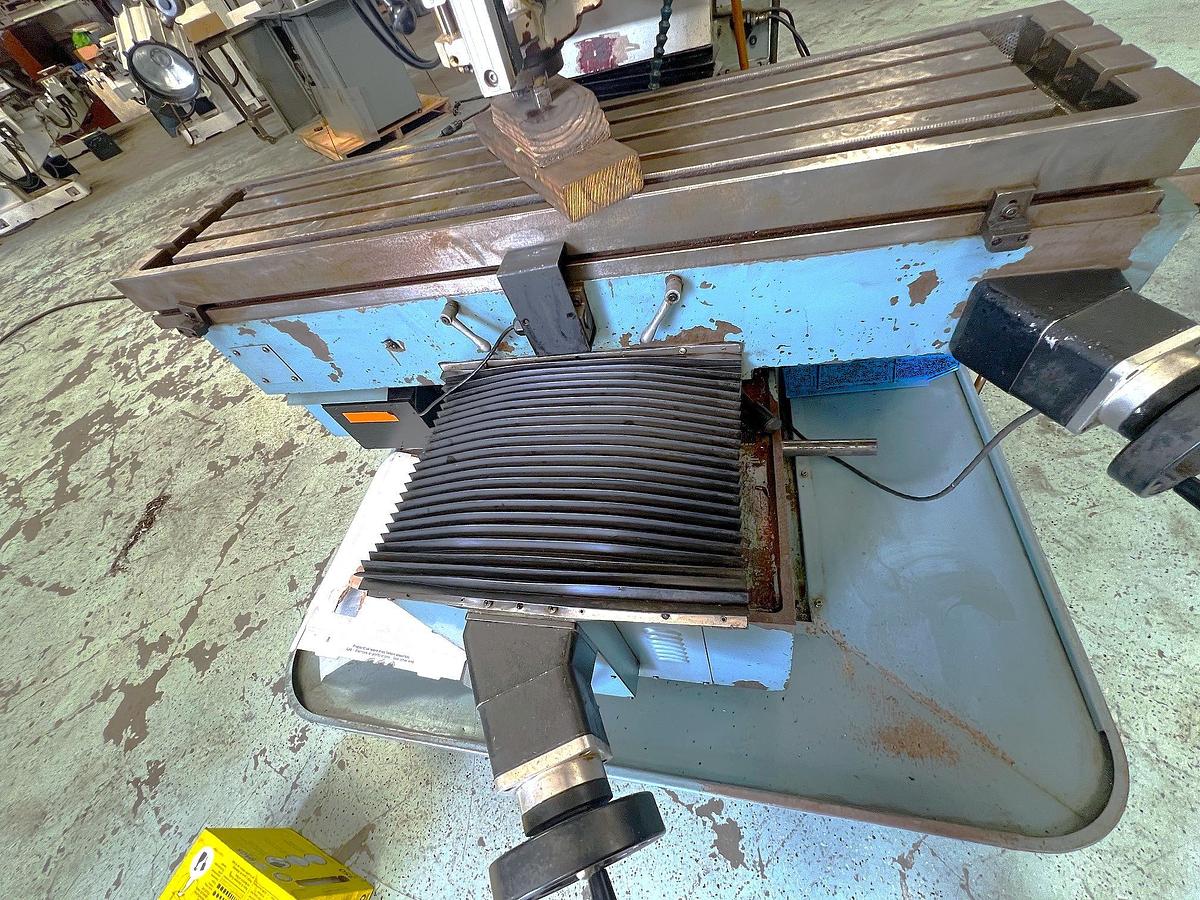

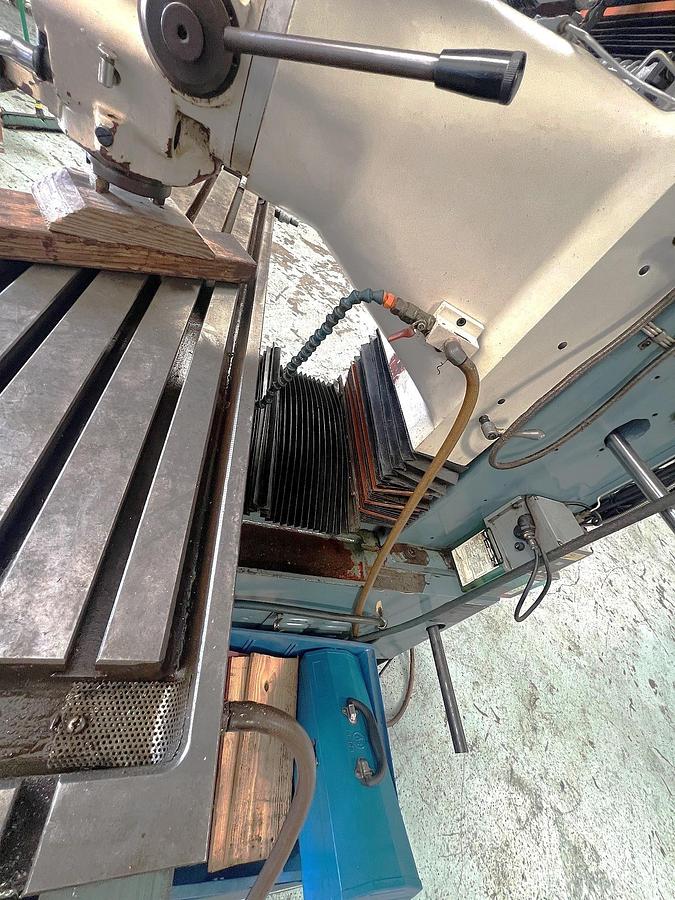

Way Covers
Solid RAM Moves on Column

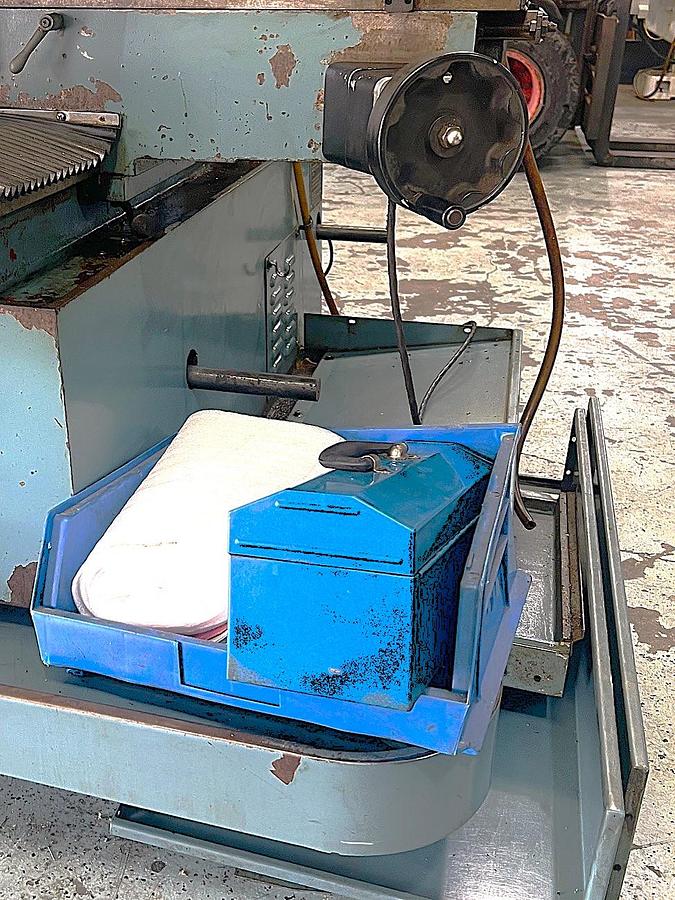

Coolant System with Built in Underside Collection Tray
Rear Coolant Splash Guarding
Lubrication System
Hardened/Ground Box Ways on Y & Z Axis
Dovetail Ways on X Axis
Work Light
Hand Wheels for Manual Movement
Run in Manual or CNC Mode
Precision Ballscrews

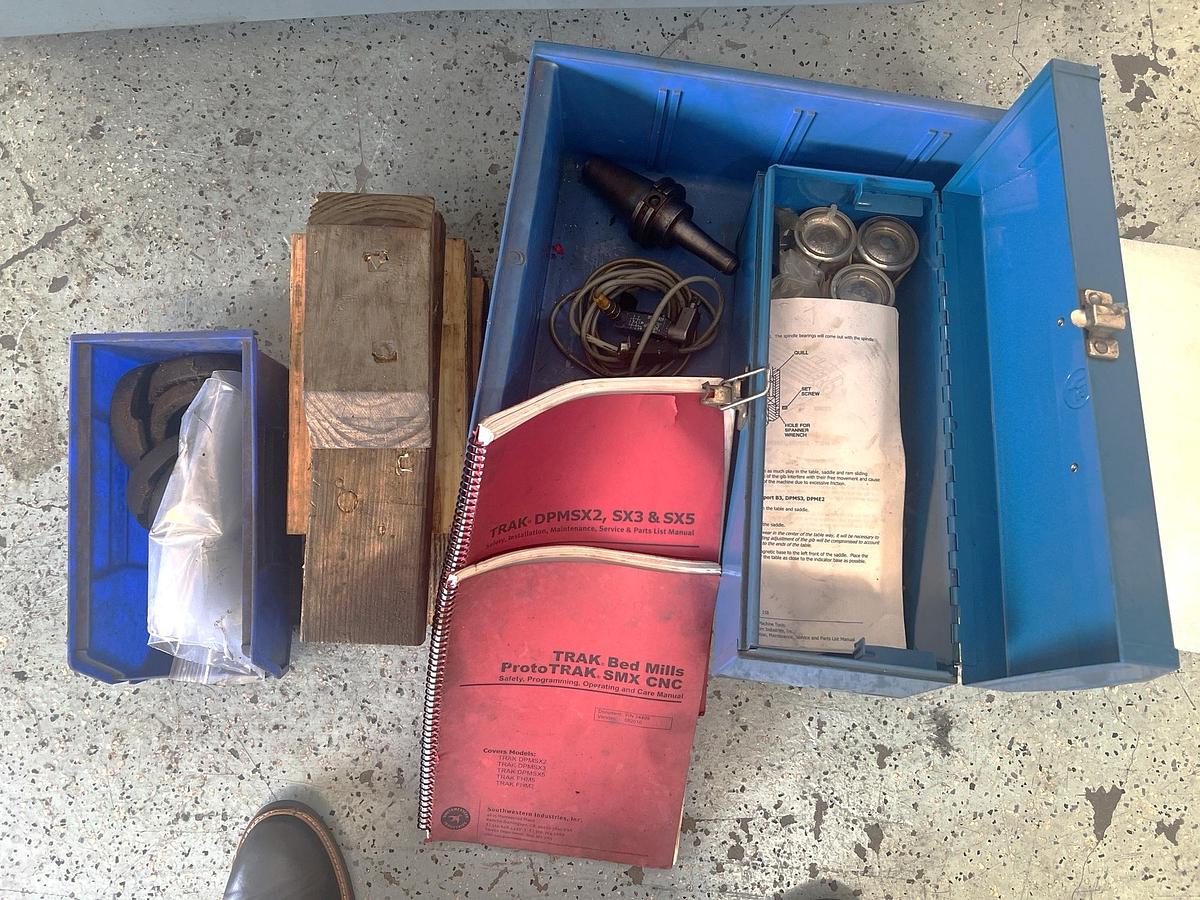

All Available Manuals

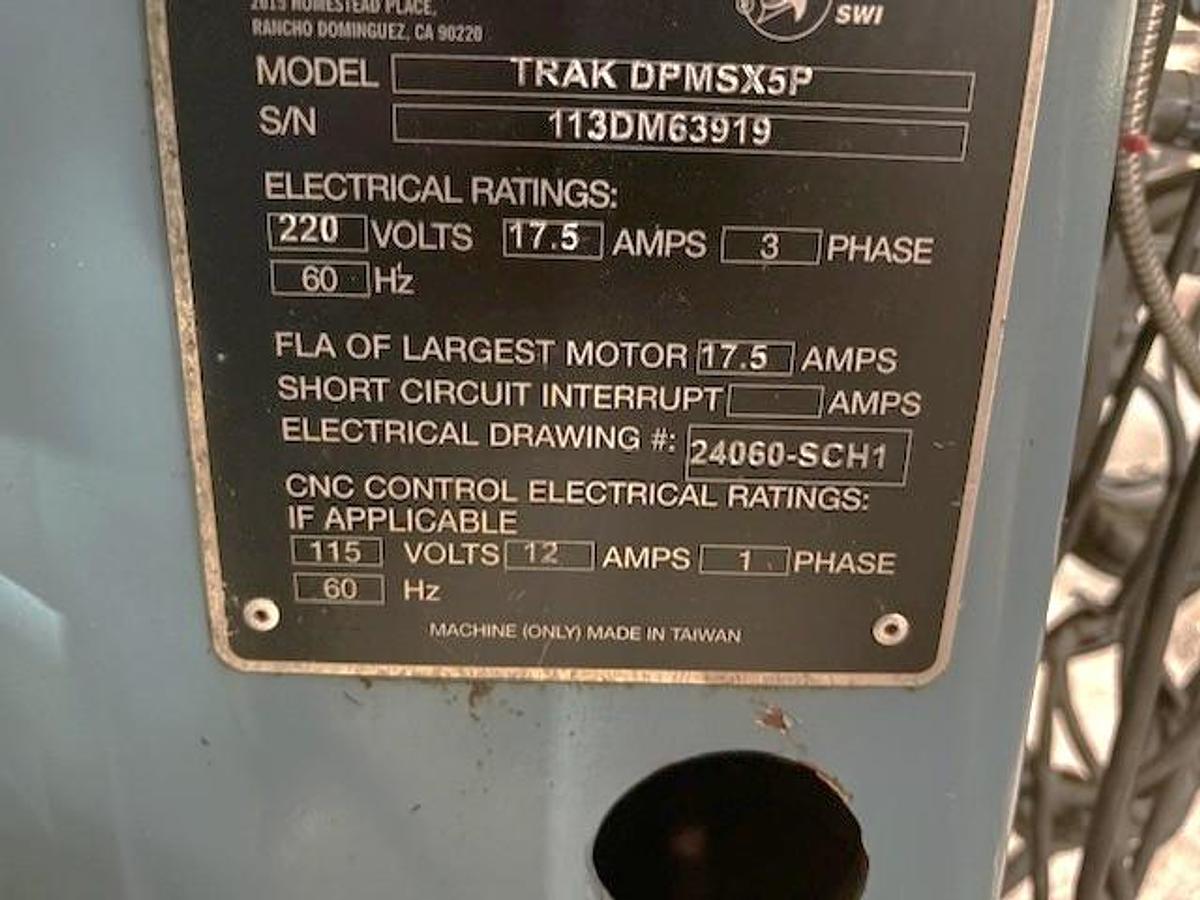

Wired 220V 3 Phase Power
(2) CAT 40 Tool Holders
Counterweight Support Bar for Shipping

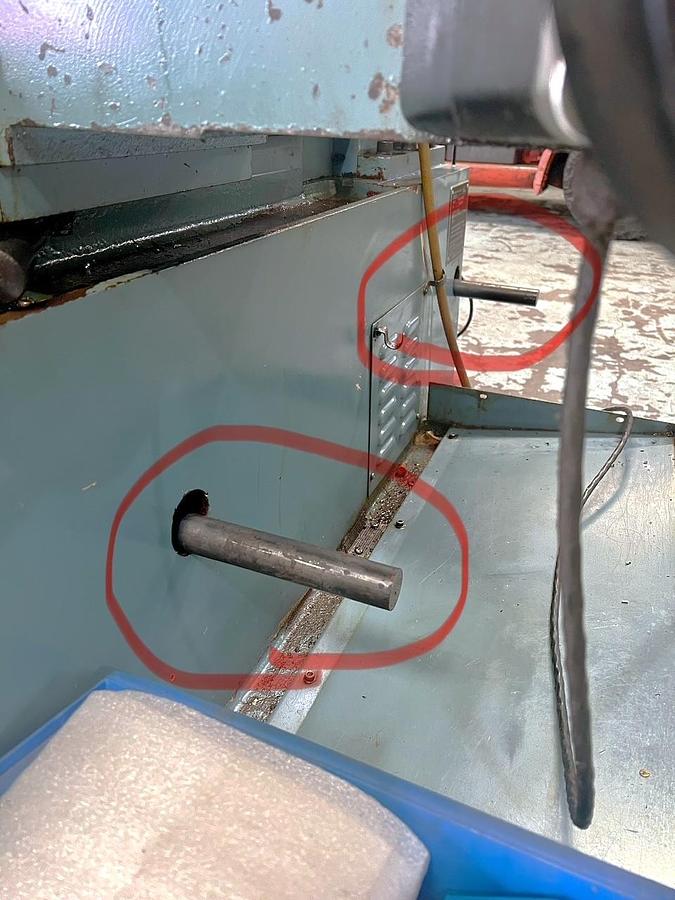

(2) Steel Lifting Bars for Shipping
Specifications
| Manufacturer | Southwestern Industries |
| Model | Trak DPMSX5P (DPM5) |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120086 |

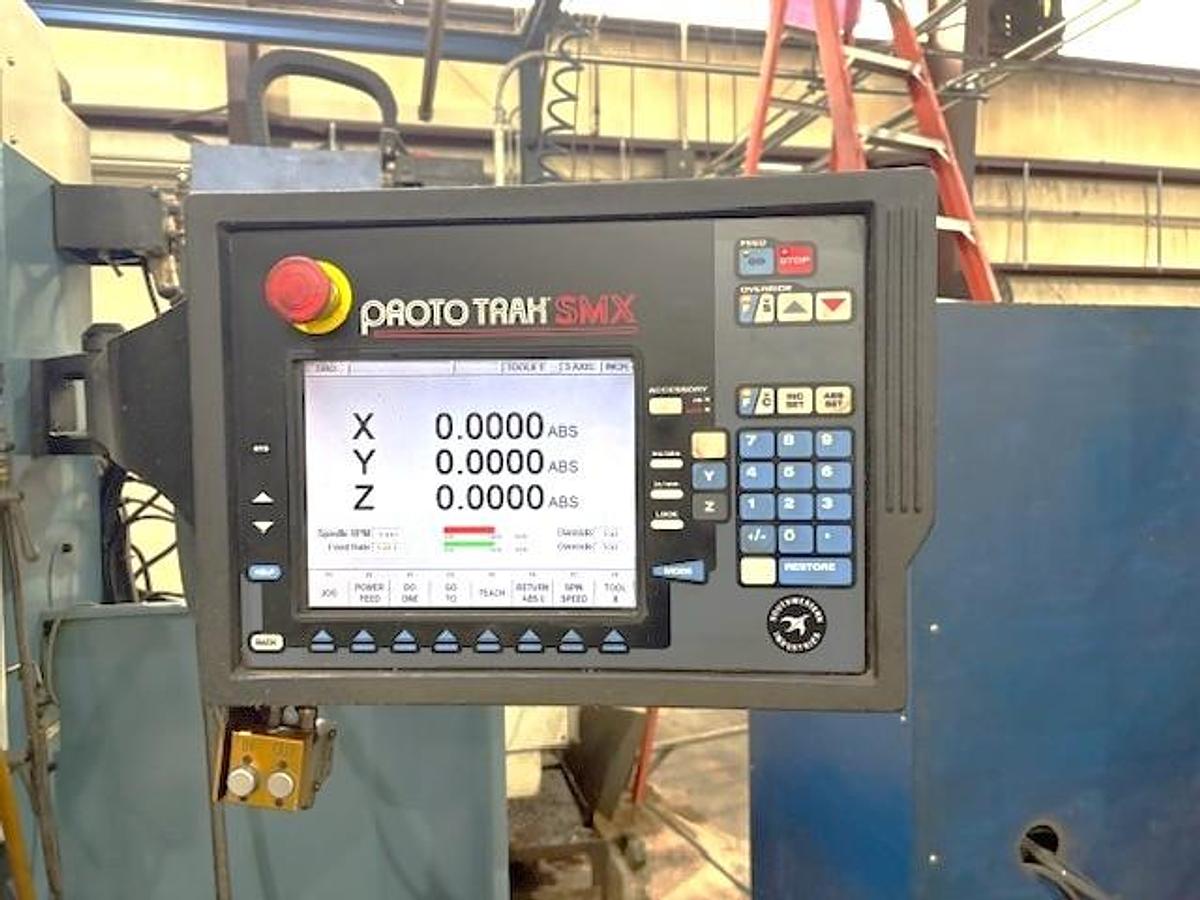

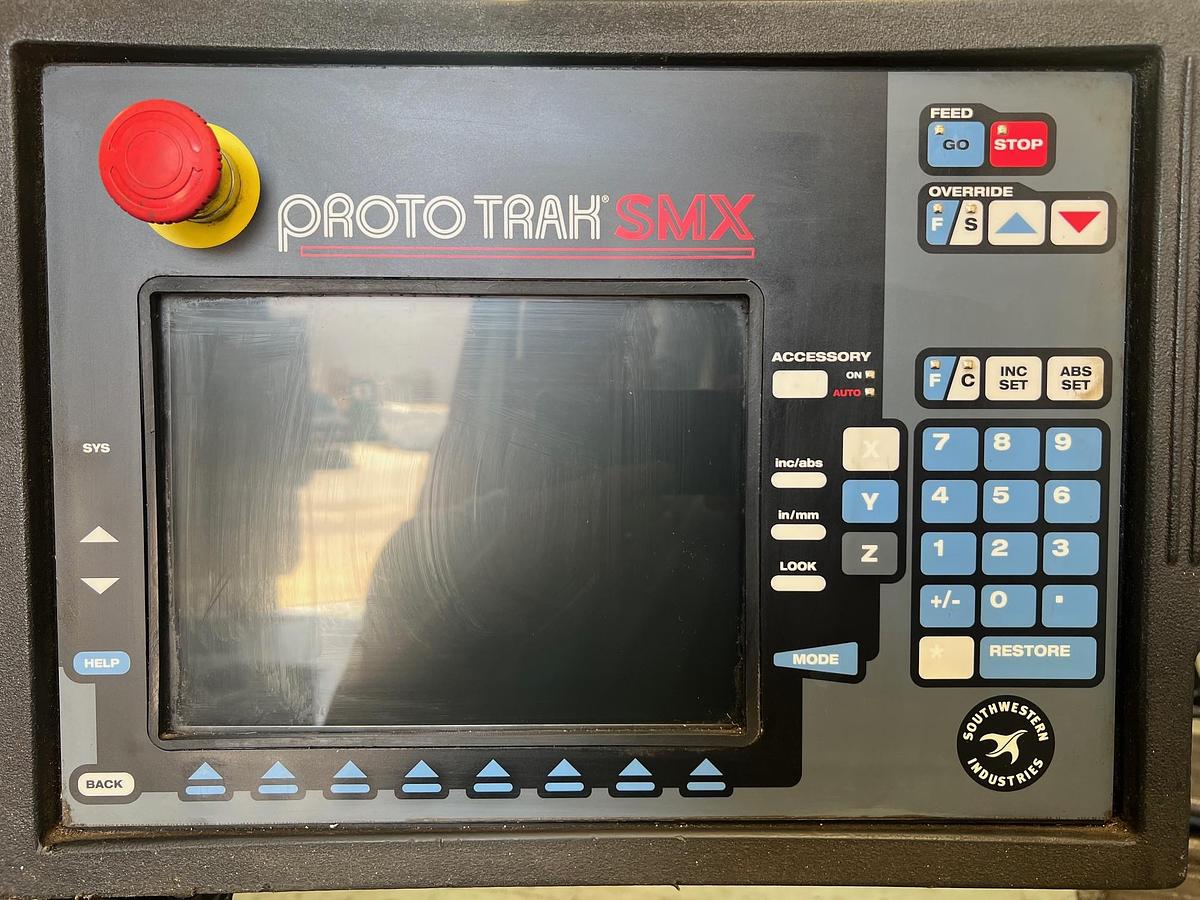

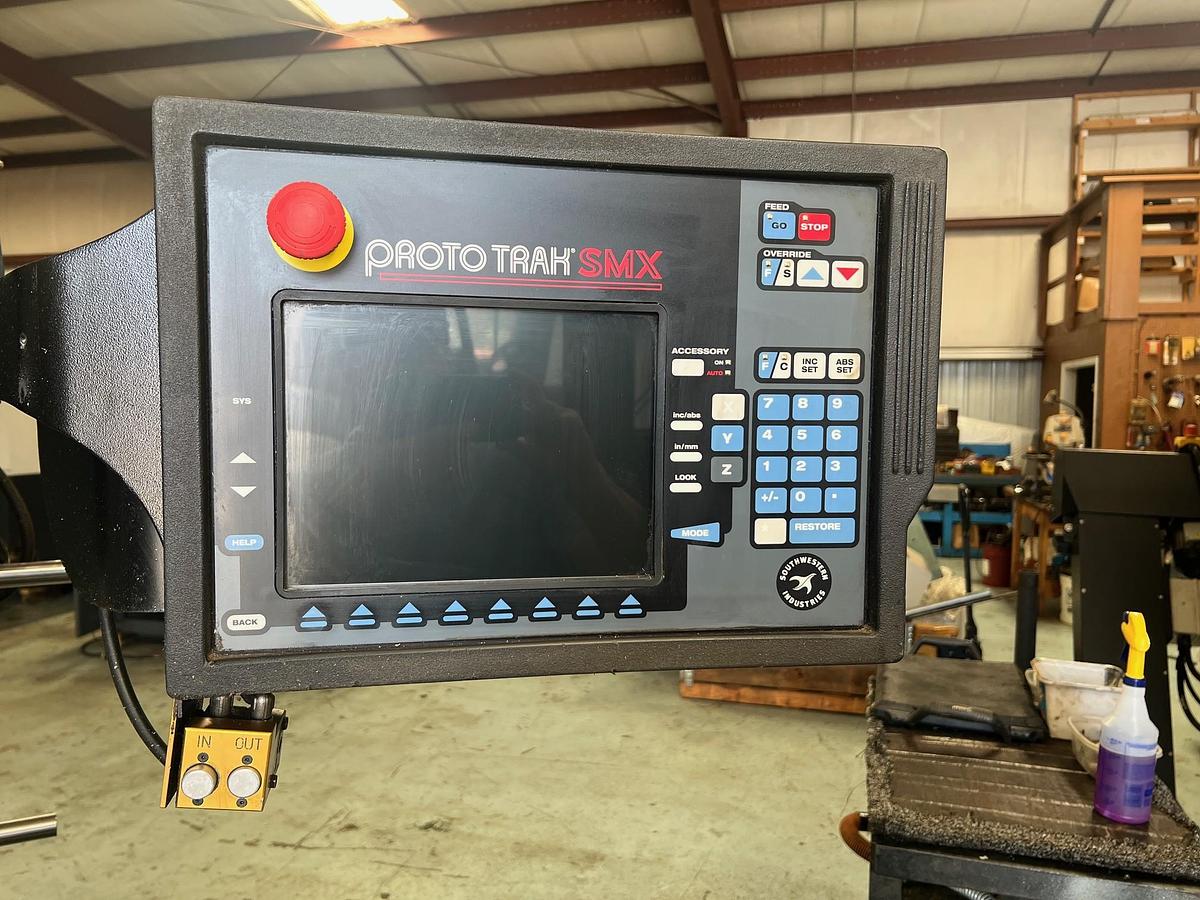

| Machine Control | Proto Trak SMX Control |

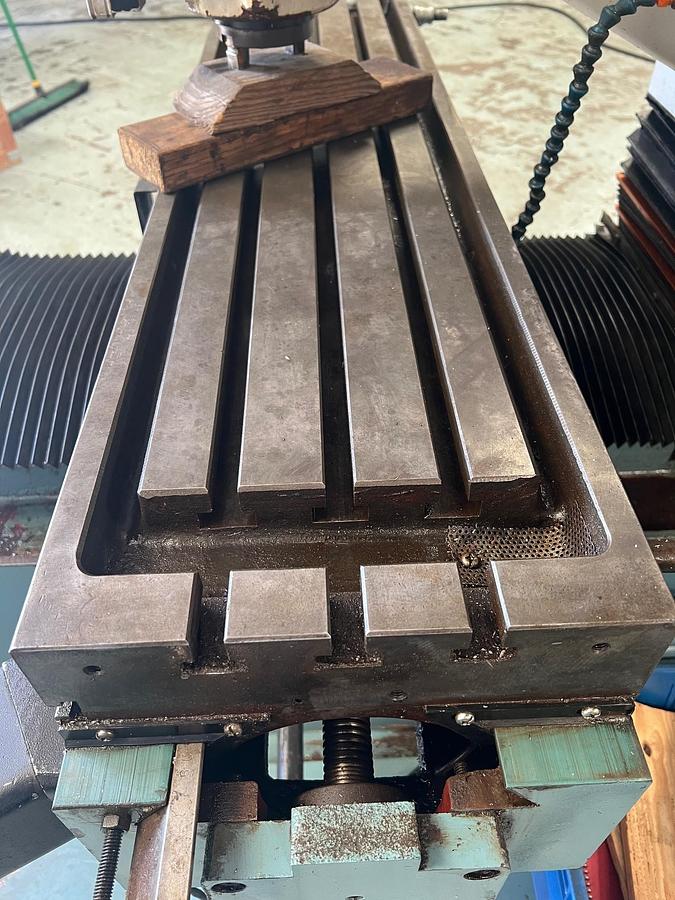

| Table Size | 50" x 12" |
| Maximum Weight on Table | 1,760 lbs |
| X-axis travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 23.5" |
| Quill Diameter | 4.13" |
| Maximum Quill Travel | 5" |
| Spindle Taper | CAT 40 Taper |
| Spindle Speeds | Low Range 40 - 600 , High Range 300 - 5,000 RPM |
| Spindle Motor | 5 HP |
| Spindle Nose to Table Top | 24" |
| Spindle Center to Column Face | 20.5" |
| Height of Table from Bottom of Bed | 41" |
| Rapid Traverse Rates | 150 IPM |
| Machine Dimensions LxWxH | 57" x 77" x 74" (max. height in use 98") without coolant guards |
| Machine Weight | 4,600 lbs |
