2006 OKK HPS-500S

Coolant thru the Spindle

Hydraulic Clamping

Spindle Chiller

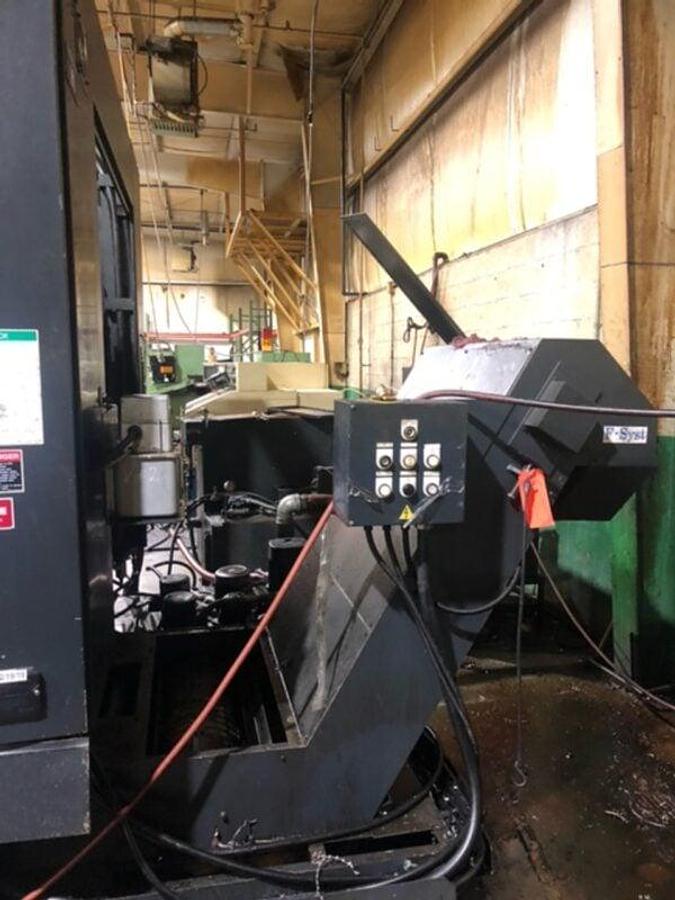

Chip Conveyor

All Available Manuals

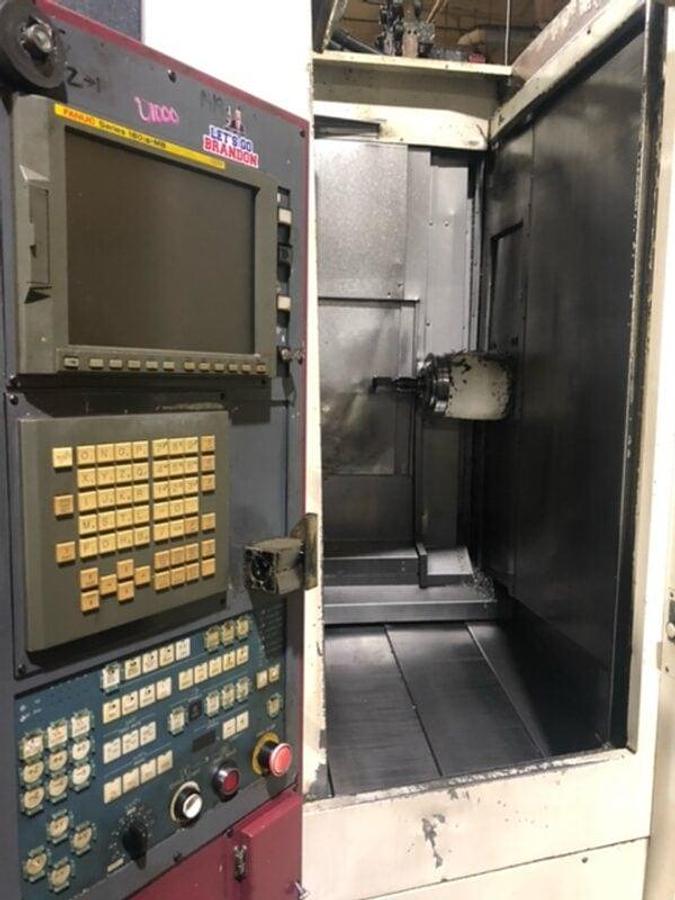

The 2006 OKK HPS-500S is a reliable CNC horizontal machining center, featuring a robust Fanuc 180i control system. It is ideal for precision machining tasks, offering a substantial pallet size of 19.7" x 19.7" with two pallets and precise indexing at .001 degrees. It supports a maximum table load of 881 lbs, ensuring versatility in handling various workpieces. This model boasts a generous travel range, with 24.8" in the X-axis, 24.4" in the Y-axis, and 23" in the Z-axis, accommodating a wide range of applications. The machine is equipped with a 12,000 RPM CAT 40 spindle powered by a 30 HP motor, delivering the speed and power necessary for efficient operations. The tool magazine capacity accommodates up to 60 tools, allowing for extensive tool availability and flexibility. With rapid traverse rates of 2,362 ipm, this machining center ensures swift and efficient production processes. It has a compact footprint with dimensions of 162" x 99" x 122", and a total weight of 18,500 lbs, making it a solid, dependable choice for industrial settings requiring rigorous machining capabilities.
