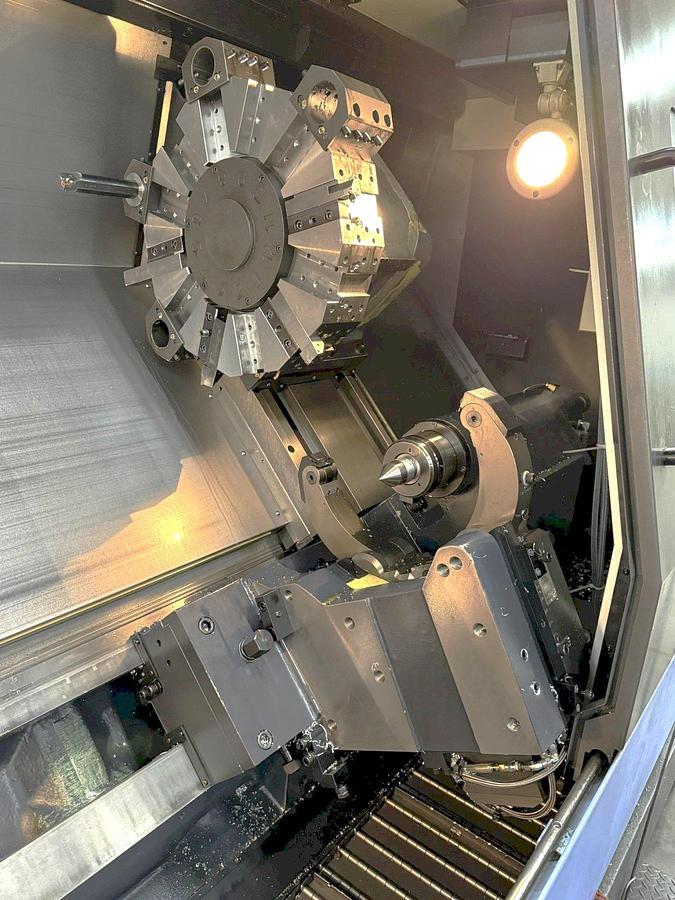

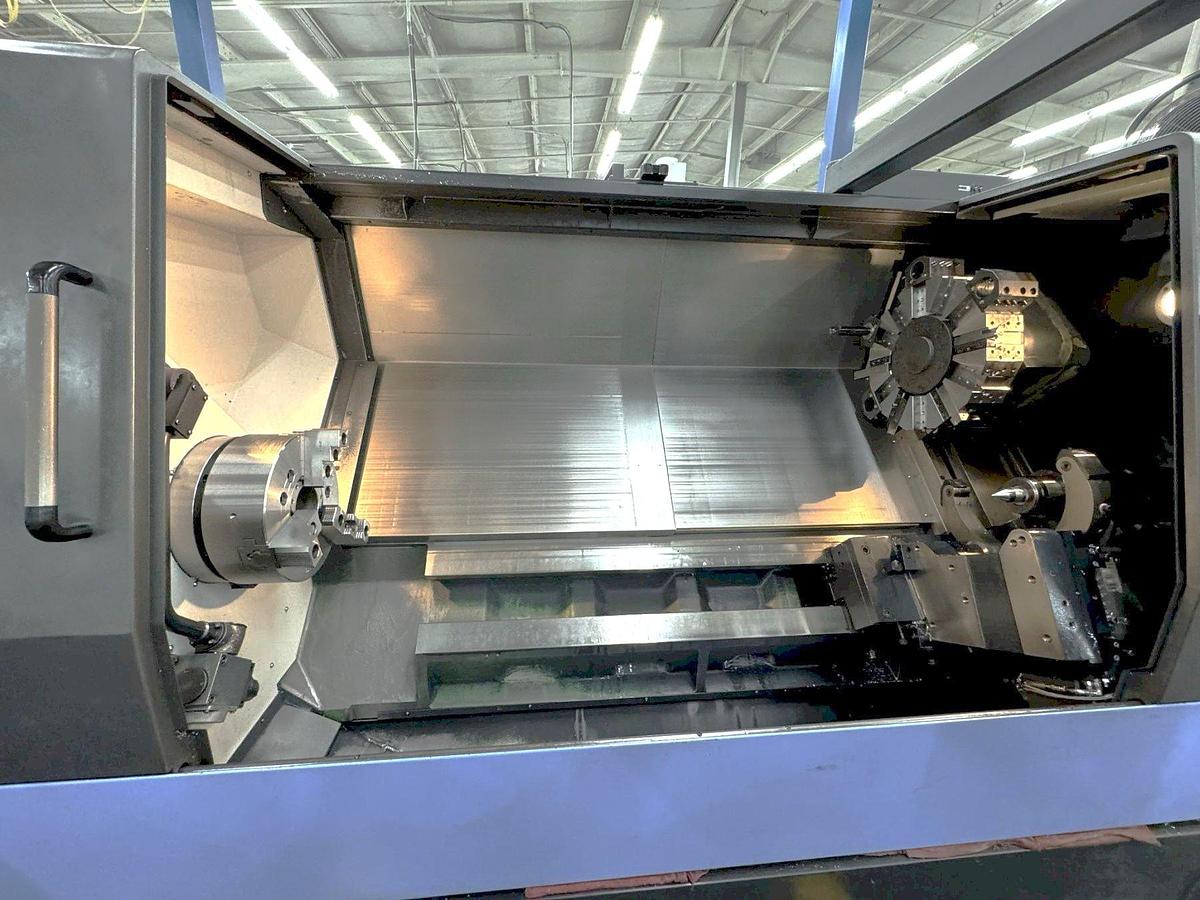

2012 Doosan Puma 400LB with 15" Hyd Chuck, LNS Hyd Steadyrest, Conveyor, Tool Eye, 4.6" Bar
2012 Doosan Puma 400LB with 15" Hyd Chuck, LNS Hyd Steadyrest, Conveyor, Tool Eye, 4.6" Bar
$99,500 (USD)
Location:Ohio
or
Call (863) 439-6066
Description

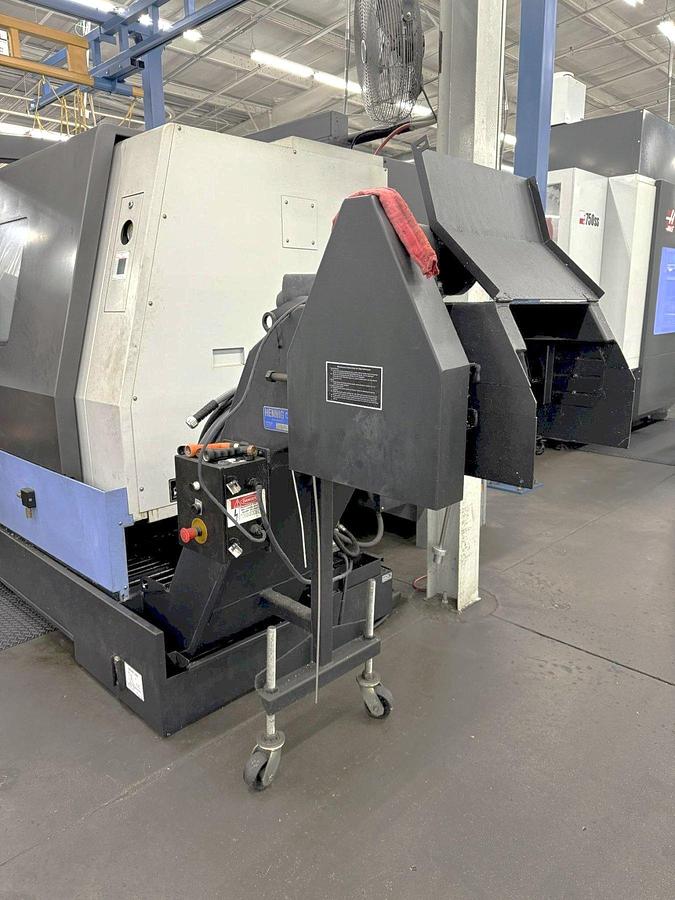

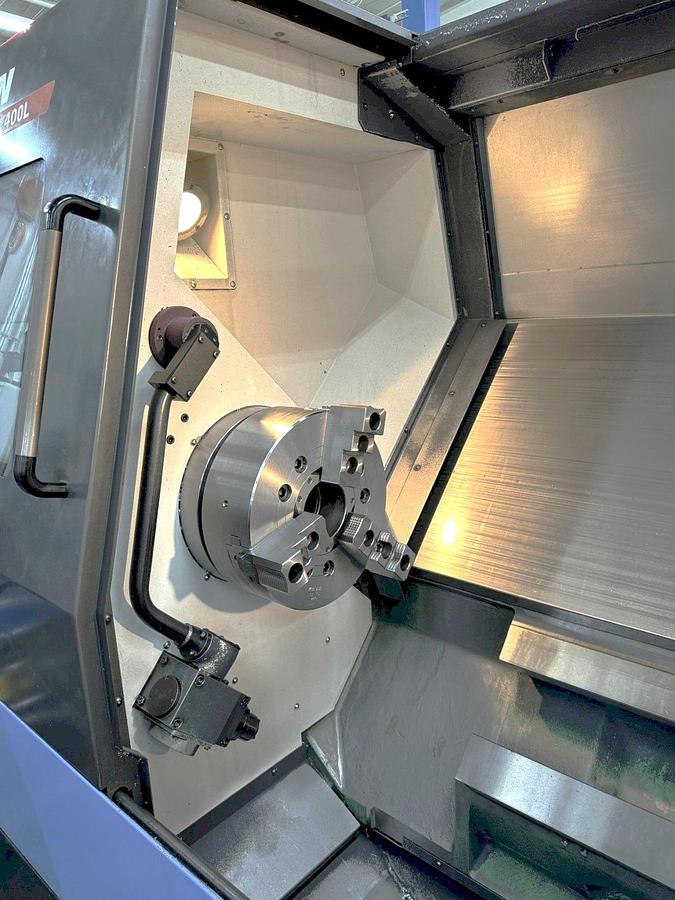

Chip Conveyor 15" Samchully 3 Jaw Hydraulic Chuck Tailstock

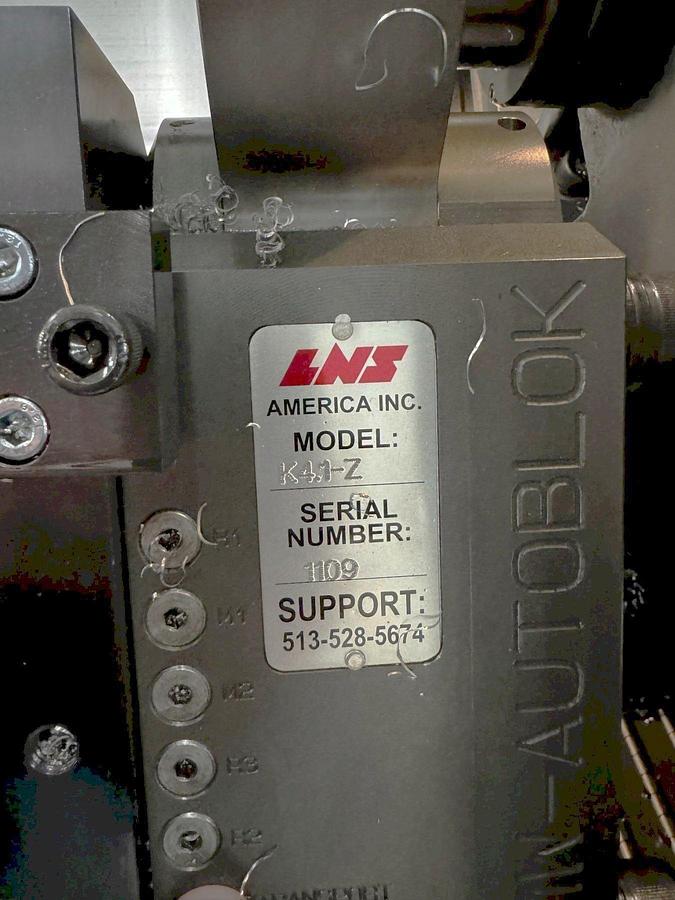

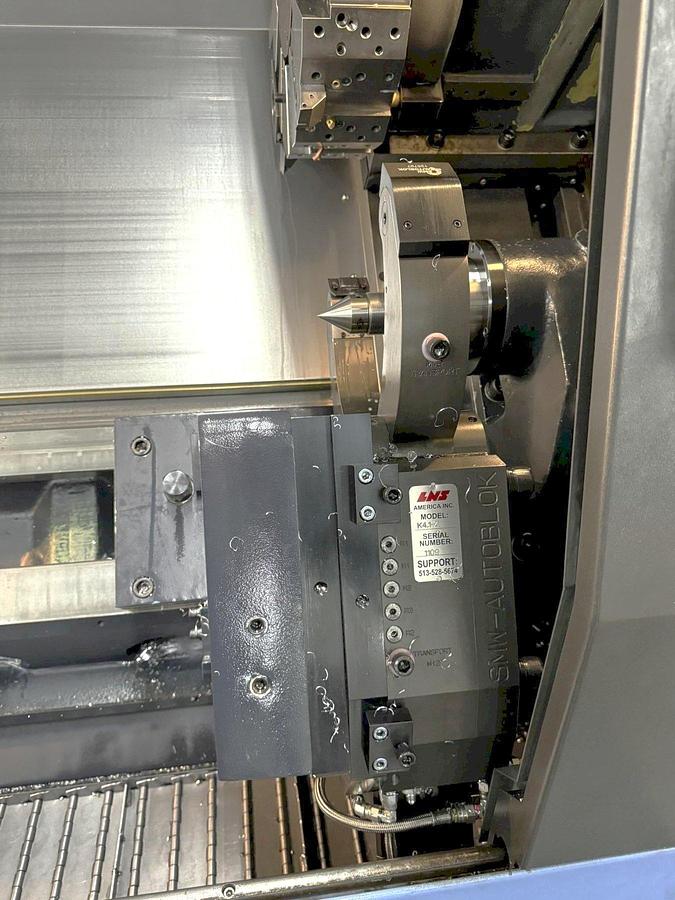

LNS Autoblok Model K4.1Z Hydraulic Steady Rest
Tool Presetter RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed
Geared Headstock All Available Tooling All Available Manuals

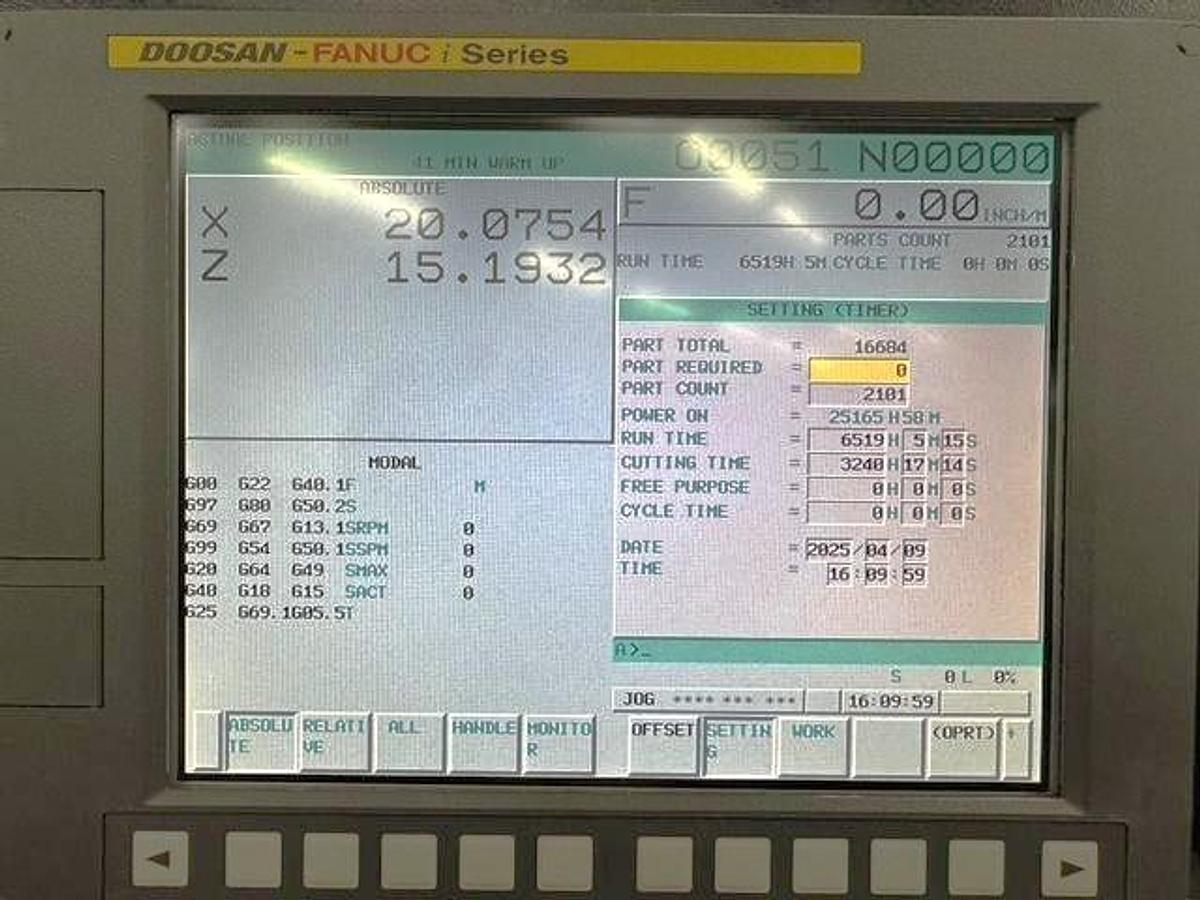

**6,519 Run Time Hours**
**3,240 Total Cut Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 400LB |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120080 |
| Control | Fanuc i Series Control |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 81.7" |
| Maximum Bar Capacity | 4.6" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 84.84" |
| Spindle Nose / Spindle Bore | A2-11" / 5.2" |
| Spindle Speeds | 1 -2,000 RPM |
| Spindle Motor | 35 HP |
| Number of Turret Positions | 10 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 708 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 225" x 97" x 91" |
| Machine Weight | 24,250 lbs. |
