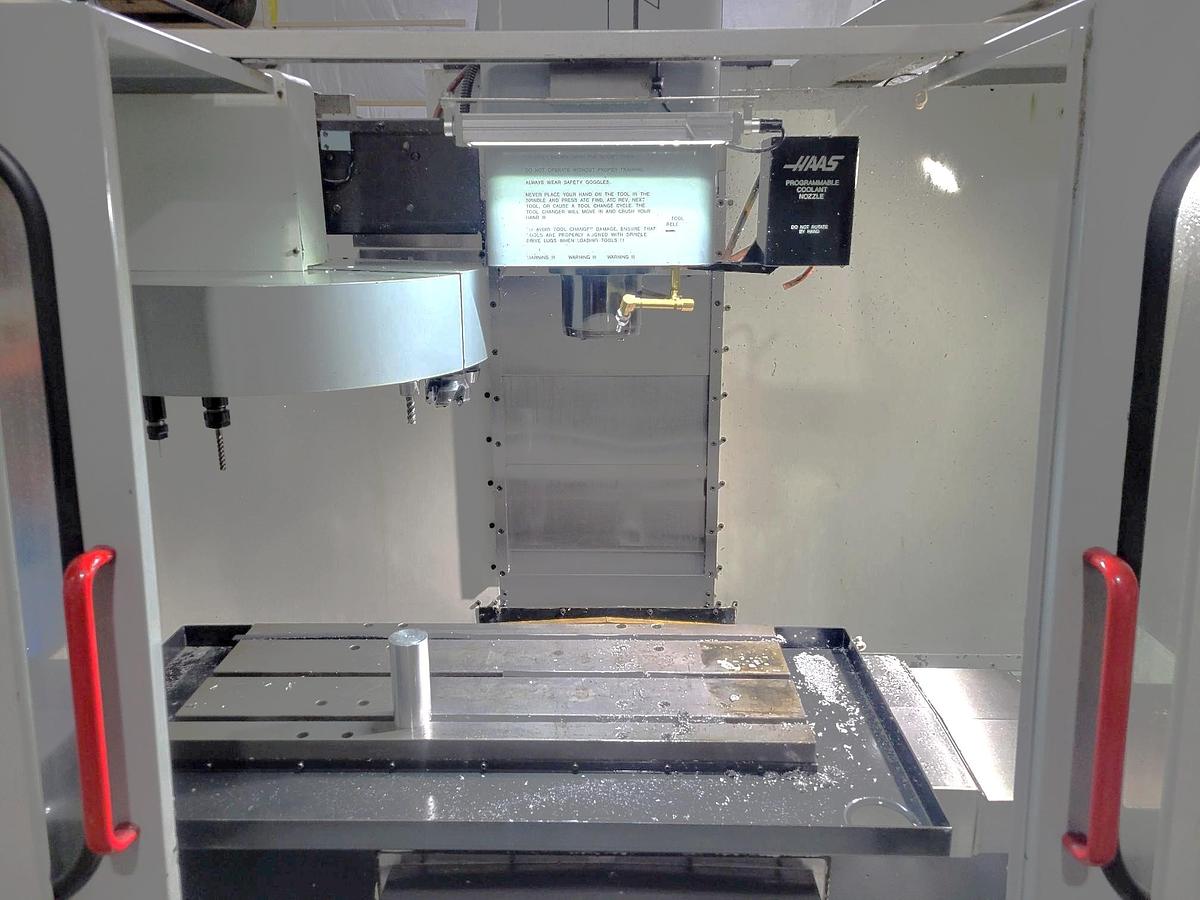

1998 Haas VF2B, Chip Auger, Programmable Coolant, 2 Speed Gearbox, BT40 Toolholders Included
1998 Haas VF2B, Chip Auger, Programmable Coolant, 2 Speed Gearbox, BT40 Toolholders Included
$12,000 (USD)
Location:New Jersey
Description
Auger Style Chip Conveyor Programmable Coolant Nozzle
2 Speed Gearbox Complete Coolant System with Tank & Pump Rigid Tapping
BT40 Spindle Taper RS 232 Port Interface Status Condition Light Post
Wired 208/230V Electrics
All Available Manuals
More Than (20) BT40 Tool Holders
**Haas 4th Axis Rotary Table and Drive are NOT Included with Machine**

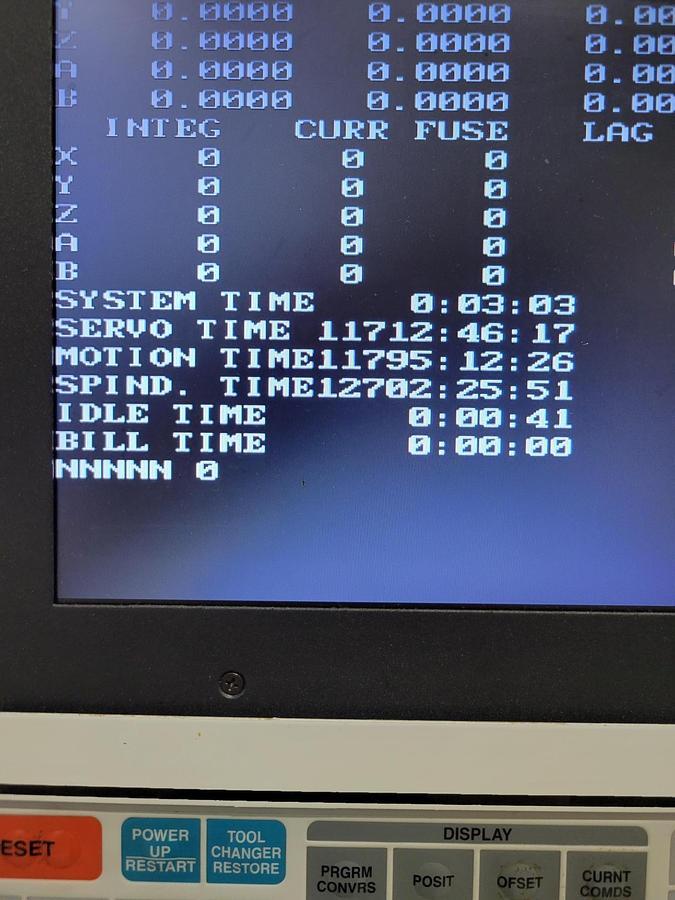

**Motion Hours 11,795**
**Spindle Hours 12,702**
Updates Performed on Machine Over the Years
All new Mocon Board replaced in 2003
Rebuilt Spindle, have paperwork
Rebuilt 2 Speed Gear Box and Shift Solenoid
New Spindle Belt and Encoder Belt
Rebuilt Z and Y Axis Ball Screws

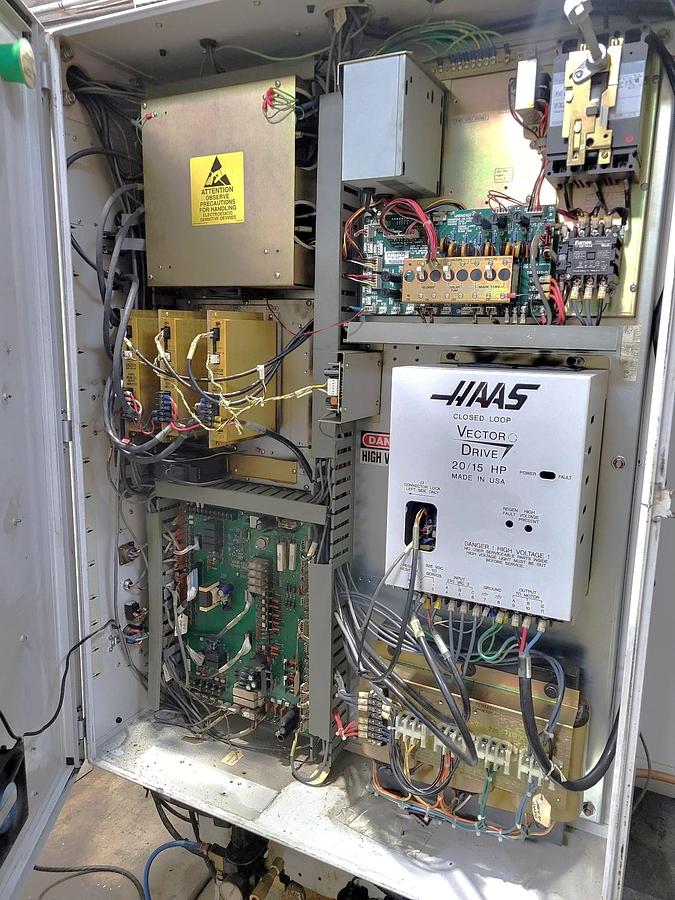

Replaced/Rebuilt Servo Amplifiers all from a 2004 Haas rebuilt.
New 12V Power Supply
New Monitor
Updated Chip Tray Chute
Updated with LED Lighting
Specifications
| Manufacturer | Haas |
| Model | VF2 |
| Year | 1998 |
| Condition | Used |
| Stock Number | 120077 |

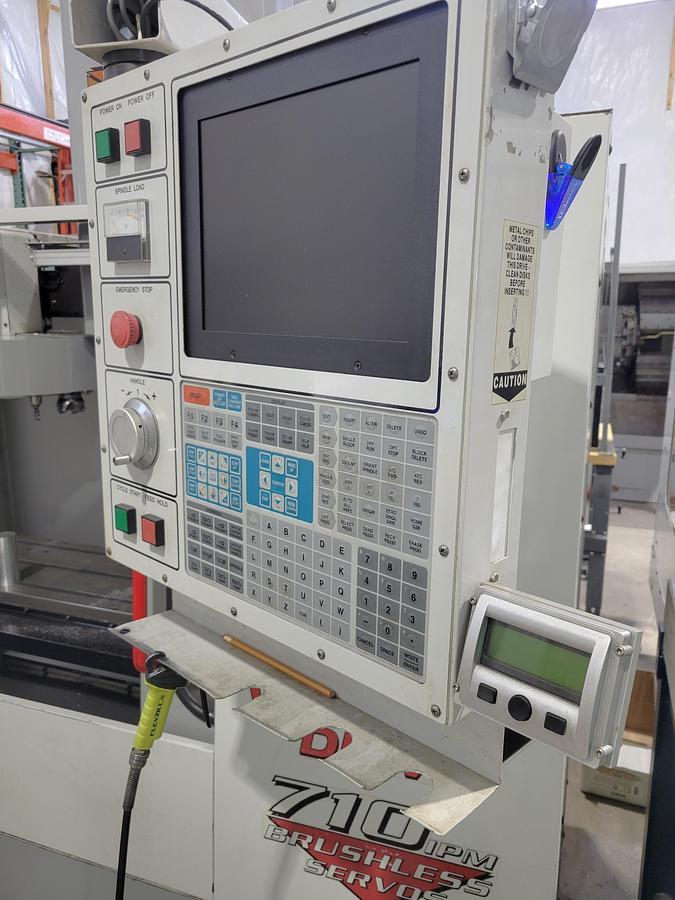

| Control | Haas CNC Control |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Taper | BT 40 |
| Spindle Speed | 7,500 RPM - 2 Speed Geared |
| Spindle Motor | 20 HP |

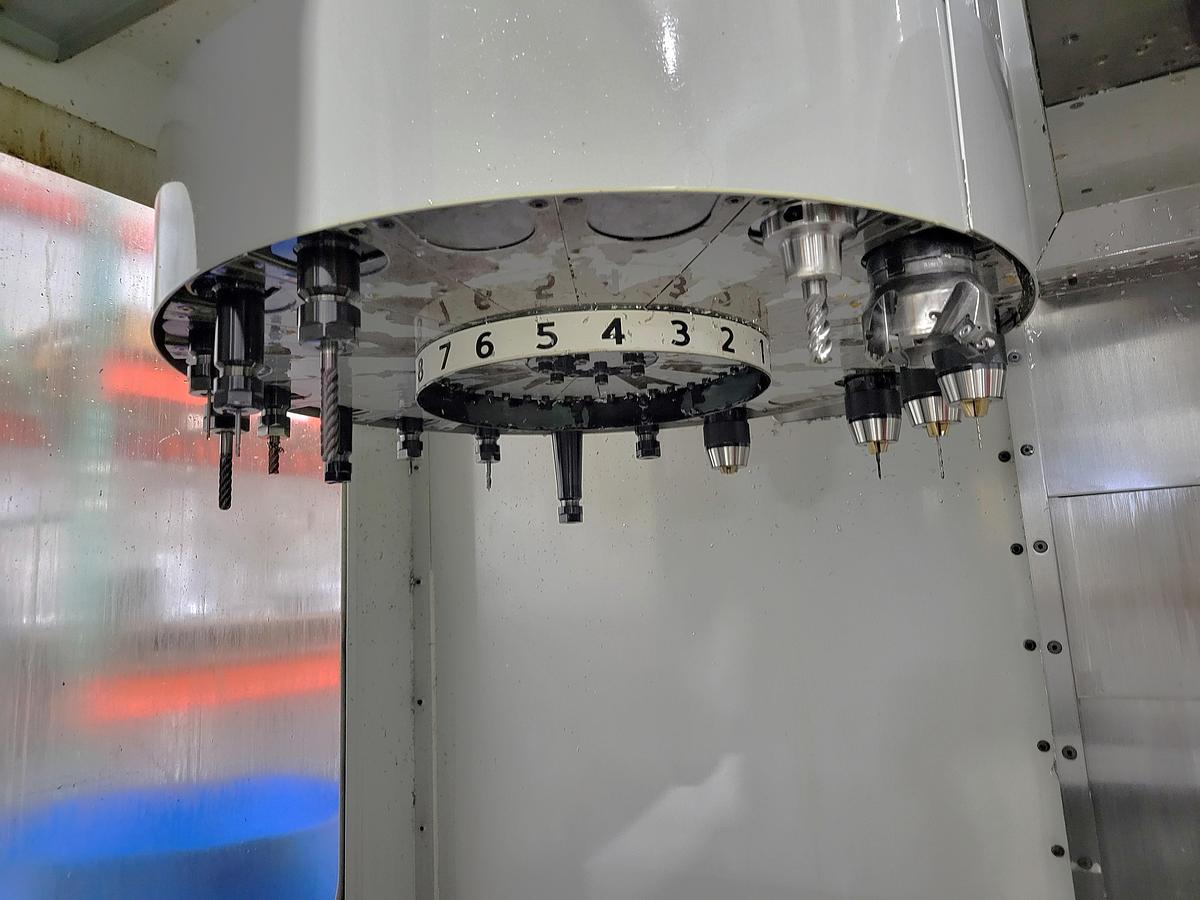

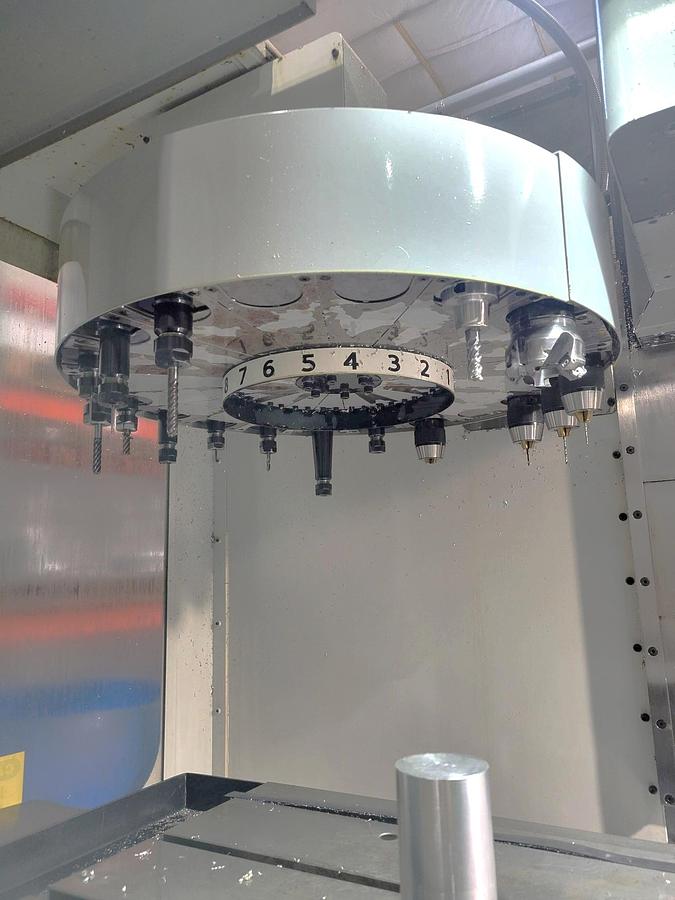

| Tool Magazine Capacity | 20 Station ATC - Umbrella Style |
| Rapid Traverse Rates | 710 IPM |
| Distance Spindle Nose to Table Top | 4" to 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
