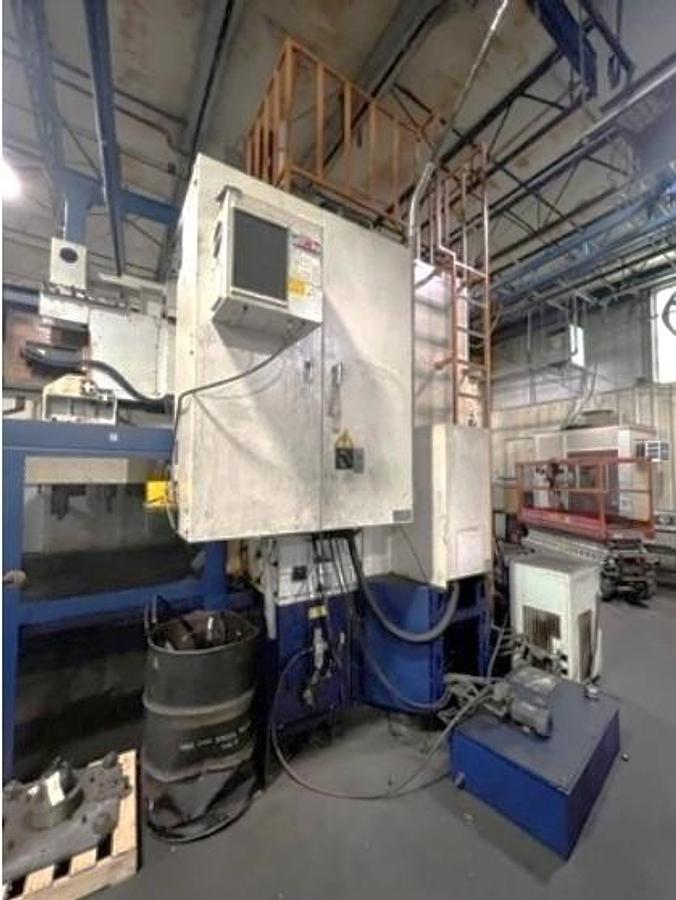

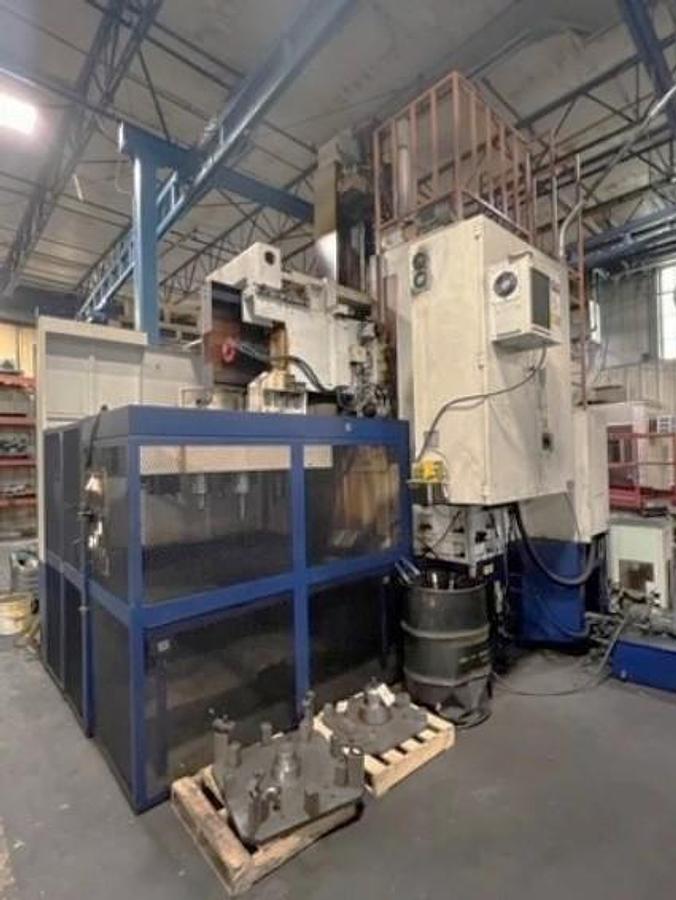

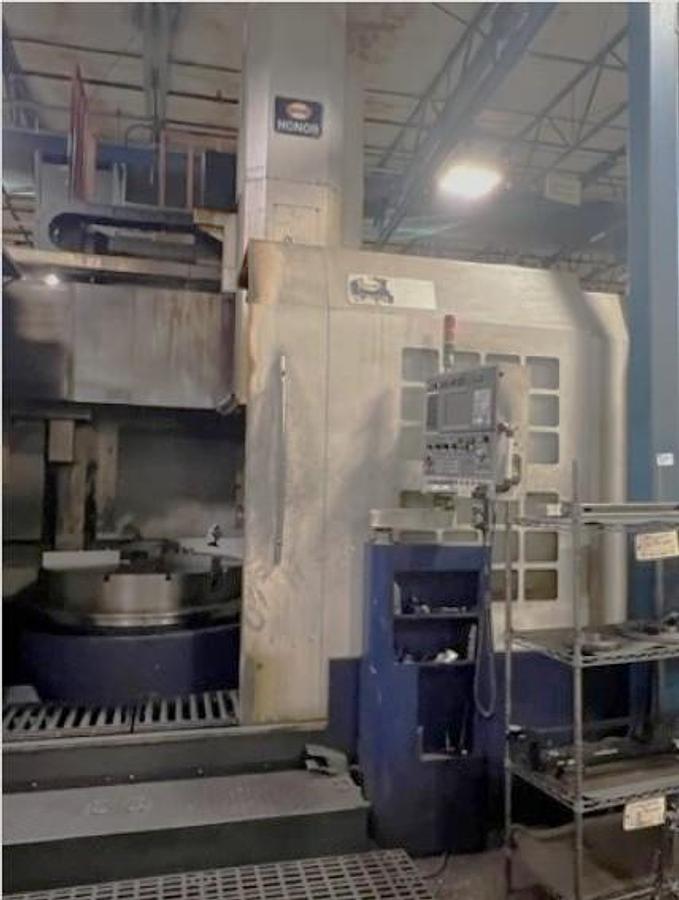

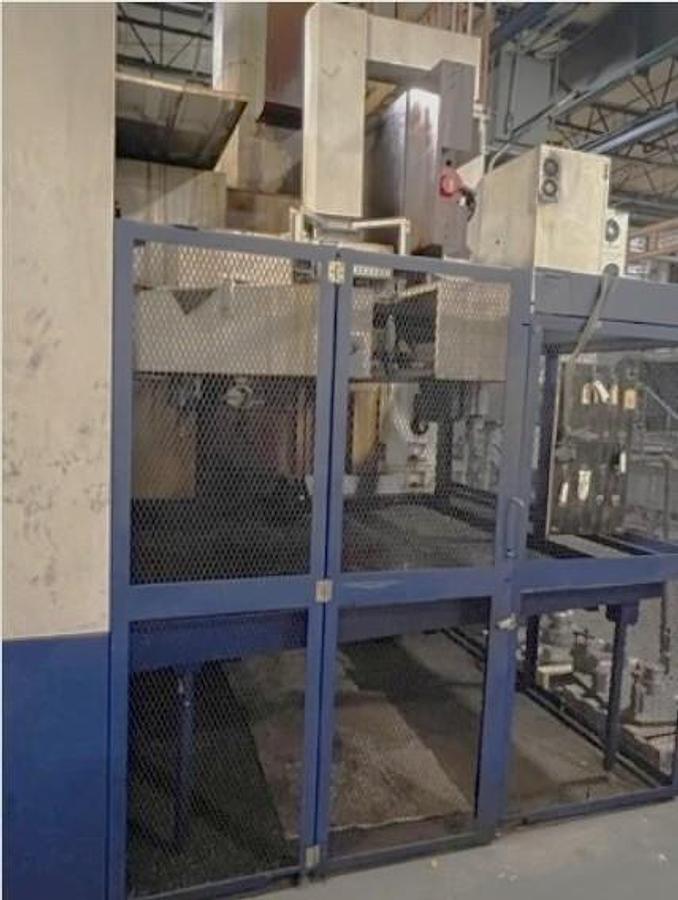

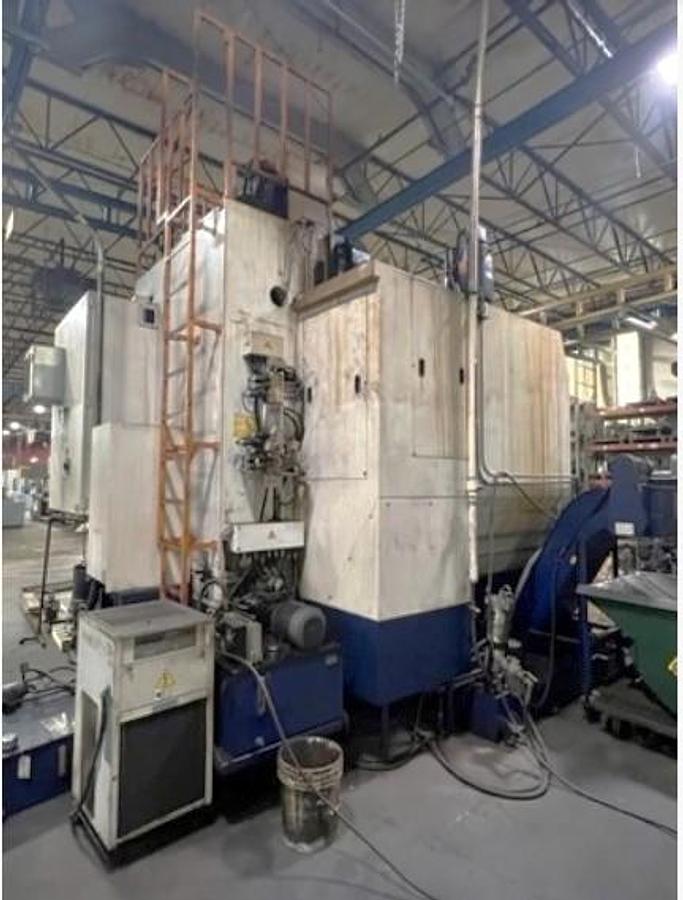

2012 Honor Seiki VL-125C CNC VTL with Milling, 50" 3 Hyd. Chuck, Live Milling Capability, 16 Station ATC
2012 Honor Seiki VL-125C CNC VTL with Milling, 50" 3 Hyd. Chuck, Live Milling Capability, 16 Station ATC
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description

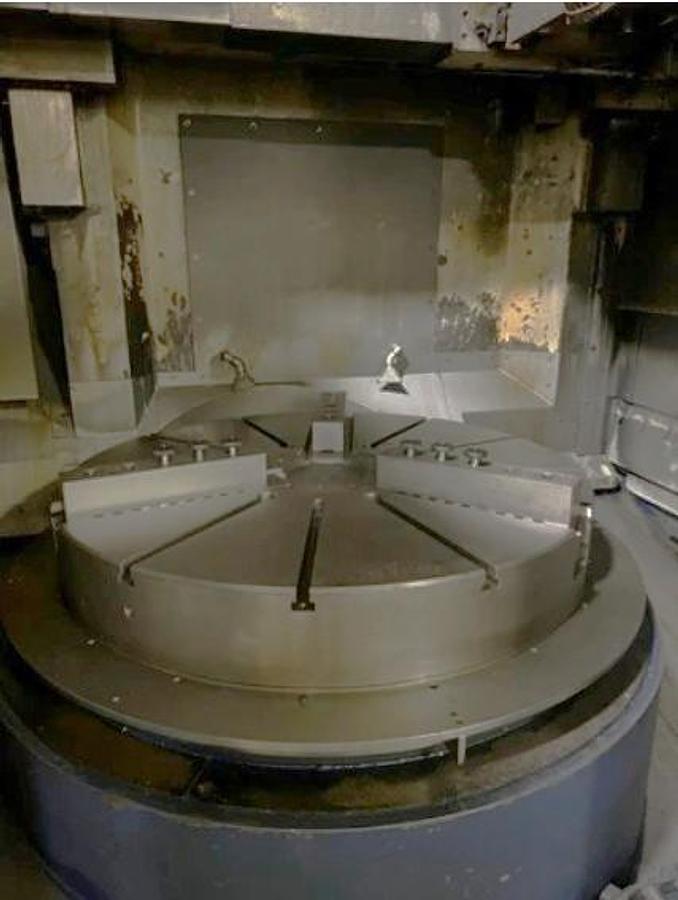

50" Diameter 3 Jaw Hydraulic Chuck & Adapter

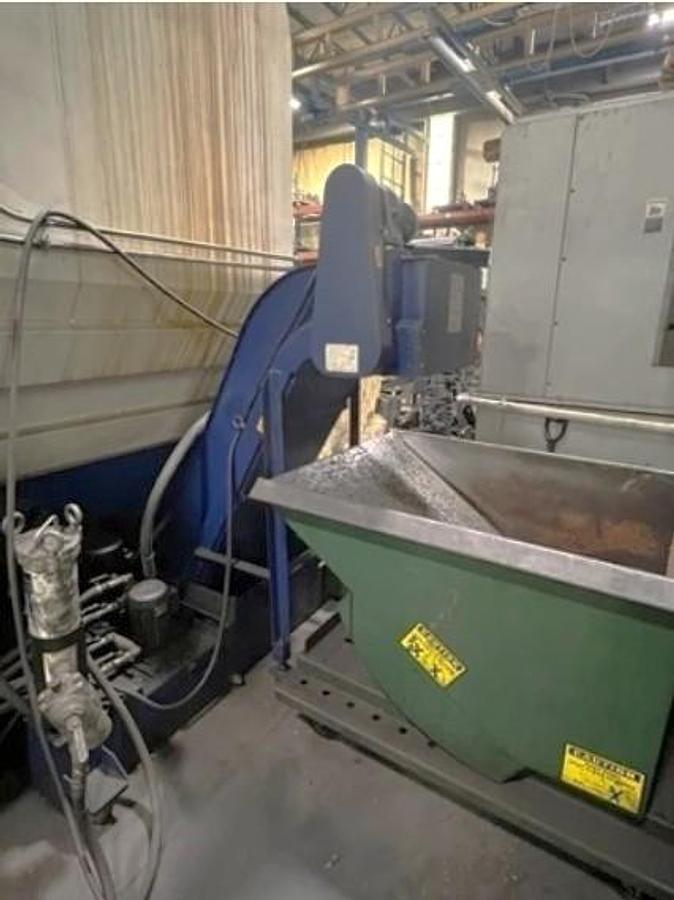

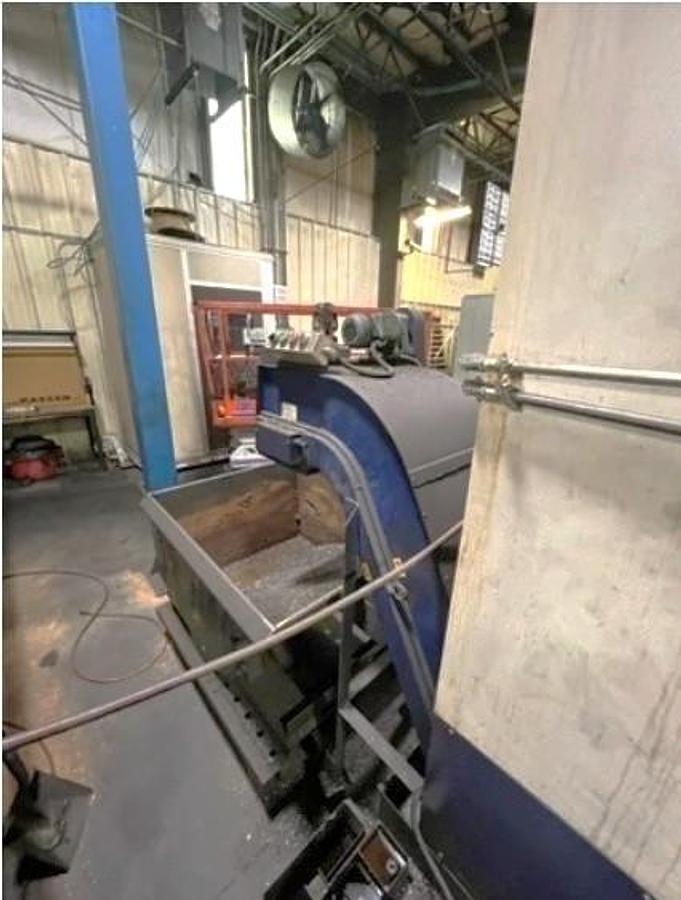

Chip Conveyor

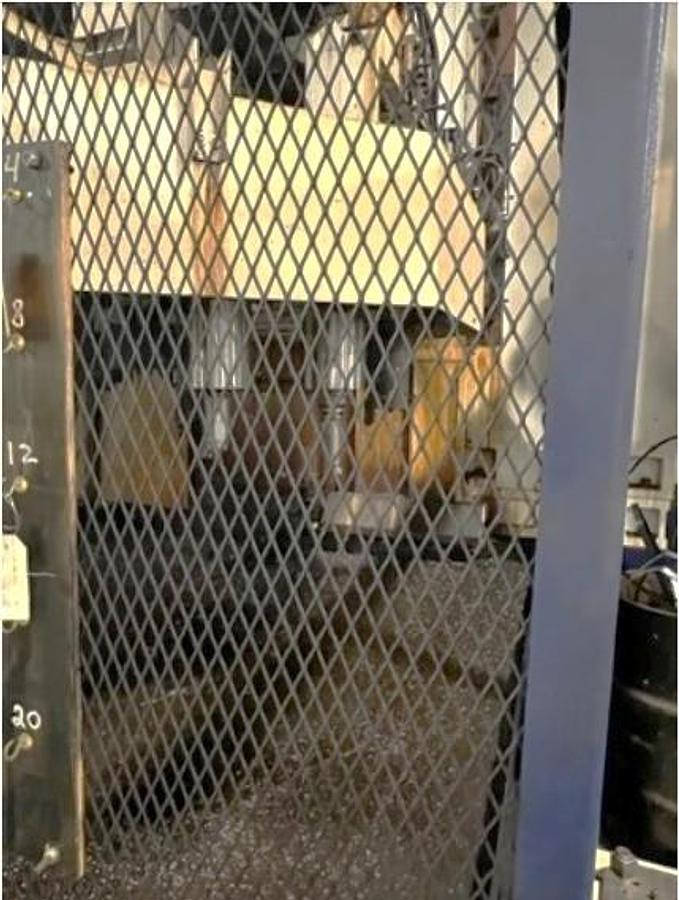

16 Station Tool Changer
C Axis Table Rotation
Live Milling/Drilling Capability
180 mm Column Riser
High/Low Pressure Chucking (Dual Range Valves)
Spindle Bearing Chiller
Oil Skimmer
Machine Status Lights

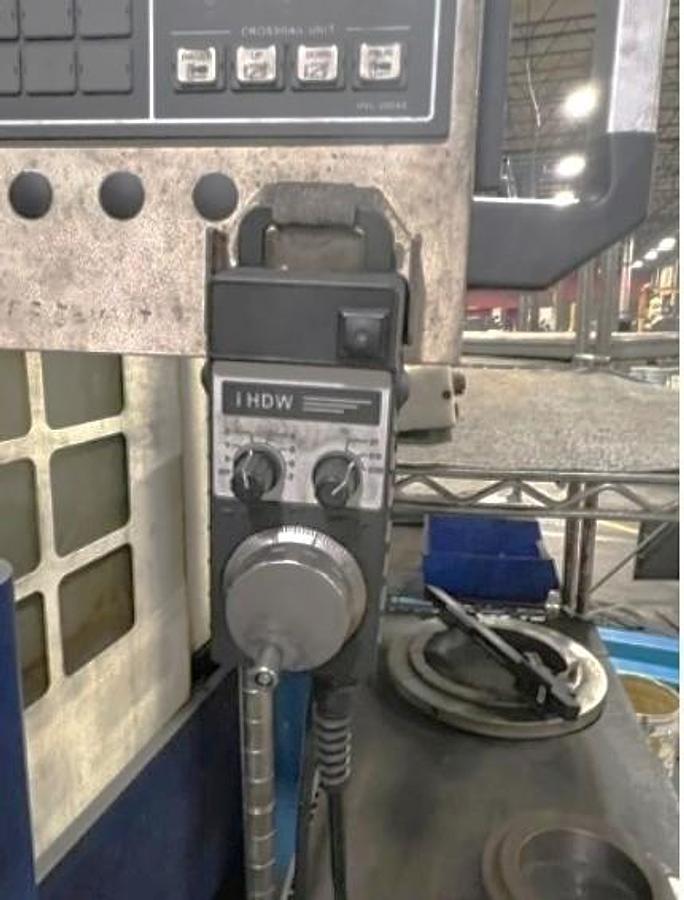

Remote Jog Handle
All Available Manuals
Some Tooling

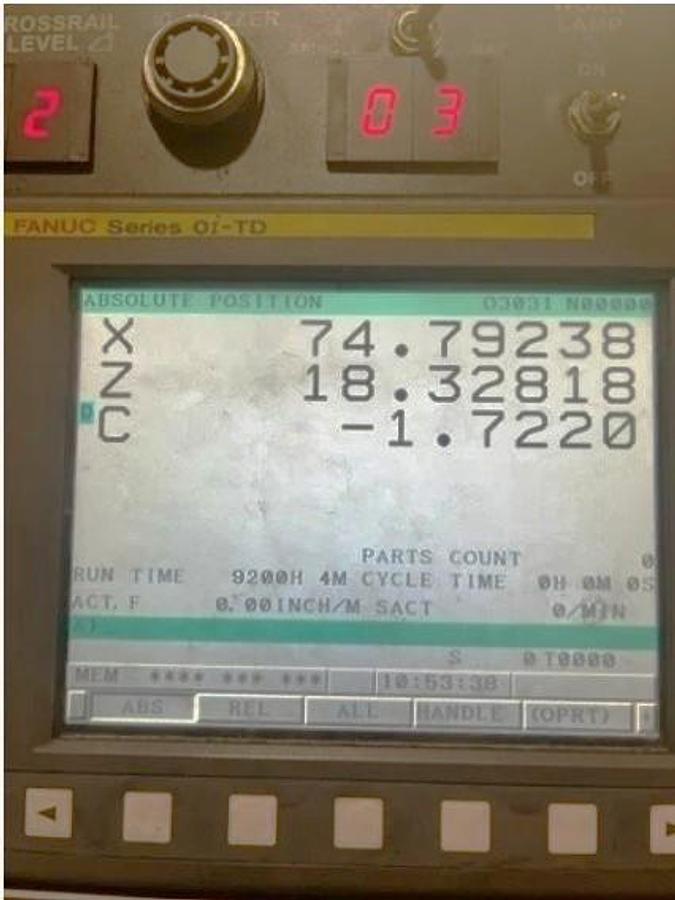

**Run Time Hours 9,200**
Specifications
| Manufacturer | Honor Seiki |
| Model | VL-125C |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120074 |
| Machine Control | Fanuc OiTD Control |
| Table Diameter | 50" |
| Maximum Turning Diameter | 63" |
| Maximum Weight on Table | 11,023 lbs. |
| Maximum Turning Height | 47.24" |
| Square Ram | 8.66" x 8.66" |
| Distance from RAM to Table | 25.59" - 57.08" |
| Vertical Ram Travel | 35.4" |
| Cross Rail Travel | 31.5" (7.87" x4 Steps) |
| Spindle Taper | BT-50 for mill tooling |
| Spindle Speeds | 3-300 RPM - 2 Speed Gearbox |
| Spindle Motor | 60 HP |
| Tool Magazine Capacity | 16 Station Tool Changer |
| Floor Space Required | 230" x 149" |
| Machine Height | 196.7" w/ Ram up |
| Machine Weight | 54,000 lbs |
