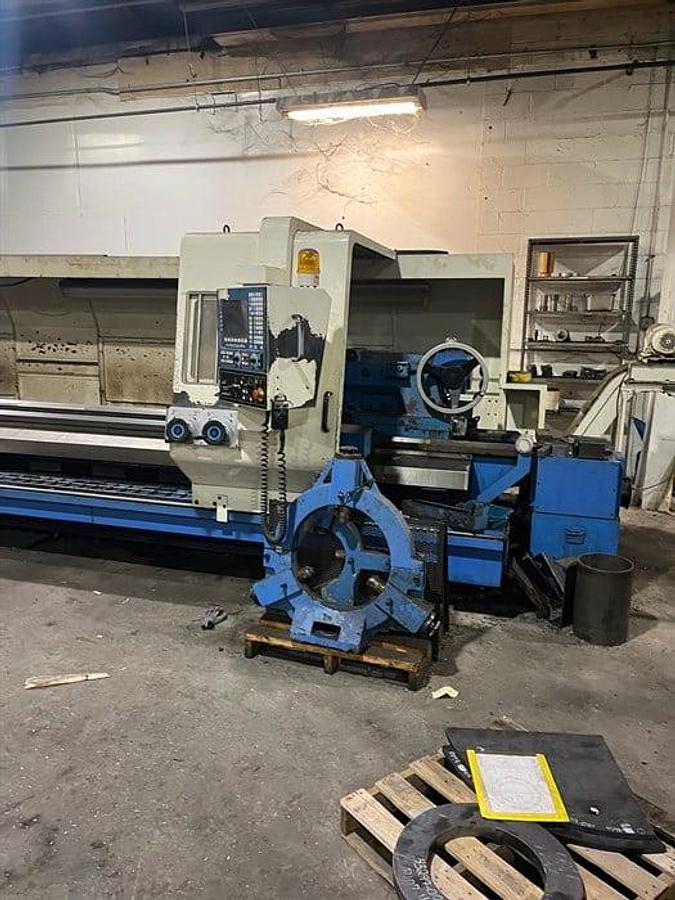

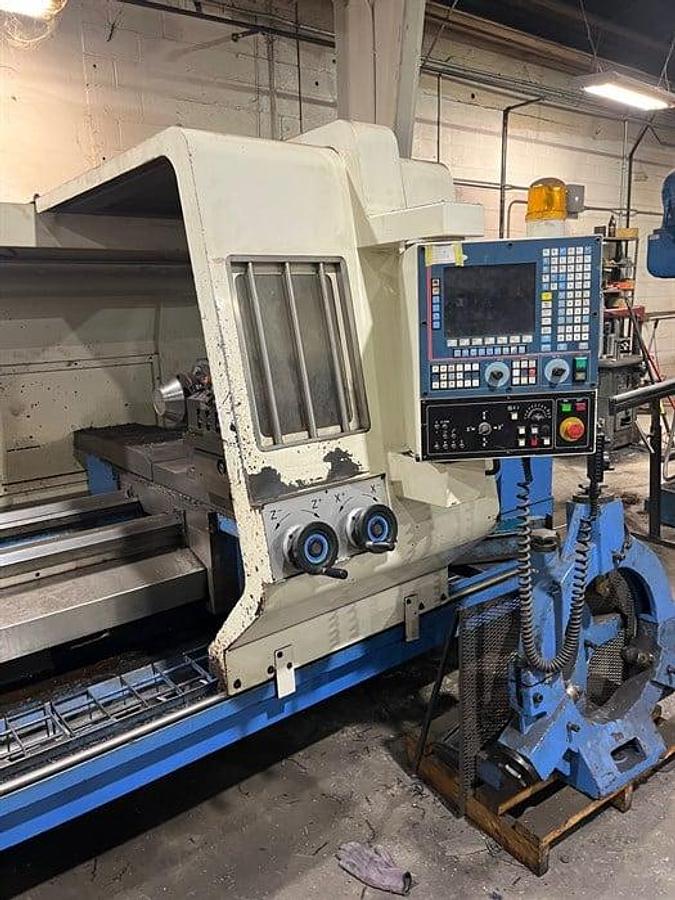

2002 Clausing TLA-29 CNC Flat Bed Lathe 200" Center Distance
2002 Clausing TLA-29 CNC Flat Bed Lathe 200" Center Distance
Contact us for price
Location:Kansas
or
Call (863) 439-6066
Description

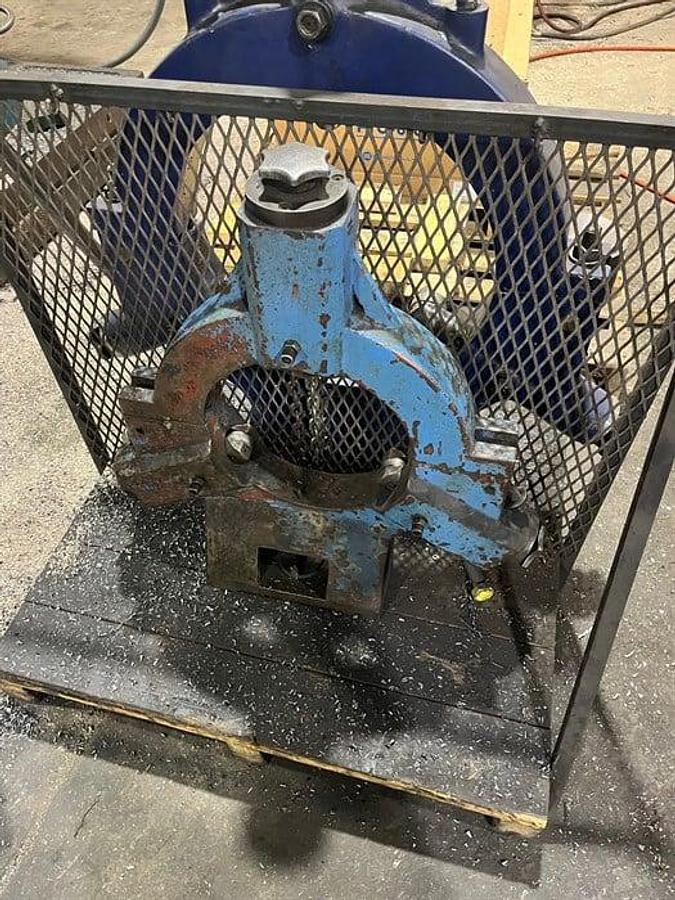

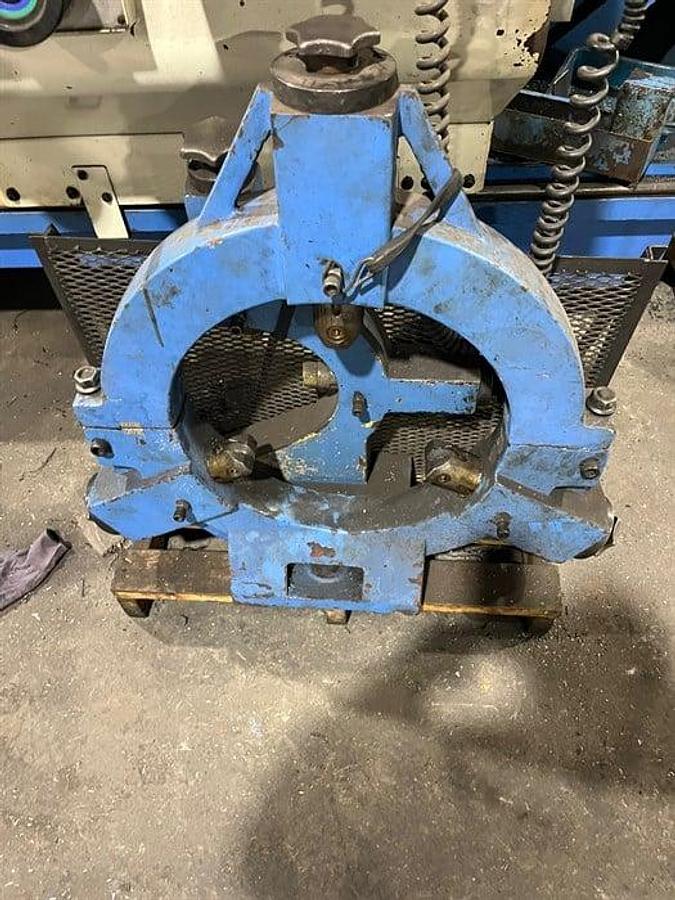

Several Steady Rest
Chip Conveyor
Remote Jog Handle
Handles to be able to move Cross slide in X & Z
Status Light
Coolant System
Specifications
| Manufacturer | Clausing |
| Model | TLA-29 CNC Flat Bed Lathe 200" Center Distance |
| Year | 2002 |
| Condition | Used |
| Stock Number | 120070 |
| Machine Control | Fagor 8055TC |
| Chuck Size | 20" |
| Maximum Swing over Bed | 29.1" |
| Swing in Gap | 35" |
| Maximum Cutting Diameter | 17.3" |
| Maximum Machining Length | 190" |
| Distance Between Centers | 200" |
| X-Axis Travel | 19.7" |
| Z-Axis Travel | 200" |
| Spindle Nose / Bore / Bar Capacity | A2-11/ 5.9" / 5.9" |
| Spindle Speeds | 7-700 rpm |
| Spindle Motor | 30 hp |
| Number of Turret Positions | 4 |
| Tailstock Quill Diameter / Quill Travel / Taper | 4" / 5.9" / #6 MT |
| Tailstock Travel | 175" |
