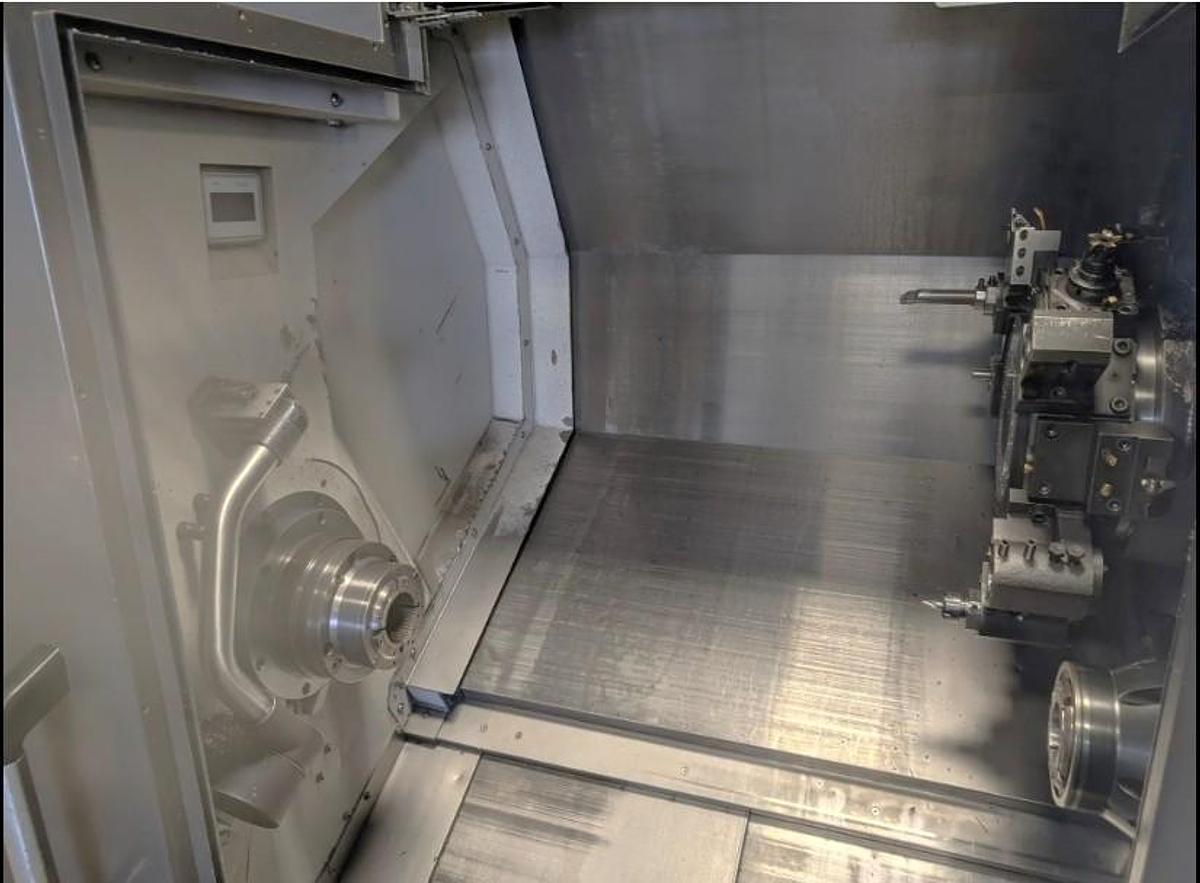

2017 Doosan Puma 2600SY II with Barfeed, Parts Catcher, Part Conveyor, Chip Conveyor, High Pressure Coolant

2017 Doosan Puma 2600SY II with Barfeed, Parts Catcher, Part Conveyor, Chip Conveyor, High Pressure Coolant

$109,500 (USD)

Location:South Carolina

or
Call (863) 439-6066

Description

Full C Axis Spindle Rotation - Both

Live Milling/Drilling Capability

Subspindle Y Axis Capability

Barfeed Interface

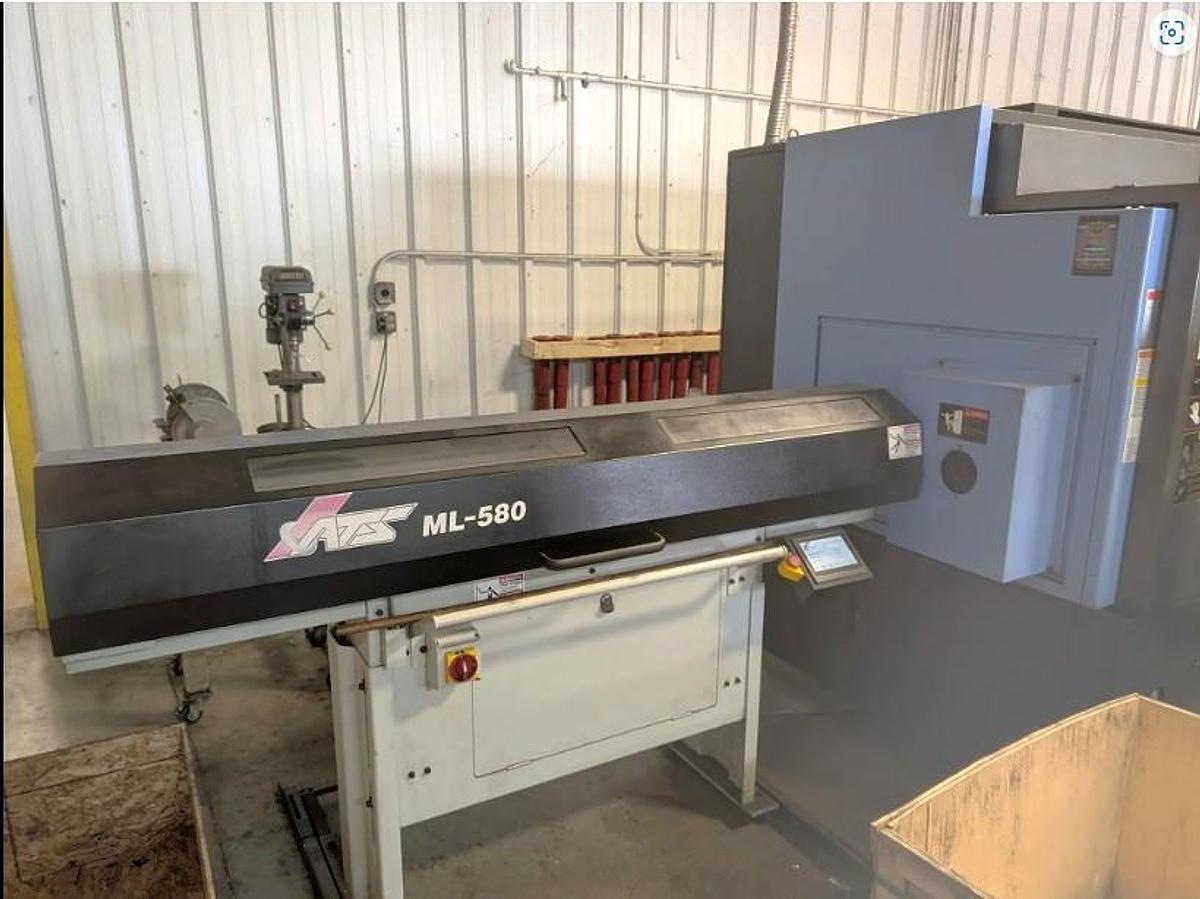

ATS ML-580 Short Load Barfeed System

10" 3 Jaw Hydraulic Chuck on Main Spindle

8" 3 Jaw Hydraulic Chuck on Subspindle

Royal QG-80 Collet Chuck for Main Spindle

16C Collet Chuck for Sub Spindle

Tool Presetter

Chip Conveyor

Parts Catcher

Parts Exit Conveyor

Chip Blaster 1,000 PSI High Pressure Coolant

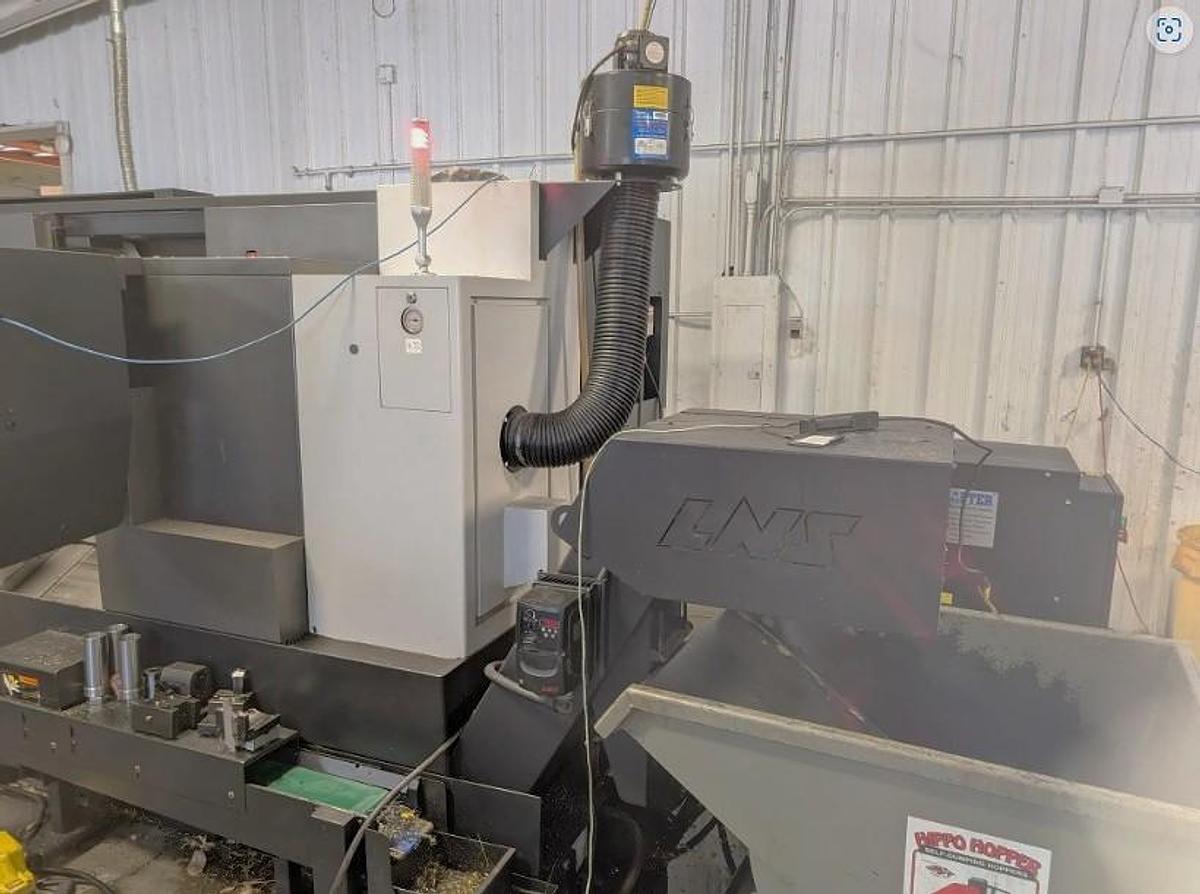

Royal Filtermist Mist Collector

PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways (3) Live Holders

Assortment of Static Tool Holders


**Running Hours - 1,956 Hours**


**Estimated replacement cost as equipped, $230,000 plus**

Show All

Specifications

ManufacturerDoosan
ModelPuma 2600SY II
Year2017
ConditionUsed
Stock Number120063

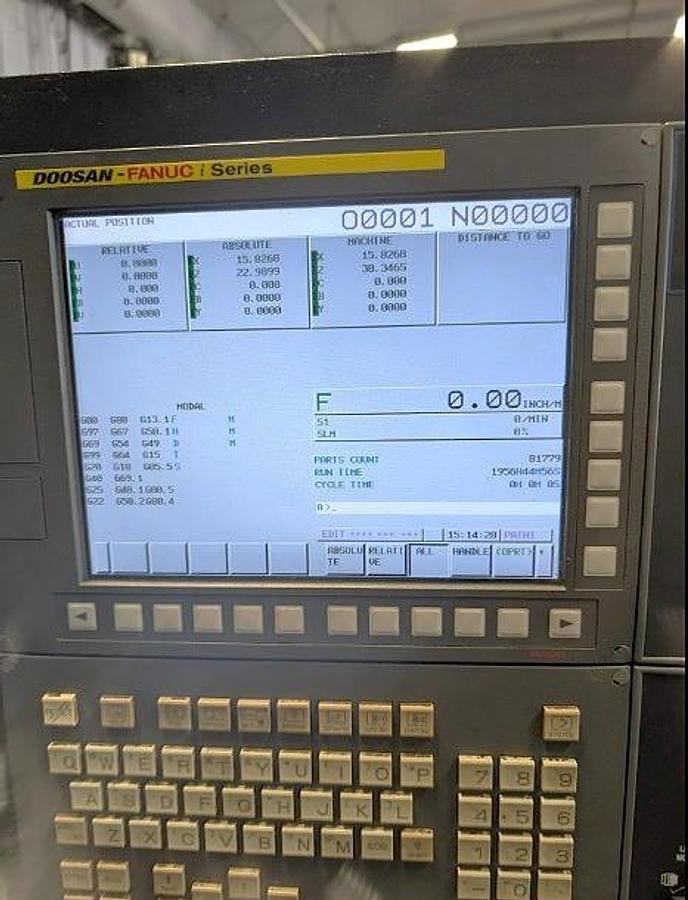

ControlFanuc i Series Control
Chuck SizeCollet Chuck / Collet Chuck
Maximum Swing over Bed30.7"
Maximum Cutting Diameter14.8"
Maximum Machining Length29.9"
Maximum Bar Capacity3" Main Spindle / 2" Subspindle
X-Axis Travel10.2"
Y-Axis Travel4.13"
Z-Axis Travel32.7"
C Axis Spindle Rotation - Both.001 Degree
Spindle Nose / Spindle BoreA2-8" Main Spindle / A2-5" Subspindle / 3.6" Main Spindle Bore / 2.4" Subspindle Bore
Spindle Speeds - Main4,000 RPM
Spindle Motor - Main30 HP
Subspindle Speed / Motor6,000 rpm / 20 HP
Rotary Tool Speed / Rotary Motor5,000 RPM / 10 HP

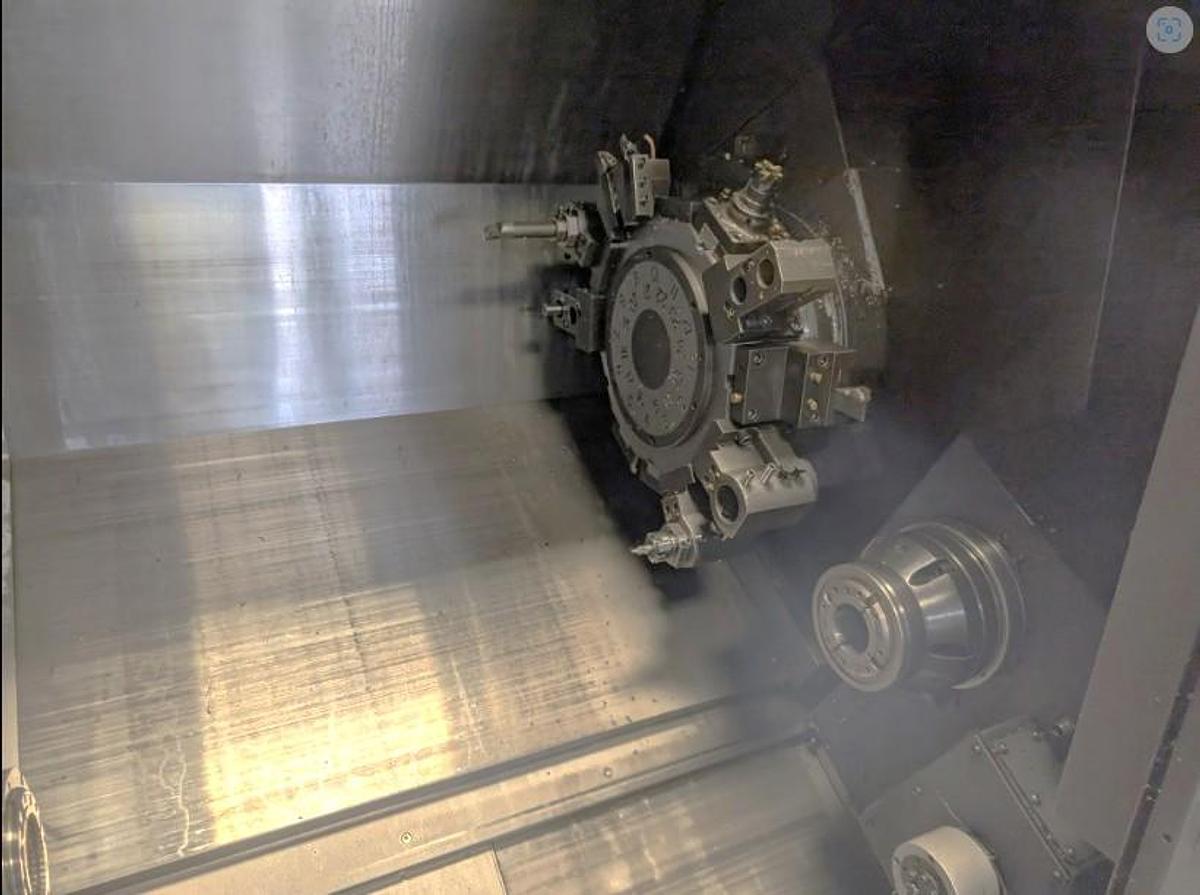

Number of Turret Positions12 Station Turret - BMT 65
Rapid Traverse Rates X, Z / Y1181 IPM / 394 IPM
Machine Dimensions172" x 85" x 86"
Machine Weight16,100 lbs.
