2016 Okuma LB3000EXII-MYW 800 with Milling, Y Axis, Subspindle, OSP-P300LA Control
2016 Okuma LB3000EXII-MYW 800 with Milling, Y Axis, Subspindle, OSP-P300LA Control
$169,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description
Live Milling/Drilling Capability
Full C-Axis Spindle Rotation
Y-Axis Capability
Chip Conveyor
Tool Pre Setter

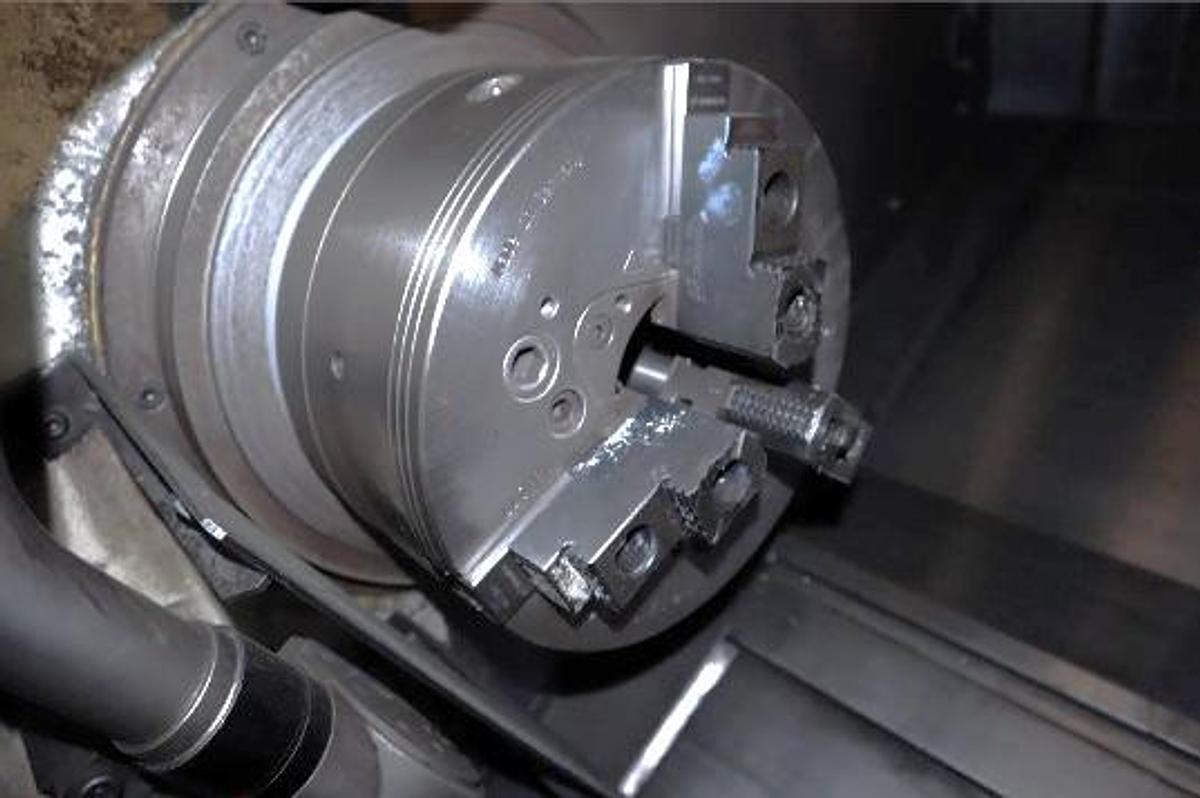

10" 3 Jaw Hydraulic Chuck on Main Spindle

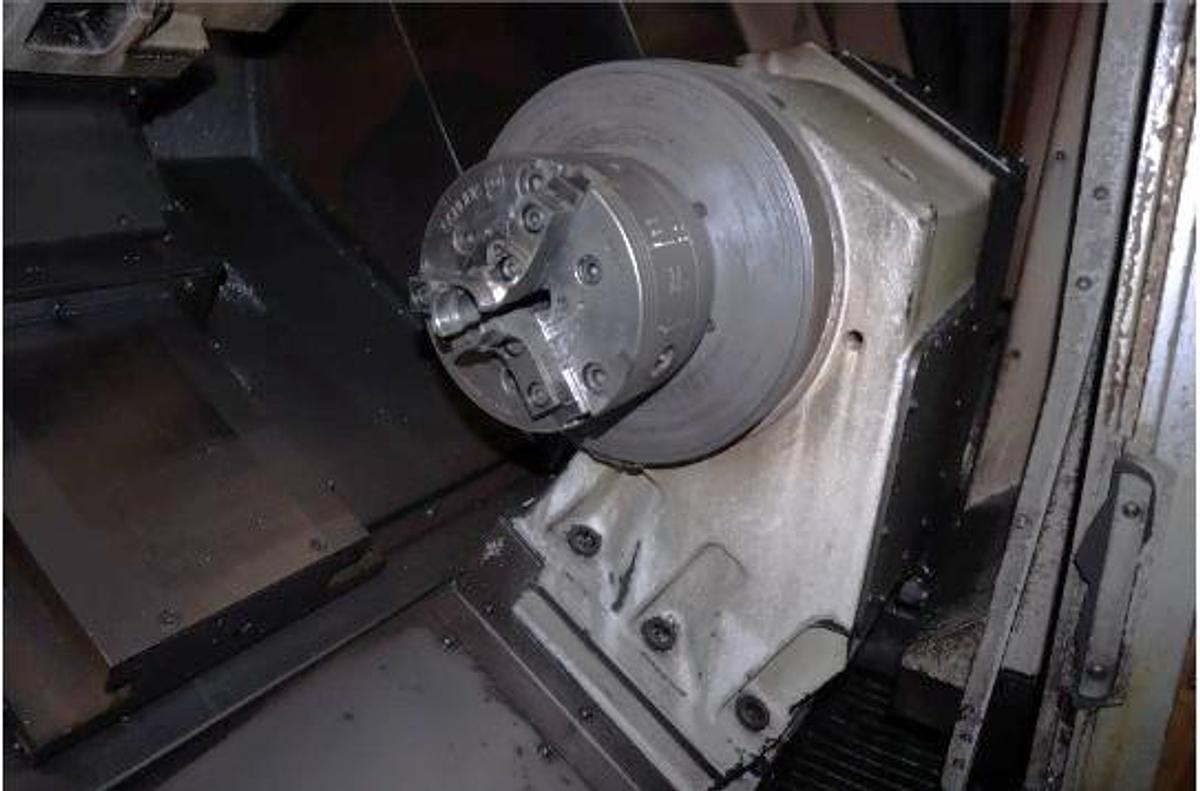

6" 3 Jaw Hydraulic Chuck on Sub Spindle
Big Bore Spindle with 3.59" Bore and 3.18" Bar Capacity
High Pressure Coolant
C Axis Synchronization
Off Center Turning Function
Rapid Traverse Override Switch
Thread Start Point Offset
Helical Cutting for MY
Variable Speed Threading
Negative Tool Radius Compensation
Inverse Time Function
Hard Disk Interface
RS 232 Port Interface
All Available Tooling
All Available Manuals
**Cutting Hours of 5,755**
Specifications
| Manufacturer | Okuma |
| Model | LB3000EXII-MYW 800 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 120062 |

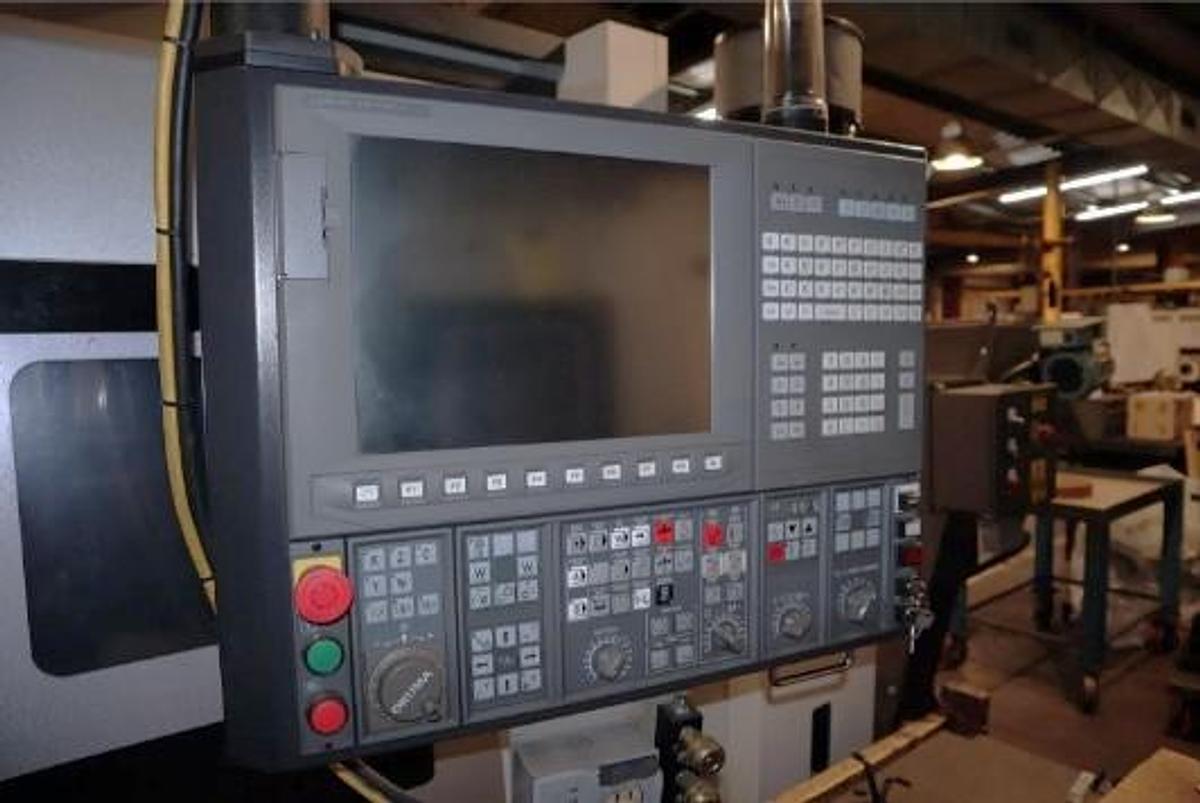

| Machine Control | Okuma OSP P300LA Control |
| Chuck Sizes Main / Subspindle | 10" / 6" Hydraulic Chucks |
| Maximum Swing | 22.83" |
| Maximum Turning Diameter | 13.39" |
| Maximum Cutting Length | 31.5" |
| Center distance | 42.72" |
| Maximum Bar Capacity | 3.18" |
| X-Axis Travel | 10.24" |
| Y-Axis Travel | 4.53" (+2.76" / -1.77") |
| Z-Axis Travel | 39.76" |
| C-Axis Rotation | .001 Degrees Full C |
| Main Spindle Nose / Bore | A2-8" / 3.59" |
| Subspindle Bore | 2.44" |
| Main Spindle Motor | 40 HP |
| Subspindle Motor | 15 HP |
| Main & Subspindle Speeds | 4,200 RPM / 6,000 RPM |
| Milling Spindle Motor | 15 HP |
| Milling Spindle Speed | 6,000 RPM |

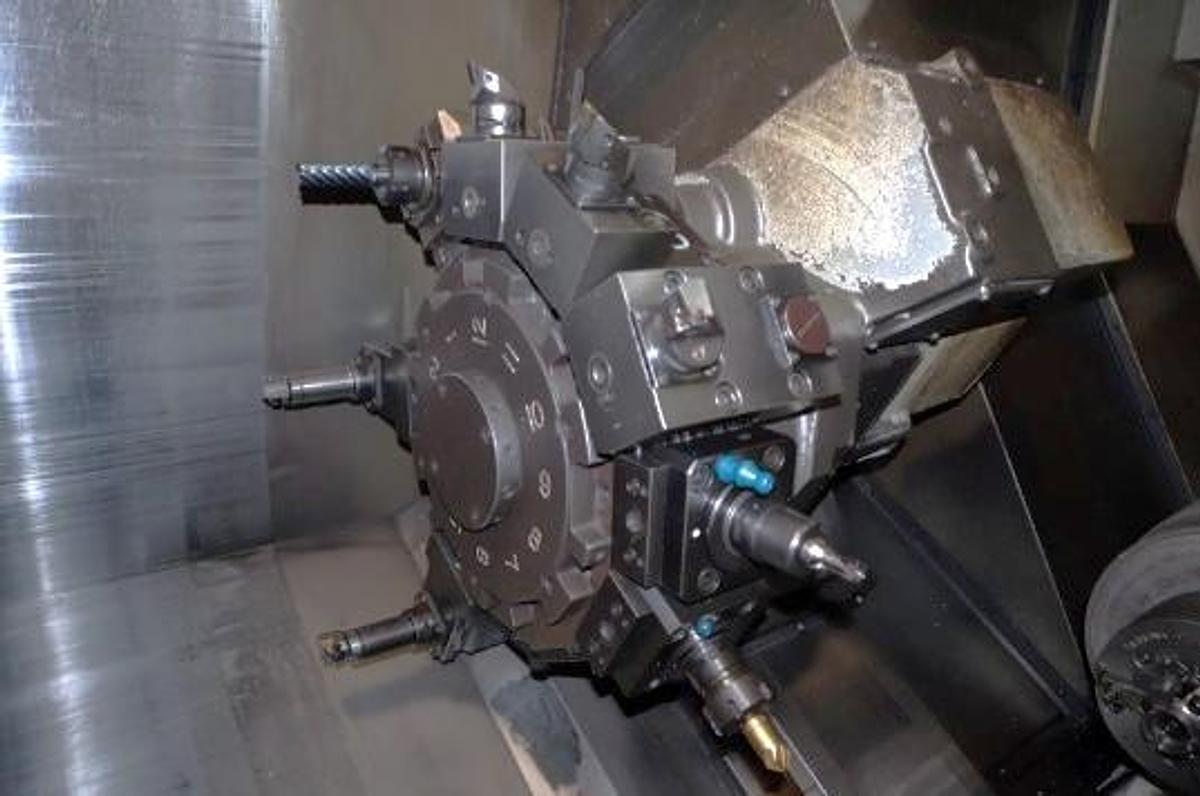

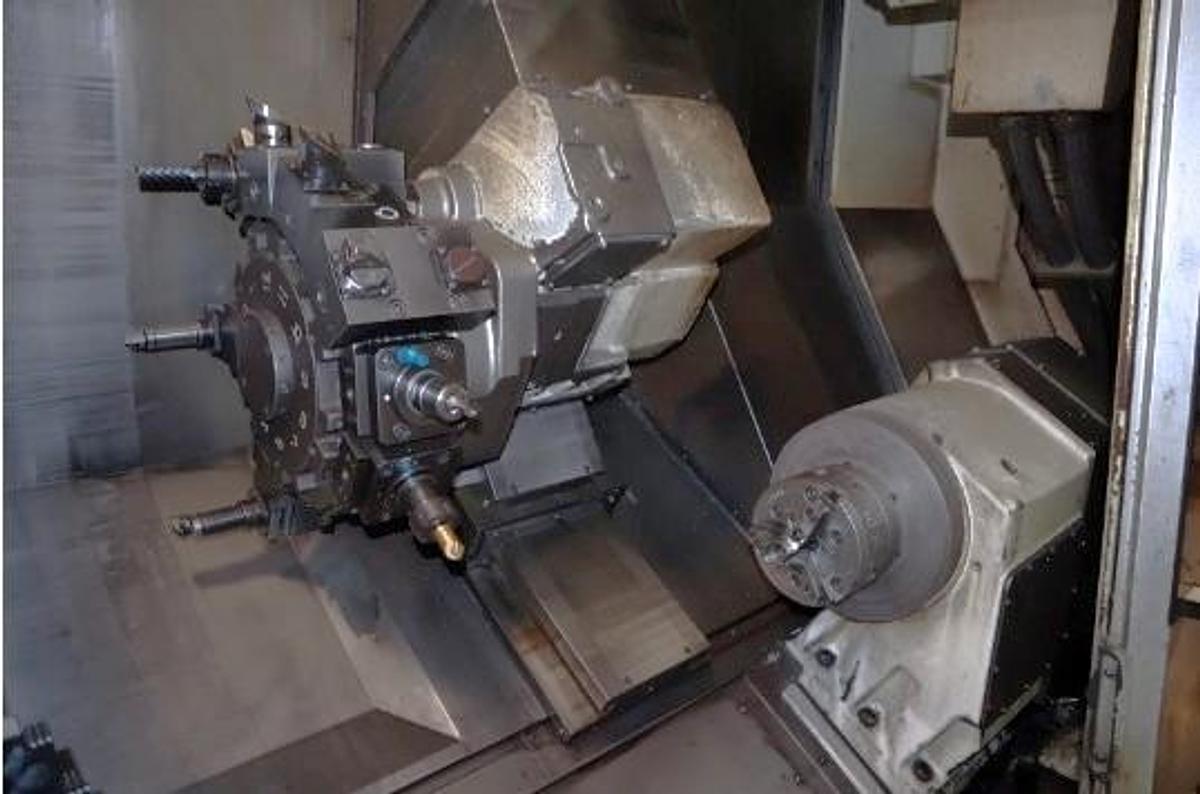

| Number of Turret Positions | 12 Position Turret |
| Machine Dimensions LxWxH | not available |
| Machine Weight | not available |
