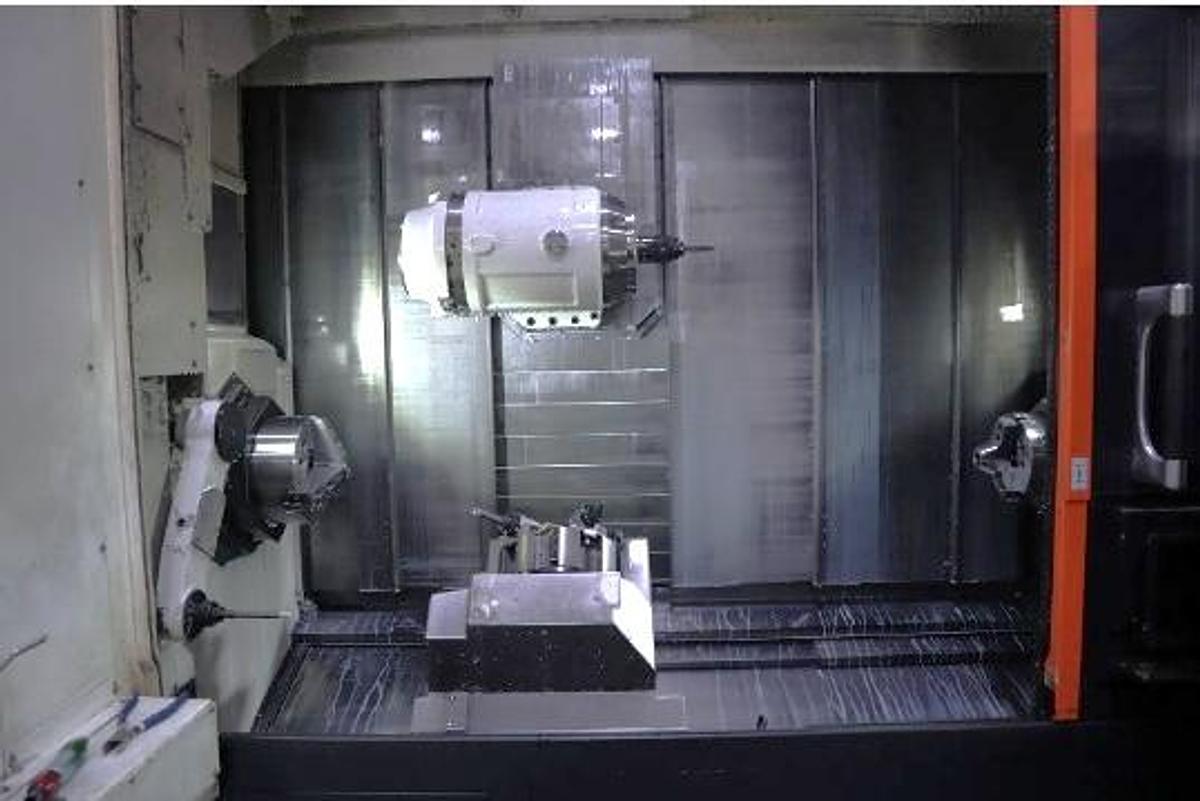

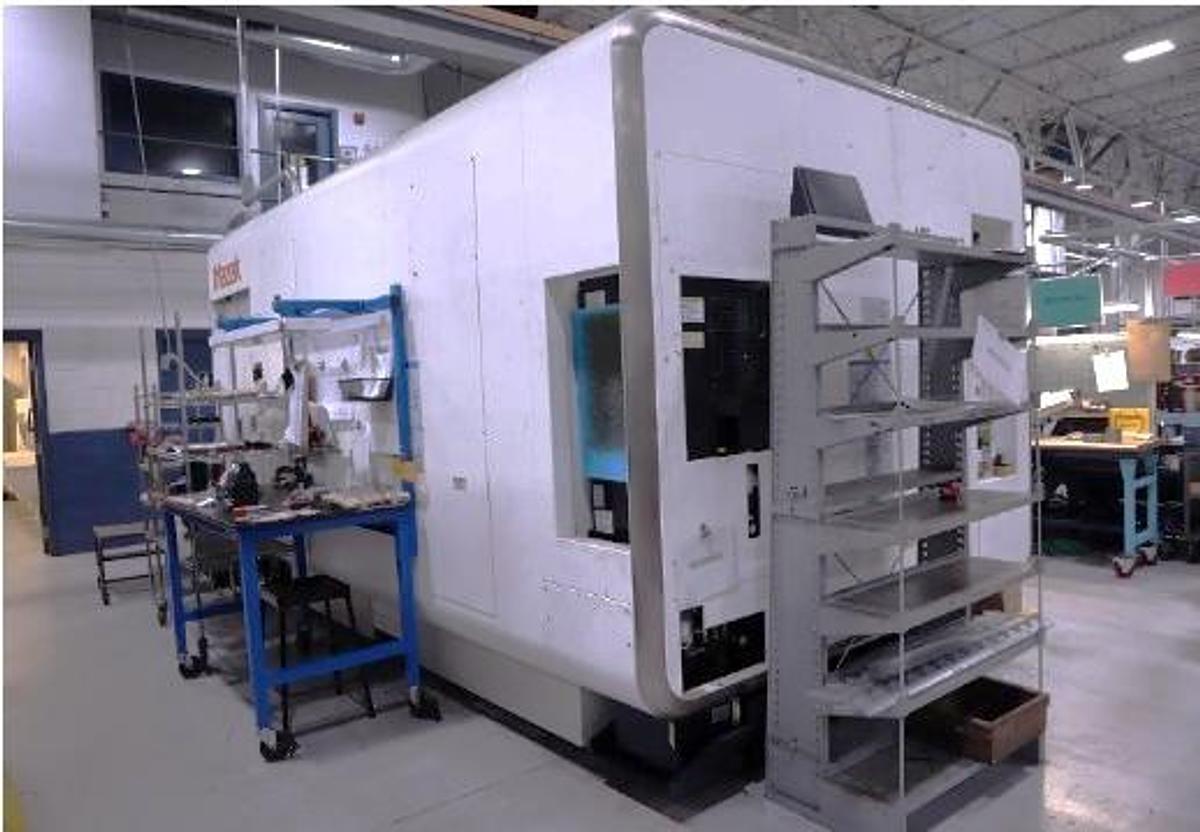

2011 Mazak Integrex i-200ST/1500 with Subspindle, Lower Turret, 36 Station ATC, Mazatrol Matrix 2 Control
2011 Mazak Integrex i-200ST/1500 with Subspindle, Lower Turret, 36 Station ATC, Mazatrol Matrix 2 Control
$199,500 (USD)
Location:Vermont
Description

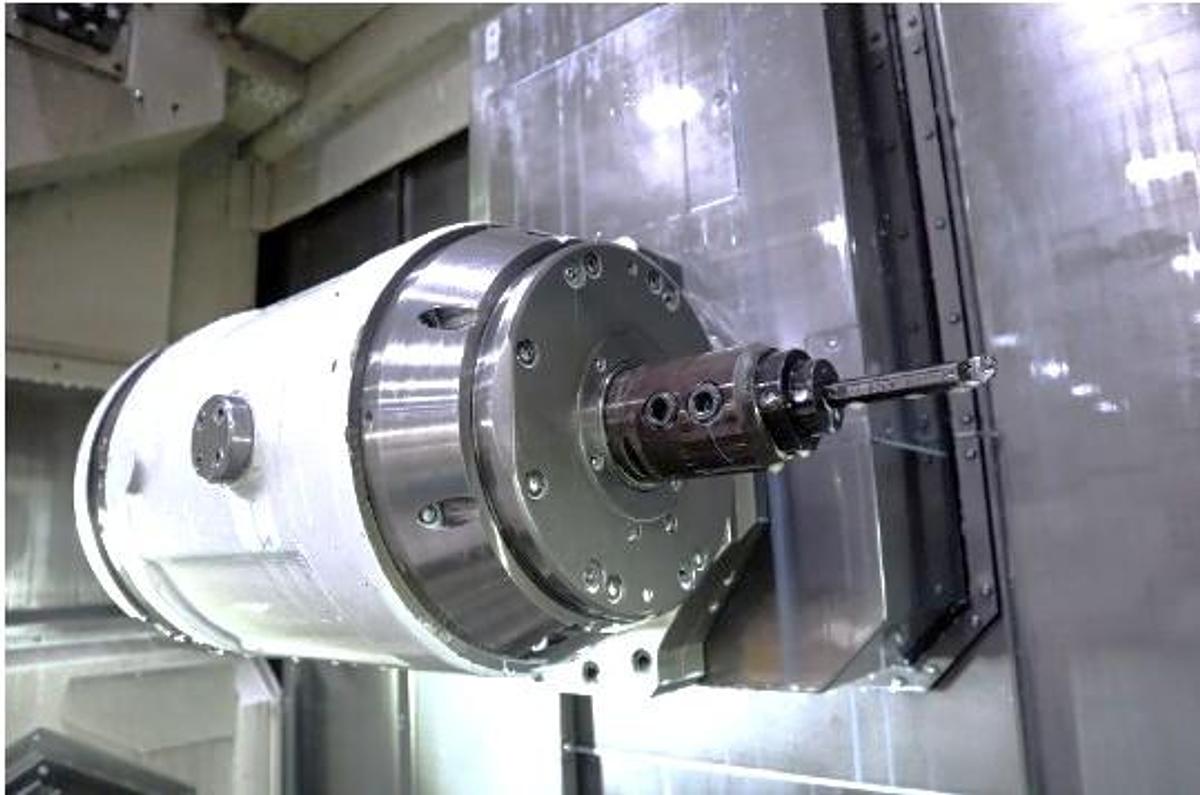

B Axis Pendulum Head 240 Degrees Movement with .0001 Degree Contouring
Full C-Axis Spindle Rotation of Both Main & Subspindle .0001 Degree
Live Milling / Drilling Capability
Y Axis Capability
Subspindle

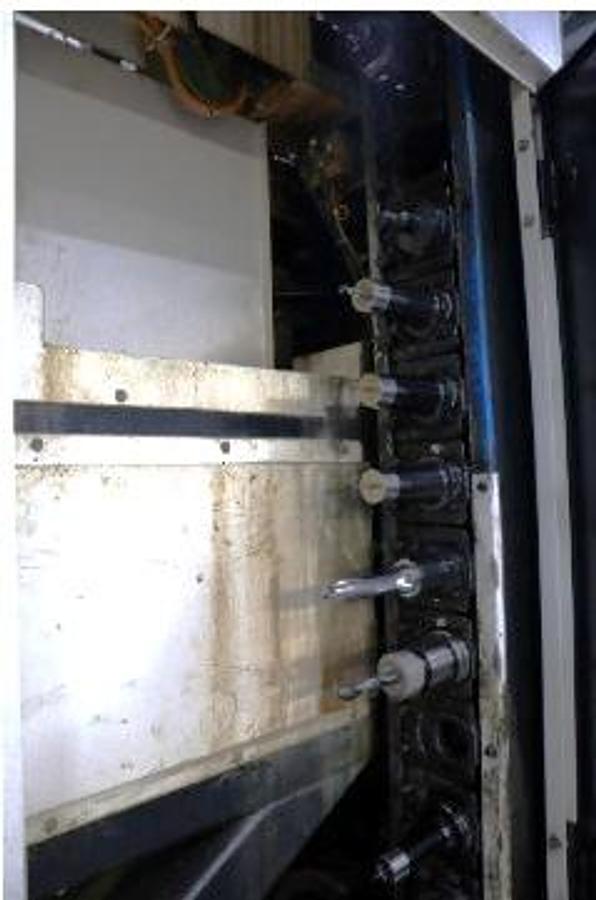

36 Station Tool Changer
12,000 RPM B Axis Milling Speed

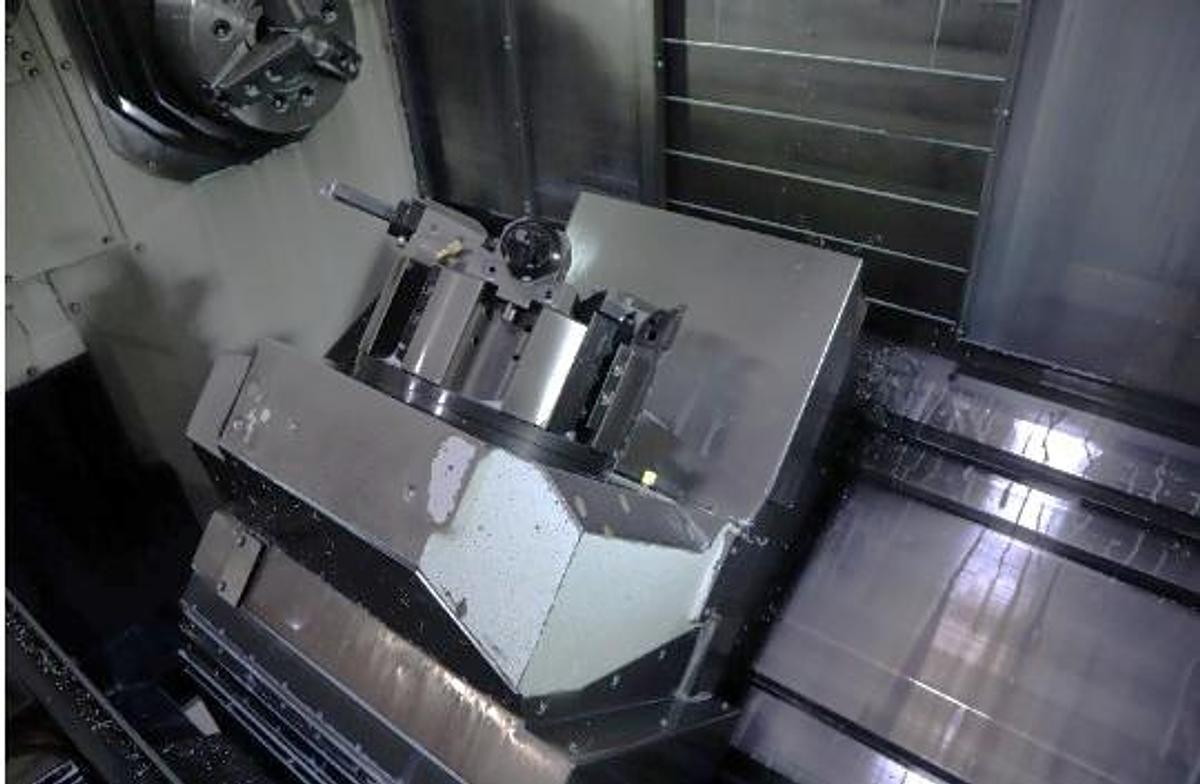

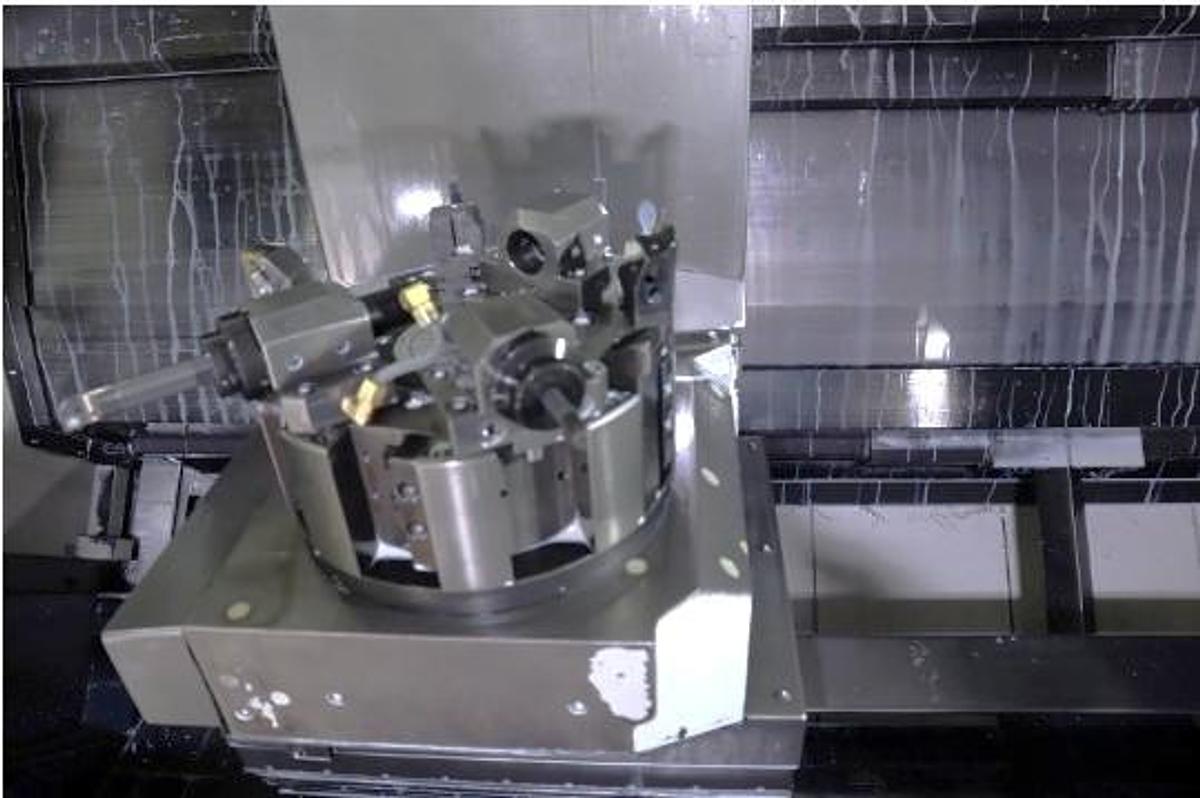

9 Station Lower Turret
Automatic Tool Eye

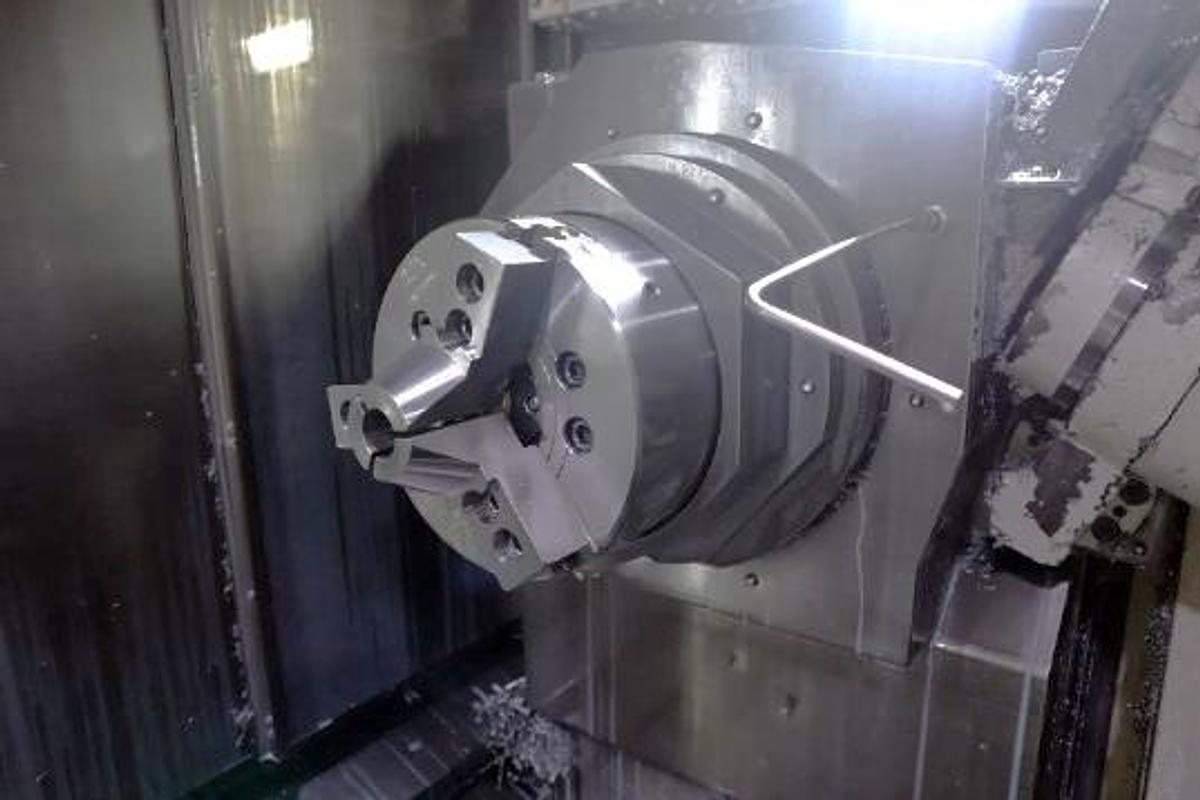

10" 3 Jaw Hydraulic Chuck on Main Spindle

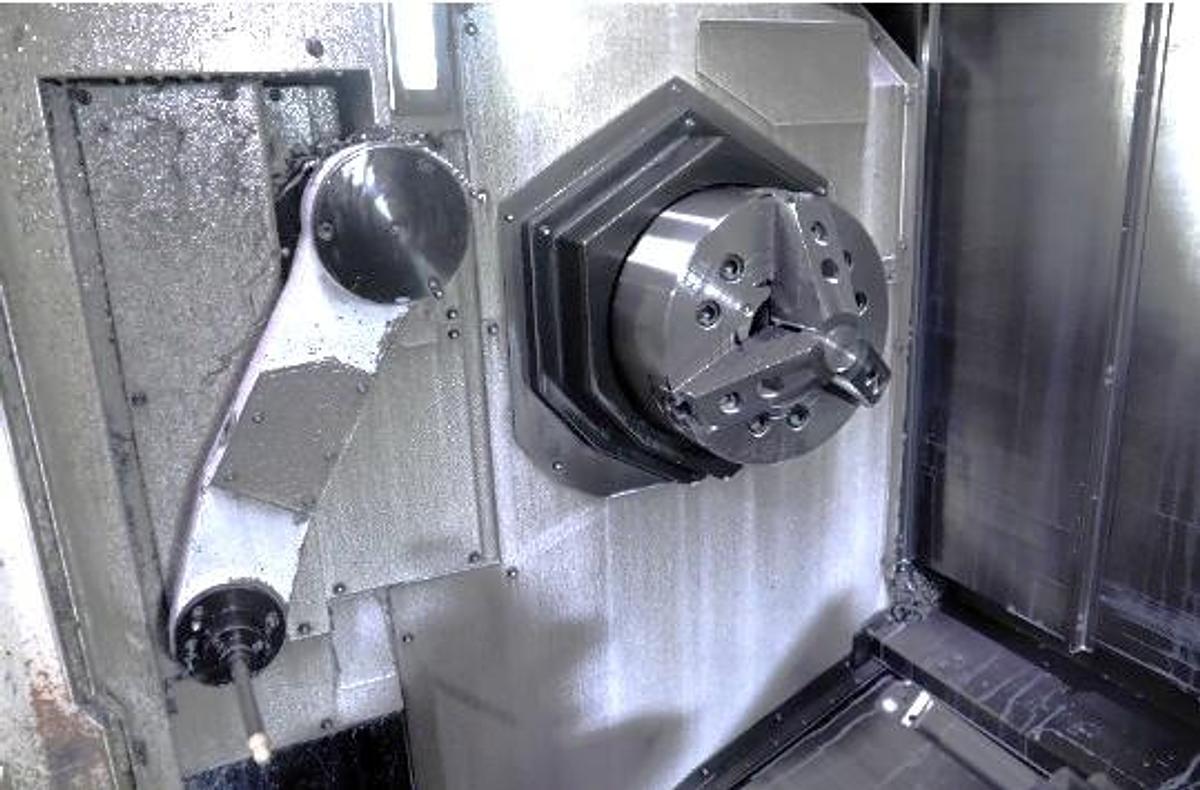

8" 3 Jaw Hydraulic Chuck on Subspindle

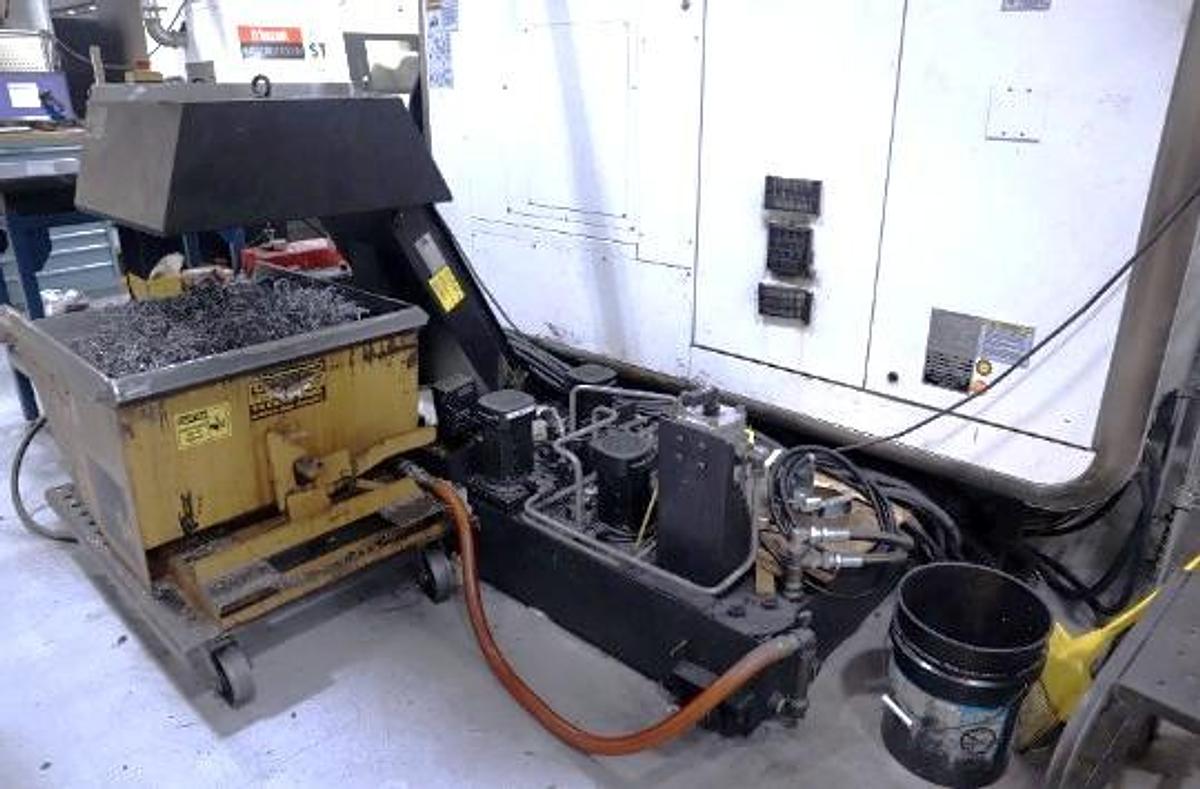

Chip Conveyor

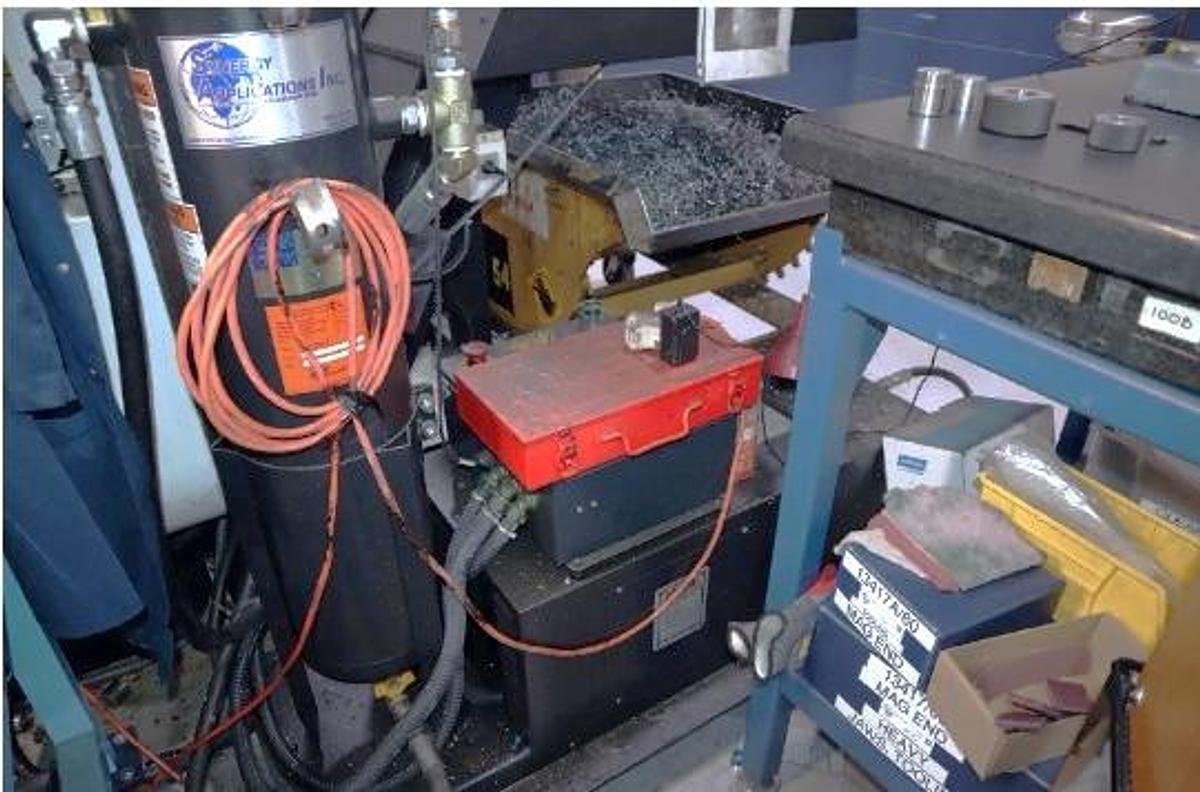

Mazak SuperFlow 1000 PSI High Pressure Coolant
Simultaneous 5 Axis Machining
Coolant Through the Spindle

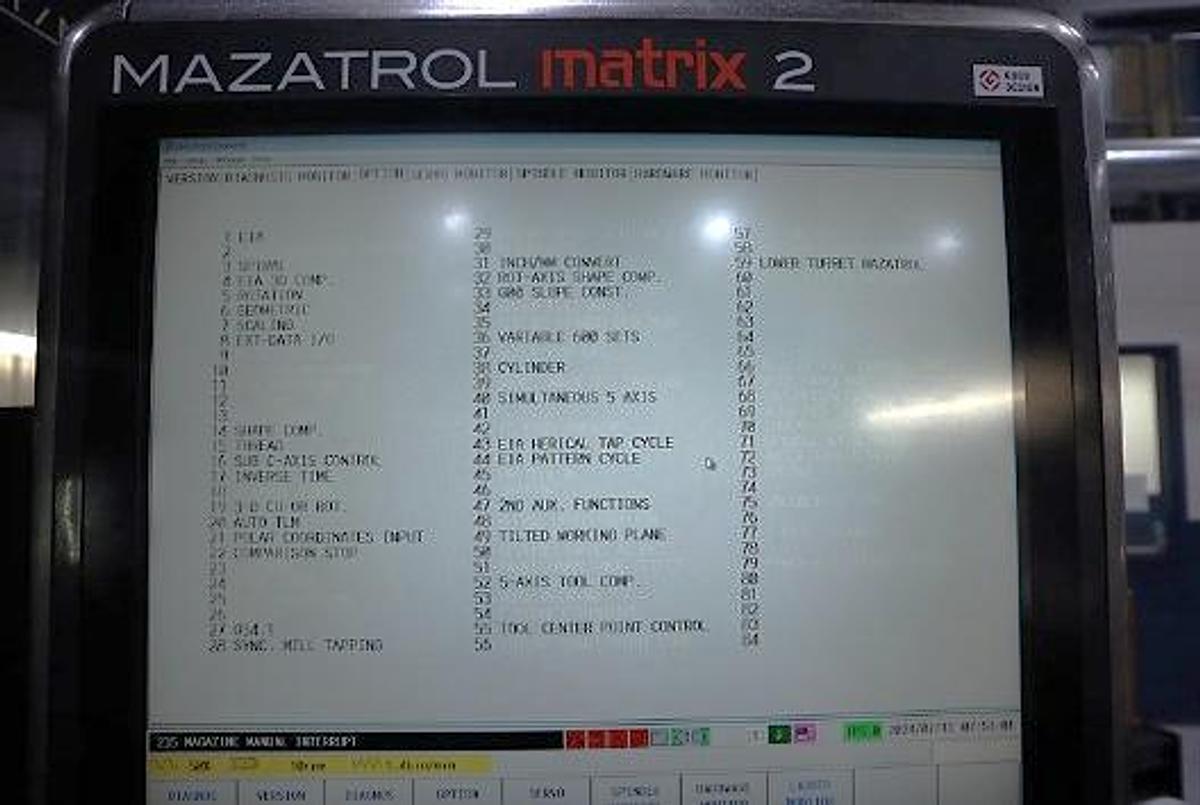

EIA/ISO Input Function
3D Coordinate Conversion
G00 Slope Constant
Mill Tool Synchronous Tapping
Absolute Positioning System - Linear Axis'
XYZ Pitch Error Compensation Input
Auto Chuck Jaws Open/Close
19" Color LCD Monitor
USB Port Interface
RS 232 Port Interface
All Available Tooling

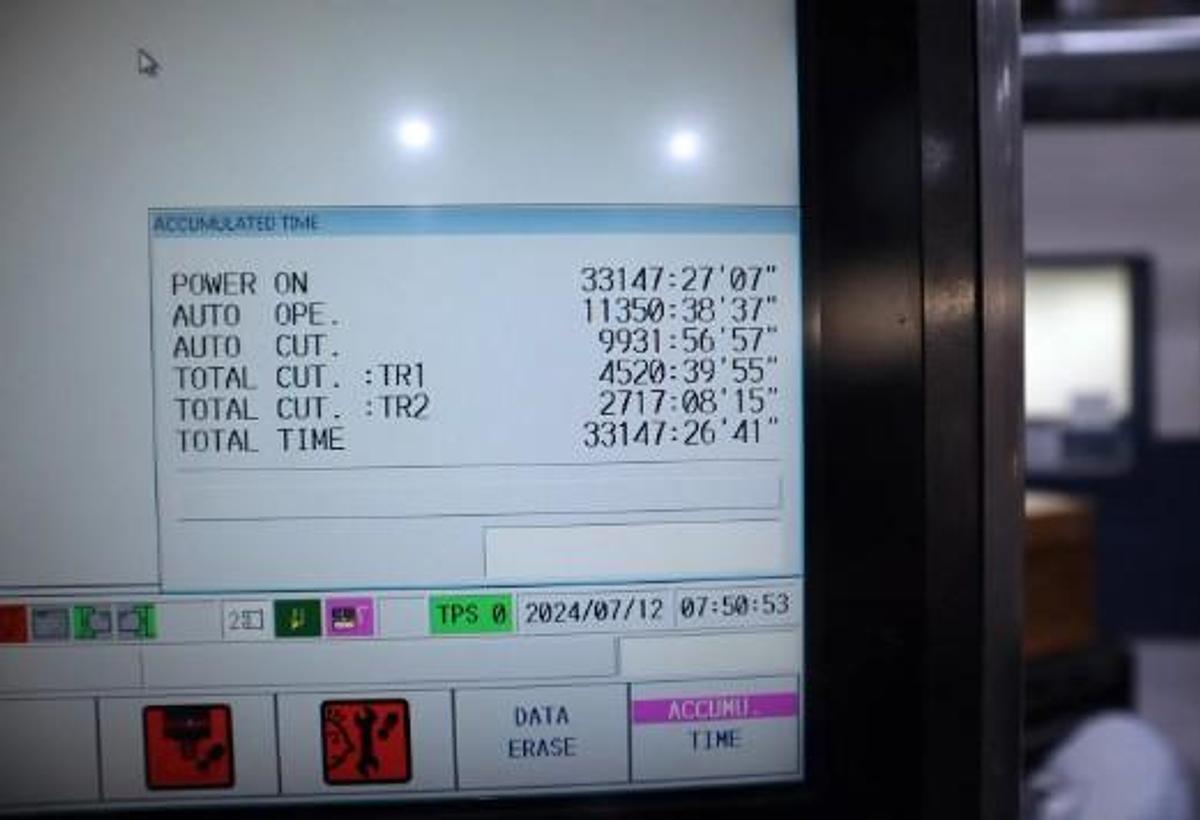

**Auto Operation Hours 11,350**
**Total Cut Hours Turret #1 4,520**
**Total Cut Hours Turret #2 2,717**
Specifications
| Manufacturer | Mazak |
| Model | Integrex i-200ST |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120057 |

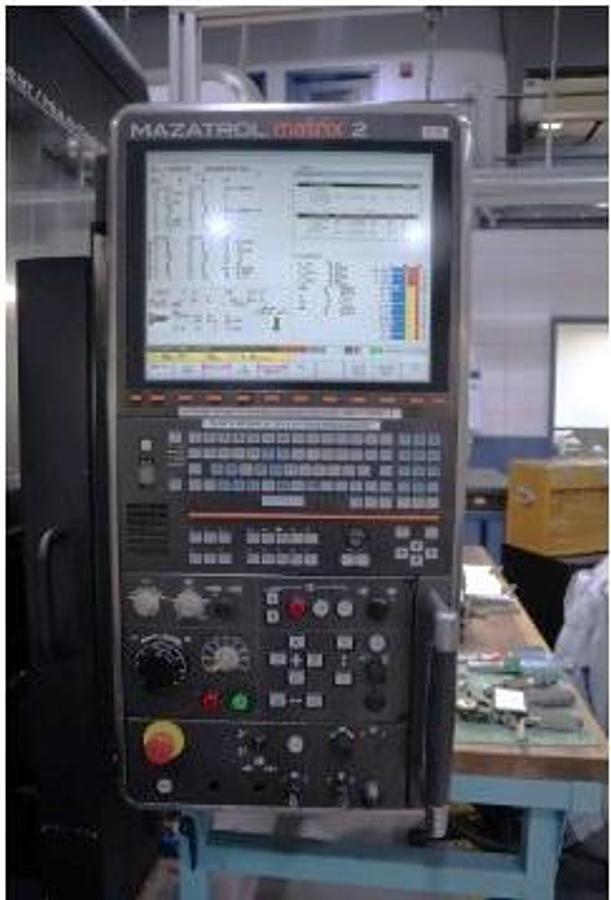

| Machine Control | Mazatrol Matrix 2 Control |
| Chuck Sizes Main / Subspindle | 10" 3-Jaw Hydraulic /8" Hydraulic Chuck |
| Maximum Swing | 25.9" |
| Maximum Machining Diameter | 25.9" |
| Maximum Machining Diameter (Using Lower Turret) | 16.54" |
| Maximum Machining Length | 59.8" |
| Maximum Bar Capacity | 2.5" (both spindles) |
| X-Axis Travel | 24.21" |
| X2-Axis Travel | 9.05" |
| Y-Axis Travel | 9.894" - Upper Turret |
| Z-Axis Travel | 62.4" |
| Z2-Axis Travel | 54.65" |
| W-Axis Travel (subspindle) | 60.6" |
| B-Axis Tilt Movement | 240 Degrees (-30 thru 210 degrees) |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .0001 Degree / .0001 Degree |
| Main Spindle Nose/Spindle Bore | A2-8" / 2.99" |
| Subspindle Nose/Spindle Bore | A2-6" / 2.99" |
| Main Spindle / Second Spindle | 4200 RPM / 5000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Rotary Tool Speed / Rotary Motor | 12,000 RPM / 20 HP |
| Tool Magazine Capacity | 36 Position Tool Changer - CAPTO C6 |
| Spindle Taper | N/A |
| Maximum Tool Diameter / Length / Weight | 5.1" / 7.87" / NA |
| Number of Lower Turret Positions | 9 Station Turret |
| Lower Turret Live Tool Speed / Motor | 12,000 RPM / 10 HP |
| Rapid Traverse Rates X/Y/Z/C | 1969 IPM / 1575 IPM / 1969 IPM / 555 ipm |
| Machine Dimensions LxWxH | 194" x 111" |
| Machine Weight | 35,596 lbs |
