2016 Haas VF-3YT/40 with 10,000 RPM, Coolant Thru Spindle, 4th Axis Rotary Table, Probing, Pcool, Air Gun
2016 Haas VF-3YT/40 with 10,000 RPM, Coolant Thru Spindle, 4th Axis Rotary Table, Probing, Pcool, Air Gun
Contact us for price
Location:Michigan
or
Call (863) 439-6066
Description
Wired for 4th Axis

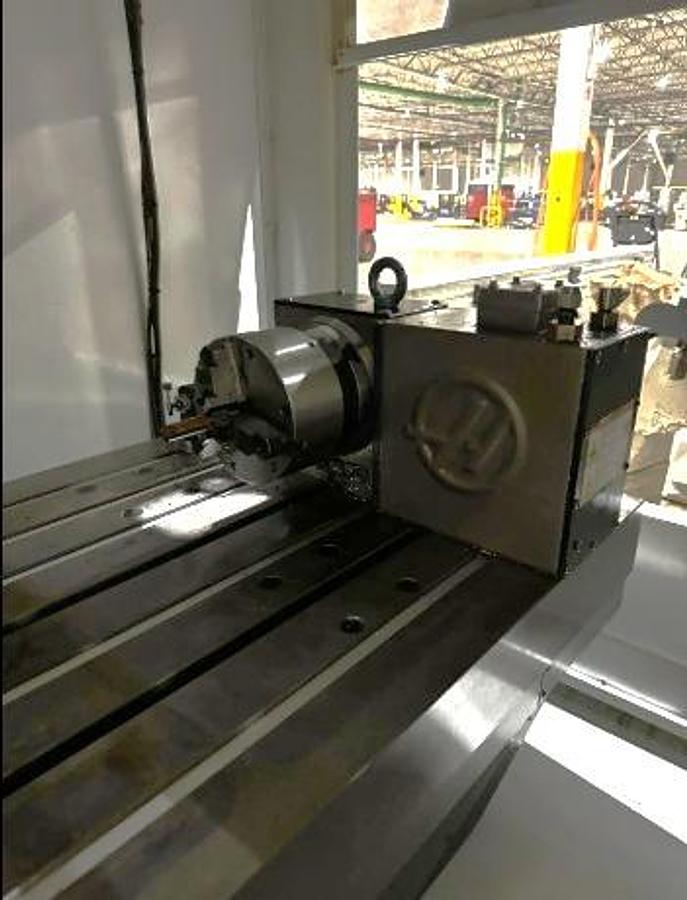

4th Axis Rotary Table w/3-Jaw Chuck
Haas Wireless Probing Package - less part probe
Coolant Thru the Spindle

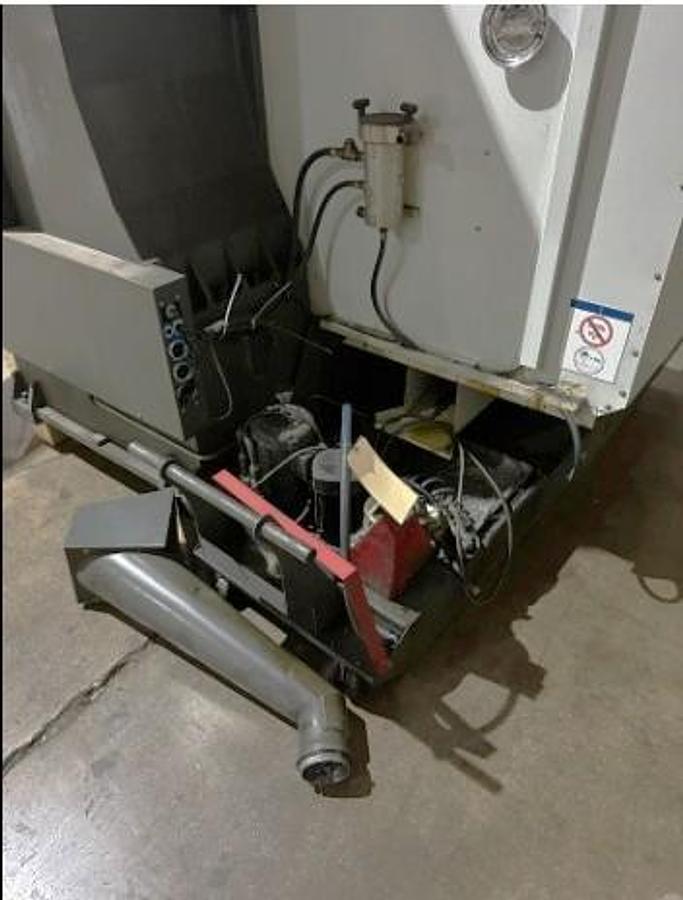

Auger Style Chip Conveyor
Programmable Coolant Nozzle
Auto Air Gun
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Haas Visual Programming System
Rigid Tapping Vector Drive Spindle
Wireless Networking
Ethernet Interface
USB Port Interface RS 232 Port Interface Coolant System with Tank & Pump
Specifications
| Manufacturer | Haas |
| Model | VF-3YT/40 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 120056 |

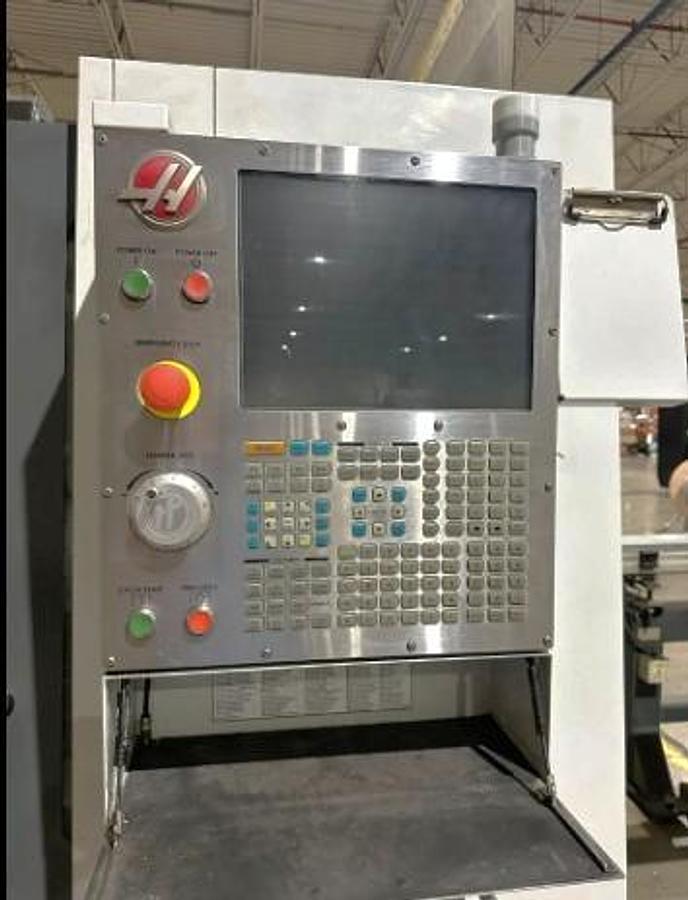

| Control | Haas NextGen Control |
| Table Size | 52" x 23" |
| Maximum Weight on Table | 4,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 20 HP |

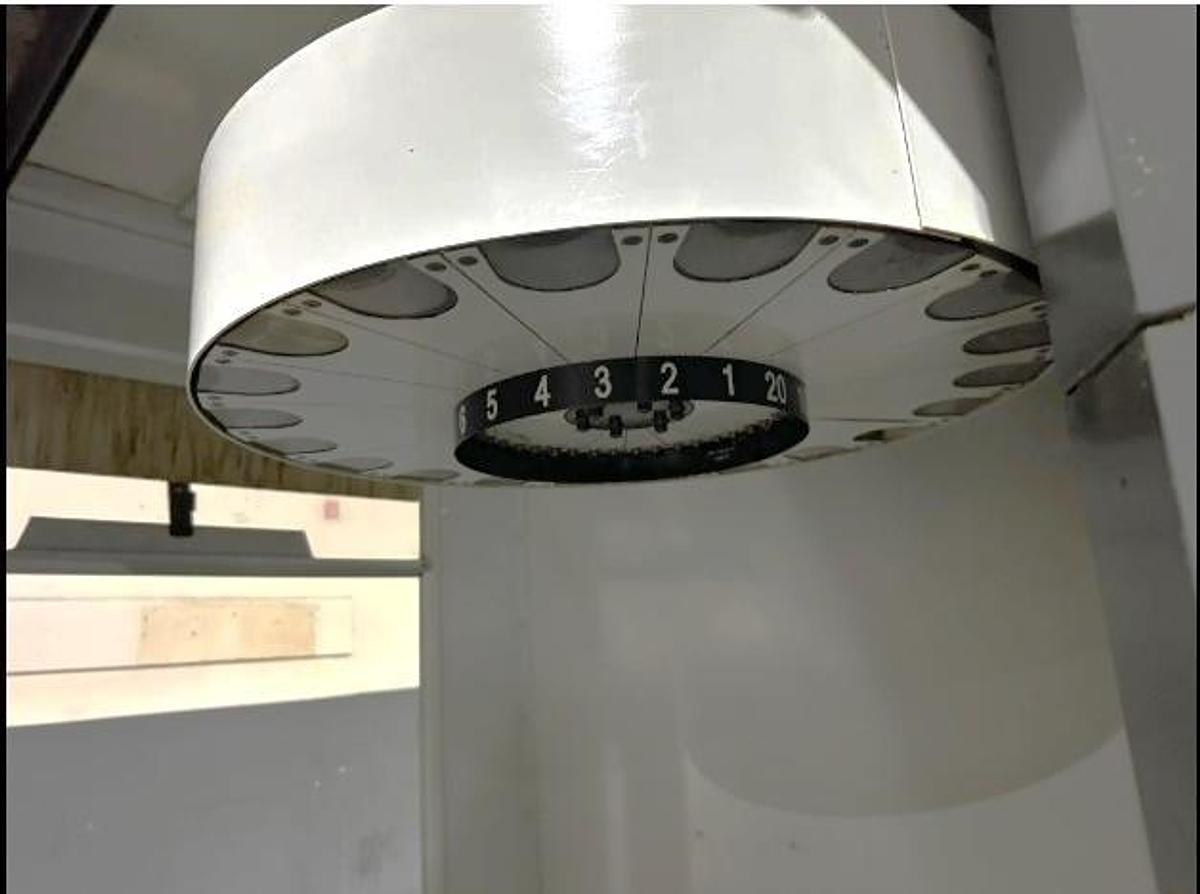

| Number of Tool Positions | 20 Station Umbrella Style Tool Changer |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 4.2 seconds |
| Rapid Traverse Rates | 710 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 124" x 102" x 102" |
| Machine Weight | 17,000 lbs. |
