2022 Haas VF-2SS w/ Haas HRT-210 Rotary Table, Probing, Coolant Through the Spindle, High Speed Machining, Auger, Pcool

2022 Haas VF-2SS w/ Haas HRT-210 Rotary Table, Probing, Coolant Through the Spindle, High Speed Machining, Auger, Pcool
$79,500 (USD)
Location:Texas
Description
4th Axis Drive & Wiring

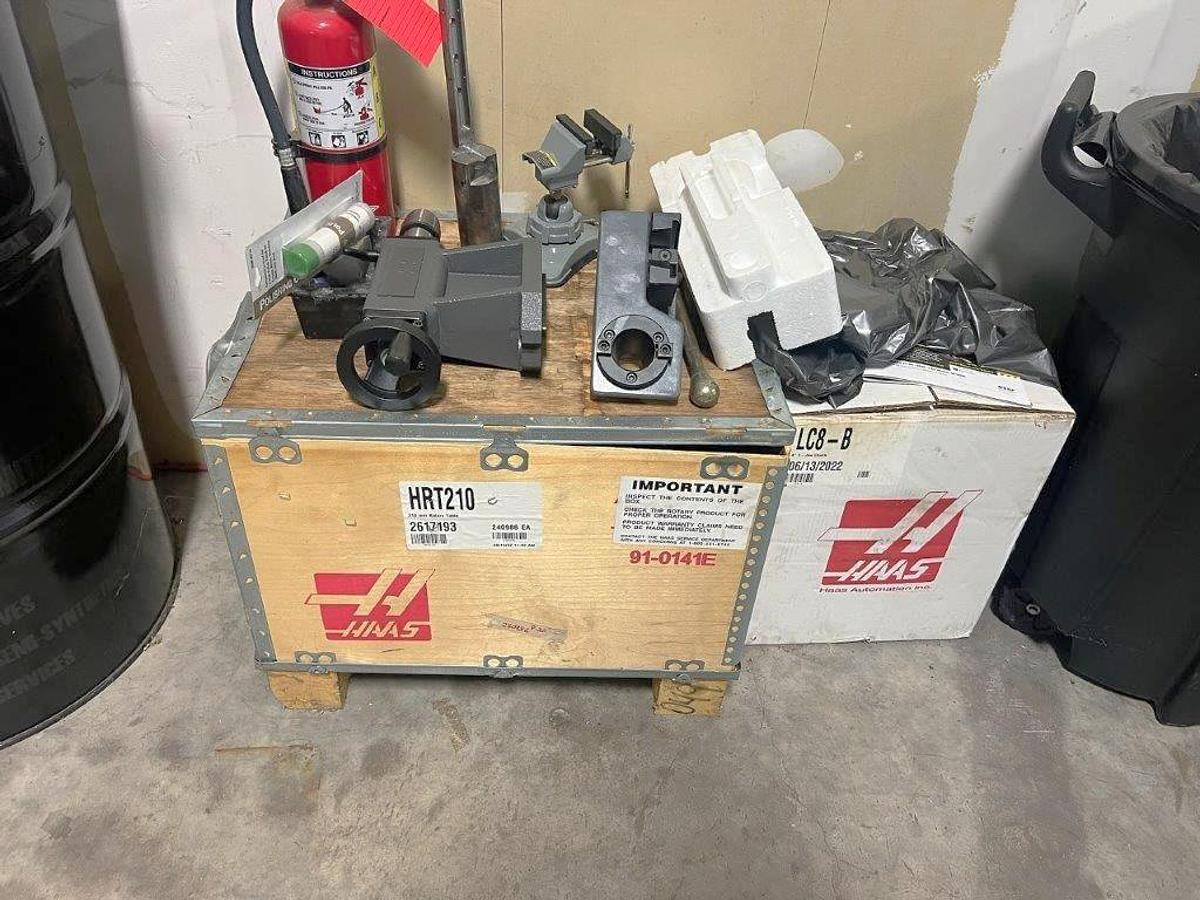

Haas HRT-210 4th Axis Rotary Table
Haas 6" Height Manual Tailstock
8" 3 Jaw Chuck for Rotary Table
Haas Wireless Probing Package with Tool & Part Probes
High Speed Machining
30+1 Position Side Mounted Tool Changer

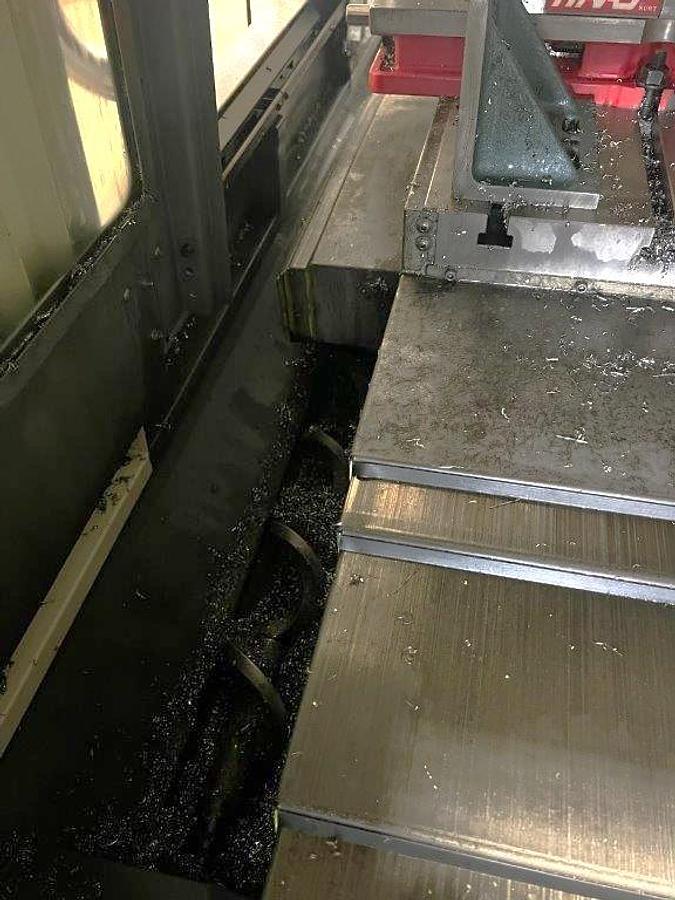

Auger Style Chip Conveyor

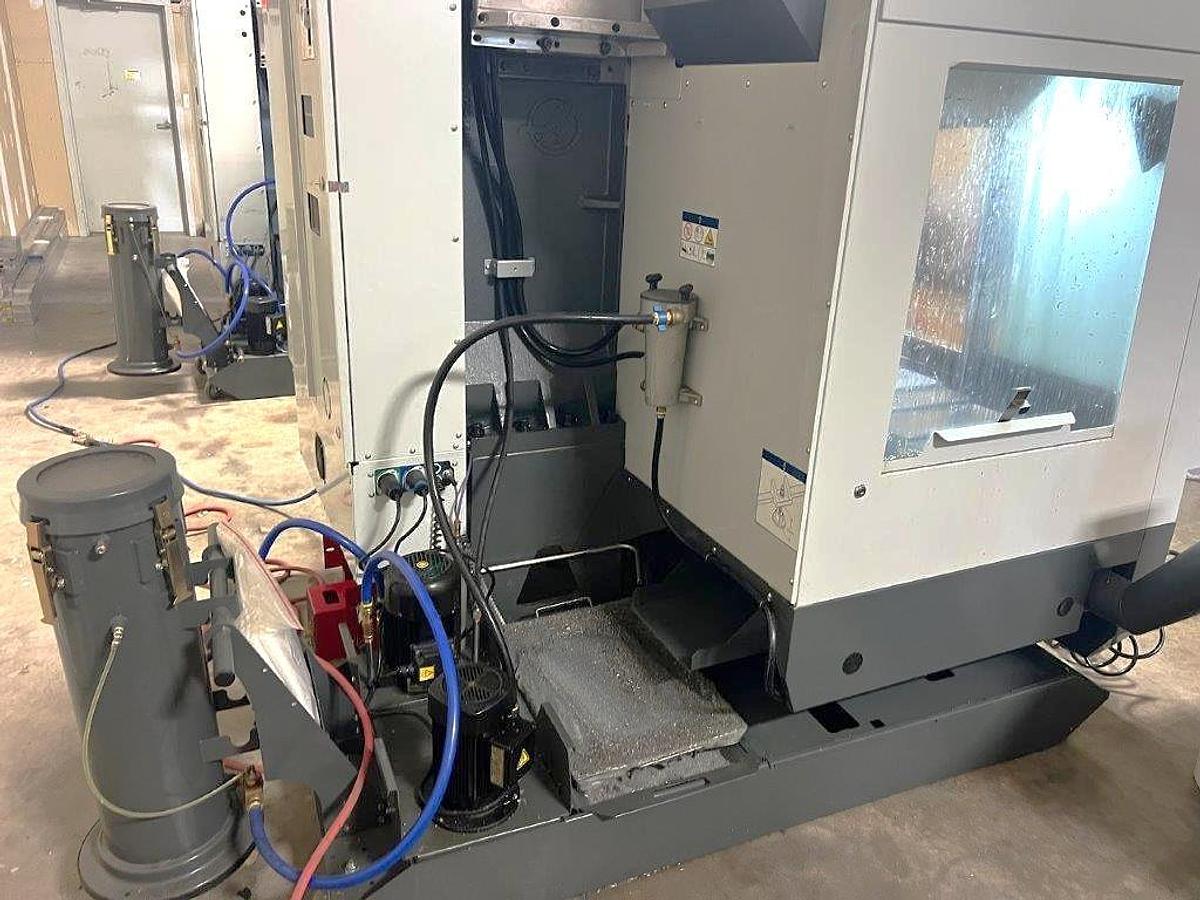

Coolant Through the Spindle - 300 PSI
Auxiliary Coolant Filter System
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Programmable Coolant Nozzle
Variable Flow Coolant-Allows control of flood coolant and pressure via M-Code
Rigid Tapping
Complete Coolant System with Tank & Multi Stage Coolant Pump
Color LCD Monitor
Haas Drop
Haas Connect: Remote Monitoring
Wifi Connection
Power Surge Protection
Early Power Failure Detection Module
Advanced Tool Management
Window Air Blast
1 GB Standard Programming Memory
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation
Wired 220V Electrics
**Machine New in August of 2024**

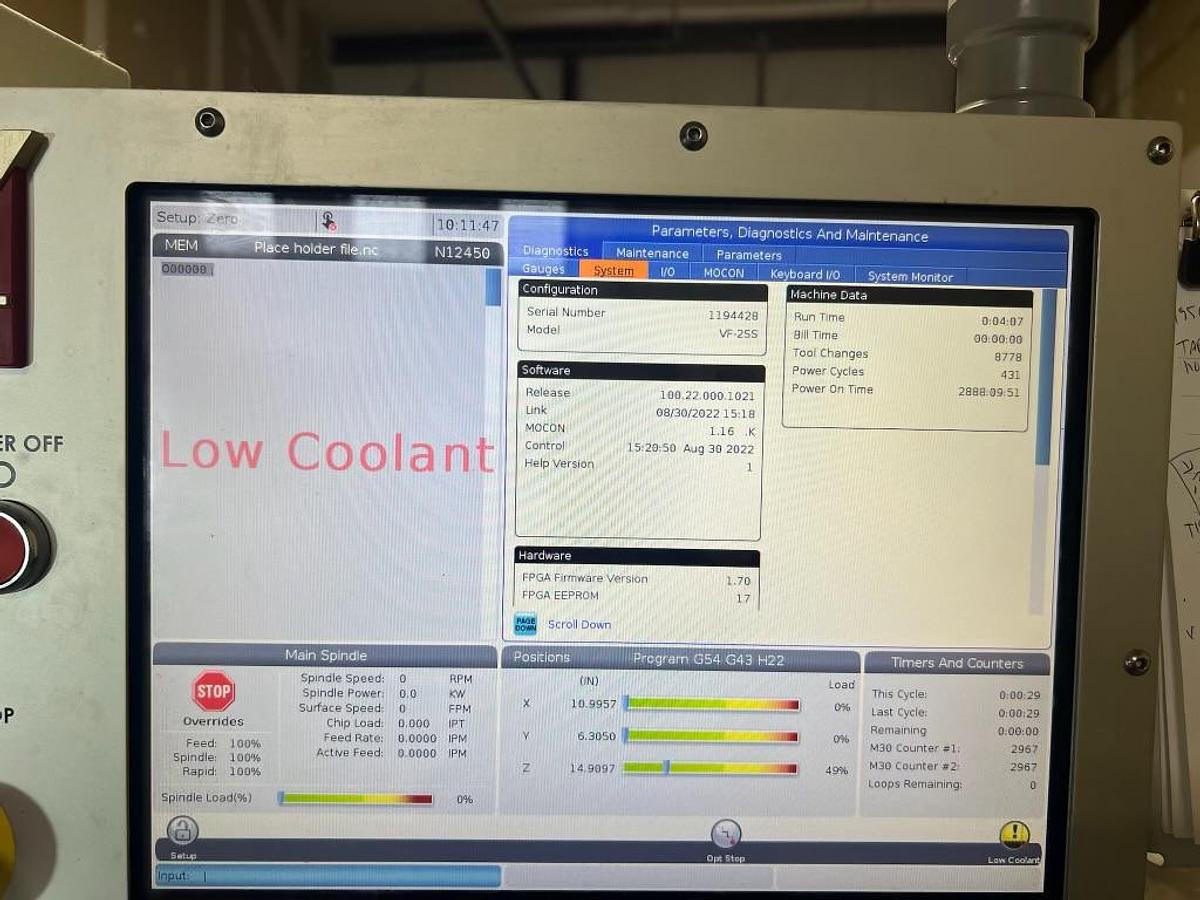

**Machine has 2,880 Power On Hours**
**Price New as Equipped at $131,345**
**SAME SHOP HAS A 2024 VF-2SS EQUIPPED EXACTLY THE SAME FOR $ 89,500**
Specifications
Manufacturer | Haas |
Model | VF-2SS w/ Haas HRT-210 Rotary Table, Probing, High Speed Machining, Auger, Pcool |
Year | 2024 |
Condition | Used |
Stock Number | 120055 |
Table Size | 36" x 14" |
Maximum Table Load | 1,500 lbs. |
Spindle Nose to Table Top | 4" - 24" |
X Axis Travel | 30" |
Y Axis Travel | 16" |
Z Axis Travel | 20" |
Spindle Taper | CAT 40 |
Spindle Speeds | 12,000 RPM |
Spindle Motor | 30 HP - Direct Drive |
Number of Tool Positions | 30 Station Side Mounted ATC |
Rapid Traverse Rates (X, Y, Z) | 1400 IPM |
Cutting Feedrates | 0.1 - 833 IPM |
Machine Dimensions | 88" x 93" x 106" |
Machine Weight | 9,000 lbs. |
