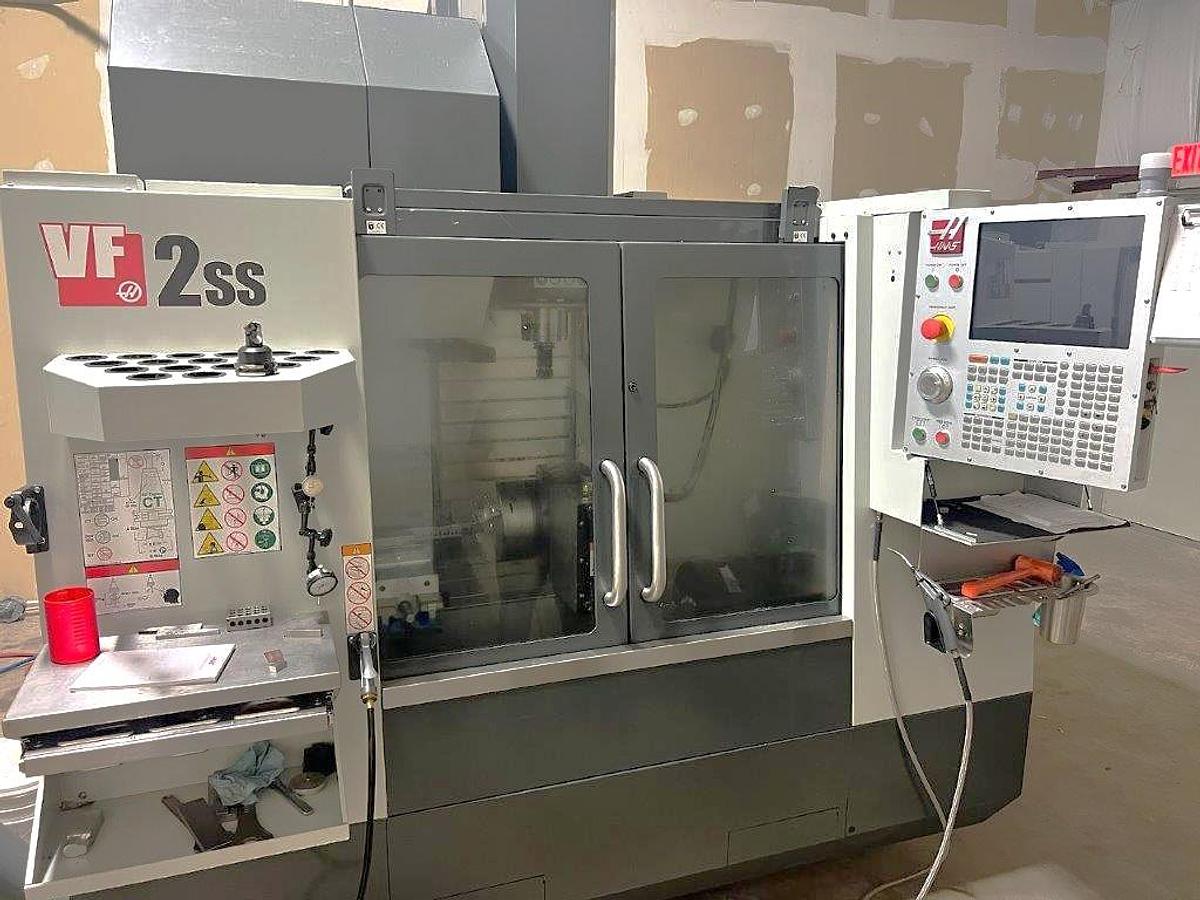

2024 Haas VF-2SS w/ Haas HRT-210 Rotary Table, Probing, Coolant Through Spindle, High Speed Machining, Auger, Pcool

2024 Haas VF-2SS w/ Haas HRT-210 Rotary Table, Probing, Coolant Through Spindle, High Speed Machining, Auger, Pcool
Contact us for price
Location:Texas
Description
4th Axis Drive & Wiring

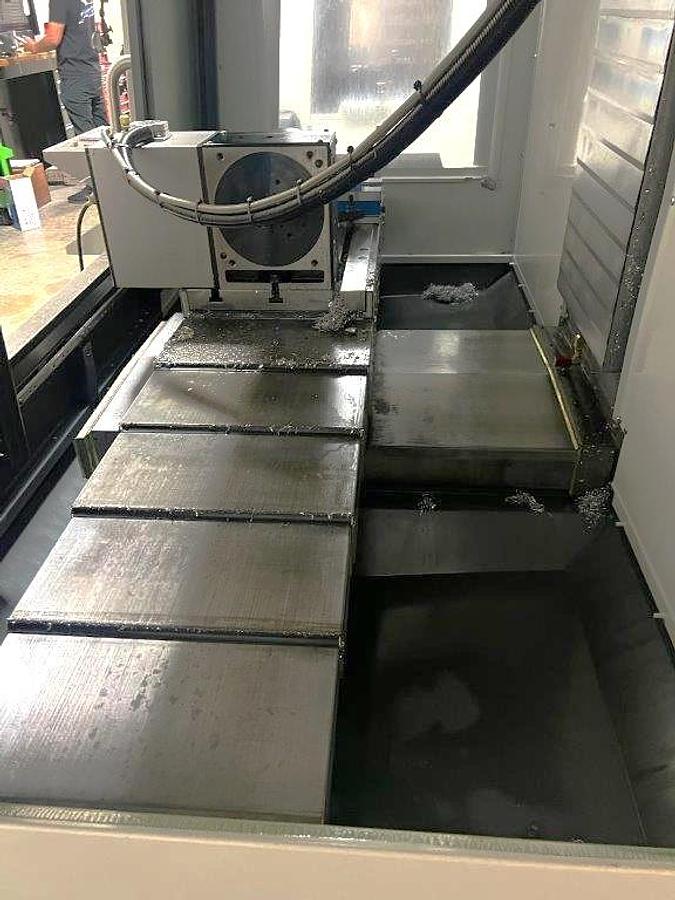

Haas HRT-210 4th Axis Rotary Table
Haas 6" Height Manual Tailstock

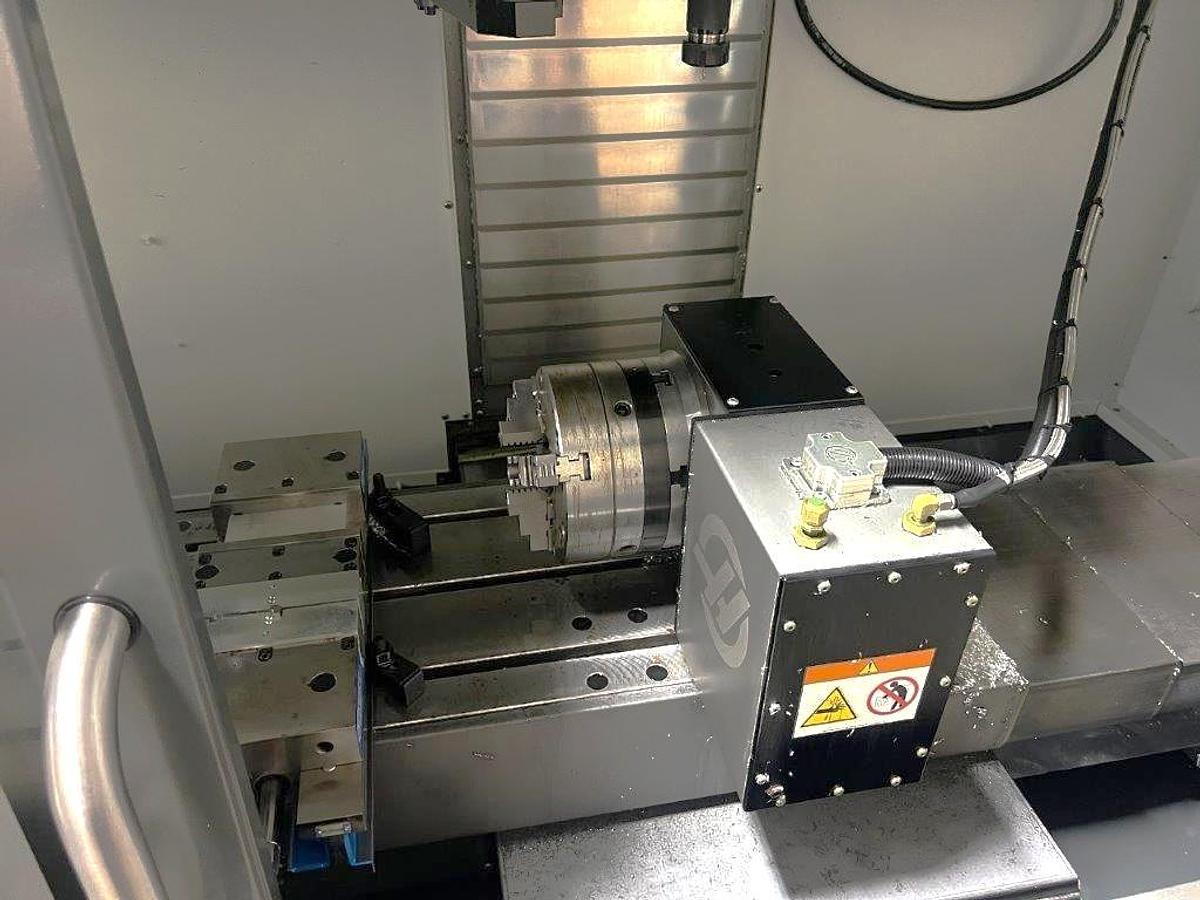

8" 3 Jaw Chuck for Rotary Table
Haas Wireless Probing Package with Tool & Part Probes
High Speed Machining
30+1 Position Side Mounted Tool Changer

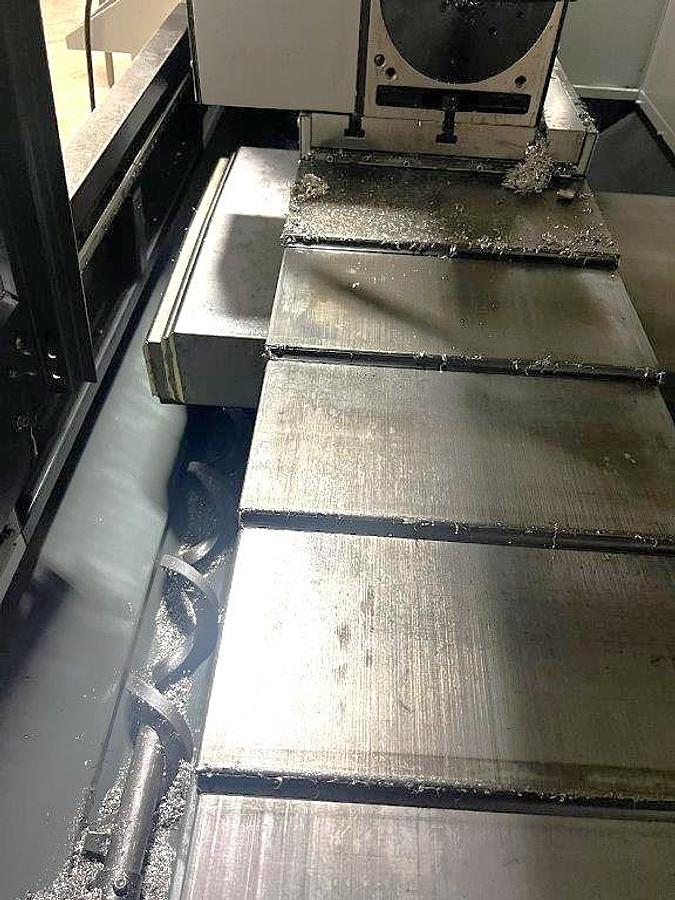

Auger Style Chip Conveyor
Coolant Through the Spindle - 300 PSI
Auxiliary Coolant Filter System
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Programmable Coolant Nozzle
Variable Flow Coolant-Allows control of flood coolant and pressure via M-Code
Rigid Tapping
Complete Coolant System with Tank & Multi Stage Coolant Pump
Color LCD Monitor
Haas Drop
Haas Connect: Remote Monitoring
Wifi Connection
Power Surge Protection
Early Power Failure Detection Module
Advanced Tool Management
Window Air Blast
1 GB Standard Programming Memory
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation
Wired 220V Electrics
**Machine New in May of 2024**
**SAME SHOP HAS A 2022 VF-2SS EQUIPPED EXACTLY THE SAME FOR $ 79,500**

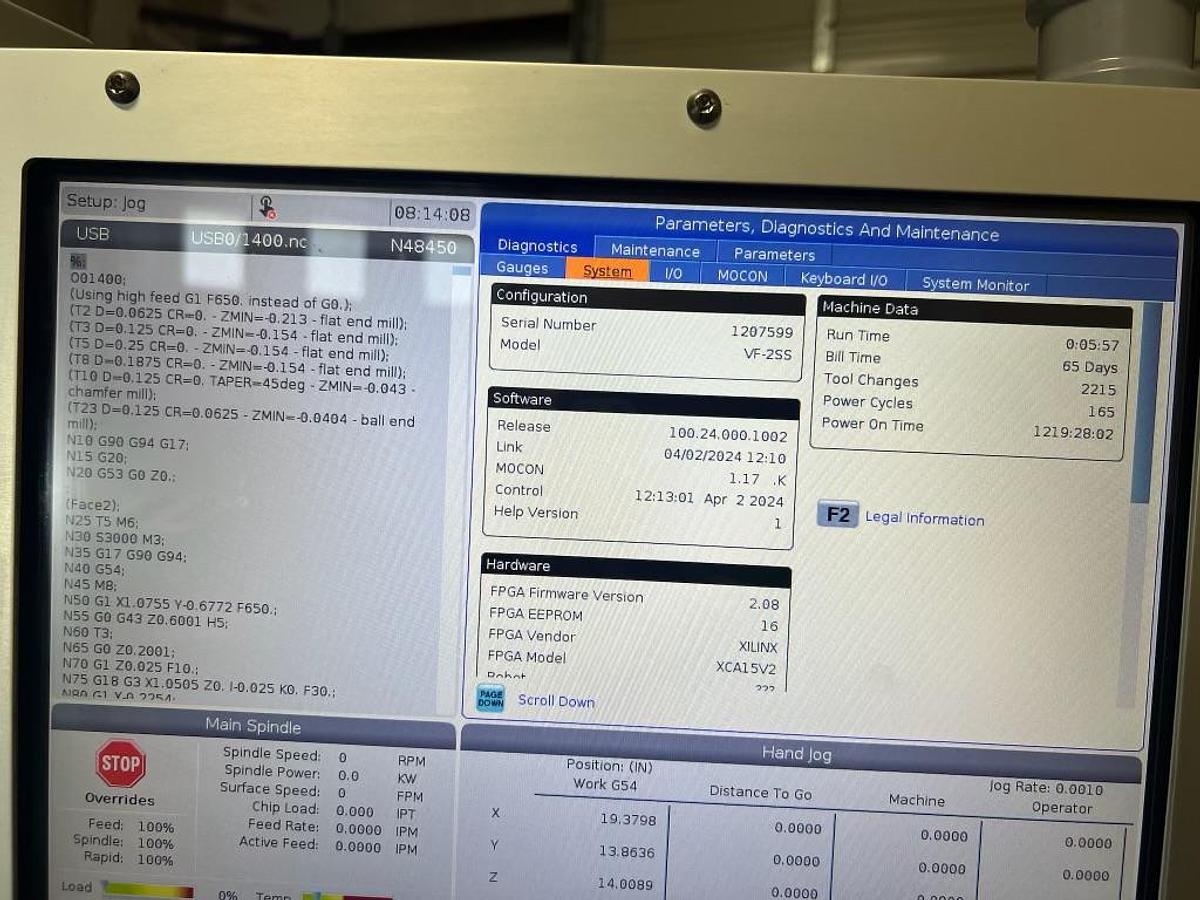

**Machine has 1,219 Power On Hours**
**Price New as Equipped at $131,345**
Specifications
| Manufacturer | Haas |
| Model | VF-2SS w/ Haas HRT-210 Rotary Table, Probing, High Speed Machining, Auger, Pcool |
| Year | 2024 |
| Condition | Used |
| Stock Number | 120054 |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,500 lbs. |
| Spindle Nose to Table Top | 4" - 24" |
| X Axis Travel | 30" |
| Y Axis Travel | 16" |
| Z Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 30 HP - Direct Drive |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Rapid Traverse Rates (X, Y, Z) | 1400 IPM |
| Cutting Feedrates | 0.1 - 833 IPM |
| Machine Dimensions | 88" x 93" x 106" |
| Machine Weight | 9,000 lbs. |
