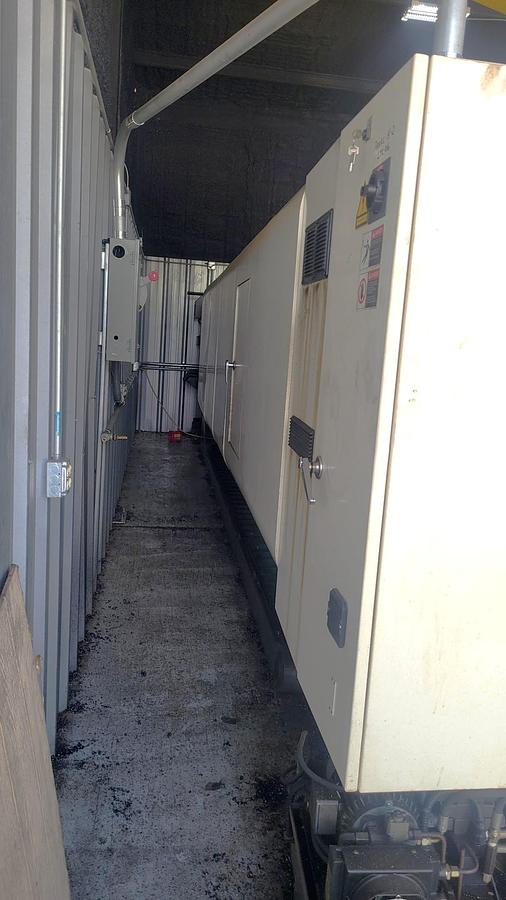

2006 Hankook Protec 9NC/4000 with 10" Bar Capacity, 160" Centers, (2) 25" Manual Chucks, Fanuc 21iTB Control
2006 Hankook Protec 9NC/4000 with 10" Bar Capacity, 160" Centers, (2) 25" Manual Chucks, Fanuc 21iTB Control
$124,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description
10" Spindle Bore/Bar Capacity
Chip Conveyor

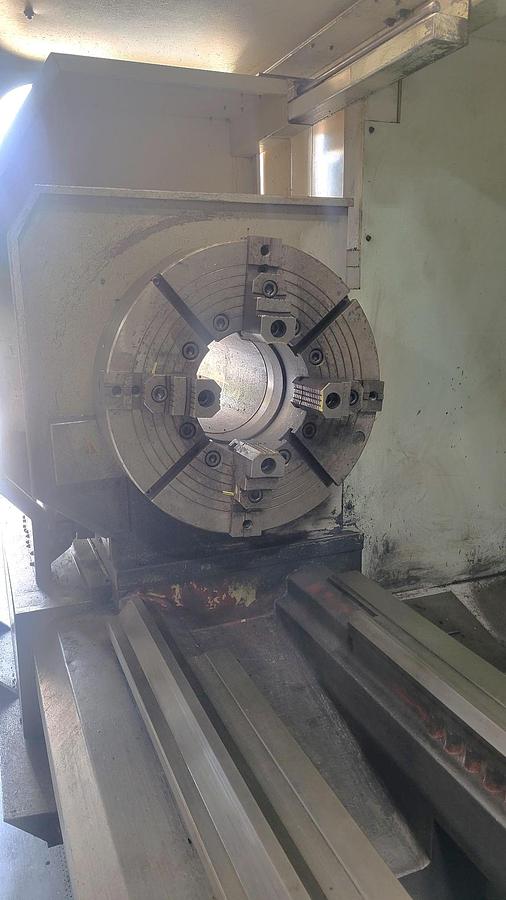

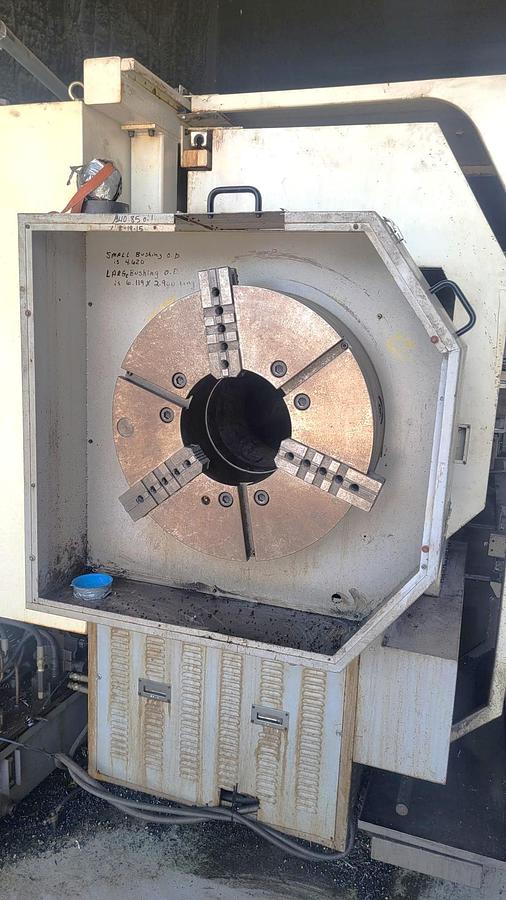

25" 4 Jaw Manual Chuck on Front

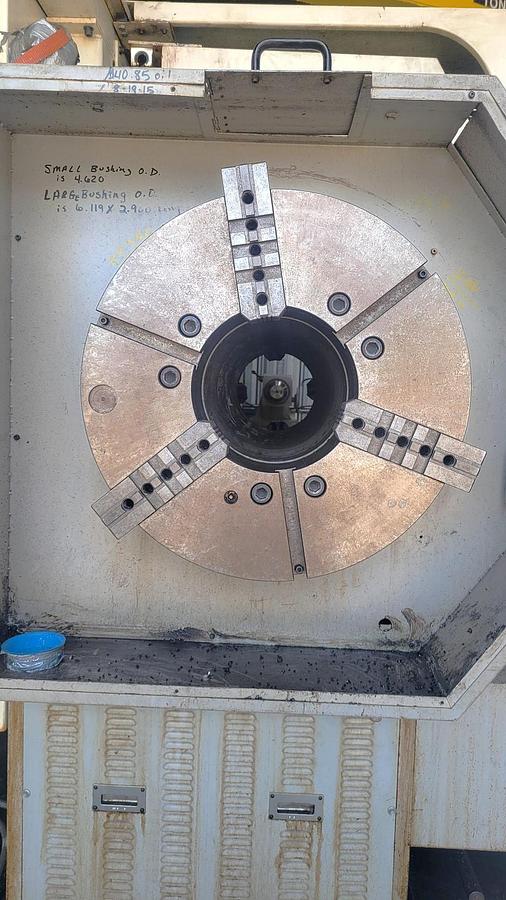

25" 3 Jaw Manual Chuck on Rear

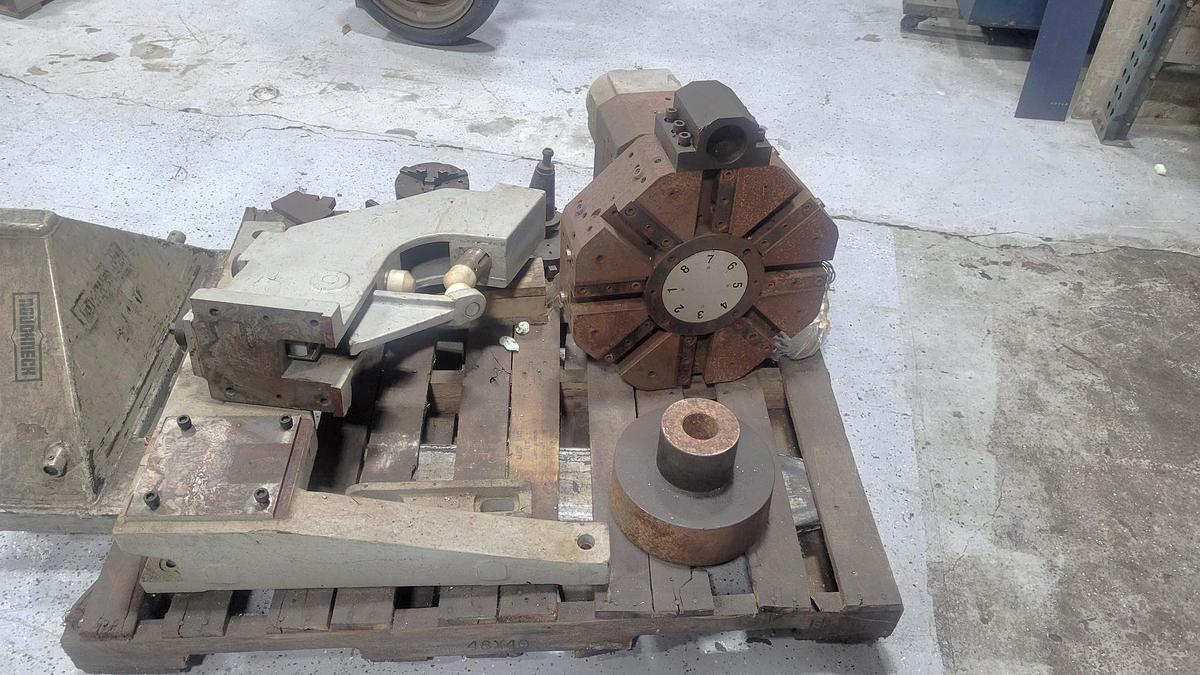

8 Station Turret that Mounts on Cross Slide

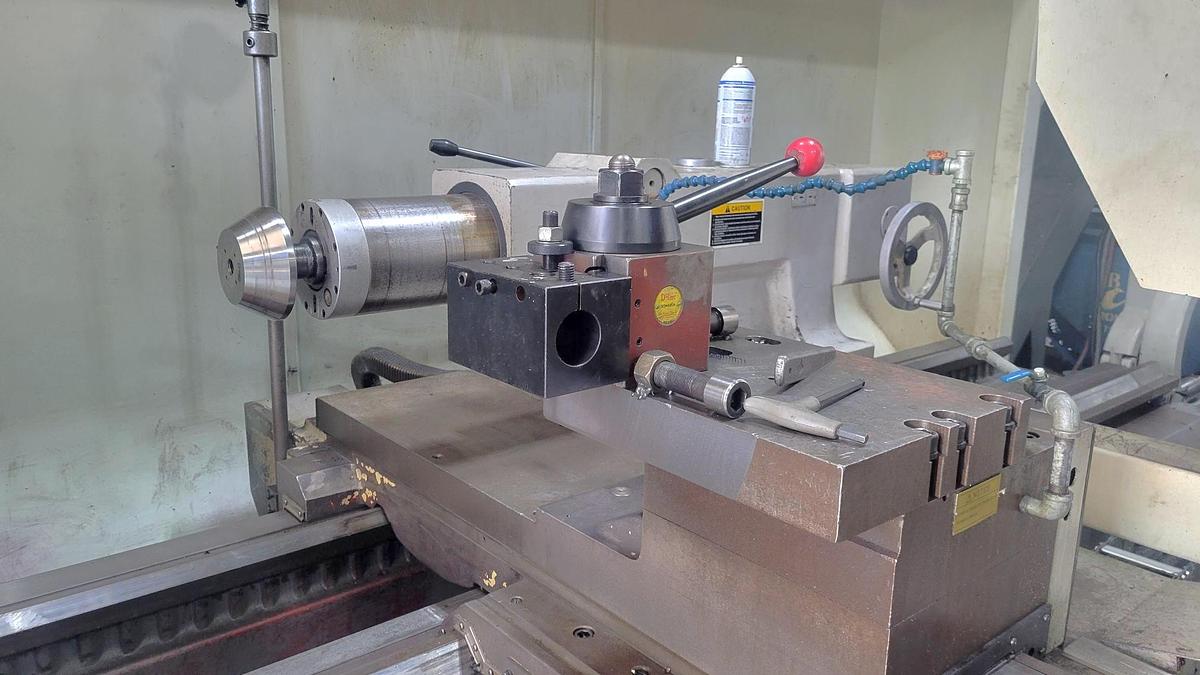

Dorian Tool Post Mounted on Cross Slide

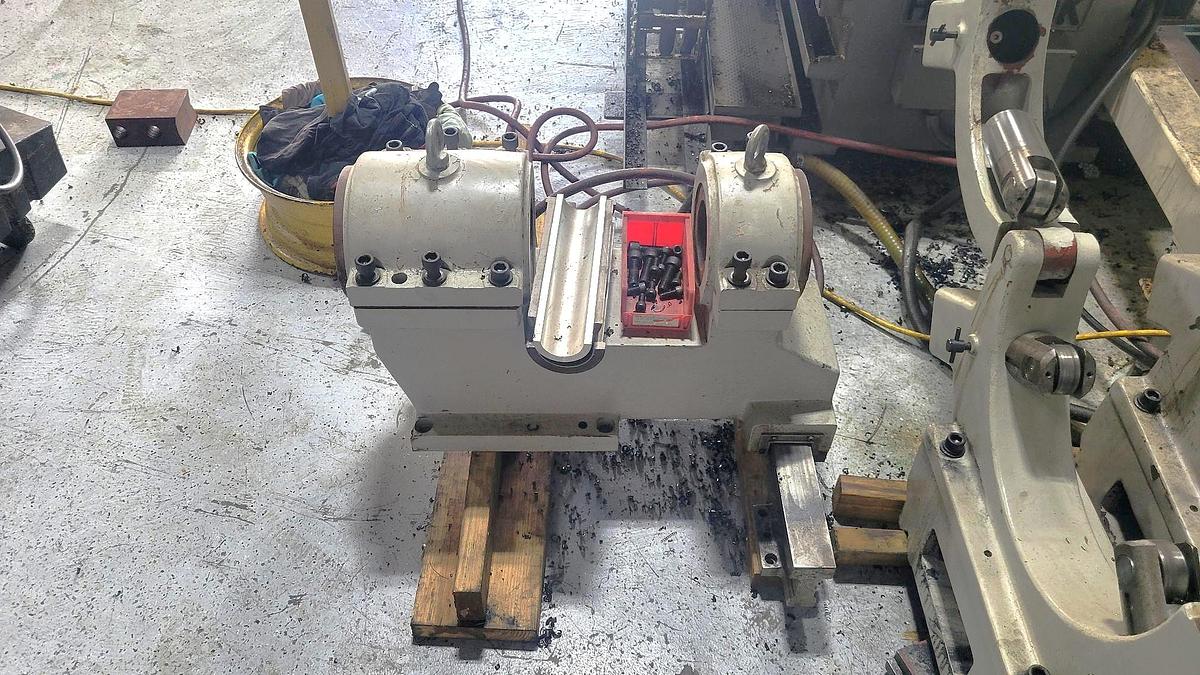

Heavy Duty Tailstock

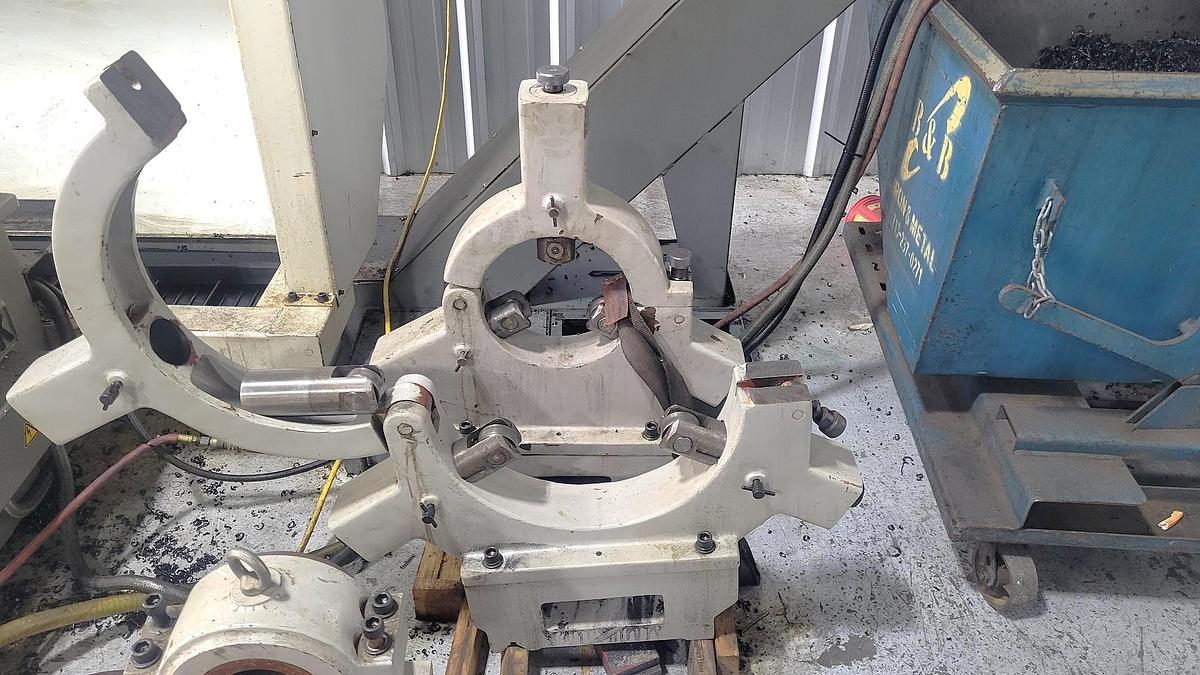

(2) Roller Type Steady Rests

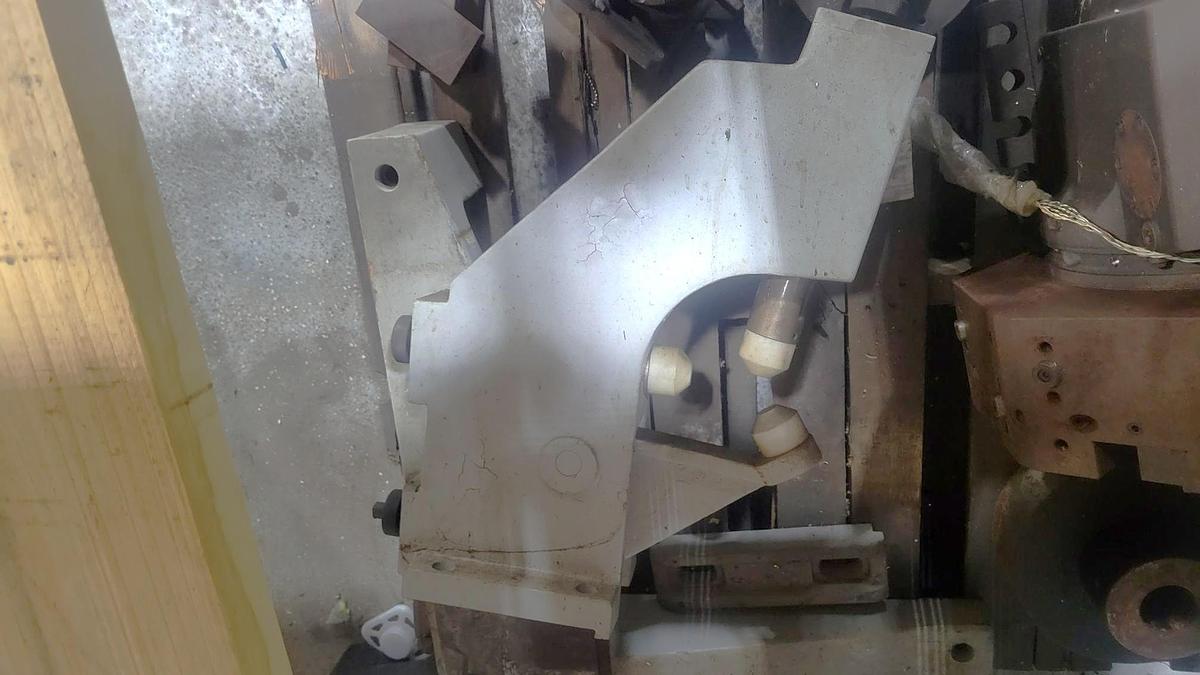

(1) Follower Rest

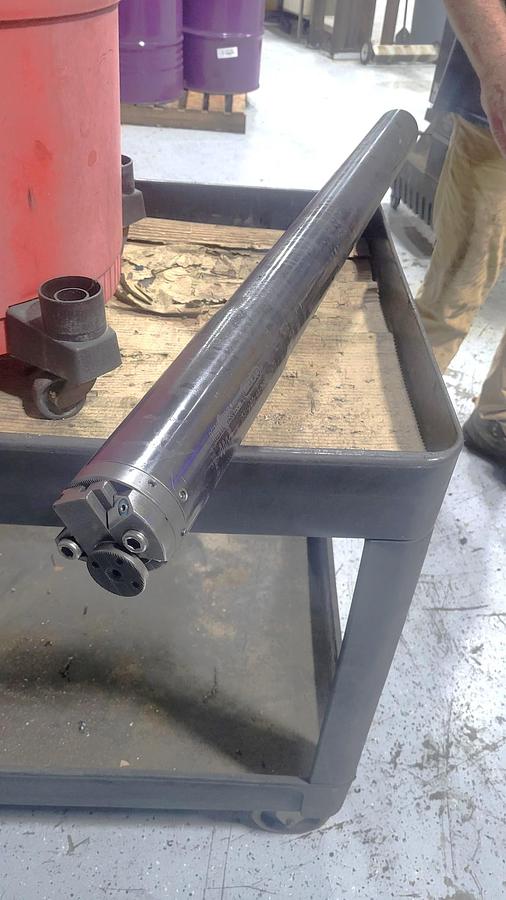

Long Boring Bar Attachment
Remote Jog Handle

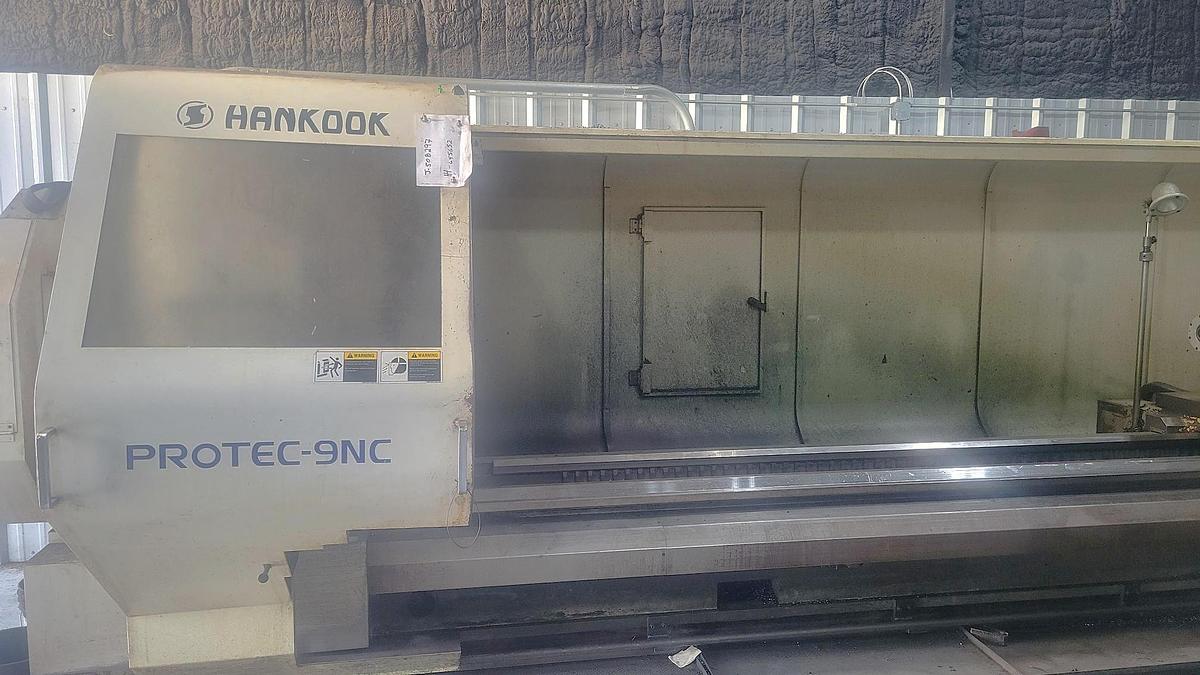

Enclosed with Slide Doors
Work Light
Coolant System with Tank & Pump
Hard Disk Interface
RS 232 Port Interface

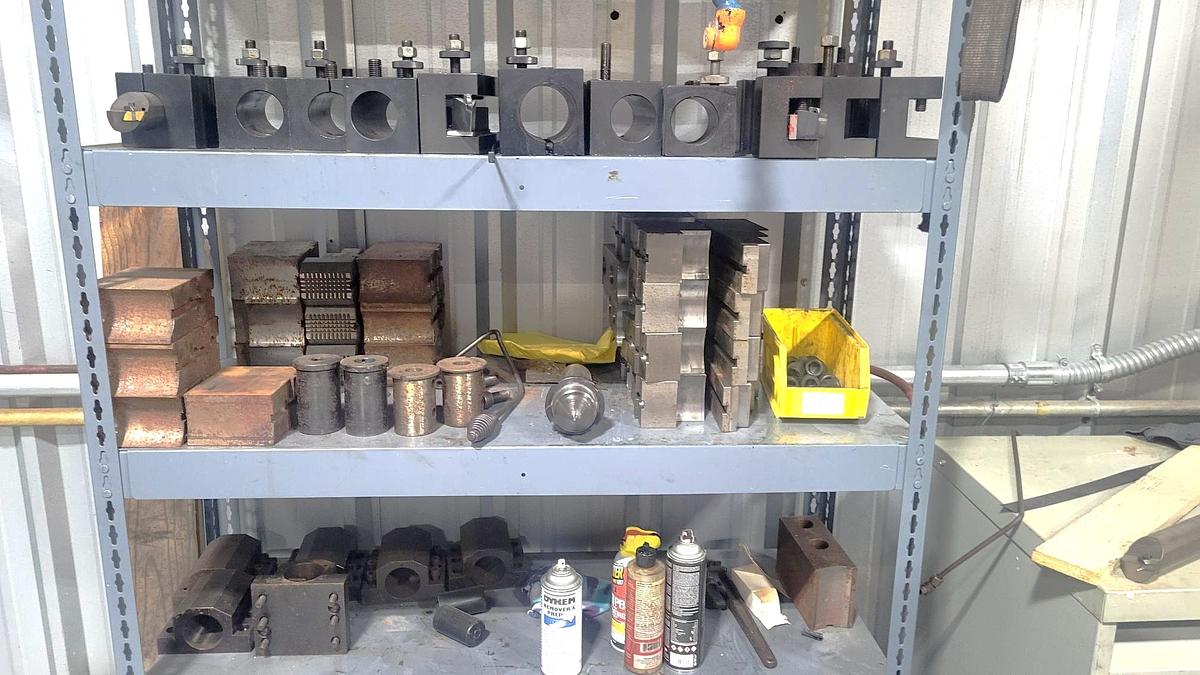

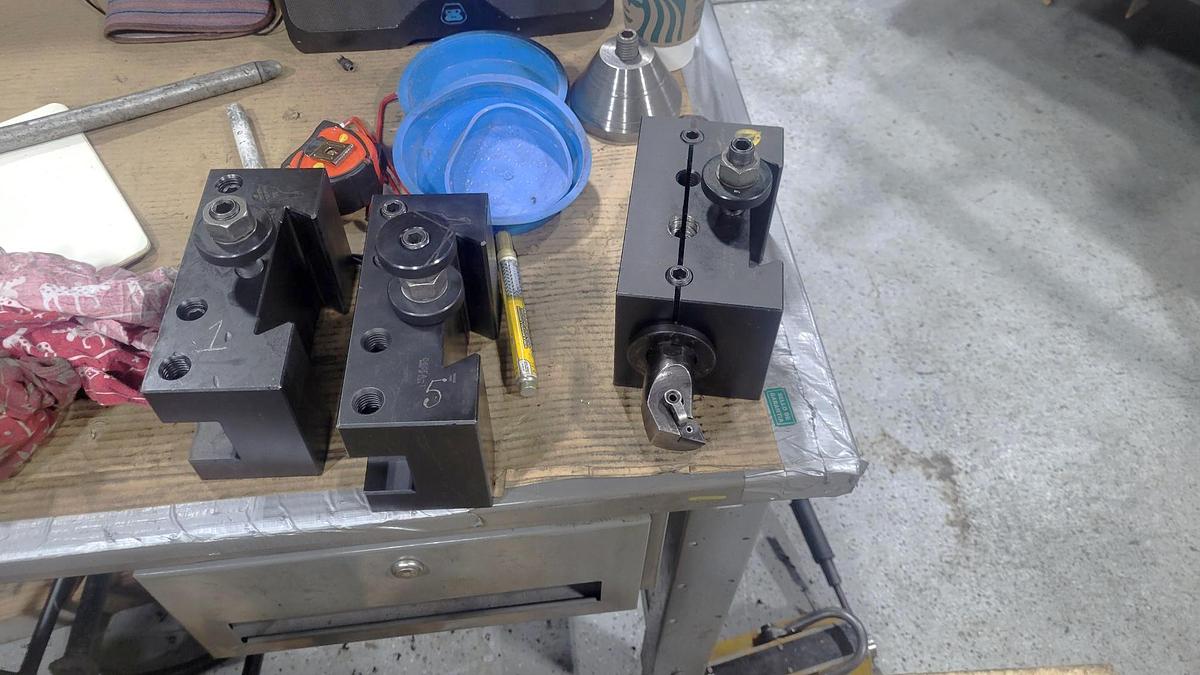

All Available Tooling
All Available Manuals

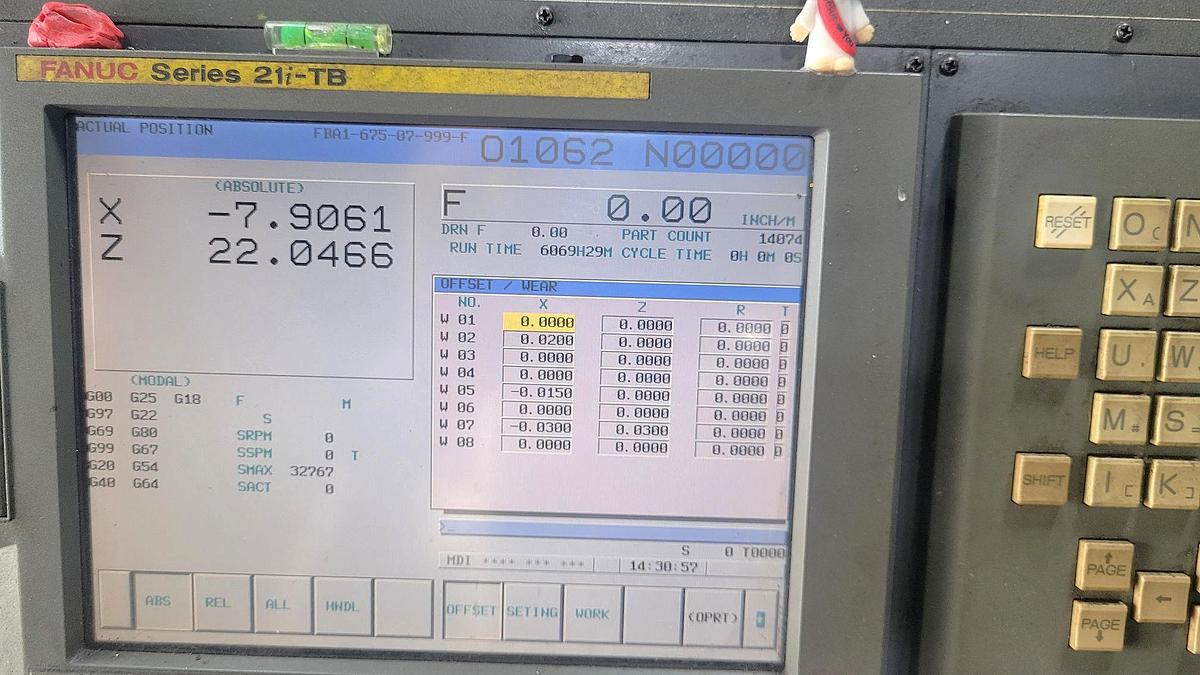

**Run Time Hours 6,069**
Specifications
| Manufacturer | Hankook |
| Model | Protec 9NC |
| Year | 2006 |
| Condition | Used |
| Stock Number | 120051 |

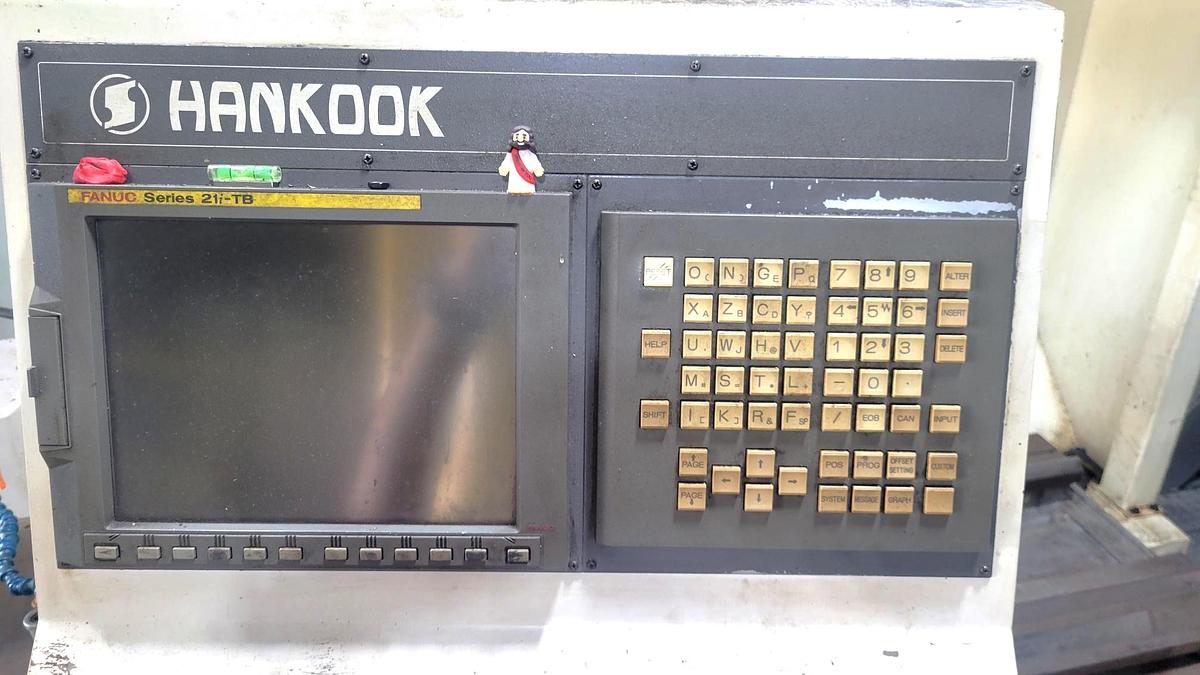

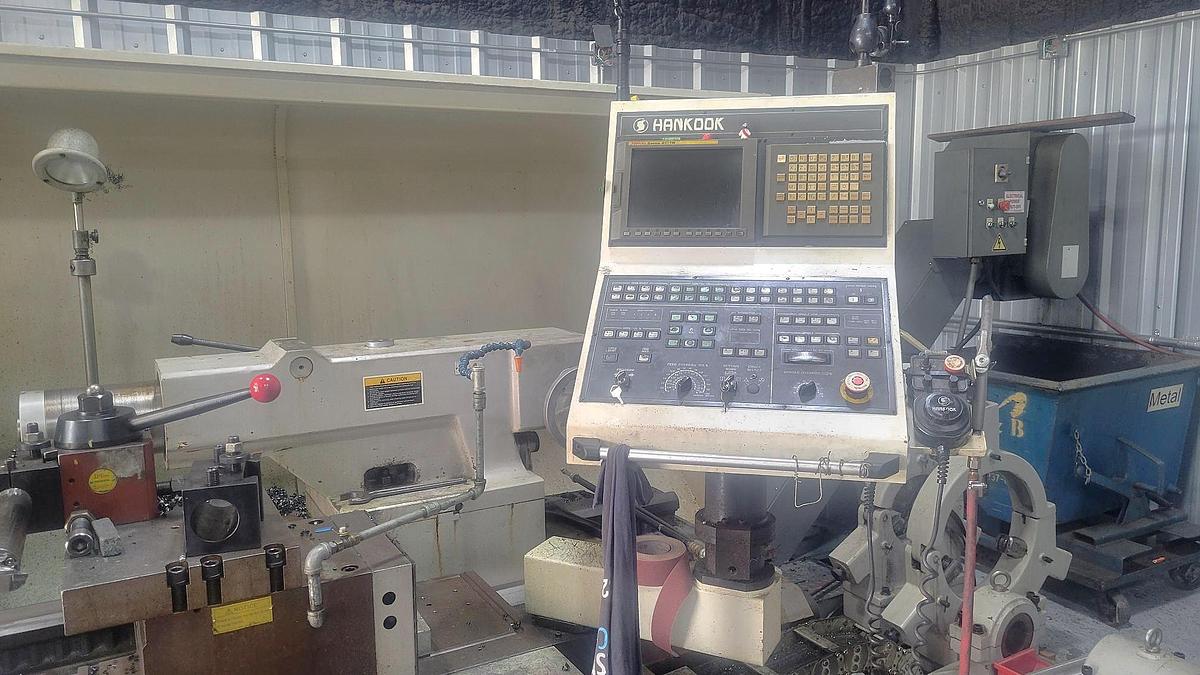

| Machine Control | Fanuc 21i-TB Control |
| Chuck Size | (2) 25" Manual Chucks on Front & Rear |
| Maximum Swing | 37.43" |
| Maximum Turning Diameter | 37.43" |
| Maximum Swing Over Cross Slide | 24.8" |
| Maximum Turning Length | 151" |
| Distance Between Centers | 157.6" |
| Maximum Bar Capacity | 10" |
| Maximum Load Between Centers | 11,000 lbs. |
| X-axis travel | 21.1" |
| Z-Axis Travel | 151" |
| Spindle Nose / Spindle Bore | A2-15" / 10" |
| Spindle Speed | 3 - 630 RPM |
| Spindle Motor | 35 HP - 2 Speed |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates X / Z | 157.6 IPM / 236 IPM |
| Tailstock Quill Travel / Quill Diameter | 9.85" / MT #6 |
| Machine Dimensions LxWxH | 255" x 87" x 73" |
| Machine Weight | 20,200 lbs |
