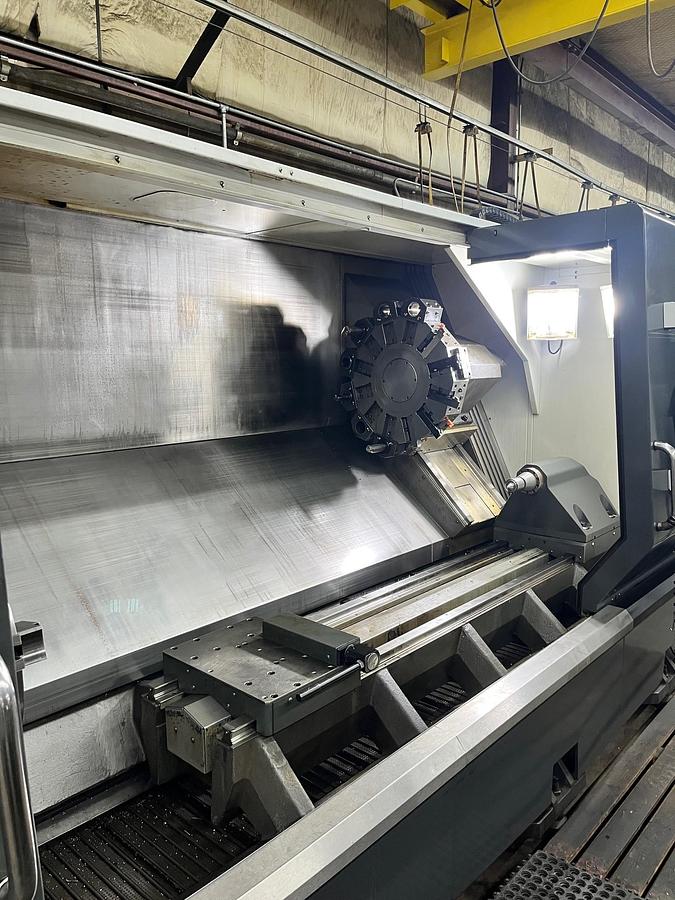

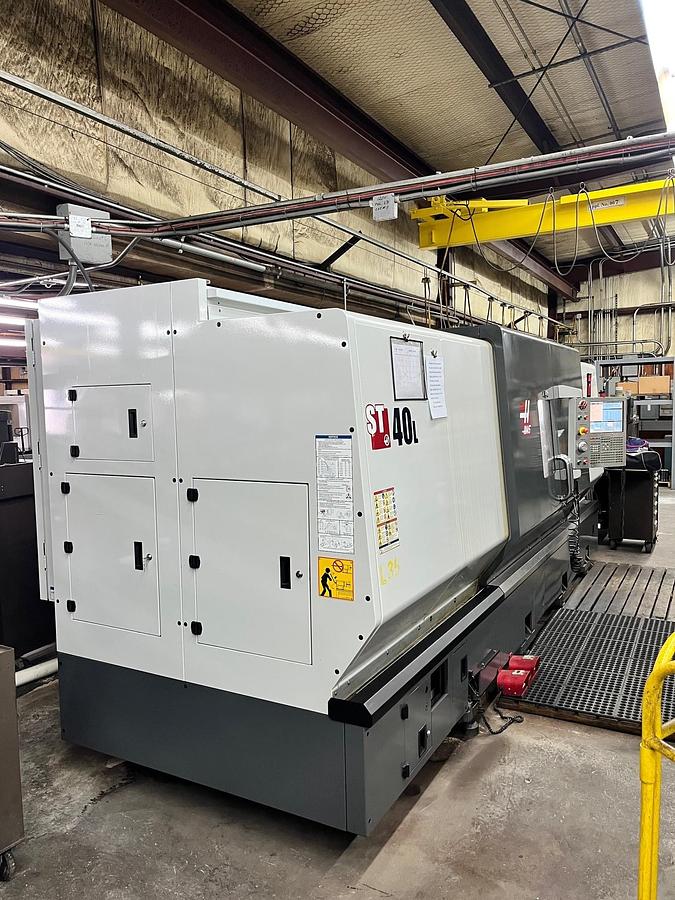

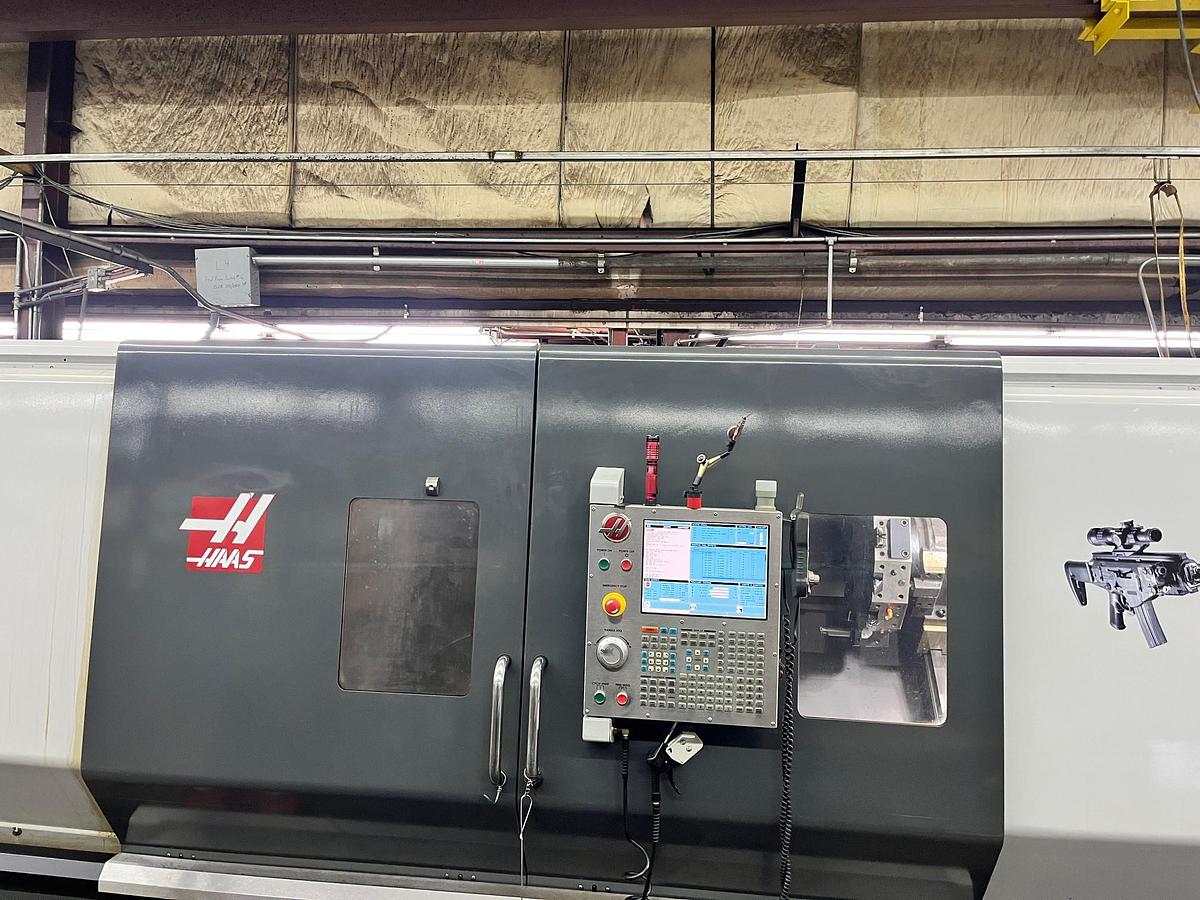

2012 Haas ST-40LB with Long Bed, 6.5" Bar Cap., Steady Rest Provision, Manual Steady Rest, 18" Hyd Chuck, Conveyor, Tailstock
2012 Haas ST-40LB with Long Bed, 6.5" Bar Cap., Steady Rest Provision, Manual Steady Rest, 18" Hyd Chuck, Conveyor, Tailstock
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
80" Long Bed Option
7" Big Bore Spindle Option with 6.5" Bar Capacity

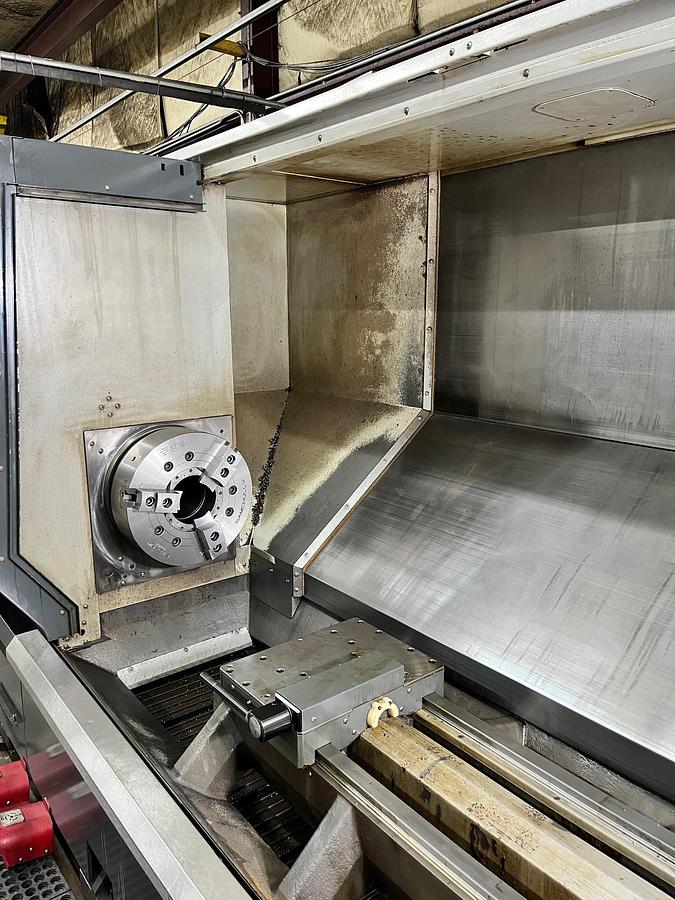

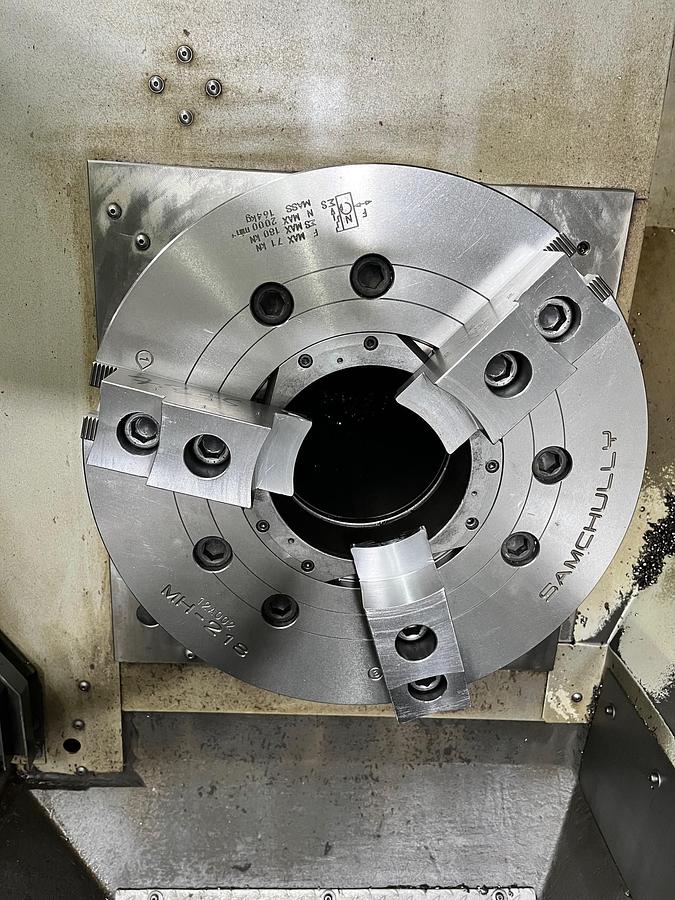

18" 3 Jaw Thru Hole Hydraulic Chuck w/ 6/5" Hole Through - Option
Chip Conveyor
Programmable Tailstock
Steady Rest Provision with Manual Positioning Includes Mounting Platform and Hydraulic Control System

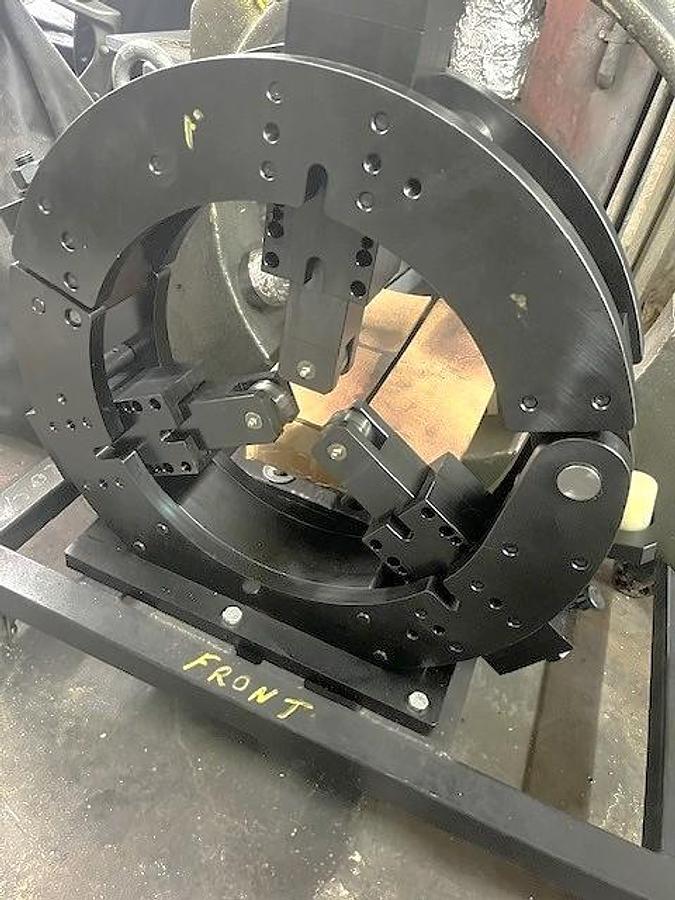

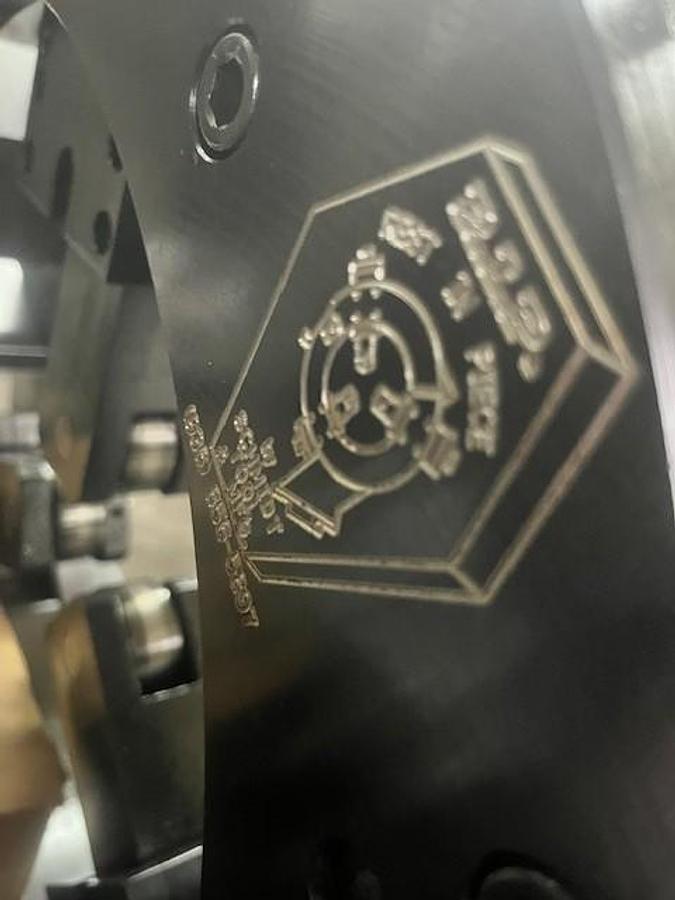

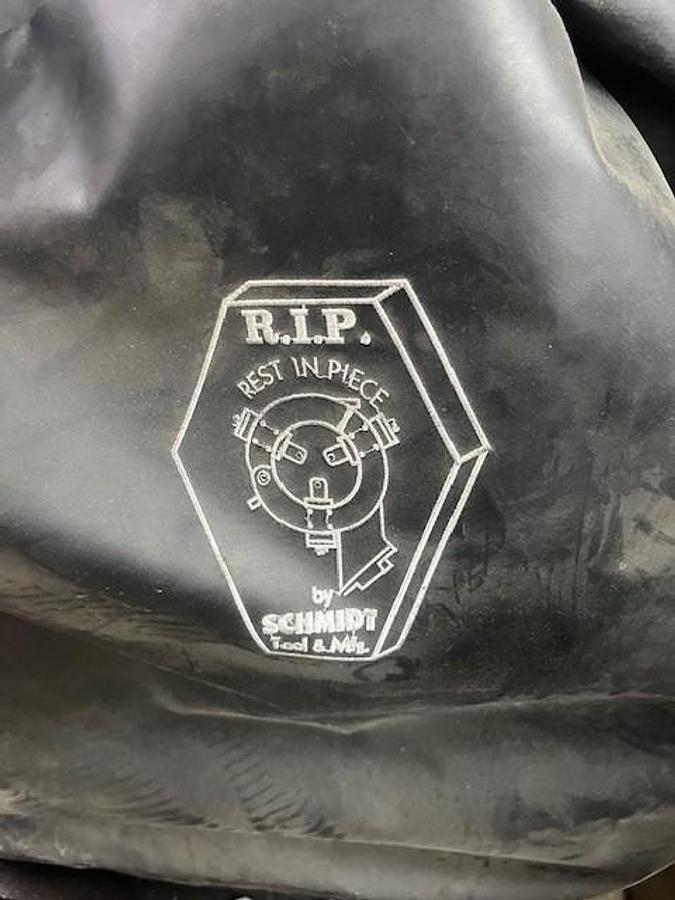

Manual RIP Roller Type Steady Rest
Extra Performance Package with 55 HP Motor and 12 HP Z Axis Servo Motor
Remote Jog Handle
Geared Headstock
USB Port Interface
RS 232 Port Interface
Rigid Tapping
Coolant System with Tank & Pump
Wired 195-260V Electrics
All Available Tooling
**Price New As Equipped (before addition of steady rest) at $333,675**
Specifications
| Manufacturer | Haas |
| Model | ST-40LB |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120050 |
| Chuck size | 18" Hydraulic Chk |
| Maximum cut diameter/cut length | 25.5" / 80" |
| Maximum swing | 34.5" |
| X-axis travel | 17" |
| Z-axis travel | 80" |
| Swing over cross slide | 25.5" |
| Maximum center distance | 89" |
| Spindle nose / bore / bar capacity | A2-11" / 7.1" / 6.5" |
| Turret type | 12 Position Turret |
| Spindle motor | 55 HP |
| Spindle speed | 1,400 RPM |
| Rapid traverse rates x / z | 710 IPM |
| Tailstock quill taper | MT #5 |
| Machine dimensions | 254" x 95" x 105" |
| Machine weight | 29,900 lbs. |
