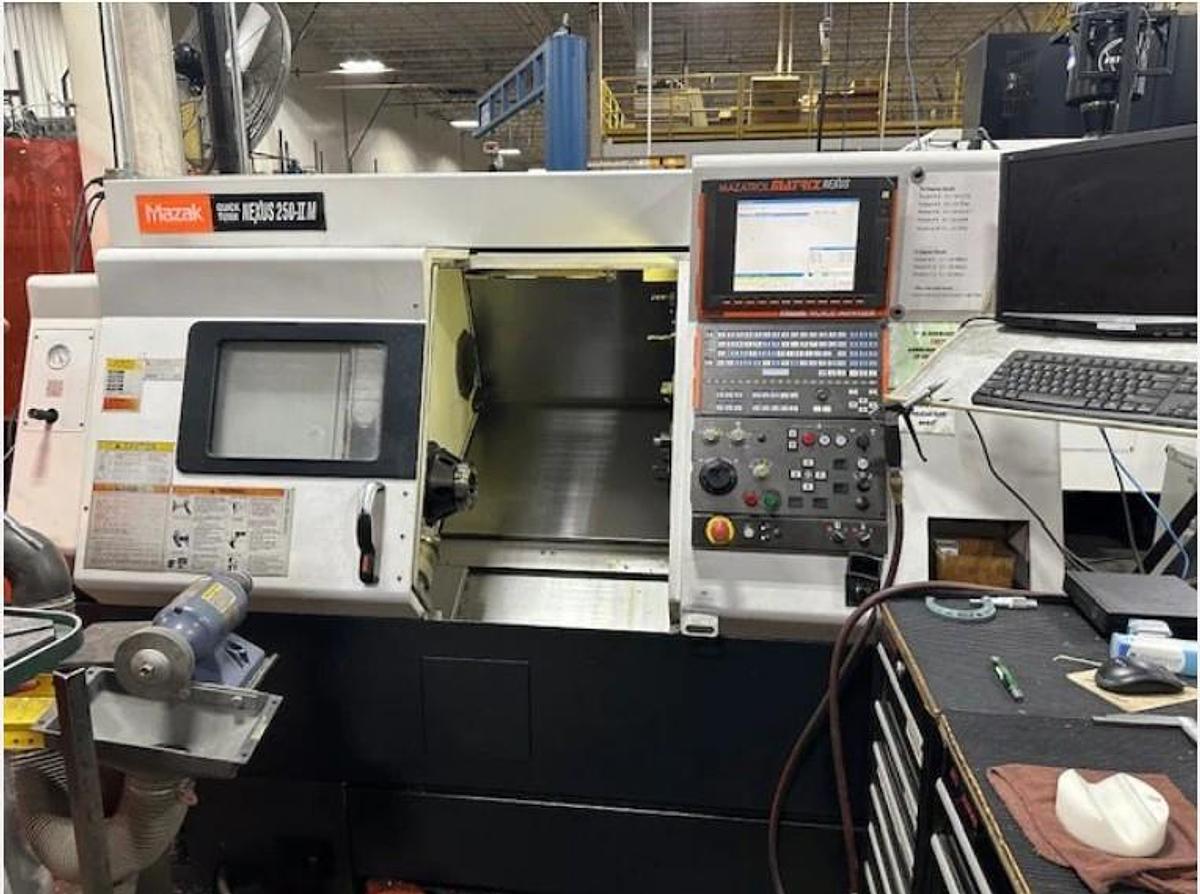

2008 Mazak Nexus QTN 250-II M with Matrix Nexus Control, C Axis Milling, 10" Hyd Chk, Conveyor, HPC

2008 Mazak Nexus QTN 250-II M with Matrix Nexus Control, C Axis Milling, 10" Hyd Chk, Conveyor, HPC

$68,500 (USD)

Location:Indiana

or
Call (863) 439-6066

Description

Full C Axis Spindle Rotation

Live Milling / Drilling Capability

10" 3 Jaw Hydraulic Chuck

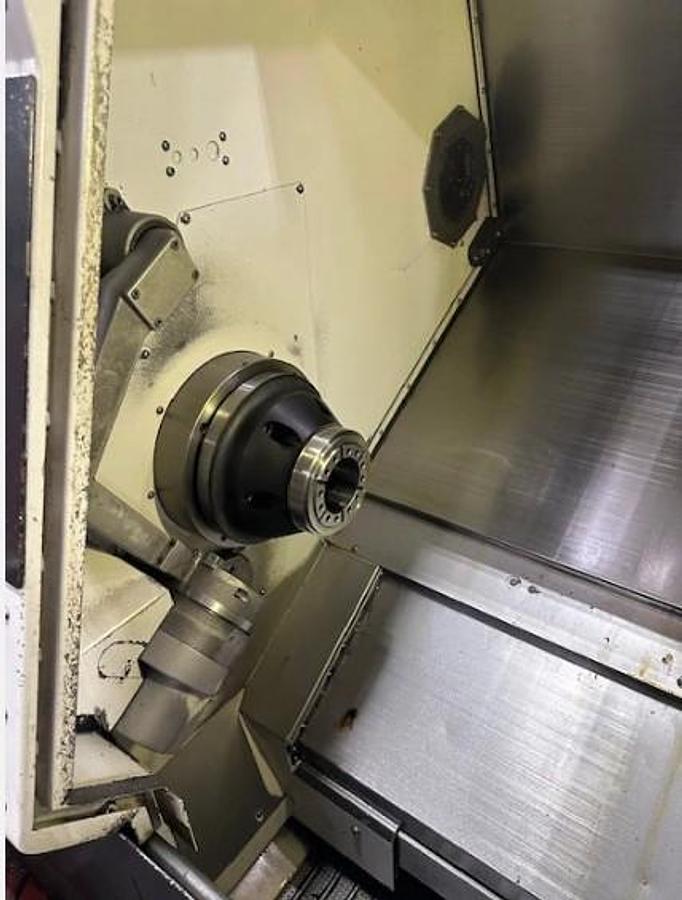

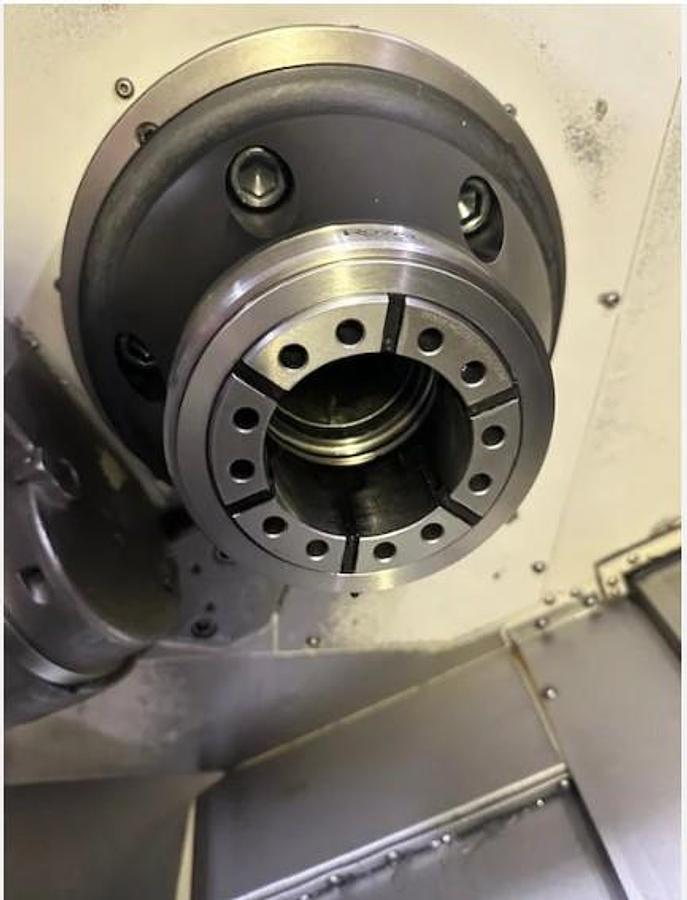

Royal Collet Chuck (New)

Automatic Tool Eye

Chip Conveyor

Programmable Tailstock

Mazak High Pressure Coolant

Mist Collection System

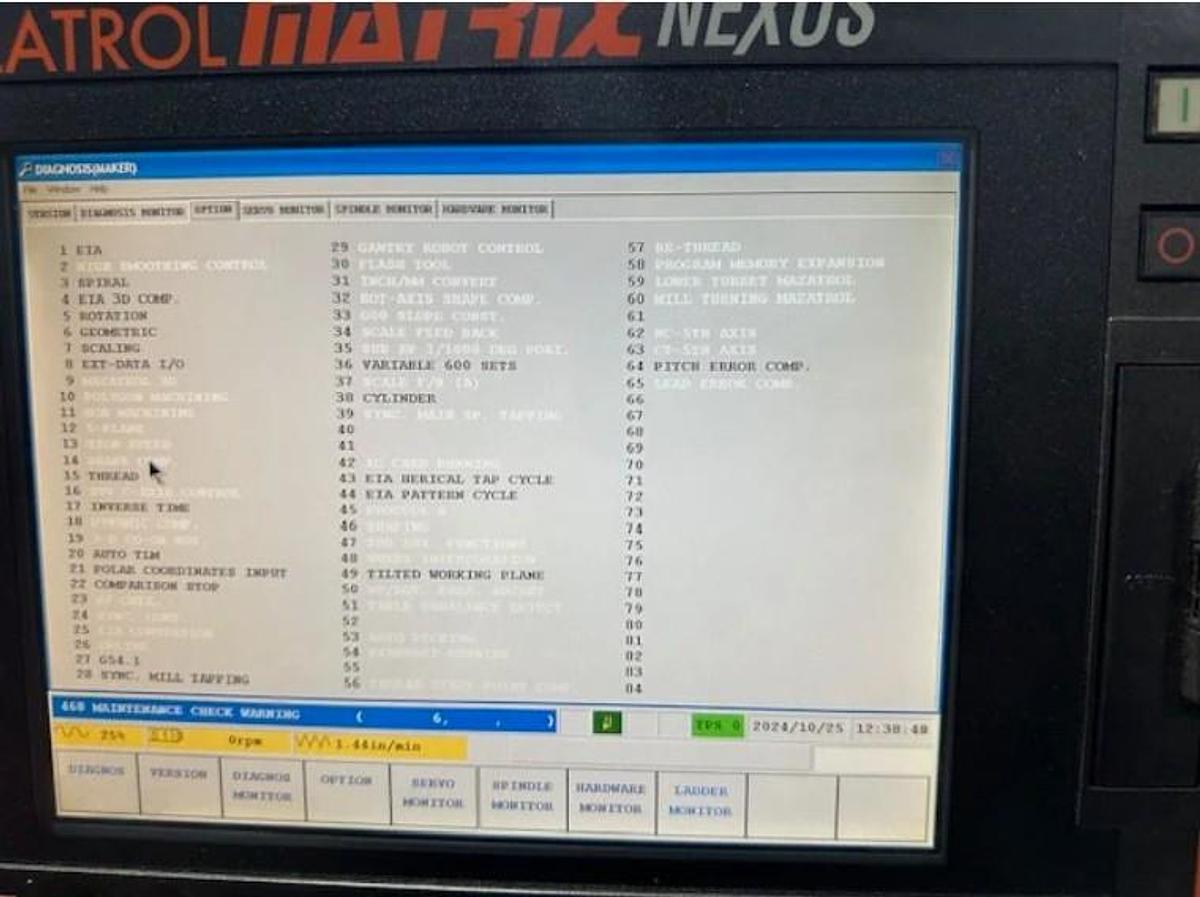

EIA/ISO Input Function

EIA Helical Tapping

EIA Pattern Cycle

EIA 3D Compensation

Spiral Interpolation

Threading

Inverse Time

Polar Coordinate Input

Cylindrical Interpolation

Variable 600 Sets

Tilted Work Plane

Geometric

Pitch Error Compensation

Coordinate Rotation & Scaling

Sequence Number Comparison Stop

Mill Spindle Synchronous Tapping

USB Port Interface

3.5" Floppy Disk Drive Interface

RS 232 Port Interface

External Data Input/Output

Multi Tap Transformer

All Available Manuals

Miscellaneous Static Tool Holders

(2) OD Rotary Tools

(4) ID Rotary Tools

Additional Miscellaneous Tooling Including Cabinet, Inserts, Collets,

Monitor and Keyboard in Photo Included

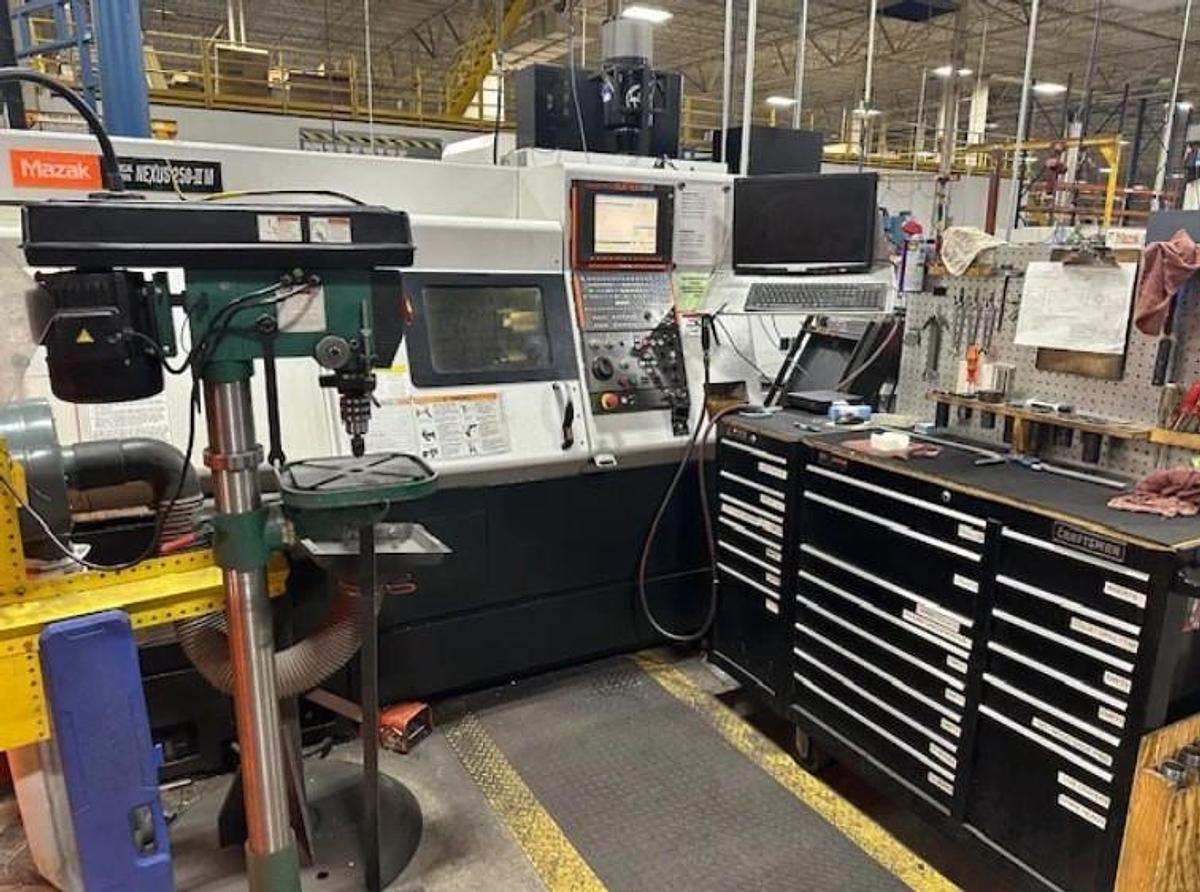

Drill Press in Photo Included

Pedestal Grinder in Photo Included

Show All

Specifications

ManufacturerMazak
ModelNexus QTN 250-II M
Year2008
ConditionUsed
Stock Number120049

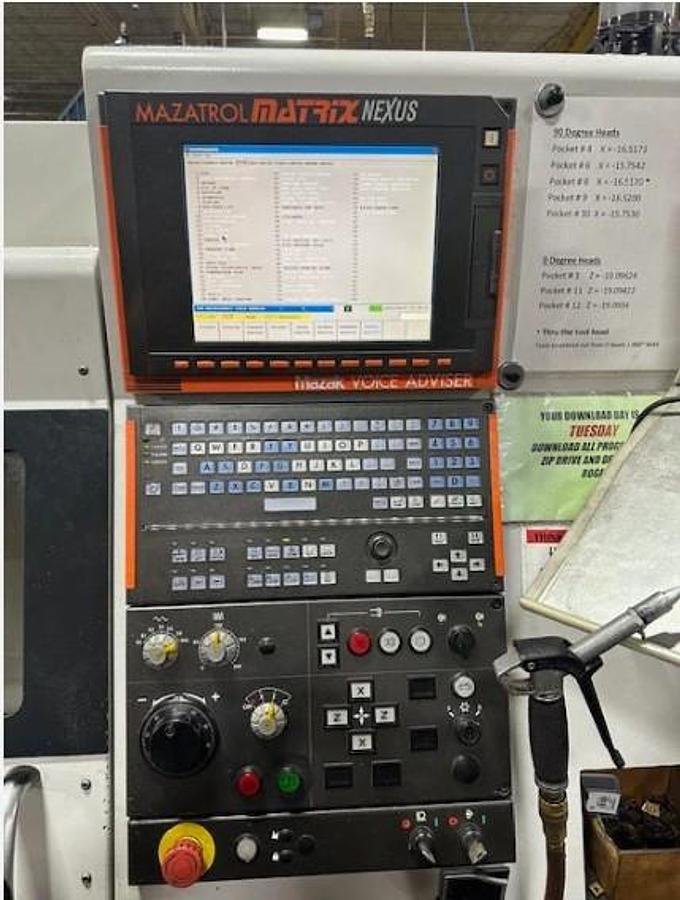

ControlMazatrol Matrix Nexus
Chuck Sizes10" 3 Jaw Hydraulic / Collet Chuck
Maximum Swing/Over Carriage26.5" / 14"
Maximum Cutting Diameter14.75"
Maximum Cutting Length21.28"
Distance Between Centers27.231"
X-Axis Travel9.055"
Z-Axis Travel22.75"
C Axis Spindle Rotation0.001 Degree
Spindle Nose / Spindle Bore / Bar CapacityA2-8" / 3.46" / 3.0"
Spindle Speed35 - 4,000 RPM
Spindle Motor35 HP
Rotary Tool Speed / Rotary Motor4,500 RPM / 7.5 HP

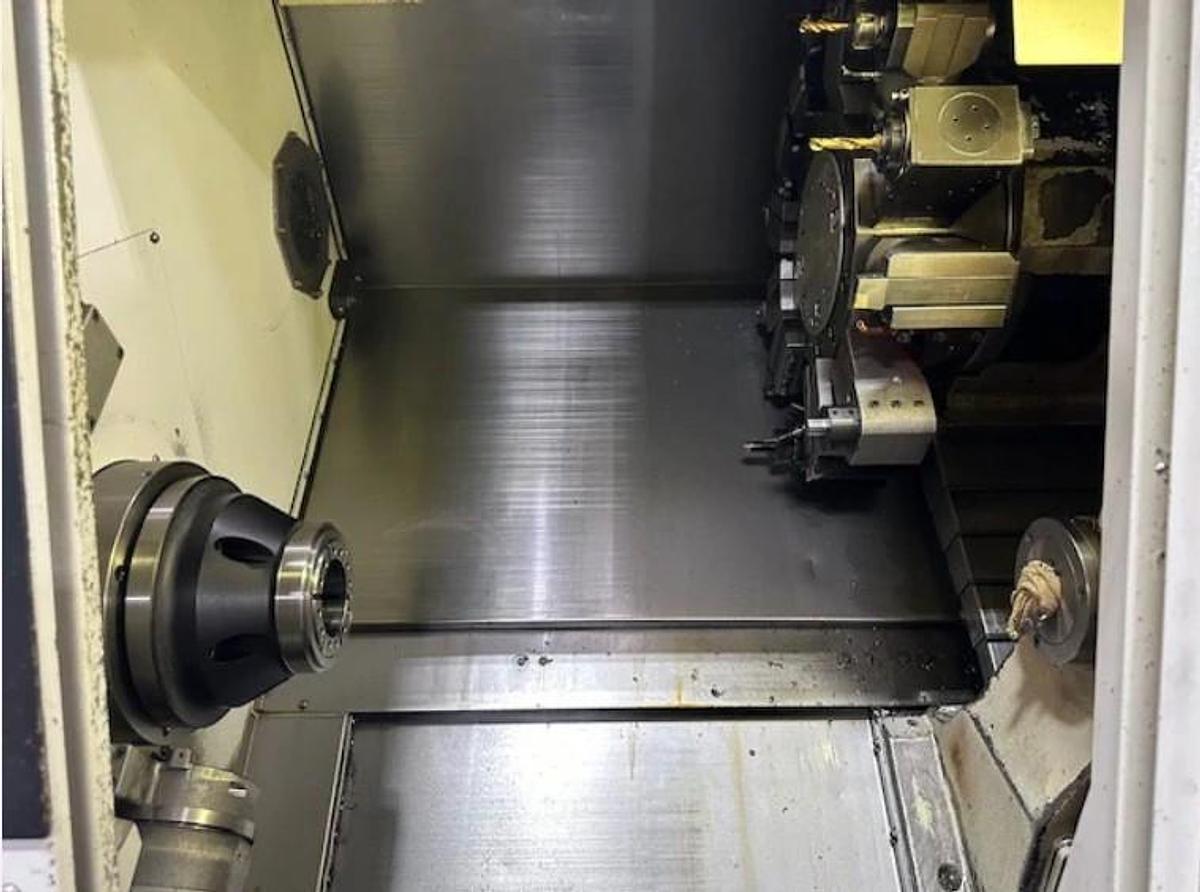

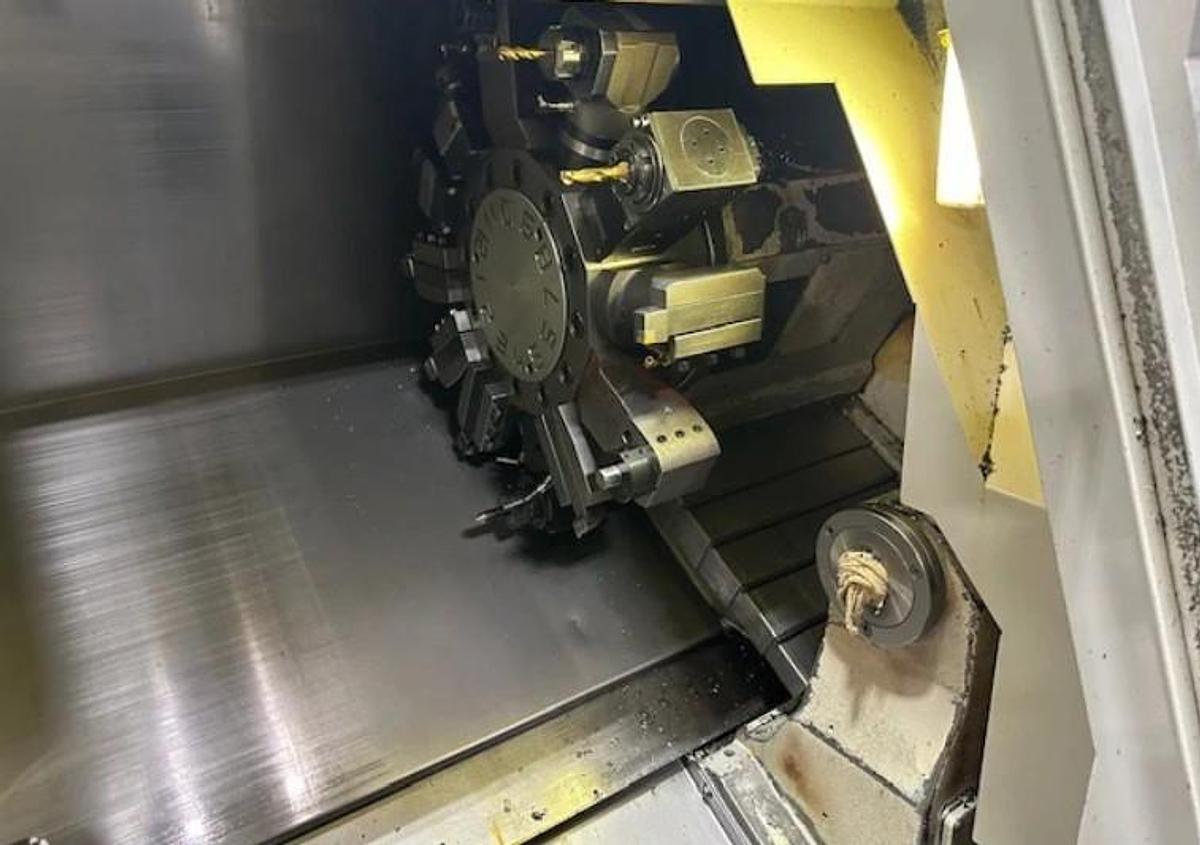

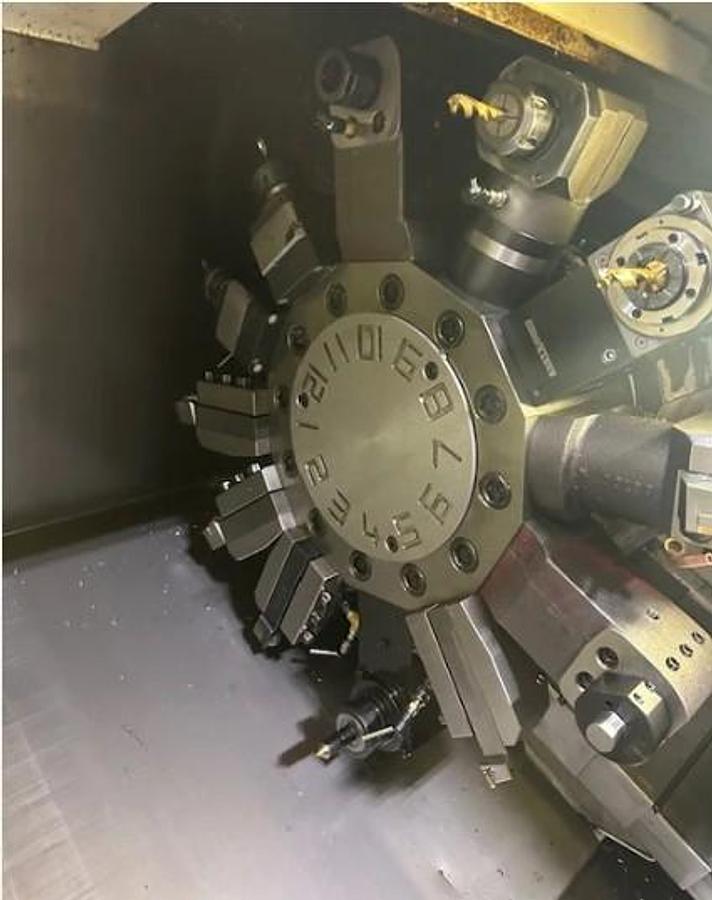

Number of Turret Positions12 Station Turret
Rapid Traverse Rates X/Z1181 IPM / 1299 IPM
Tailstock Body Travel / Tailstock Taper21.75" / MT #5
Machine Dimensions116" x 74" x 73"
Machine Weight12,500 lbs.
