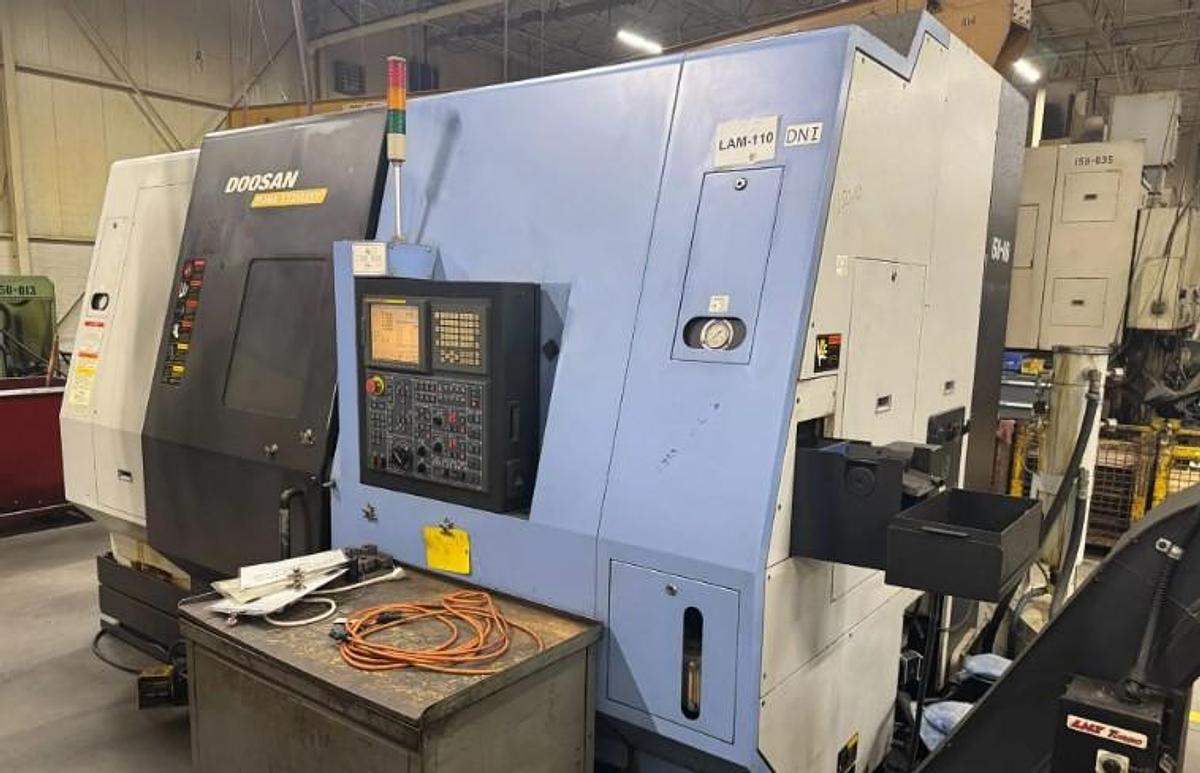

2008 Doosan Puma TT2500SY
2008 Doosan Puma TT2500SY
Contact us for price
Location:Michigan
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Y Axis Capability on Upper Turret

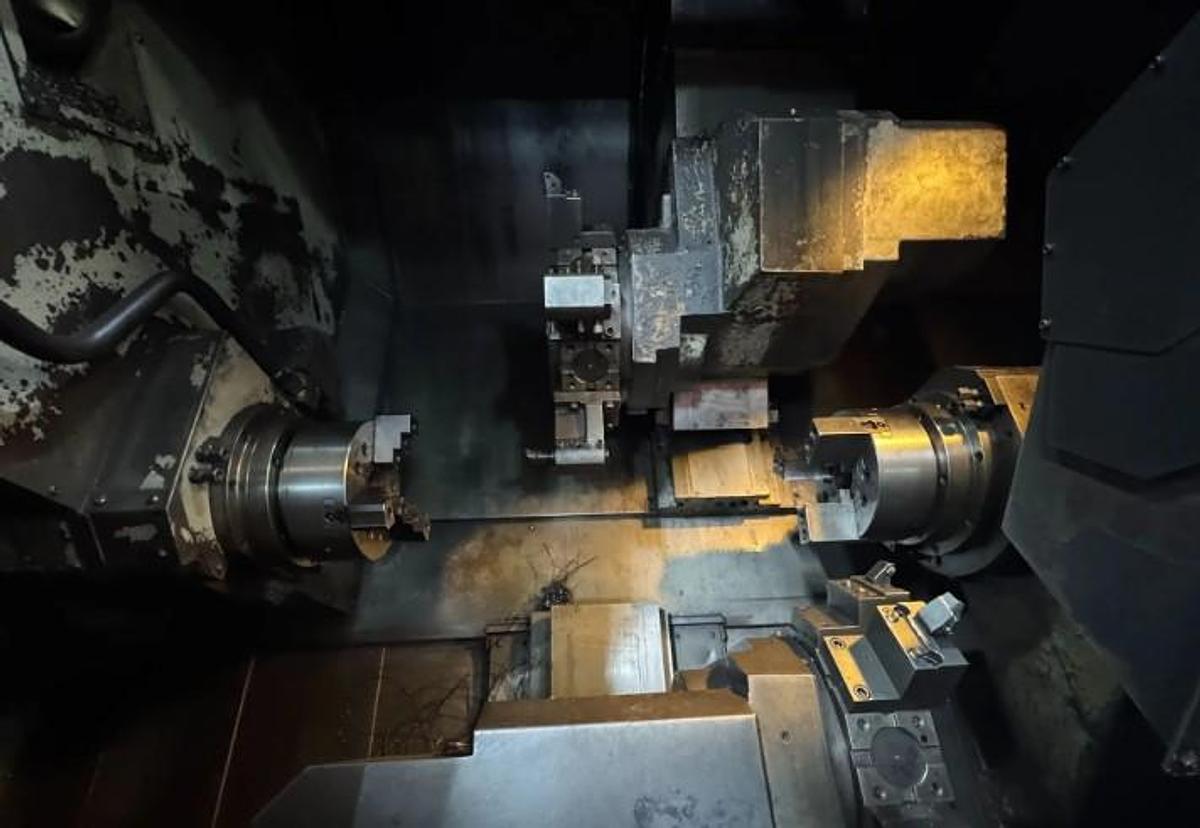

Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design
Tool Presetter
Chip Conveyor
PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways

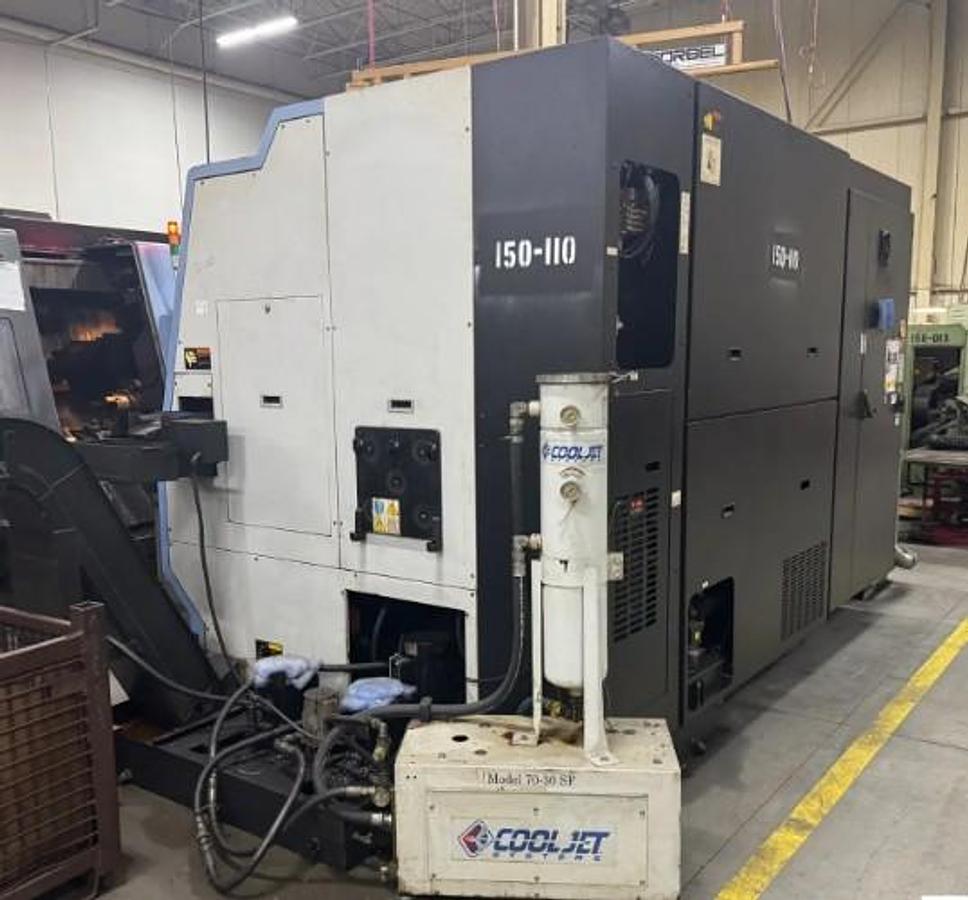

Coolant Tank with Pump
Transformer All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Puma TT2500SY |
| Year | 2008 |
| Condition | Used |
| Stock Number | 120046 |

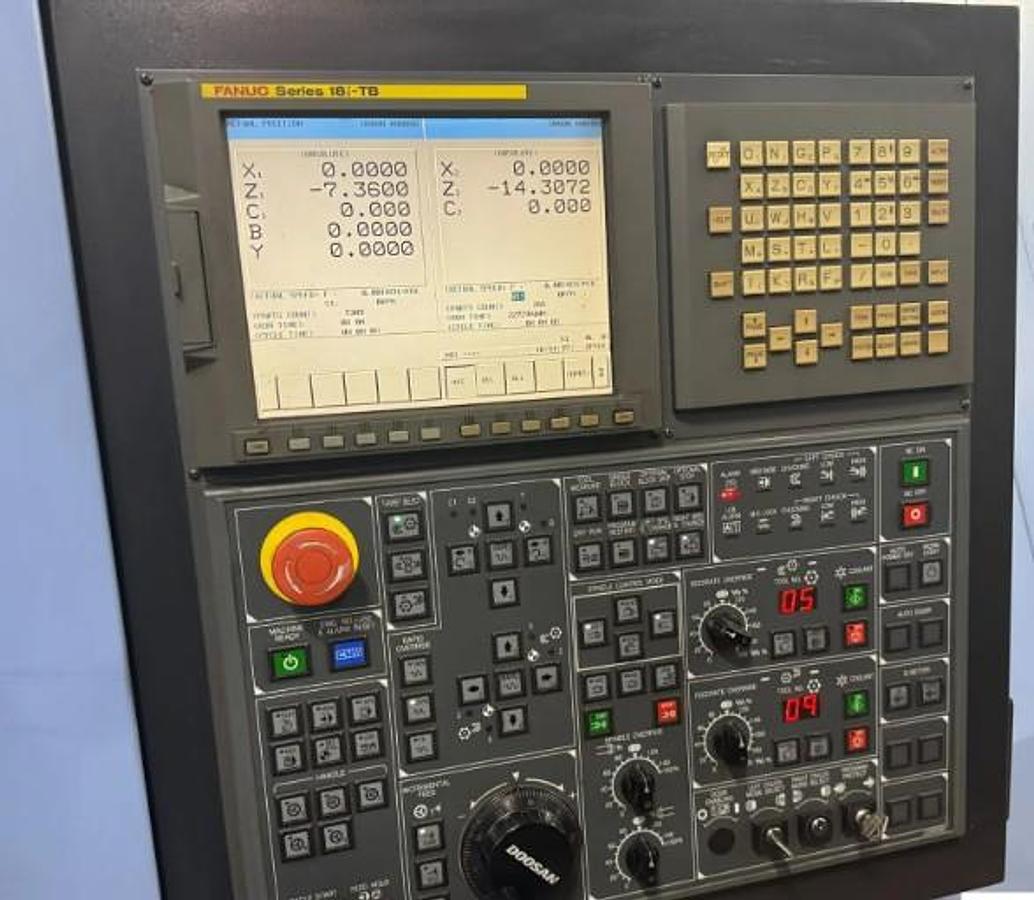

| Control | Fanuc 31iTB |

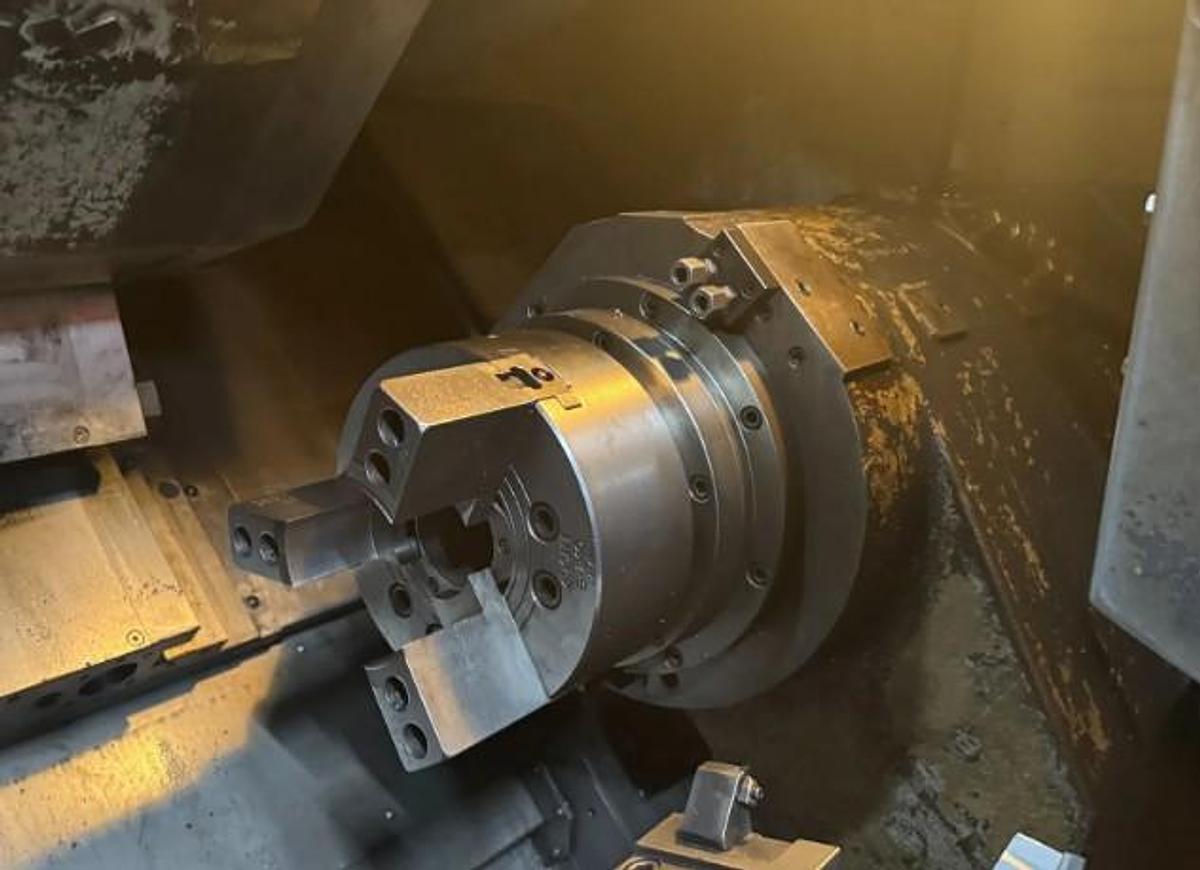

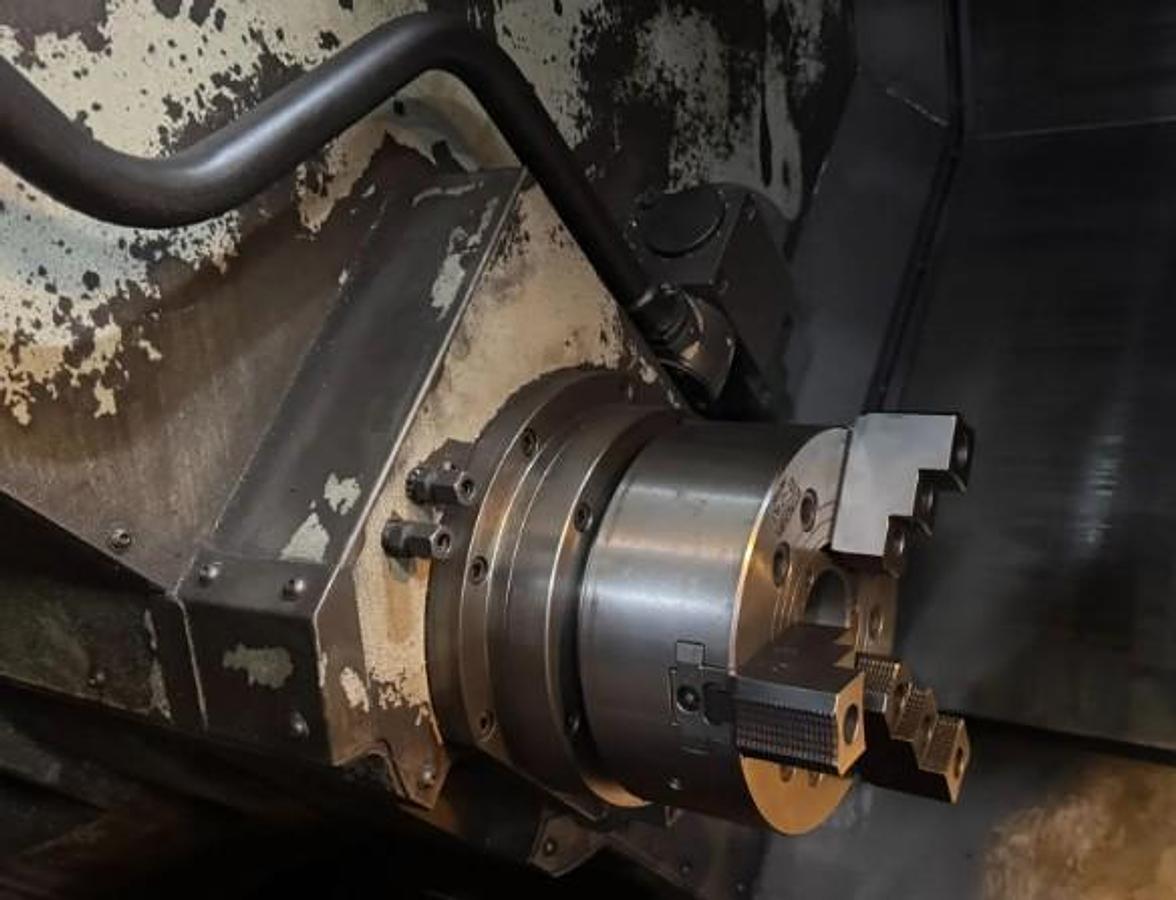

| Chuck Size | (2) 10" 3-Jaw Hydrualic |
| Maximum Cutting Diameter | 15.35" Upper / 11.8" Lower Turret |
| Maximum Machining Length | 13.78" |
| Maximum Distance Between Centers | 31.5" |
| X1-Axis Travel / X2-Axis Travel | 10" / 7.5" |
| Y-Axis Travel | 4.7 +/- 2.4" |
| Z1-Axis Travel / Z2-Axis Travel | 31.5" / 35.4" |
| C Axis Spindle Rotation | .001 Degrees - both Spindles |
| Spindle Nose / Spindle Bore | A2-8" / 3.2" Main Spindle |
| Main & Subspindle Speeds | 3,500 RPM |
| Spindle Motor - Both Spindles | 35 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret - Each |
| Rapid Traverse Rates X / Y / Z | 787 IPM / 295 IPM / 984 IPM |
| Machine Dimensions | 159" x 98" x 87" |
| Machine Weight | 27,999 lbs |
