2006 Doosan Puma MX2500ST
2006 Doosan Puma MX2500ST
Contact us for price
Location:California
or
Call (863) 439-6066
Description
9-Axis Capability

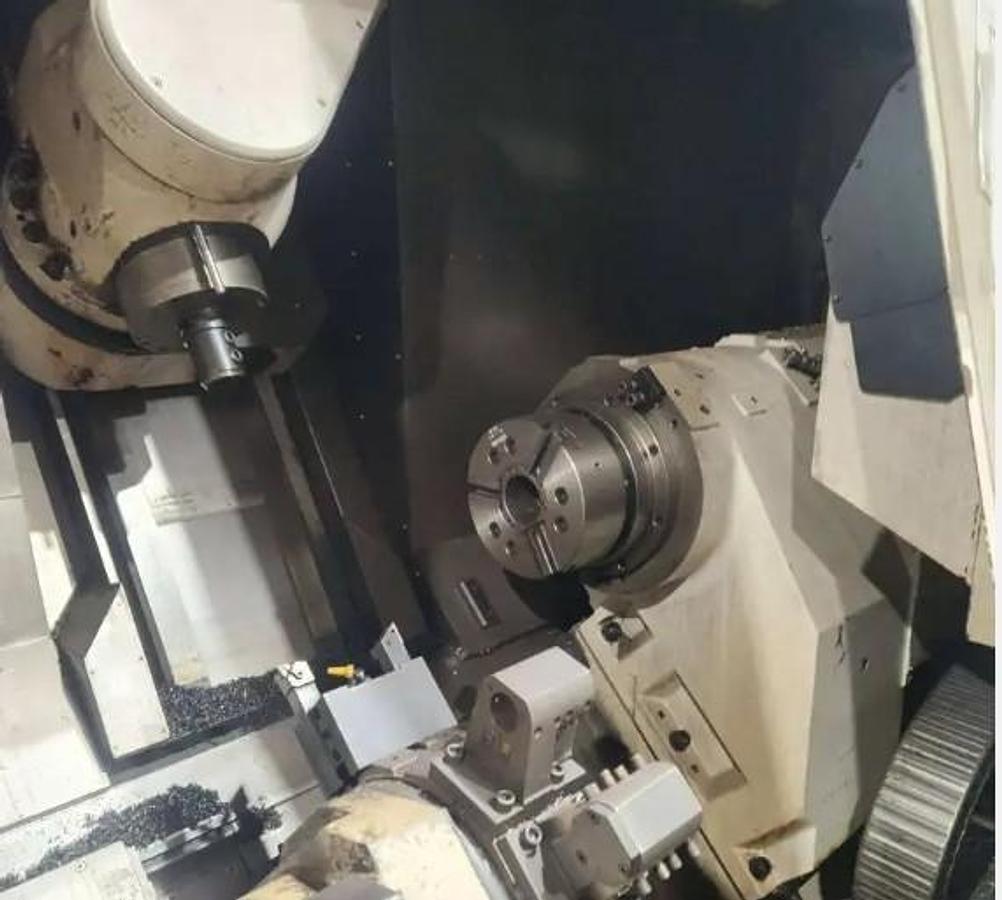

Pendulum Style B-Axis Head
Y-Axis Capability

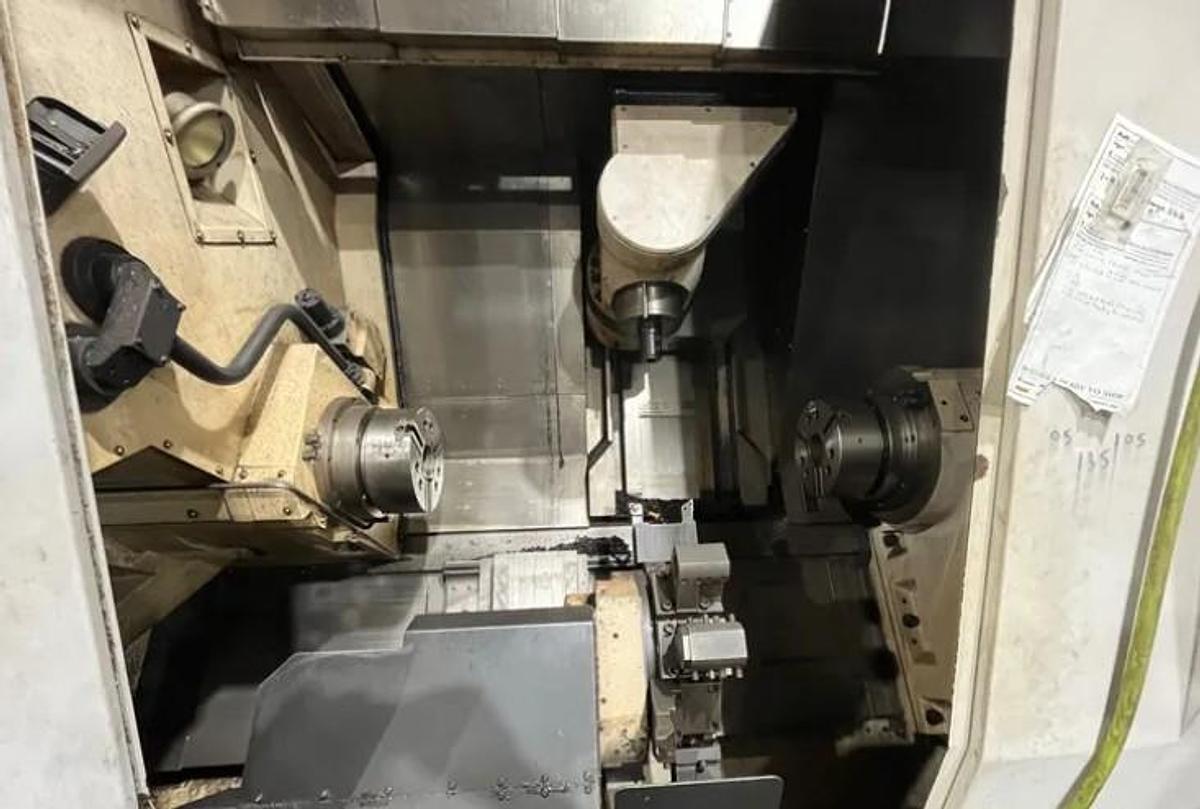

Sub Spindle
Live Milling Capability
12 Station Lower Turret with All Locations Capable of Live
Automatic Tool Eye
Chip Conveyor
All Available Manuals

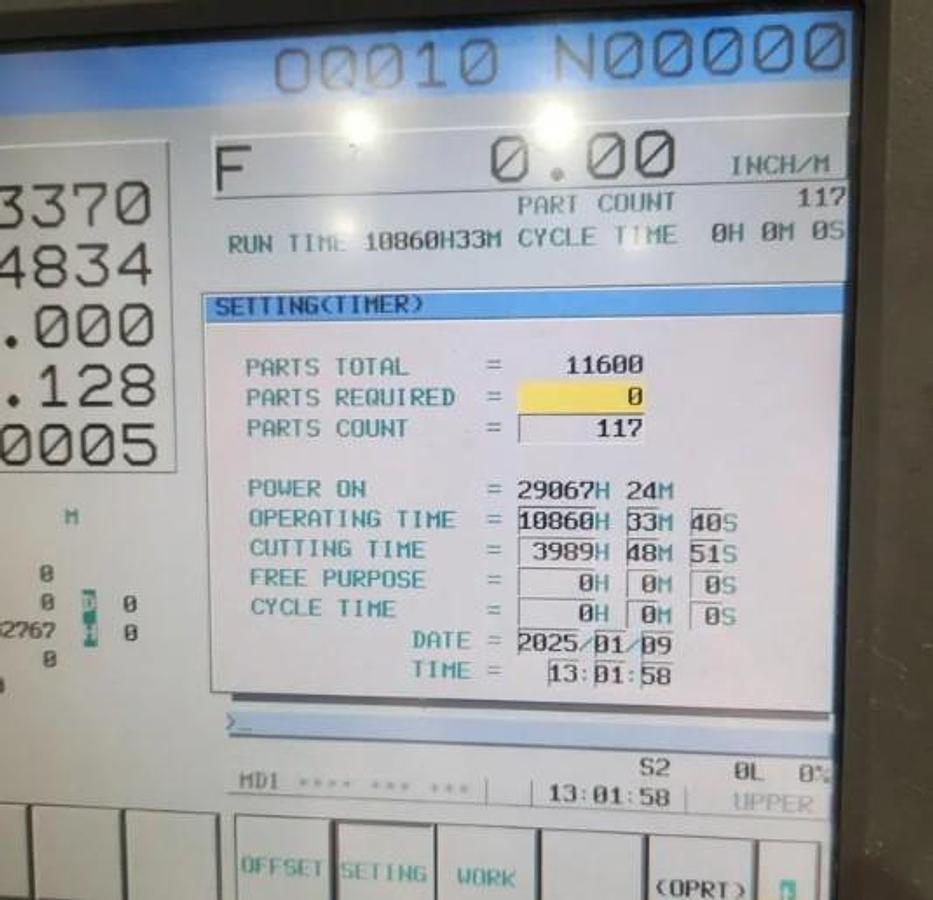

Low hours for it's age
Specifications
| Manufacturer | Doosan |
| Model | Puma MX2500ST |
| Year | 2006 |
| Condition | Used |
| Stock Number | 120044 |

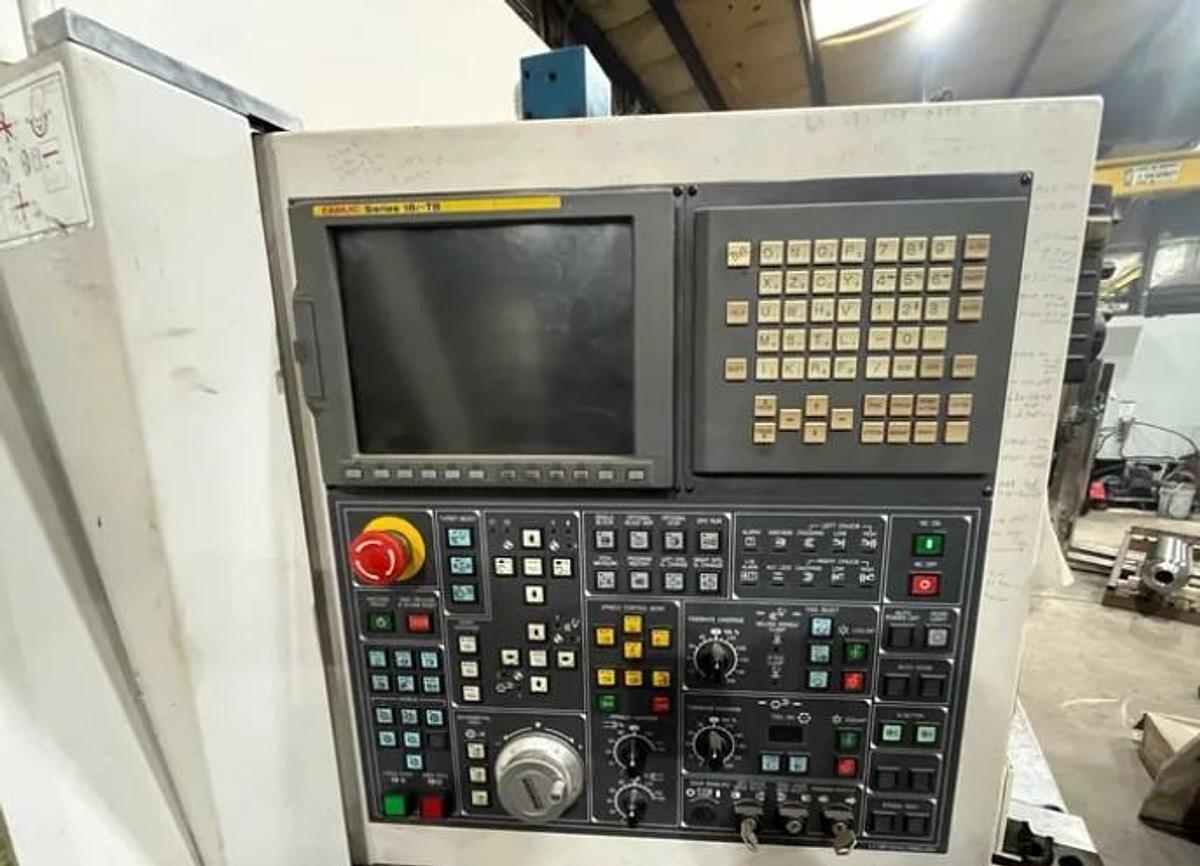

| Machine Control | Fanuc 18i-TB |

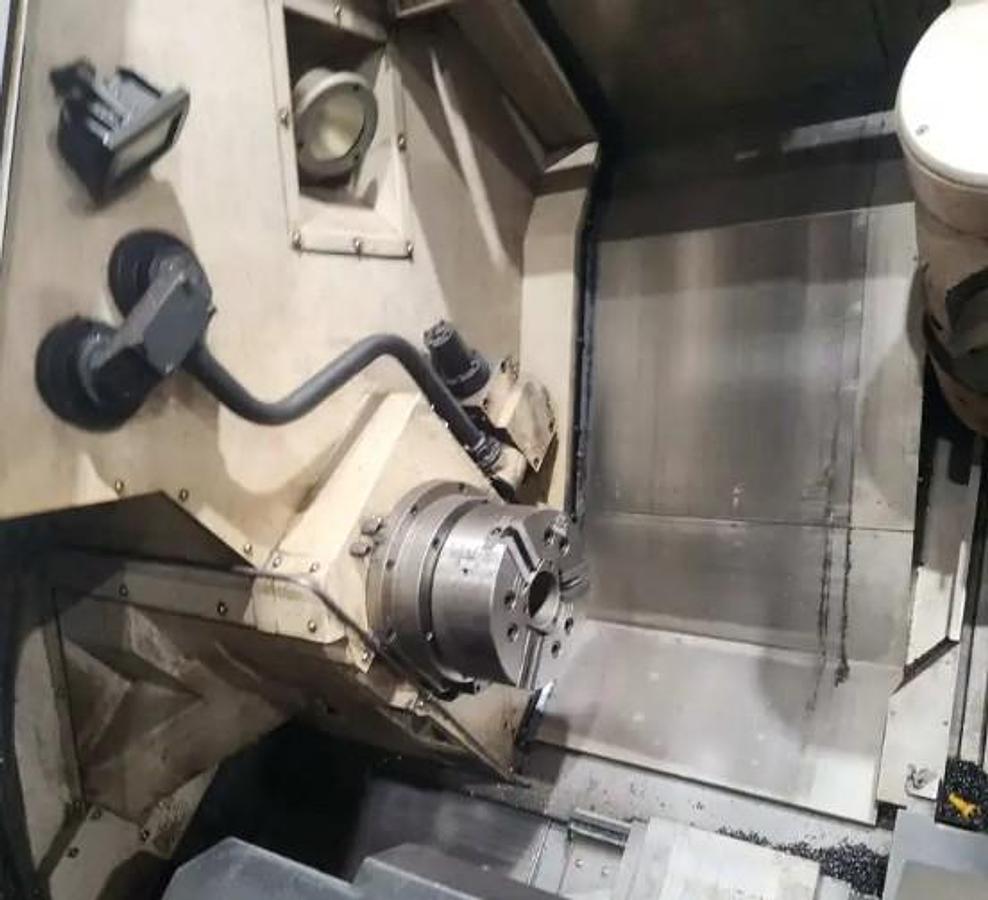

| Chuck Sizes Main / Subspindle | 10" 3-Jaw Chuck / 10" 3-Jaw Chuck |
| C-Axis Rotation | .001 Degrees Main & Subspindle |
| Maximum Swing | 29.5" |
| Maximum Swing over Bed | 29.5" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 40.2" |
| X-axis travel | 21.7" |
| Z-Axis Travel | 43.1" |
| Y-Axis Travel | 6.3" Head Travel |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 2.99" / 2.5" |
| Milling Spindle Speed | 10,000 rpm |
| Main Spindle Speed / Sub Spindle Speed | 3,500 rpm / 3,500 rpm |
| Tool Magazine Capacity | 40 Position ATC |
| B-Axis Spindle Taper | Captco -C6 |
| Lower Turret Tools Position | 12 |
| Lower Turret Live Tooling Speed | 5,000 RPM |
| Main Spindle Motor / Sub Spindle Motor | 35 hp / NA |
| Rapid Traverse Rates X, Y / Z | 1417 ipm, 1024 ipm / 1417 ipm |
| Machine Dimensions LxWxH | 178"x98"x102" |
| Machine Weight | 28,500 lbs |
