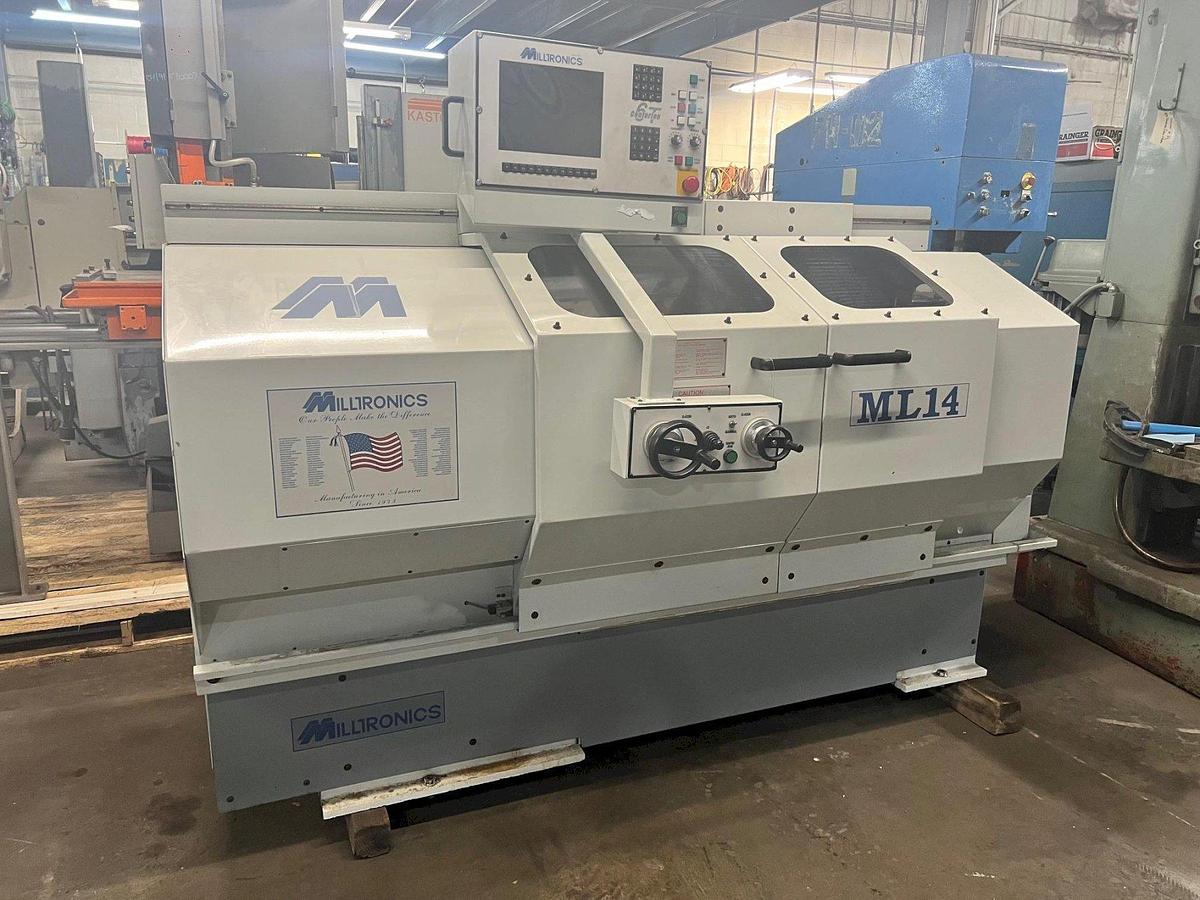

2002 Milltronics ML14
2002 Milltronics ML14
Contact us for price
Location:Michigan
or
Call (863) 439-6066
Description

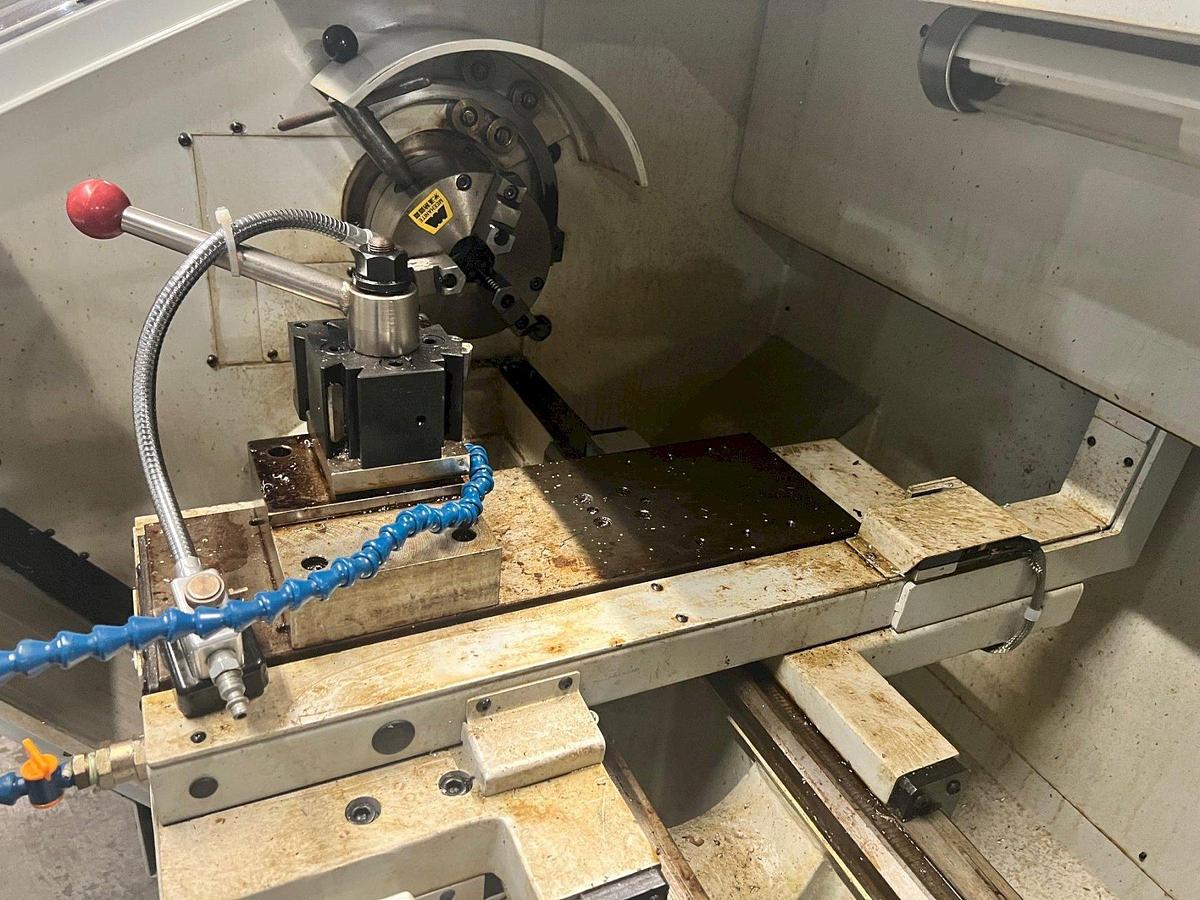

6" 3 Jaw Chuck
10" LCD Active Matrix Color Display
Conversational Plus G&M code Programming w/Tool Path Graphics
Rigid Tapping
Tailstock

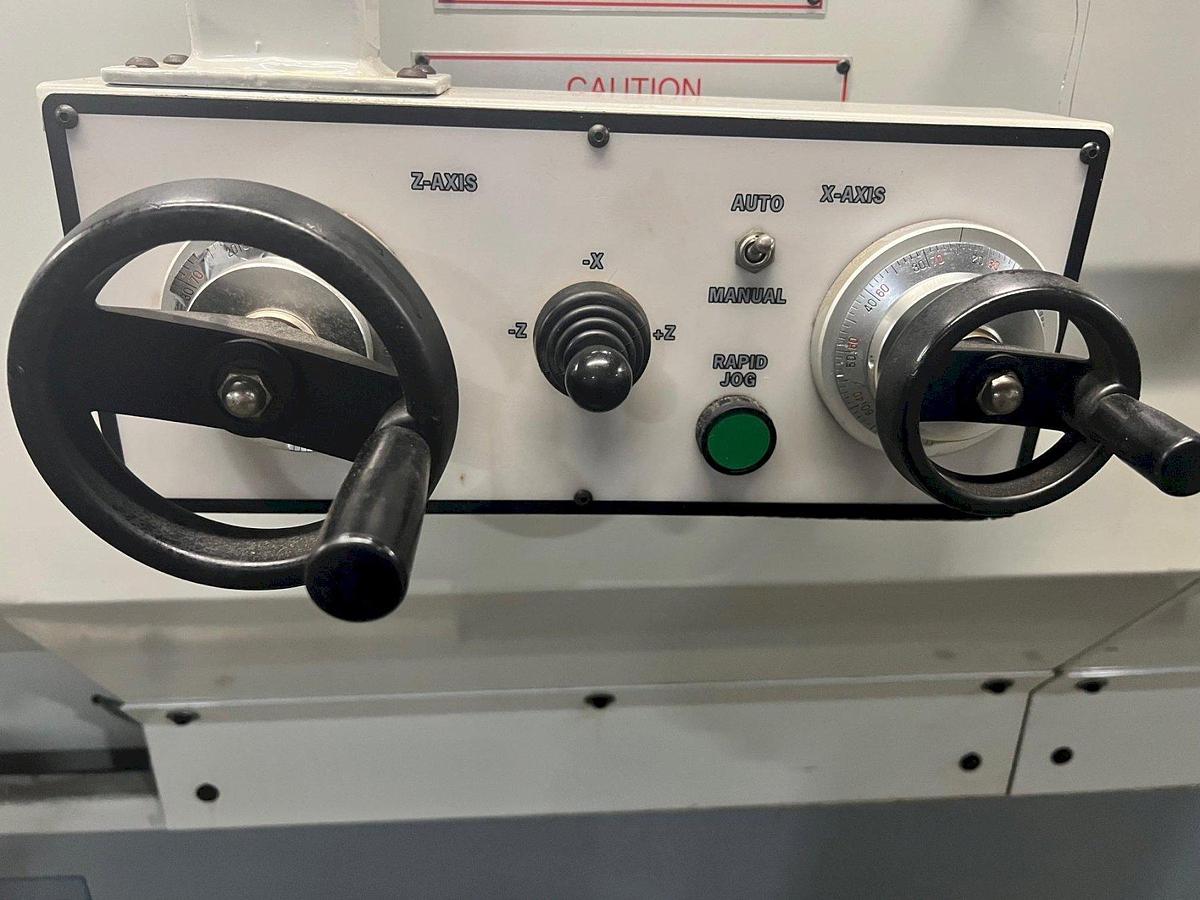

Electronic Hand Wheels for Manual Operation
Coolant System
Hardened / Ground Ways
220V 3-Phase
Specifications
| Manufacturer | Milltronics |
| Model | ML14 |
| Year | 2002 |
| Condition | Used |
| Stock Number | 120038 |

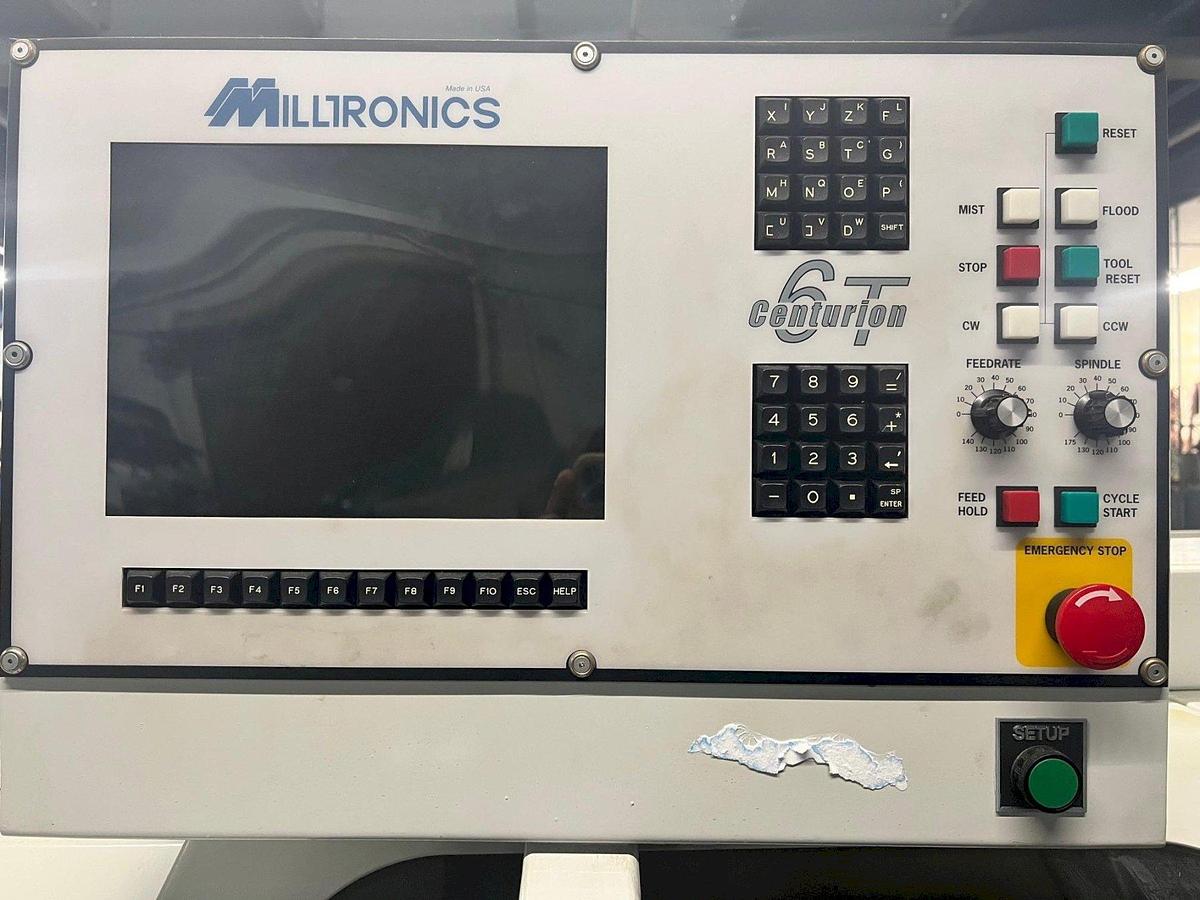

| Machine Control | Milltronics Centurion 6T Control |
| Chuck Size | 6" 3-Jaw Manual |
| Maximum Swing over Bed | 14" |
| Maximum Swing Over Cross Slide | 7.8" |
| Distance Between Centers | 36" |
| X-Axis Travel | 7" |
| Z-Axis Travel | 30.5" |
| Subspindle Nose / Bore / Bar Capacity | D1-5 Camlock / 1.65" / |
| Spindle Speeds | 10 0- 3,000 RPM |
| Spindle motor | 7.5 HP |
| Turret Type | Alois Style Tool Post |
| Rapid Traverse Rates | 300 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 1.875" / 5.5" / MT #4 |
| Machine Dimensions LxWxH | 104"x60"x72" |
| Machine Weight | 2,500 lbs |
