2013 Haas VF-11/50 with CAT 50 taper, 7500 RPM, Probing, Coolant Thru Spindle, TR310 Trunnion 5th Axis Table
2013 Haas VF-11/50 with CAT 50 taper, 7500 RPM, Probing, Coolant Thru Spindle, TR310 Trunnion 5th Axis Table
$199,500 (USD)
Location:Pennsylvania
or
Call (863) 439-6066
Description

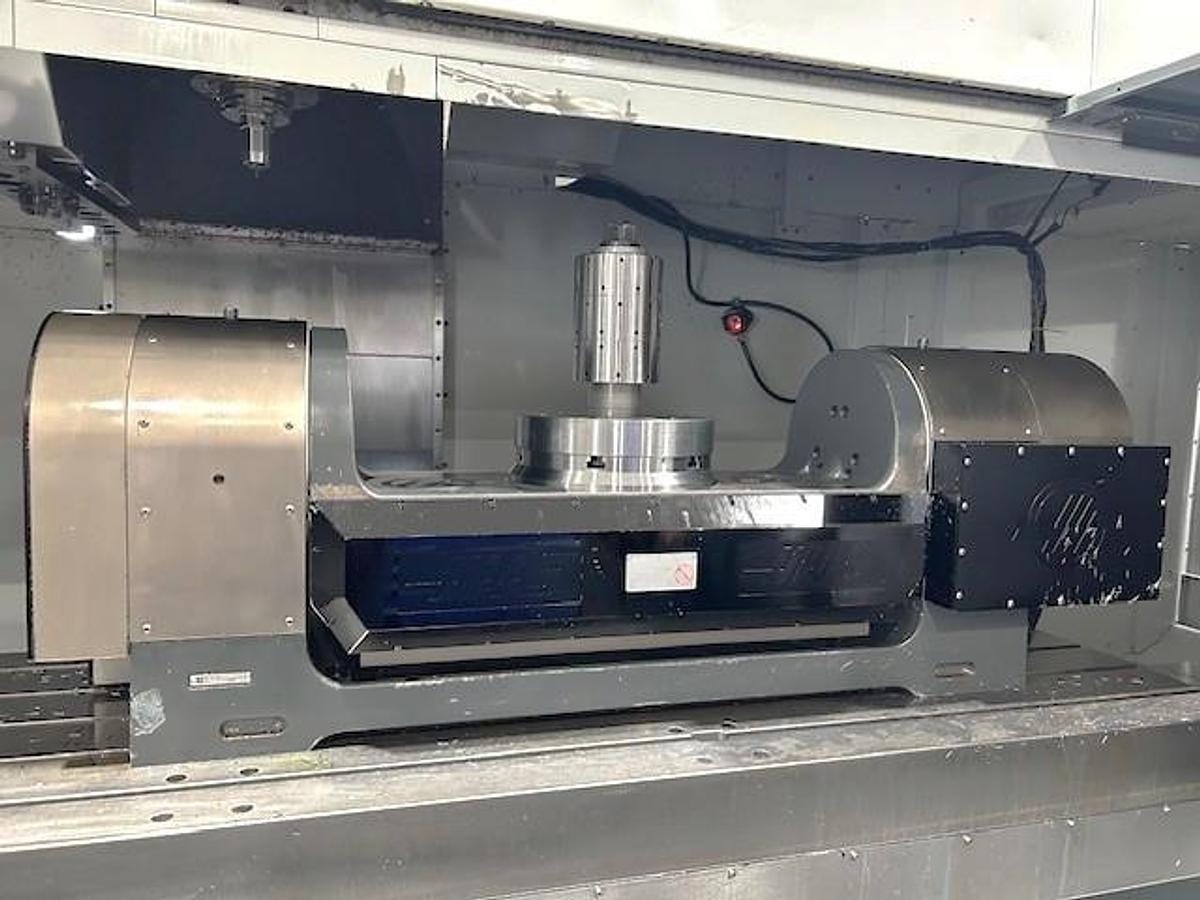

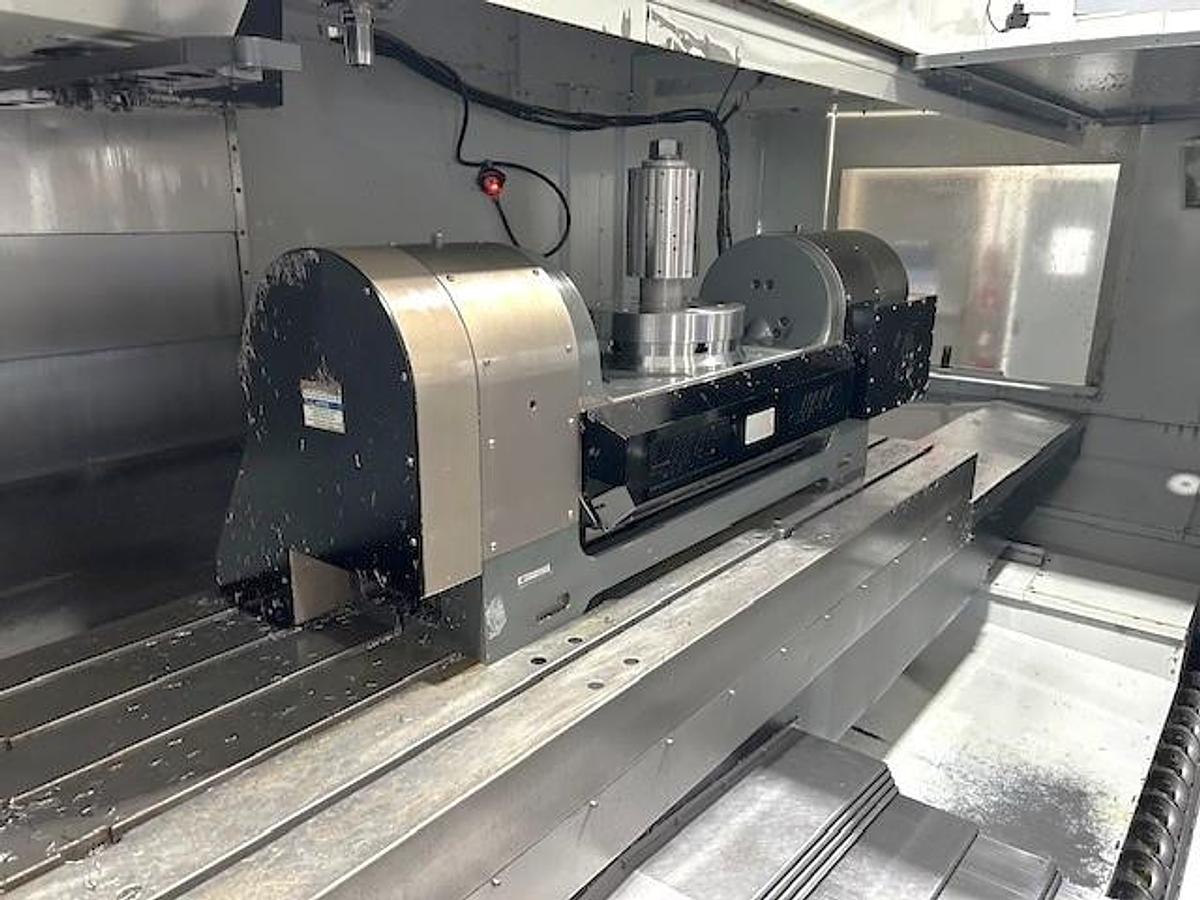

Haas TR310 Trunnion Style 4th/5th Axis Table
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Renishaw Probing System Tool & Part Probing
Coolant Through the Spindle - 300 PSI

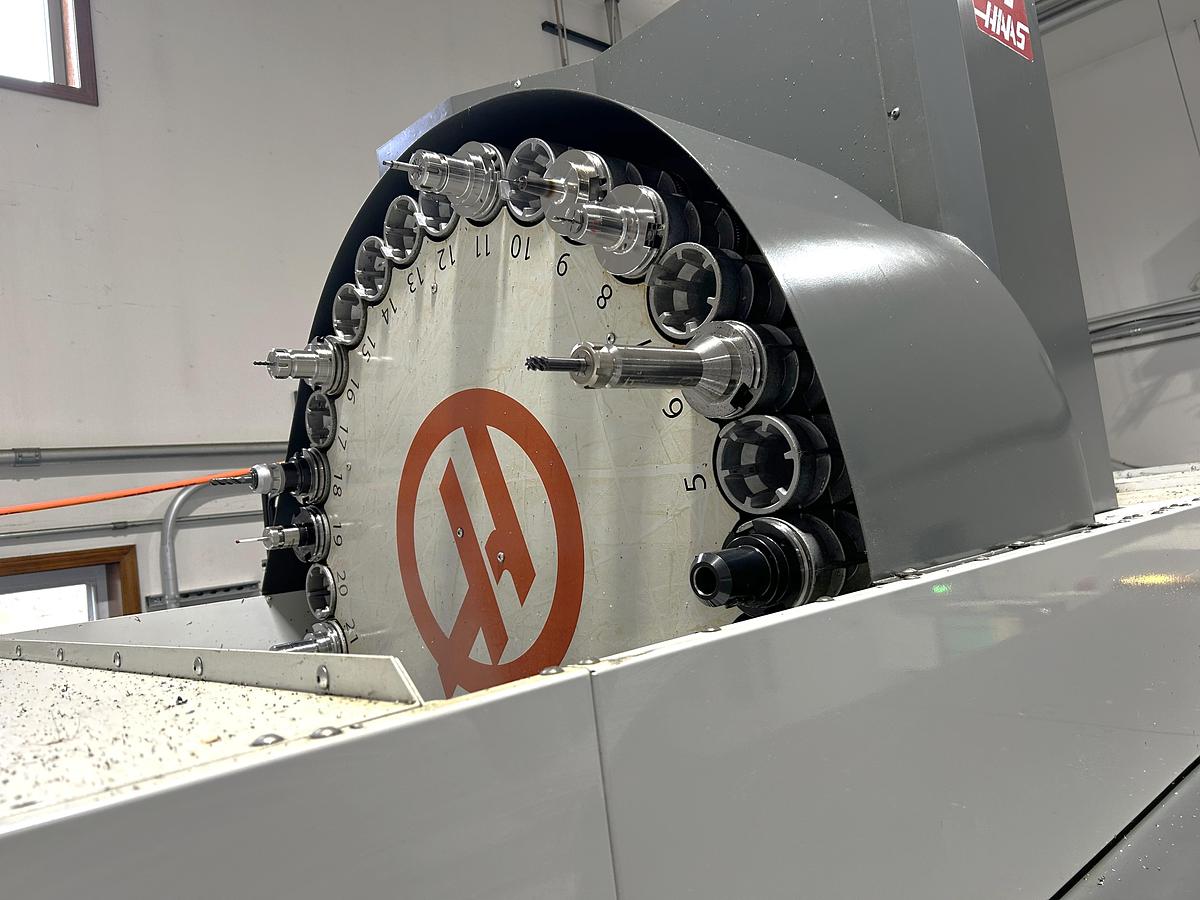

30 Station Side Mounted ATC
CAT 50 Taper Spindle
2 Speed Gearbox
Remote Jog Handle
Programmable Coolant Nozzle
Auger Style Chip Conveyor

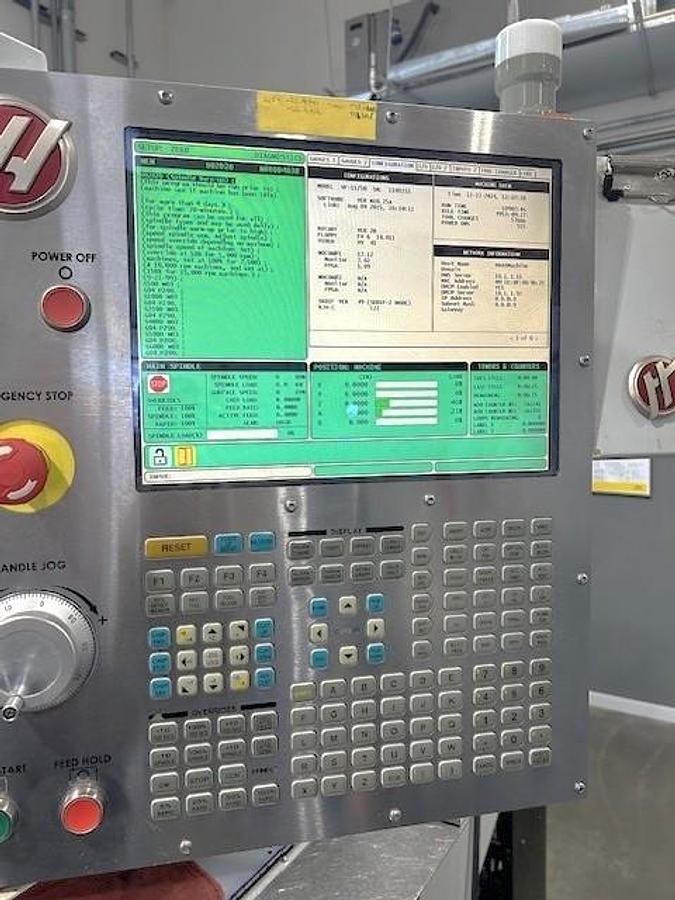

Visual Quick Code Programming
User Definable Macro
Spindle Orientation
Coordinate Rotation & Scaling
USB Port Interface
RS232 Port Interface
Coolant System with Tank & Pump
**Price New Today as Equipped at Just Under $400,000**

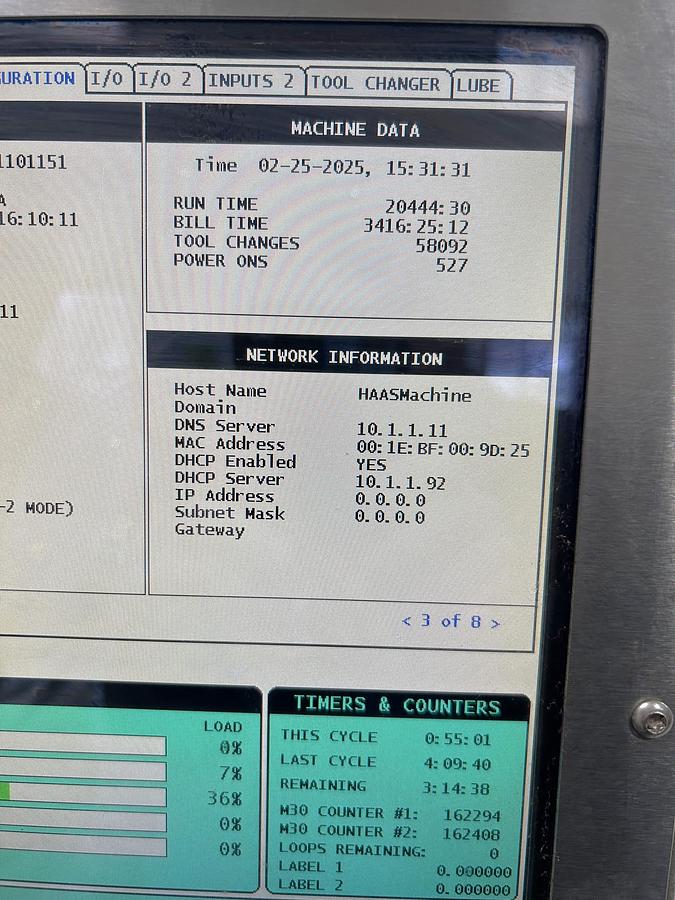

**Run Time Hours 20,444**
**Approximate Spindle Hours 7,500**
Specifications
| Manufacturer | Haas |
| Model | VF-11/50 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 120035 |
| Table Size | 120" x 28" |
| Maximum Table Load | 4,000 lbs |
| Distance Spindle Nose to Table Top | 5" to 35" |
| X-Axis Travel | 120" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 30" |
| Spindle Speed | 7,500 2-Speed Gearbox |
| Spindle Taper | CAT 50 |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 30 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 10" / 16" / 30 lbs. |
| Rapid Traverse Rates X / Y, Z | 360 IPM / 600 IPM |
| Machine Dimensions LxWxH | 257"x139"x138" |
| Machine Weight | 35,700 lbs |
