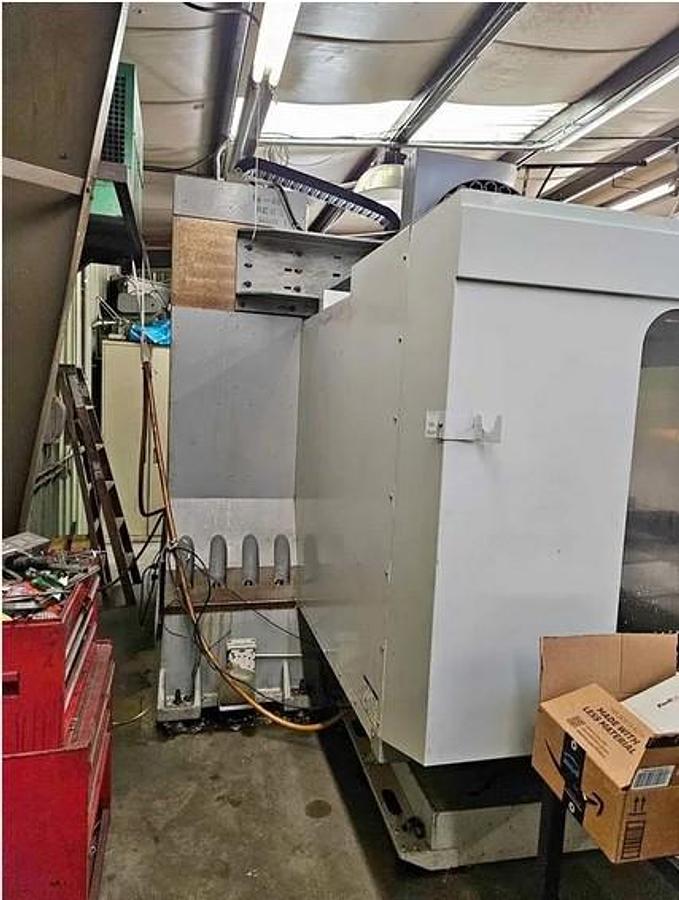

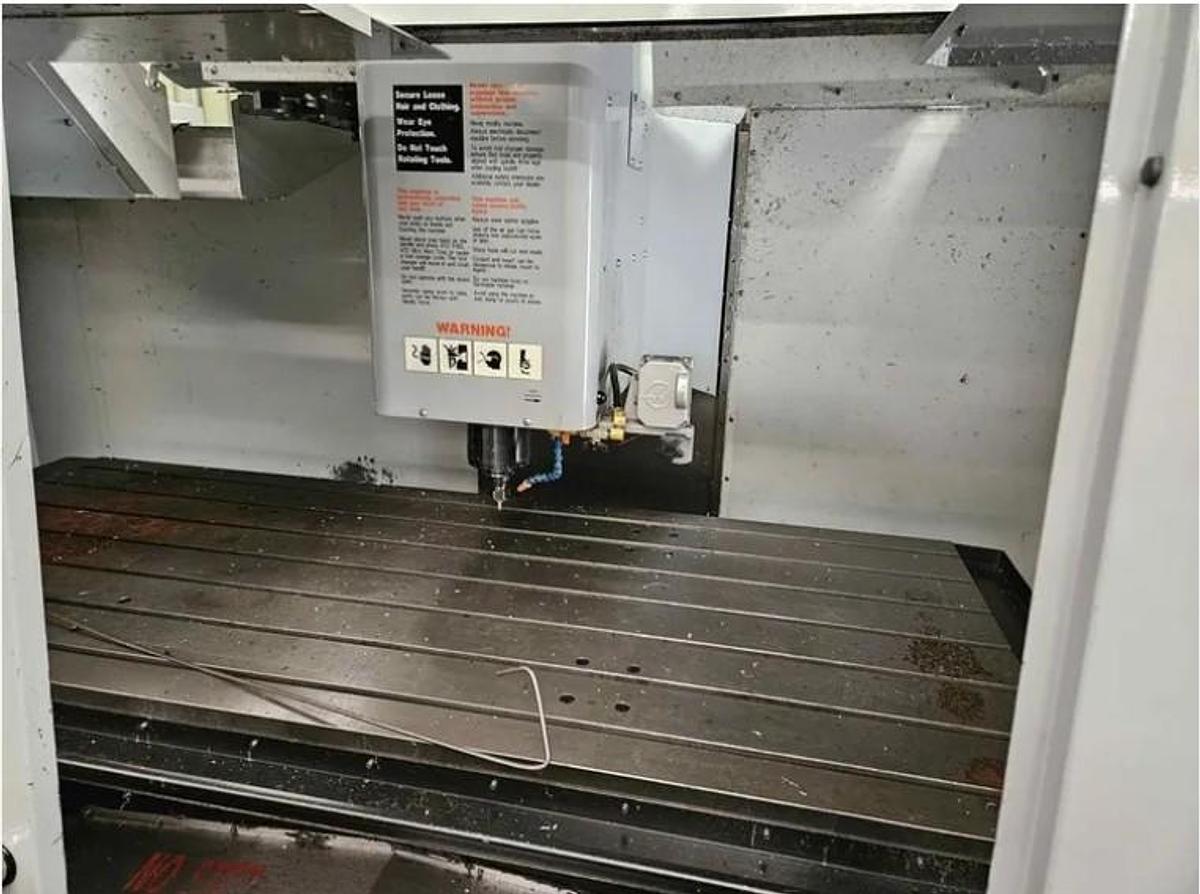

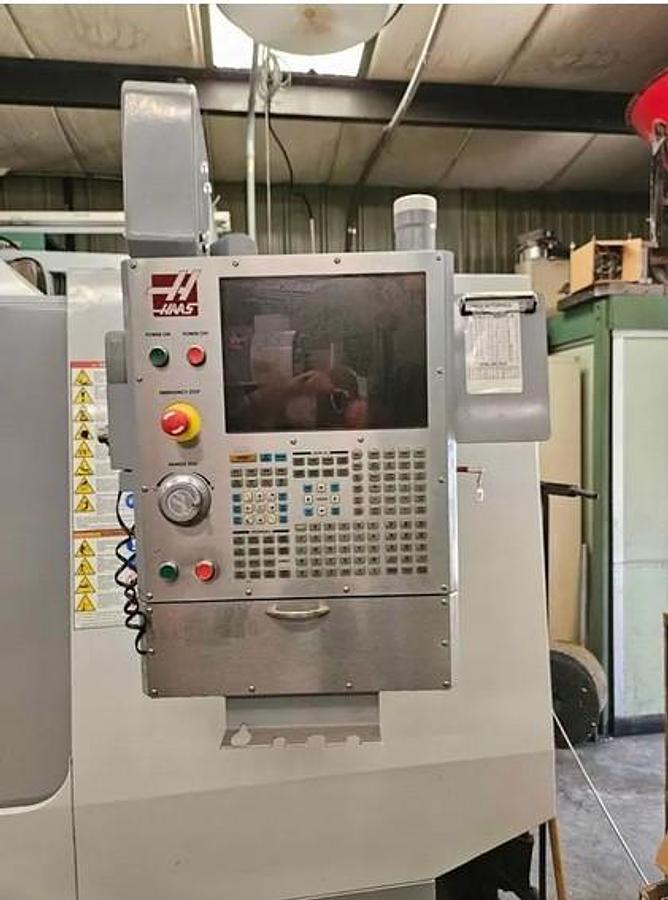

2007 Haas VF9/40 with 10,000 RPM, 24 Station Side Mount ATC, CAT 40, 2 Speed Gearbox, Pcool, Auger
2007 Haas VF9/40 with 10,000 RPM, 24 Station Side Mount ATC, CAT 40, 2 Speed Gearbox, Pcool, Auger
$99,500 (USD)
Location:North Carolina
or
Call (863) 439-6066
Description
24 Station Side Mount Tool Changer
10,000 RPM Spindle
2 Speed Gear Box
Programmable Coolant Nozzle
Auger Style Chip Conveyor
Remote Jog Handle
High Intensity Lighting
USB Port Interface
RS 232 Port Interface
Operator Stairs
Coolant System with Tank & Pump
Specifications
| Manufacturer | Haas |
| Model | VF9/40 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120034 |
| Table size | 84" x 36" |
| Table load capacity | 4,000 lbs. |
| X axis travel | 84" |
| Y axis travel | 40" |
| Z axis travel | 30" |
| Spindle taper | CAT 40 |
| Spindle speed | 0 - 10,000 RPM |
| Spindle motor-geared head | 20 HP |
| Transmission type | 2 Speed Geared |
| Spindle nose to table top | 4" - 34" |
| Tool magazine capacity | 24+1 Side Mounted ATC |
| Max. tool diam./length/weight | 3.5"/8"/12 lbs. |
| Tool change time | 4.0 sec tool-tool |
| Rapid traverse rates | 700 IPM |
| Machine dimensions | 183"x139"x129" |
| Machine weight | 25,000 lbs. |
