2009 Mazak Nexus QTN 350-II MSY/650 with Barfeed, Chip Conveyor, Parts Catcher, Exit Conveyor

2009 Mazak Nexus QTN 350-II MSY/650 with Barfeed, Chip Conveyor, Parts Catcher, Exit Conveyor

$89,500 (USD)

Location:New York, NY

or
Call (863) 439-6066

Description

Full C Axis on Main & Subspindle

Live Milling/Drilling Capability

Y Axis Capability

Subspindle

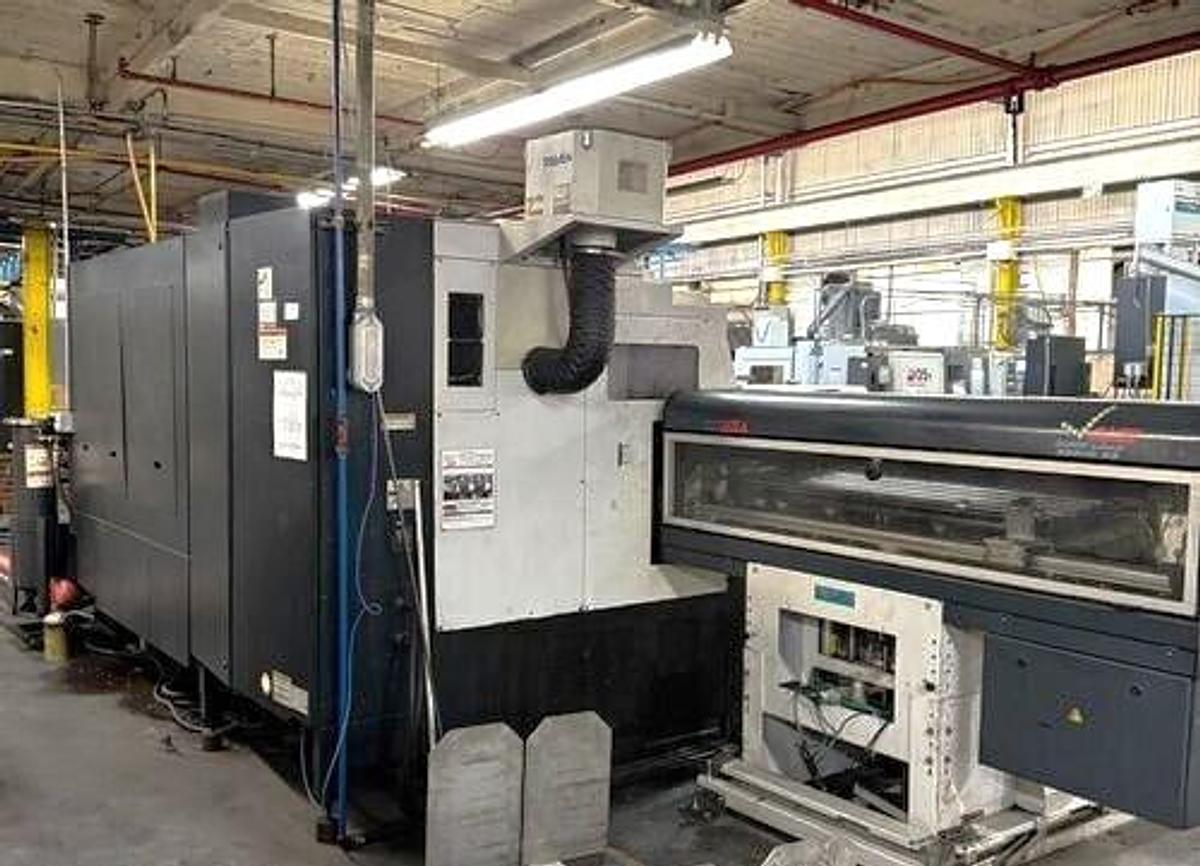

LNS Quick Load Servo S3 Short Barfeed Unit

Chip Conveyor

Parts Catcher

Parts Exit Conveyor

15" 3 Jaw Hydraulic Chuck on Main Spindle

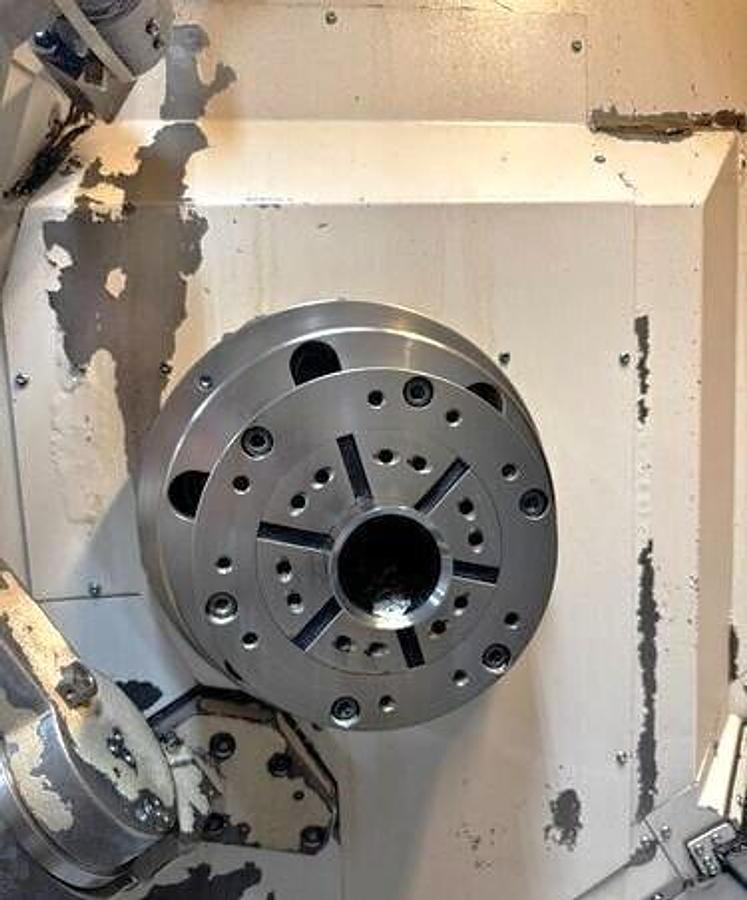

Hainbuch Collet Chuck for Main Spindle

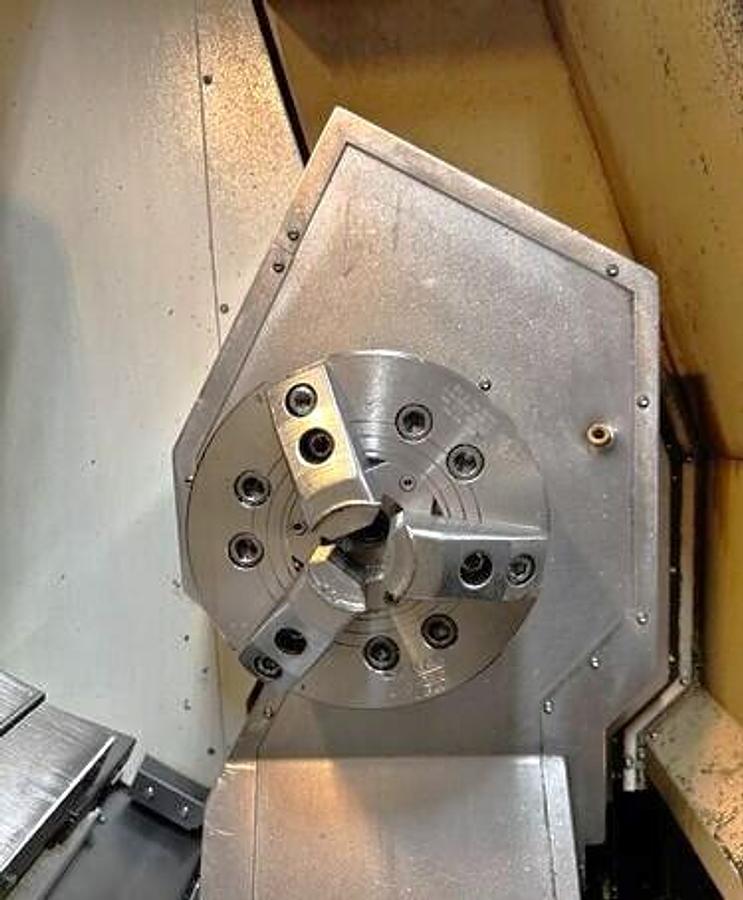

10" 3 Jaw Hydraulic Chuck on Subspindle

Super Flow 1000 PSI High Pressure Coolant

Tool Presetter

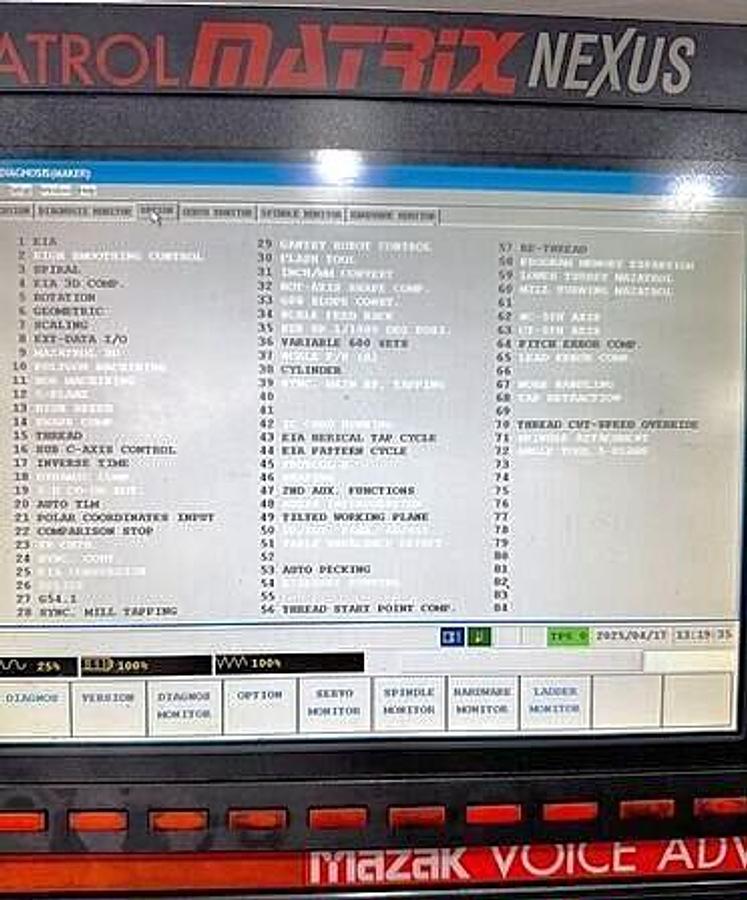

EIA/ISO Input Function

Mill Tool Synchronous Tapping

Threading

Re-Threading

Thread Start Point Compensation

Thread Cut Speed Override

Tilted Work Plane

Auto Pecking

USB Port Interface

RS 232 Port Interface

Coolant System with Tank and Pump

Multi Tap Transformer

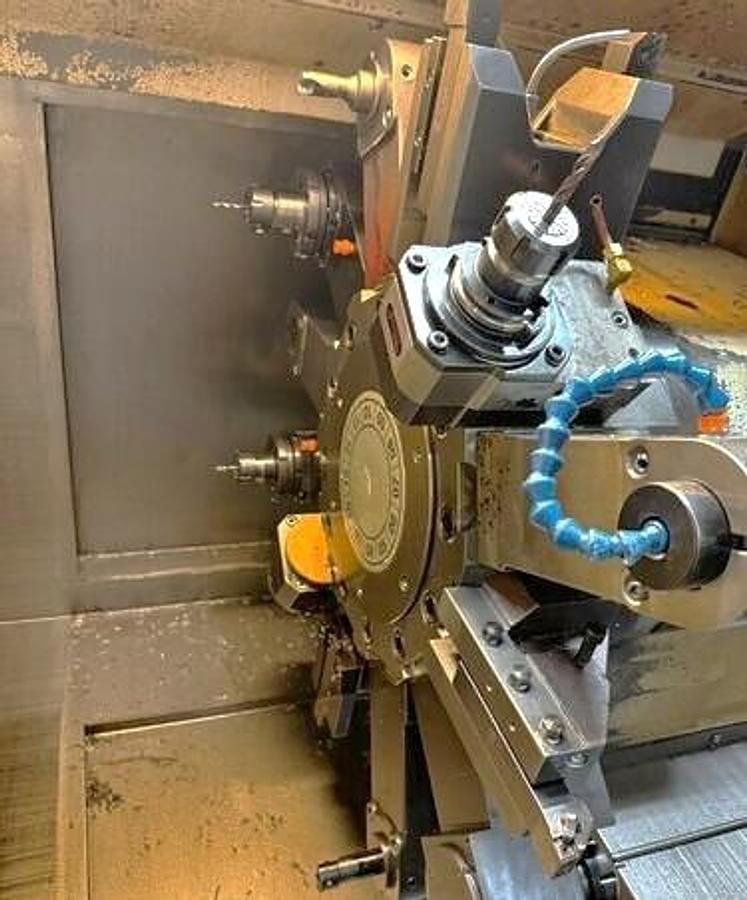

All Available Tooling Includes (7) Live Tool Holders

All Available Manuals

*Mist Collector is NOT Included in Sale**

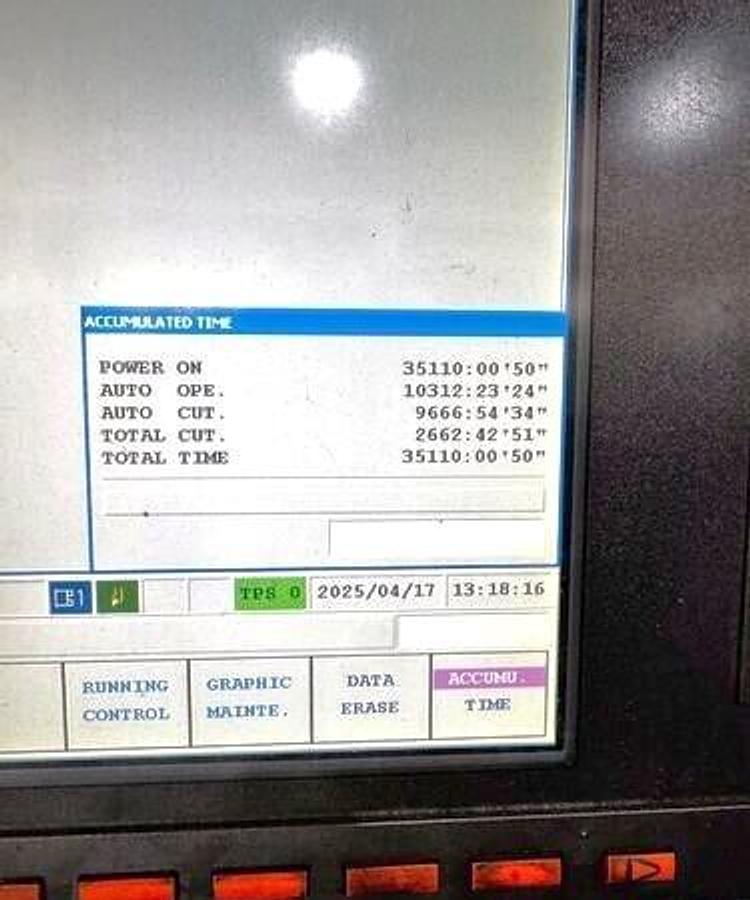

**Total Cutting Hours 9,666**


**Full Replacement Cost as Equipped - $350,000+**

**Machine Cut Primariliy Aluminum and Carbon Steel**

Show All

Specifications

ManufacturerMazak
ModelNexus QTN 350-II MSY/650
Year2009
ConditionUsed
Stock Number120033

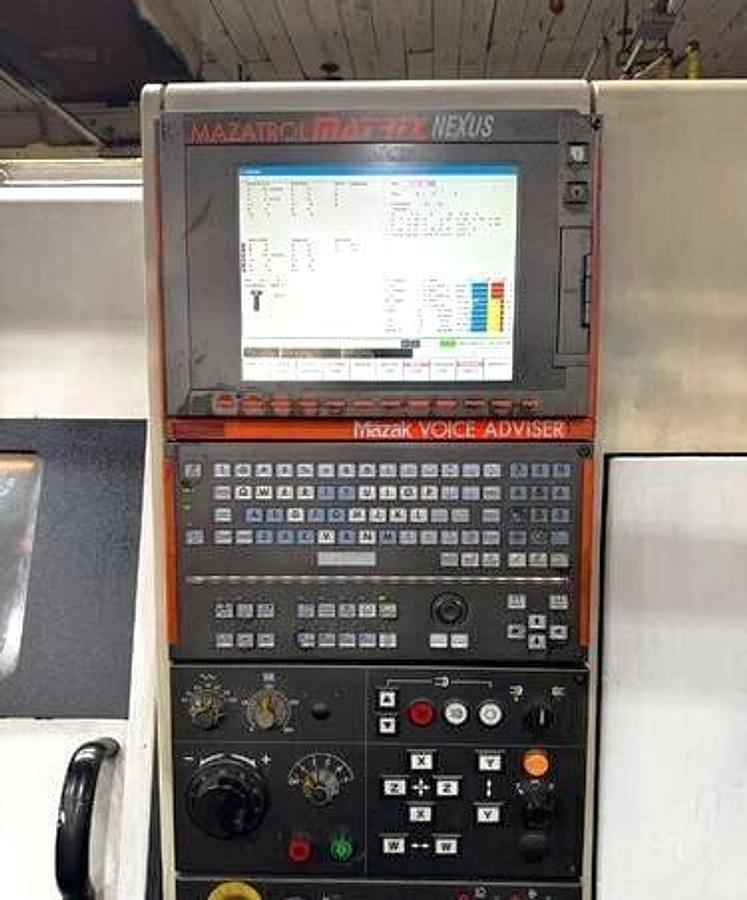

Machine ControlMazatrol Matrix Nexus
Chuck Sizes Main / Subspindle15" Hydraulic / 10" Hydraulic
Maximum swing29.5"
Maximum cutting diameter16.54"
Maximum machining length24.17"
X-axis travel10.76"
Y-Axis Travel6.0" (+/- 3.0")
Z-axis travel26.38"
C Axis Spindle Rotation0.001 Degree
C2 Axis Spindle Rotation0.001 Degree
W-Axis Travel - Subspindle26.63"
Spindle nose/spindle bore/bar capacityA2-11"/4.4"/4.0"
Spindle speed3,300 RPM
Spindle motor 30 min. / cont.40 HP / 30 HP
Subspindle Speed4,000 RPM
Subspindle Motor35 HP
Live Tooling Speed / Motor4,000 RPM / 10 HP
Turret type12 Position Turret
Rapid Traverse Rates X / Z1181 IPM / 984 IPM
Machine dimensions lxwxh125" x 81" x 79"
Machine weight17,500 lbs.
