2001 Mori Seiki ZT2500Y
2001 Mori Seiki ZT2500Y
Contact us for price
Location:Minnesota
or
Call (863) 439-6066
Description
Chip Conveyor
Y-Axis
Live Tooling
Subspindle
Part Conveyor
Shower Coolant System

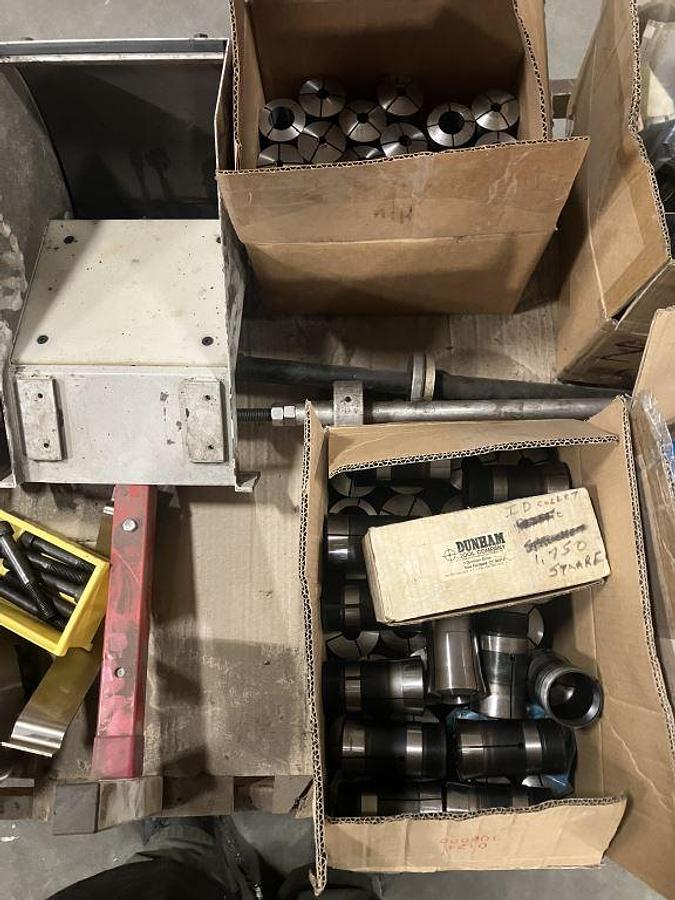

(2) Collet Chucks
Good Assortment of Tooling
Machine ran Aluminum
Run time Main Spindle 21,937
Run Time Sub Spindle 6,187

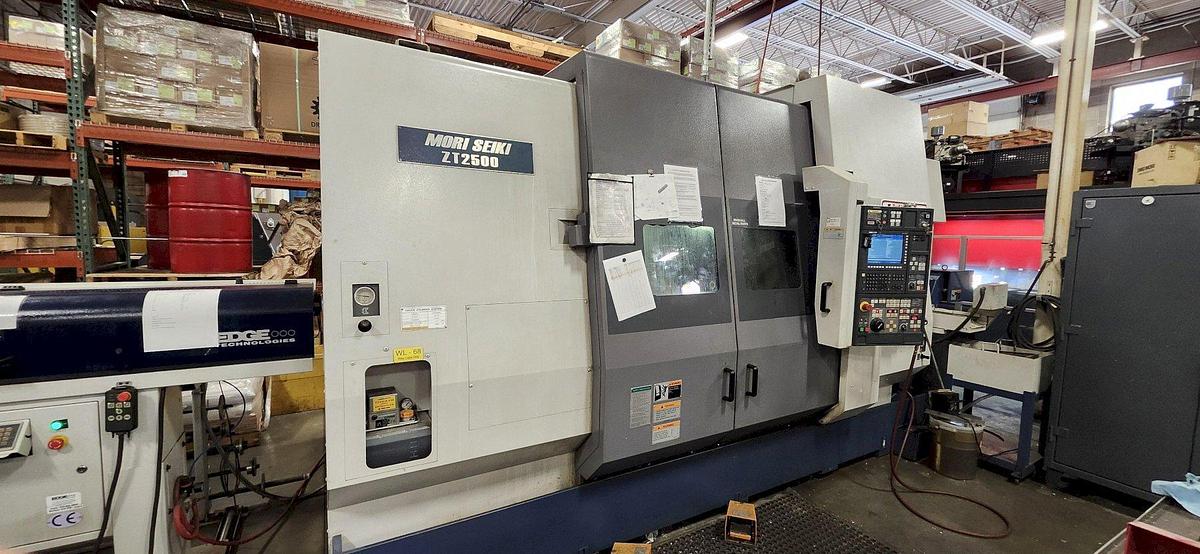

**Barfeed in picture does not go with the machine**
Loading is the responsibility of the buyer
Specifications
| Manufacturer | Mori Seiki |
| Model | ZT2500Y |
| Year | 2001 |
| Condition | Used |
| Stock Number | 120028 |

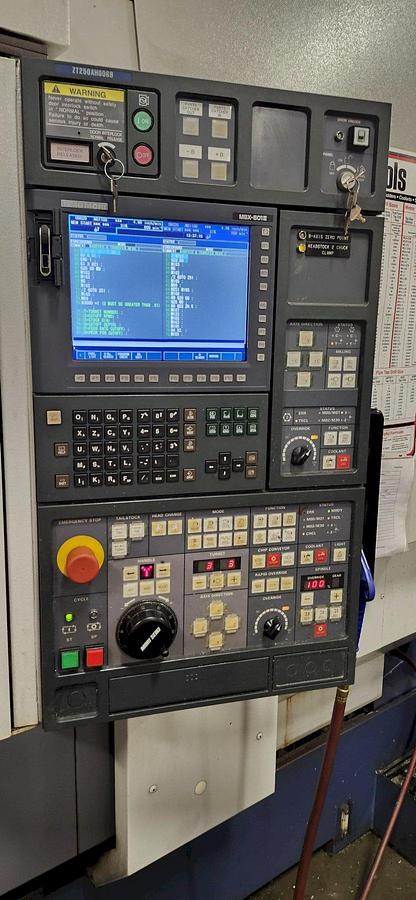

| Machine Control | Mori MSX-501 III |
| Maximum Swing | 14.96" |
| Distance Between Spindles | 51.18" |
| Maximum Turning Diameter | #1 14.96", #2 14.17" |
| Maximum Turning Length | 51.18" |
| X-axis travel | #1 11.02", #2 7.87" |
| C-Axis Rotation | .001 Degrees |
| Y-Axis Travel | +/- 2.76" |
| Z-Axis Travel | 38.78" |
| B-Axis Travel (Subspindle) | 38.78" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.58" / 3.07" |
| Spindle Speeds | 40-4,000 rpm |
| Number of Turrets | 2 |
| Number of Turret Positions | 12 |
| Rotary Tool Speed / Rotary Motor | 4,000 rpm / 6 hp |
| Rapid Traverse Rates | 944 ipm |
| Machine Dimensions LxWxH | 165"x109"x109.33" |
| Machine Weight | 28,600 lbs |
