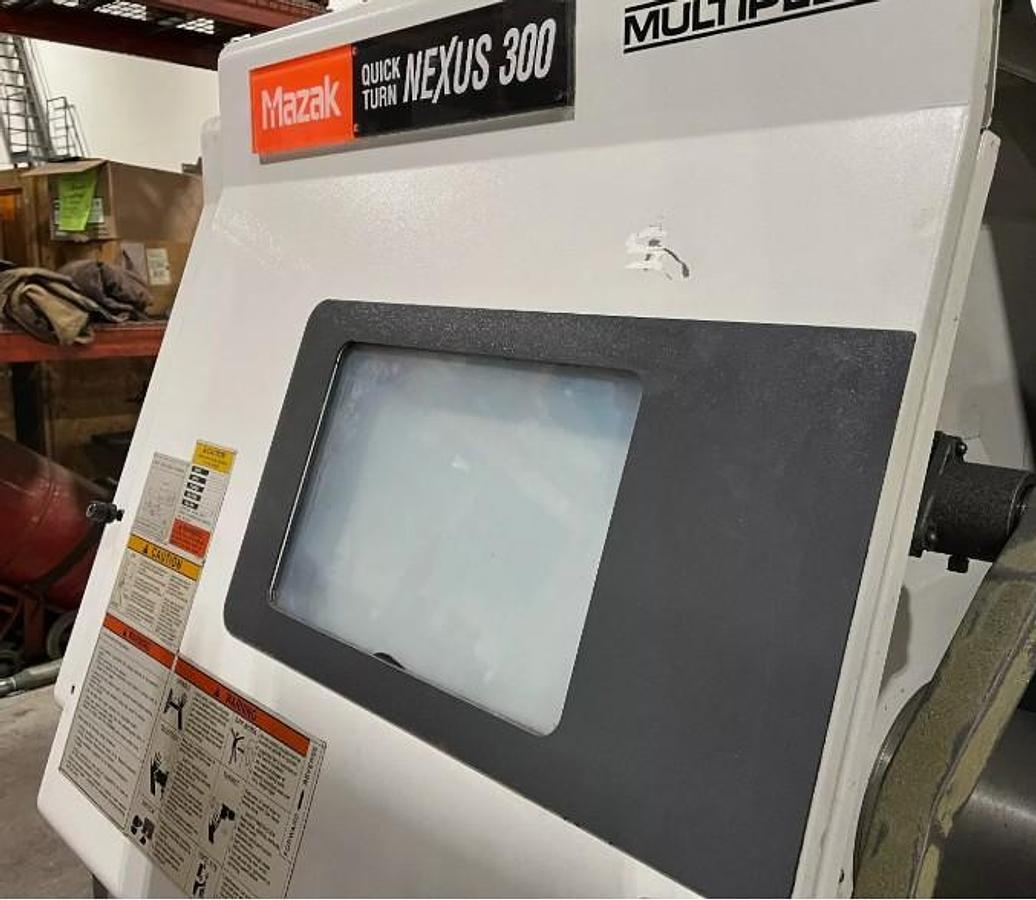

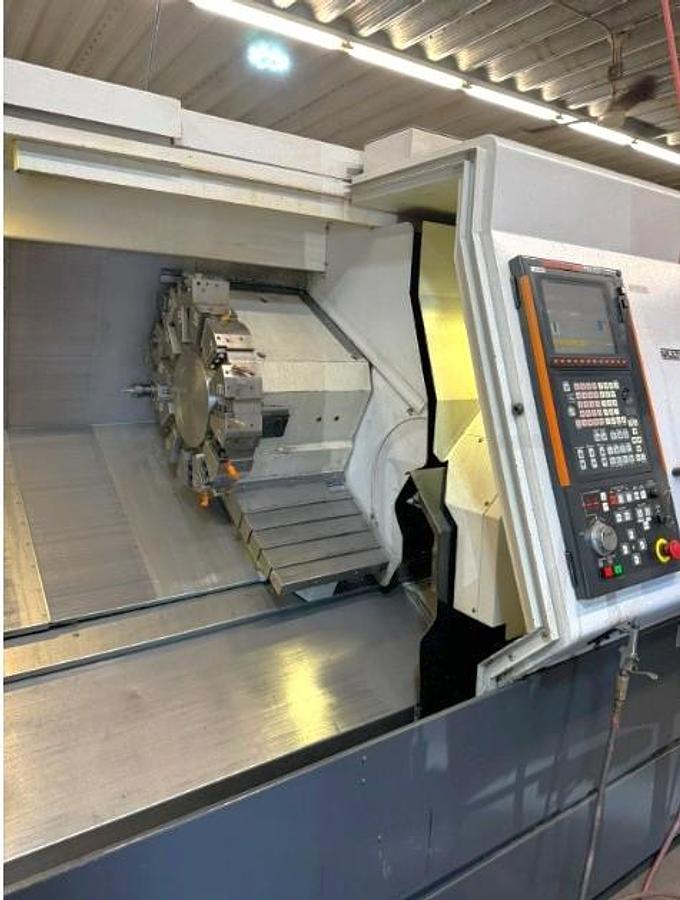

2005 Mazak Nexus QTN 300/650 with Tailstock, Chip Conveyor, Tool Presetter, 10" Hyd. Chuck, 3" Bar Capacity
2005 Mazak Nexus QTN 300/650 with Tailstock, Chip Conveyor, Tool Presetter, 10" Hyd. Chuck, 3" Bar Capacity
$38,500 (USD)
Location:Minnesota
or
Call (863) 439-6066
Description

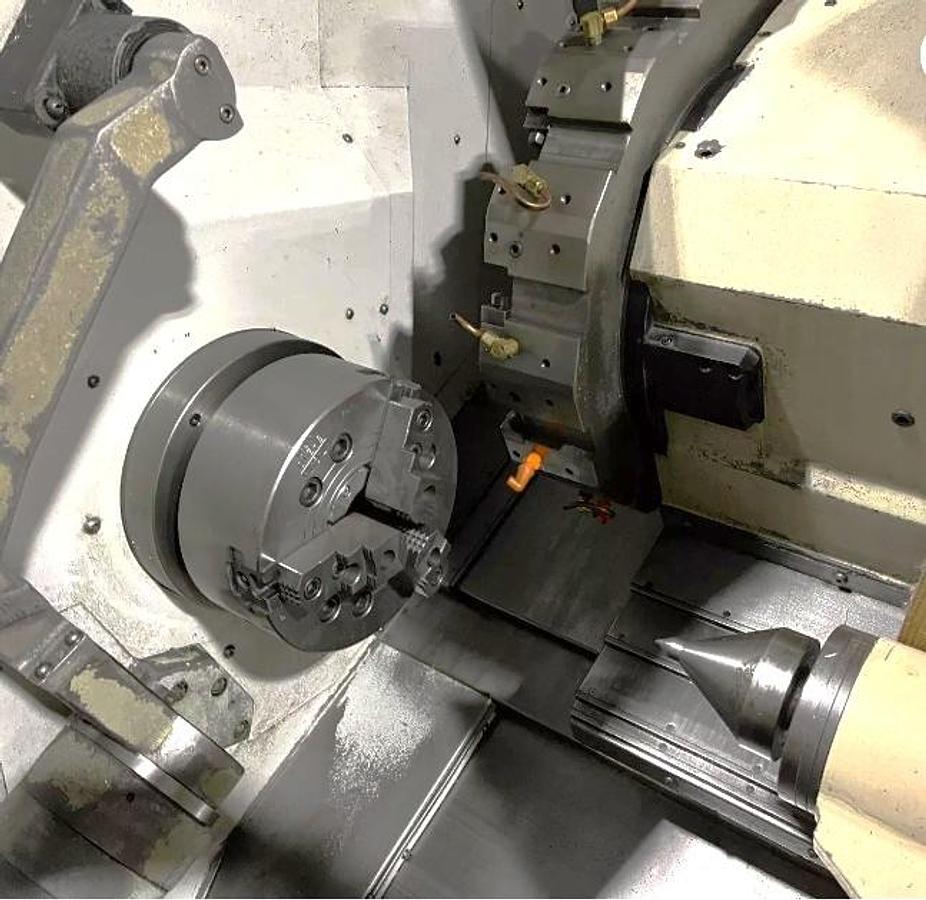

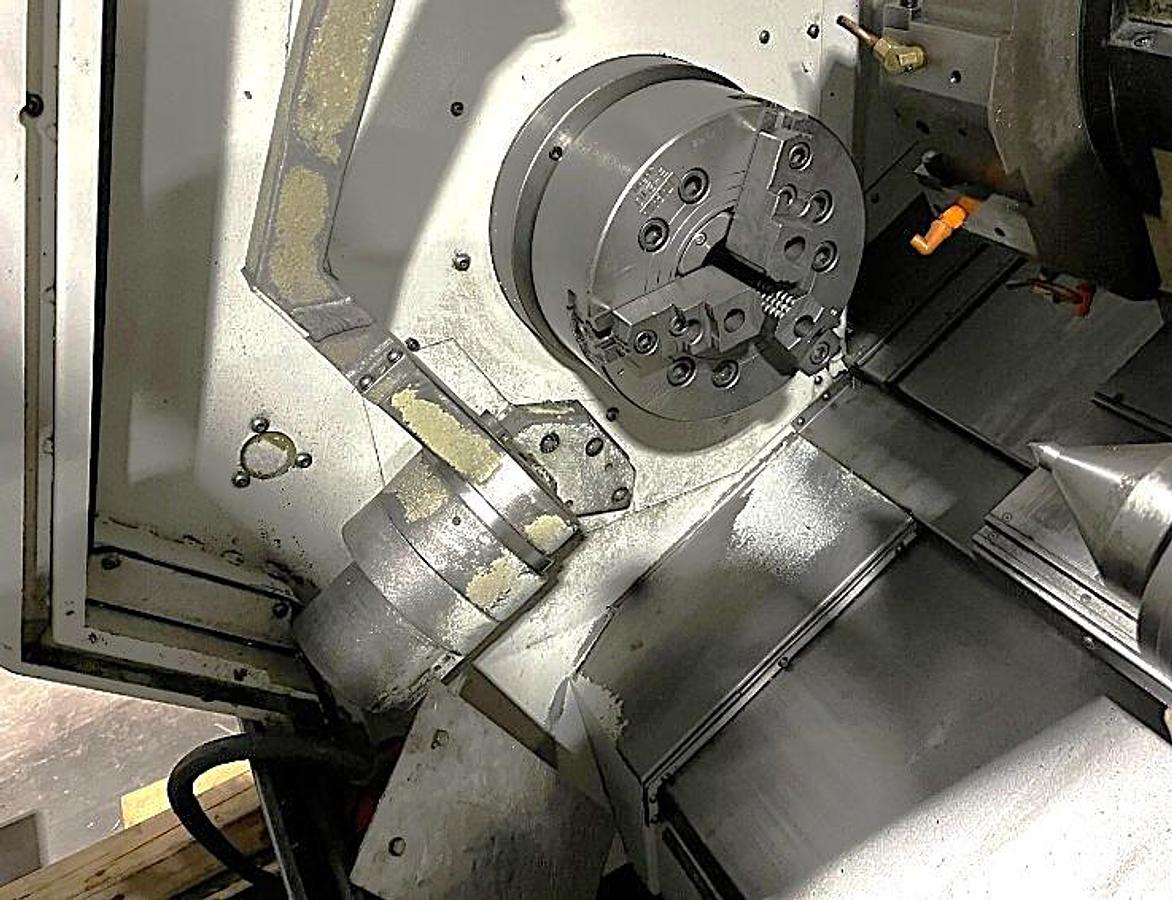

10" 3 Jaw Hydraulic Chuck

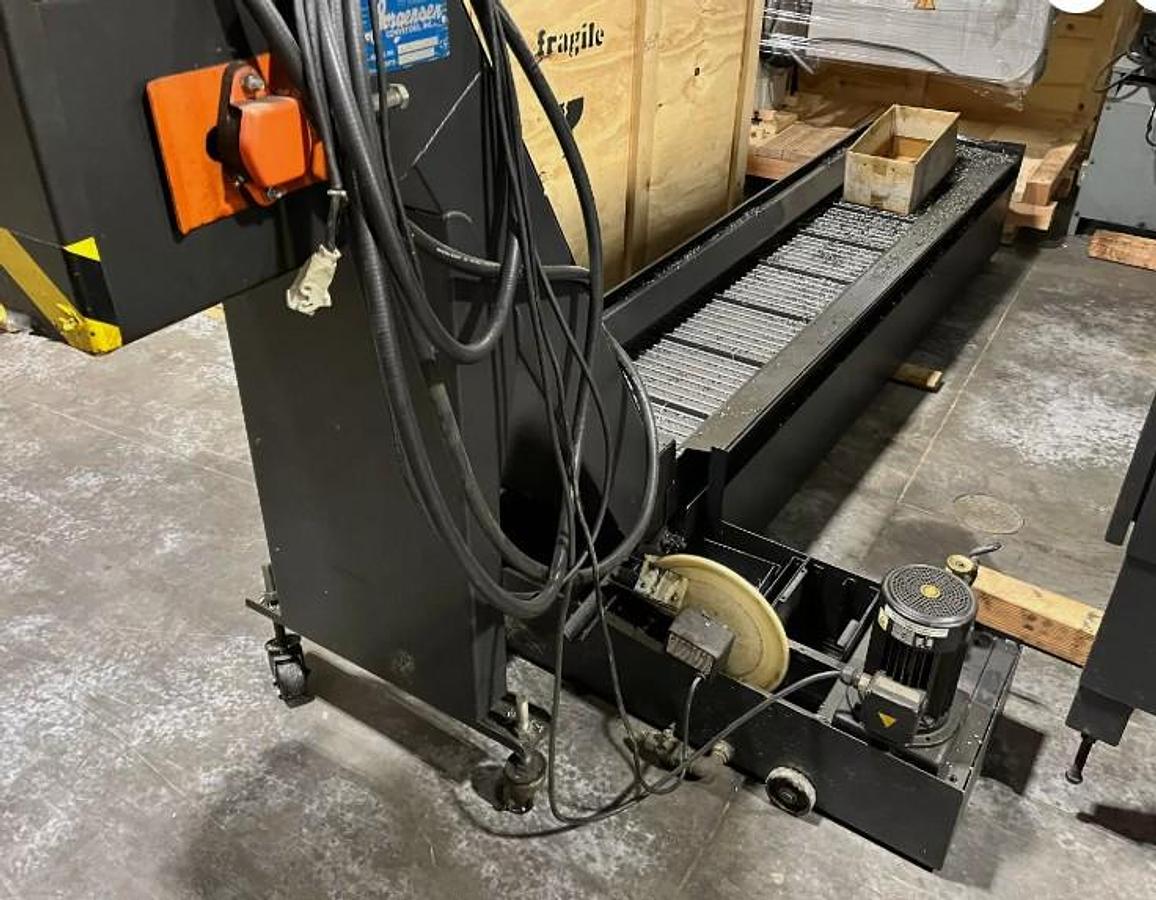

Chip Conveyor
Automatic Tool Eye

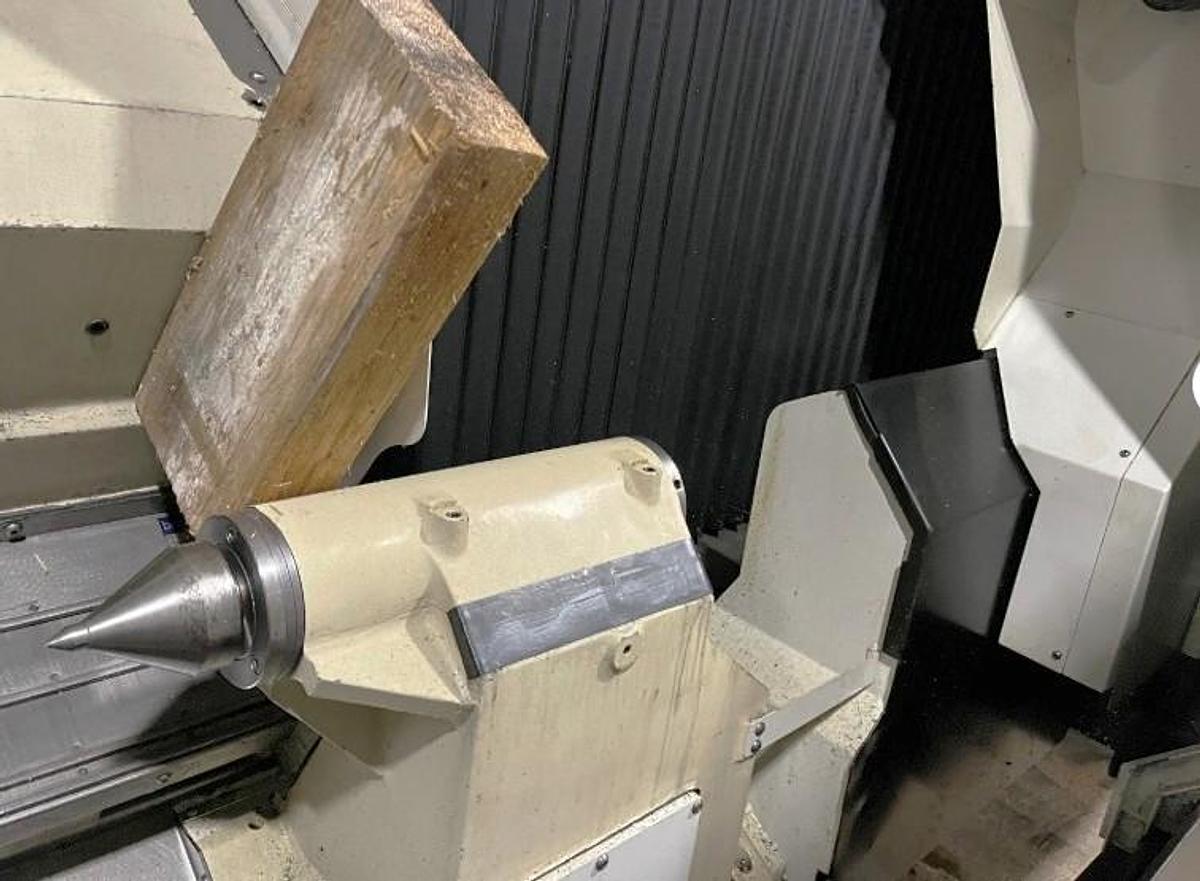

Programmable Tailstock
IC Memory Card Interface
PCM CIA Interface (2 slots)
RS232 Port Interface
Hydraulic Pressure Interlock
Door Interlock
Multi-Tap Transformer Coolant Tank with Pump All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 300/650 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 120026 |

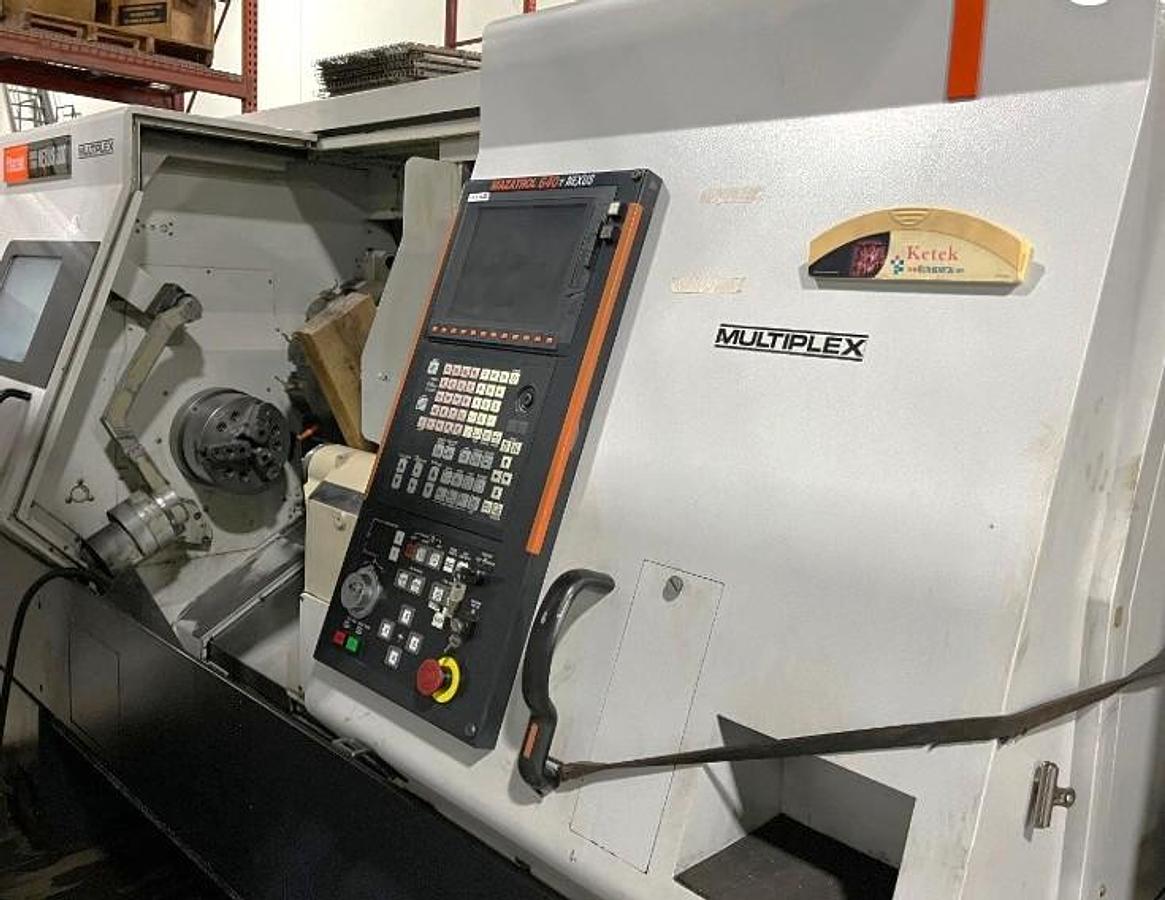

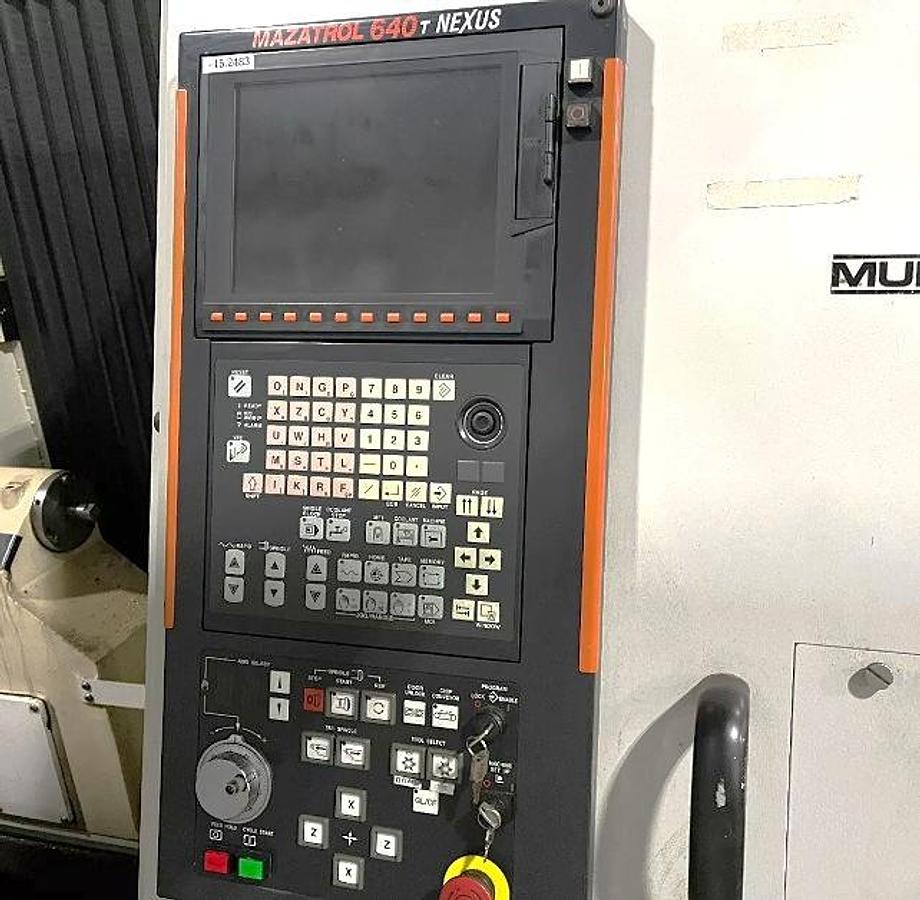

| Control | Mazatrol Fusion 640T Nexus |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 26.77" |
| Maximum Cutting Diameter | 16.53" |
| Maximum Machining Length | 25.5" |
| X-Axis Travel | 8.85" |
| Z-Axis Travel | 26.77" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.00" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 35 HP |

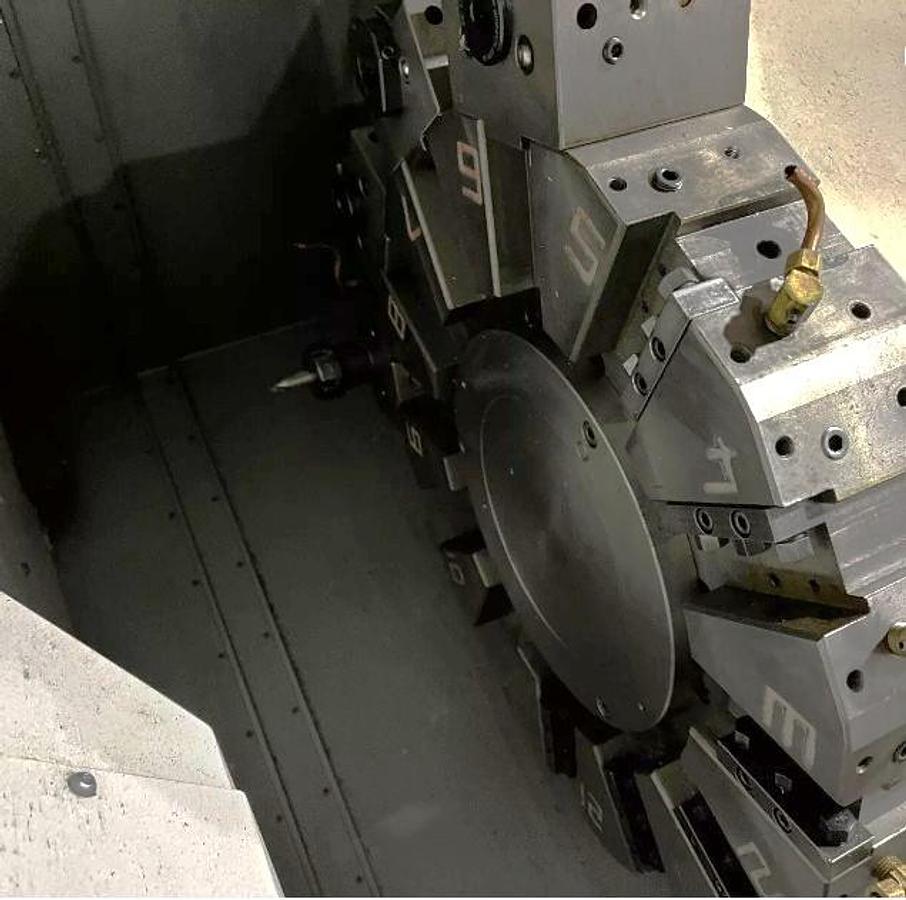

| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1181 IPM / 984 IPM |
| Tailstock Body Travel / Center | 21.75" / MT#5 |
| Machine Dimensions LxWxH | 120.8"x80.7"x78.7" |
| Machine Weight | 15,653 lbs. |
