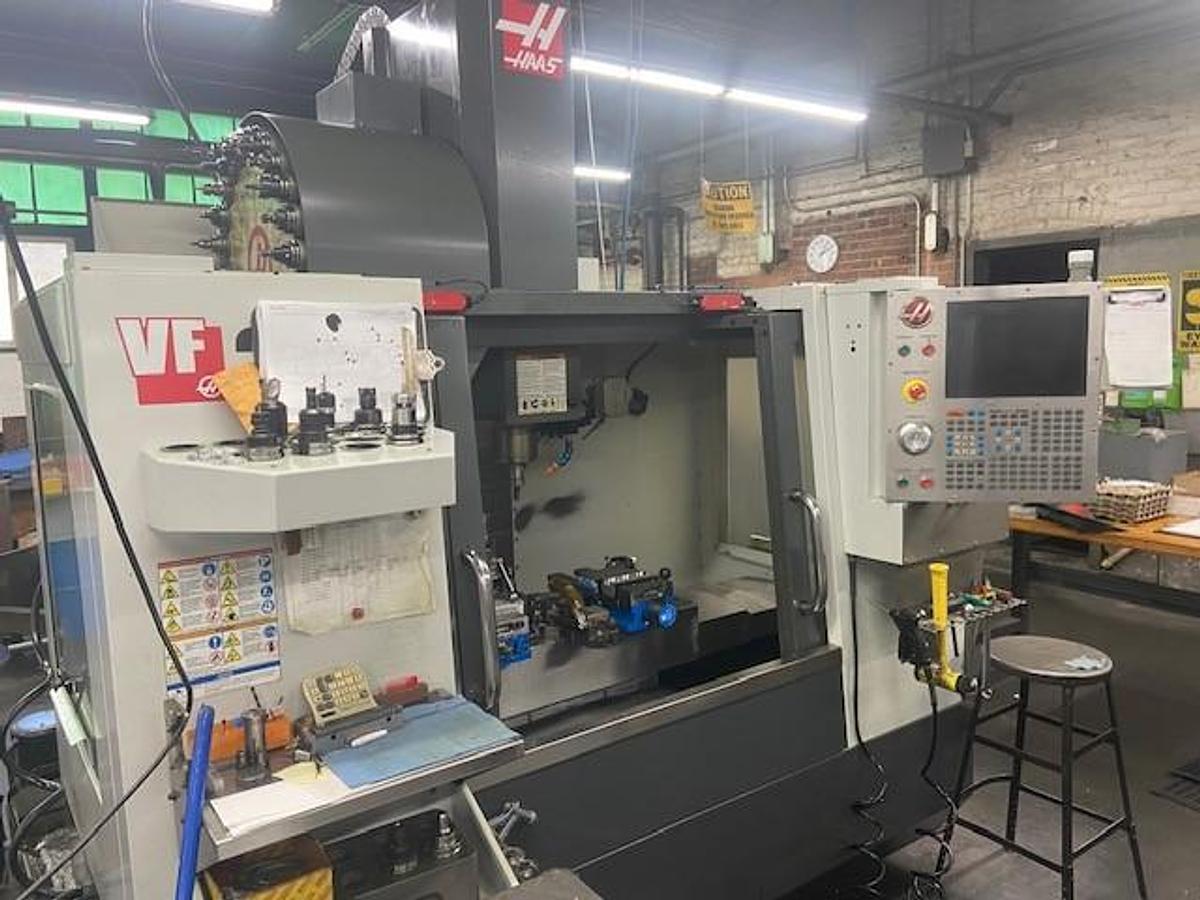

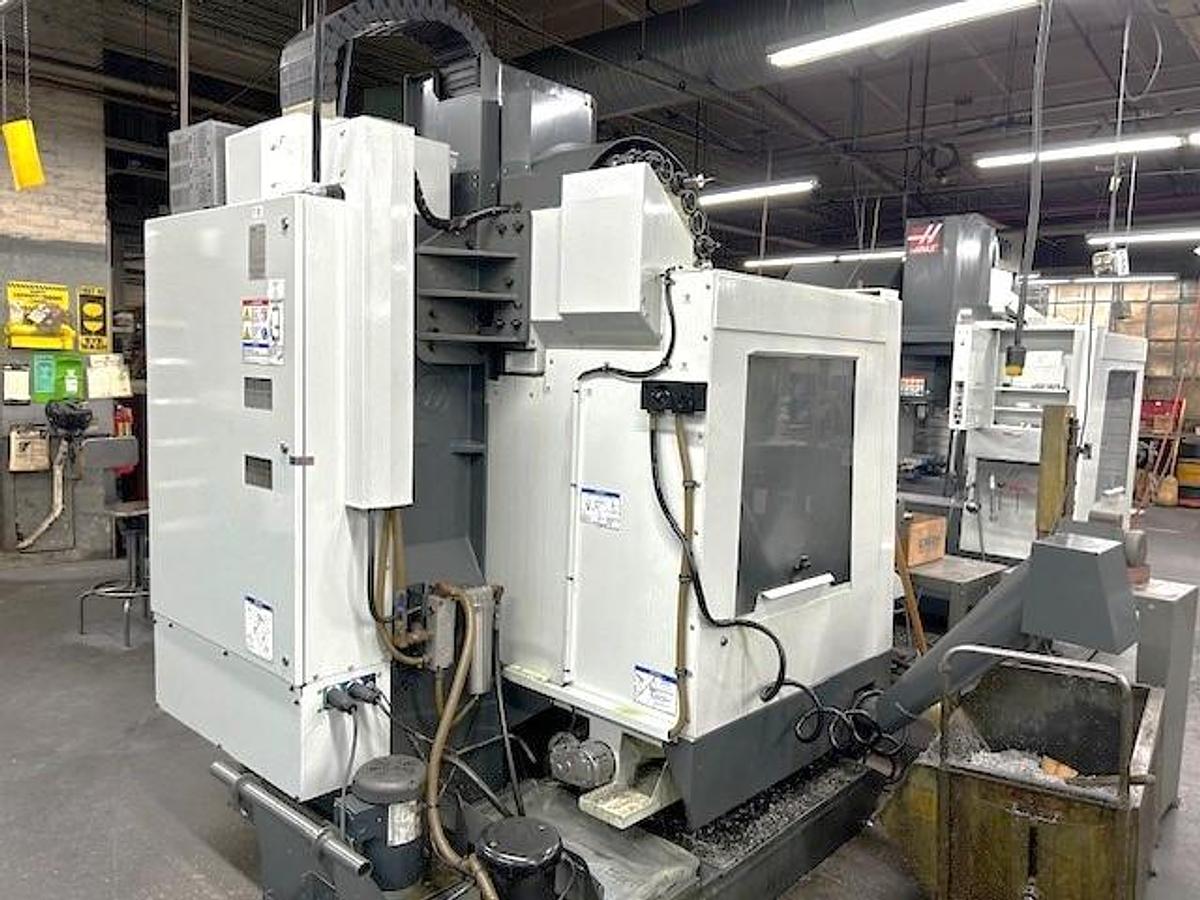

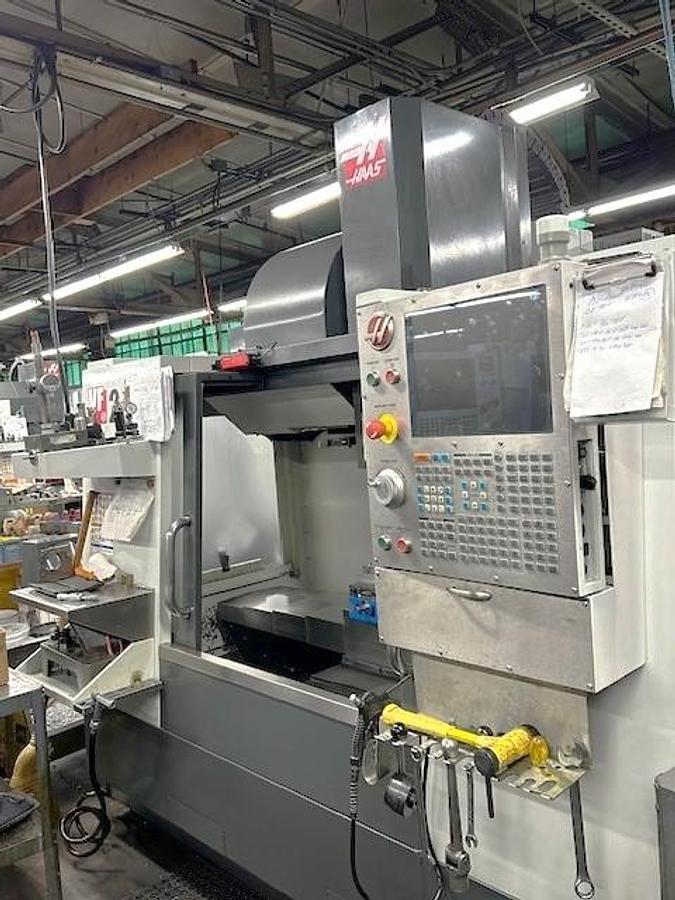

2013 Haas VF-2SS with Haas Probing, Coolant Thru Spindle, 24 Position Side Mount ATC
No longer available
2013 Haas VF-2SS with Haas Probing, Coolant Thru Spindle, 24 Position Side Mount ATC
$36,900 (USD)
Location:New York, NY
Description
Coolant Through the Spindle
Haas Probing Package Tool & Part Probe
24+1 Position Side Mounted Tool Changer
Auger Style Chip Conveyor
Programmable Coolant Nozzle
USB Port Interface
RS 232C Port Interface for DNC Operation
Rigid Tapping (Synchronous/Solid Tapping)
Coolant System with Tank & Pump
Wired 195-260V Electrics
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF-2SS |
| Year | 2013 |
| Condition | Used |
| Stock Number | 120021 |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,500 lbs. |
| Spindle Nose to Table Top | 4" - 24" |
| X Axis Travel | 30" |
| Y Axis Travel | 16" |
| Z Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 30 HP - Direct Drive |
| Number of Tool Positions | 24 Station Side Mounted ATC |
| Rapid Traverse Rates (X, Y, Z) | 1400 IPM |
| Cutting Feedrates | 0.1 - 833 IPM |
| Machine Dimensions | 88" x 93" x 106" |
| Machine Weight | 9,000 lbs. |
