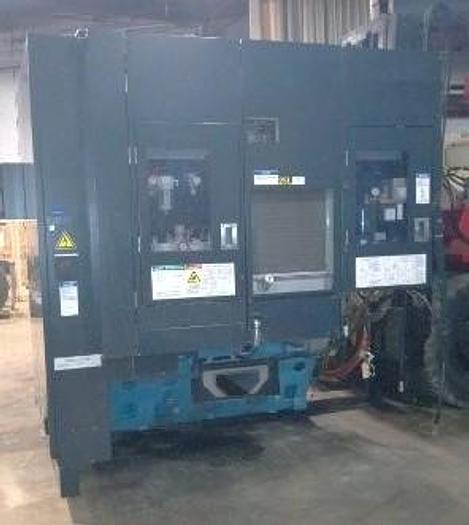

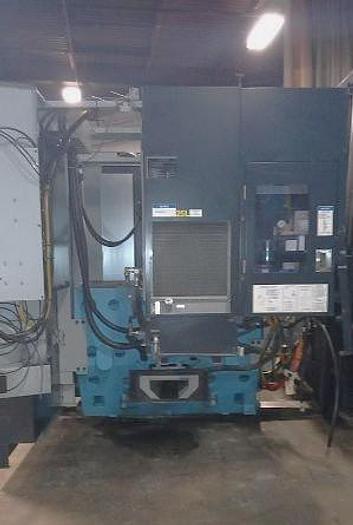

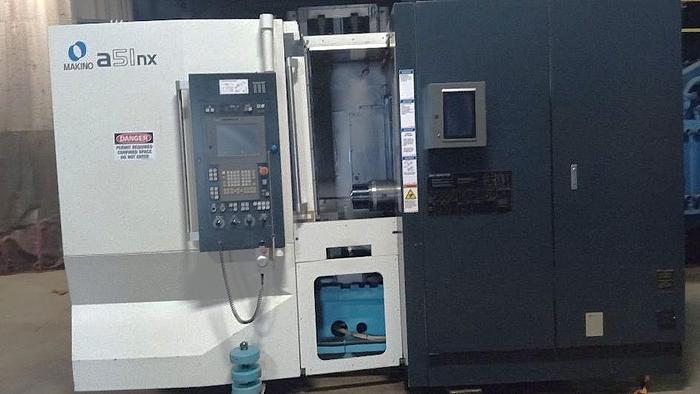

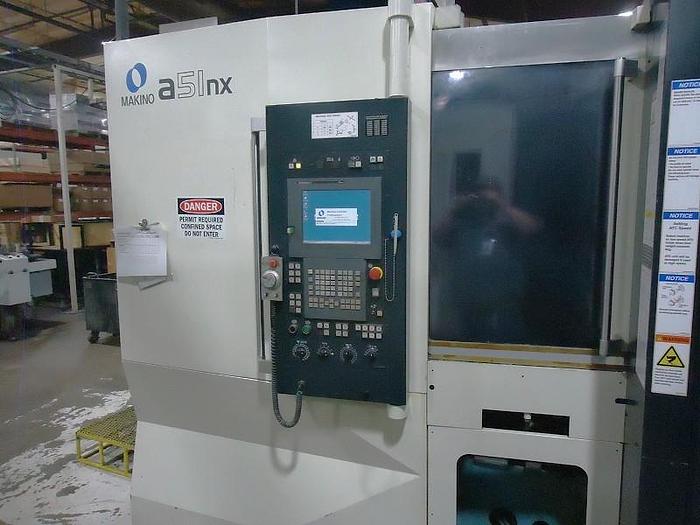

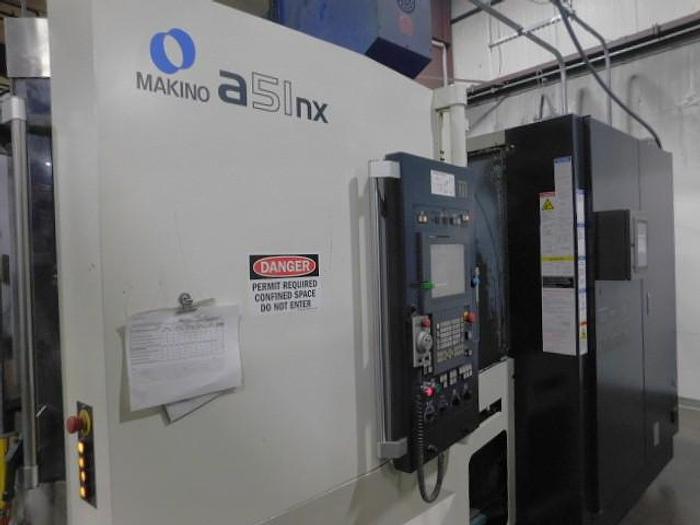

2012 Makino A51NX with Full 4th Axis, 14k RPM, Coolant Thru Spindle, 60 ATC, Chip Conveyor

2012 Makino A51NX with Full 4th Axis, 14k RPM, Coolant Thru Spindle, 60 ATC, Chip Conveyor
$109,500 (USD)
Location:Wisconsin
or
Call (863) 439-6066
Description

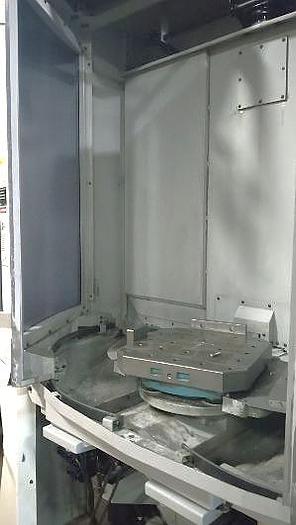

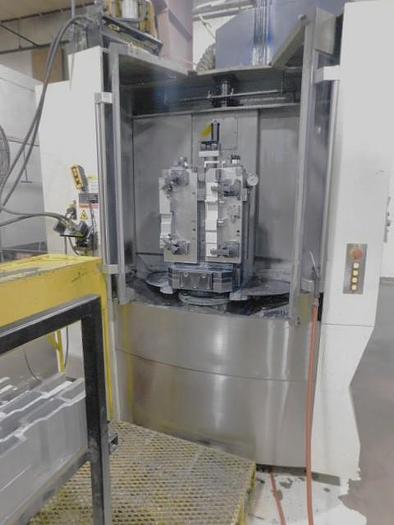

2 Pallet Factory Changer

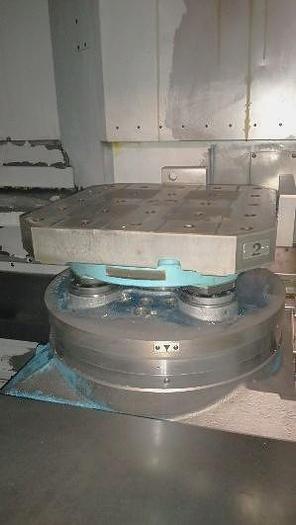

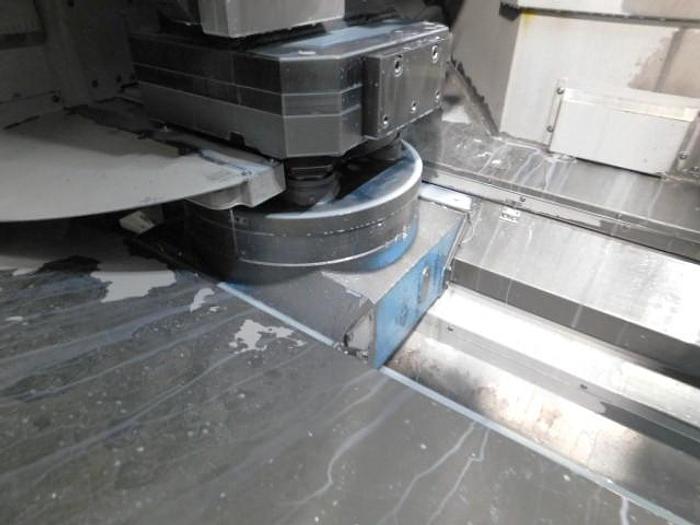

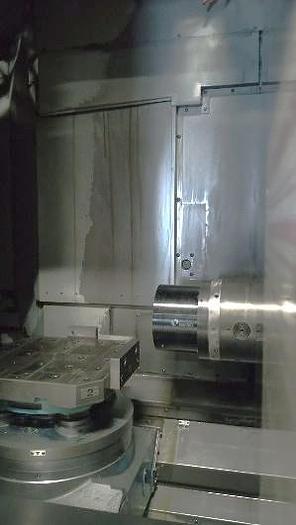

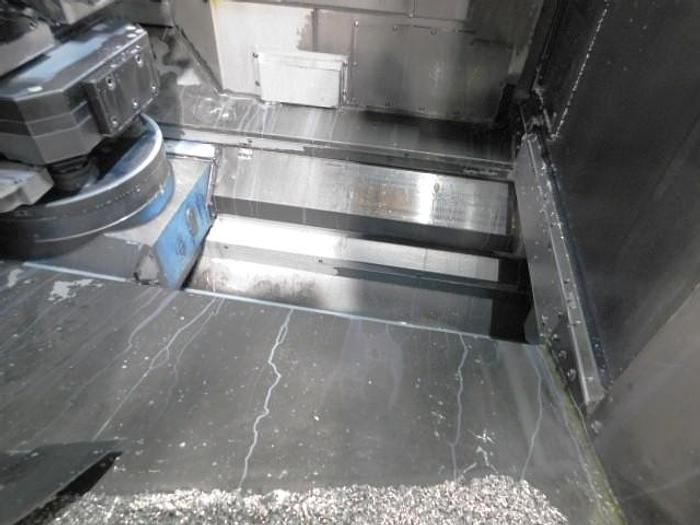

Full 4th Axis Rotary Table

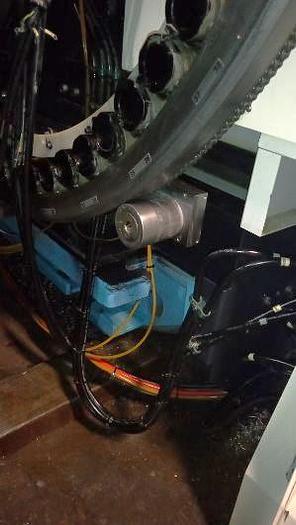

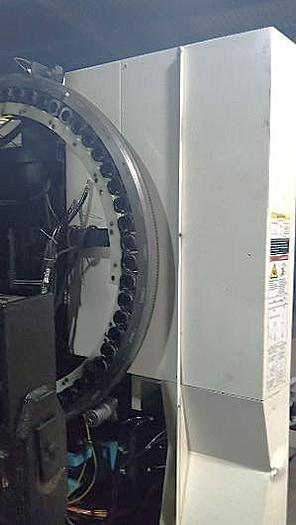

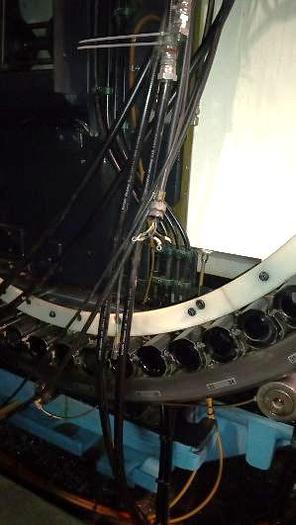

60 Pocket Tool Magazine
Through the Spindle Coolant

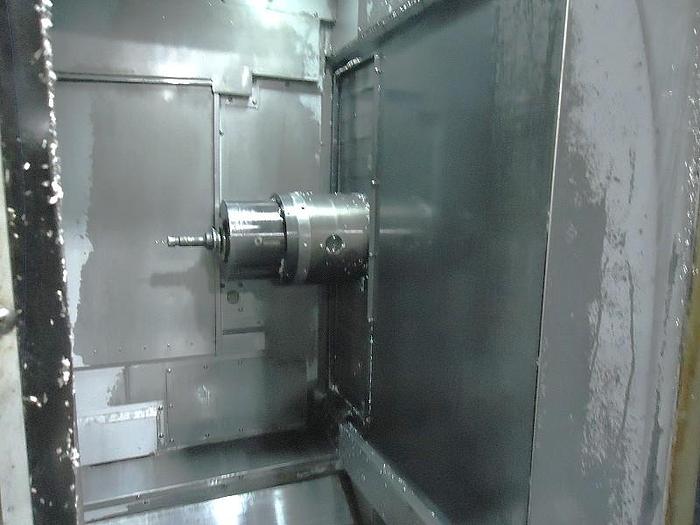

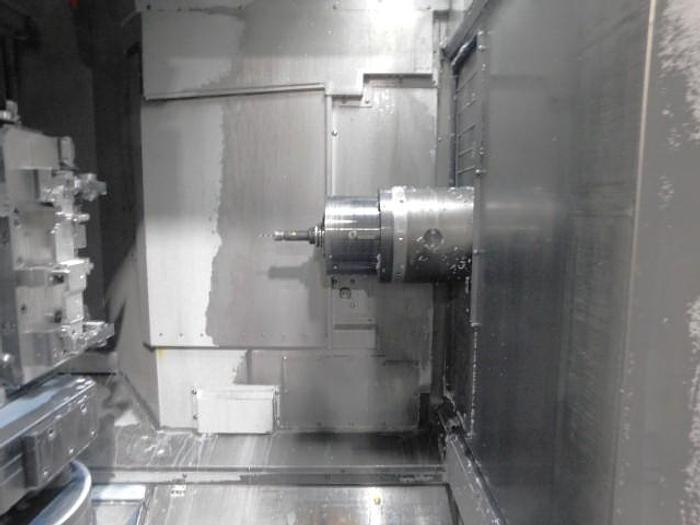

14,000 RPM Spindle
Caron Tool Monitor

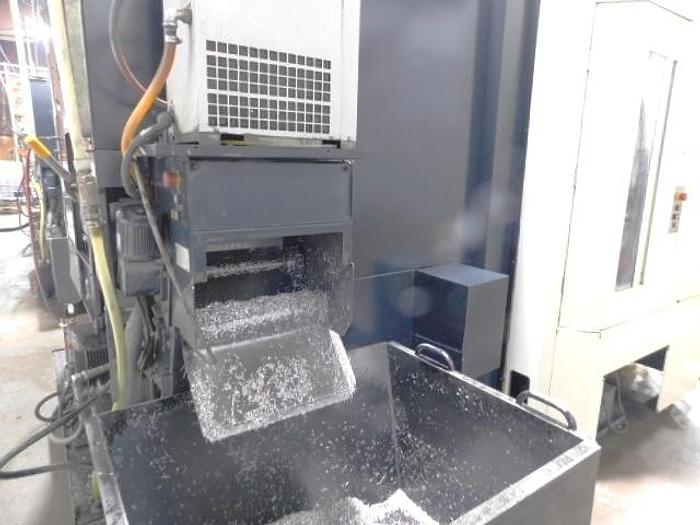

Chip Conveyor
One Piece Way Covers
Step Down Transformer
Spindle Chiller
Remote Jog Handle
1G Axis Acceleration
Complete Coolant System with Tank & Pumps
USB Port Interface
RS 232 Port Interface

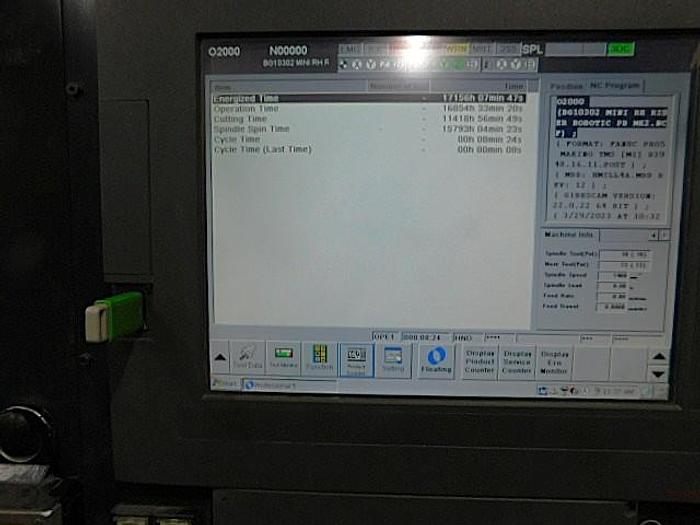

**Power On Hours 17,153**
**Operation Hours 16,851**
**Cutting Hours 11,417**
**Spindle Run Hours 15,790**
**Old spindle was replaced with a new one by Makino due to poor surface finishes and has about 60 hours on it, machine was making good parts upon purchase**
Specifications
Manufacturer | Makino |
Model | A51NX |
Year | 2012 |
Condition | Used |
Stock Number | 119992 |

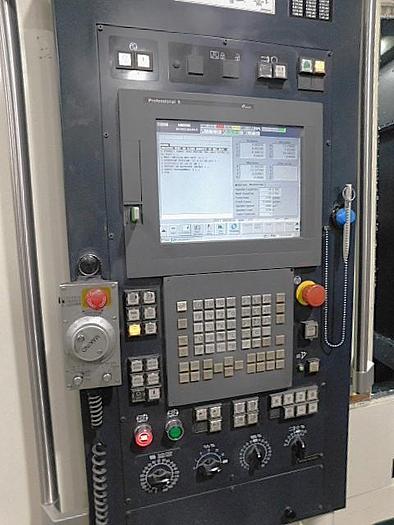

Machine Control | Fanuc Pro 5 |
Pallet size / number of pallets | 15.7" x 15.7" / 2 plts |
Table load capacity | 1,100 lbs. |
Table indexing | .001 Degree Full 4th Axis |
X-axis travel | 22" |
Y-axis travel | 25" |
Z-axis travel | 25.2" |
Spindle motor | 50 HP |
Spindle speed | 50 - 14,000 RPM - 2 Ranges |
Spindle taper | CAT 40 |
Tool magazine capacity | 60 Position ATC |
Cutting feedrates | 1969 IPM |
Rapid traverse rates | 2362 IPM |
Table top to spindle nose | 3" - 28" |
Max tool diam./length/weight | 7" / 17" / 26 lbs. |
Machine Dimensions LxWxH | 135" x 98" x 106" |
Machine weight | 17,200 lbs. |
