2017 OKK HMC-500 with Full 4th Axis Table, 60 ATC, High Press. Cool. Thru Spindle, Tool & Part Probing, 15,000 RPM, CAT 40 Big Plus

2 Pallet Changer System

Full 4th Axis Pallet Rotation

Chip Conveyor

1000 PSI High-Pressure Coolant thru the Spindle

T1-A Renishaw OMP60 Probe with OTS Tool Setter

60 Station Tool Changer

15,000 RPM CAT40 Big Plus Spindle

High-Speed Machining

Custom Macro B

Coordinate System Rotation

Remote Jog Handle

Tool Life Management (256 Sets)

Work Coordinate System Additional 48 Types

Expanded Memory (1000 Programs)

200 Pairs of Tool Offsets

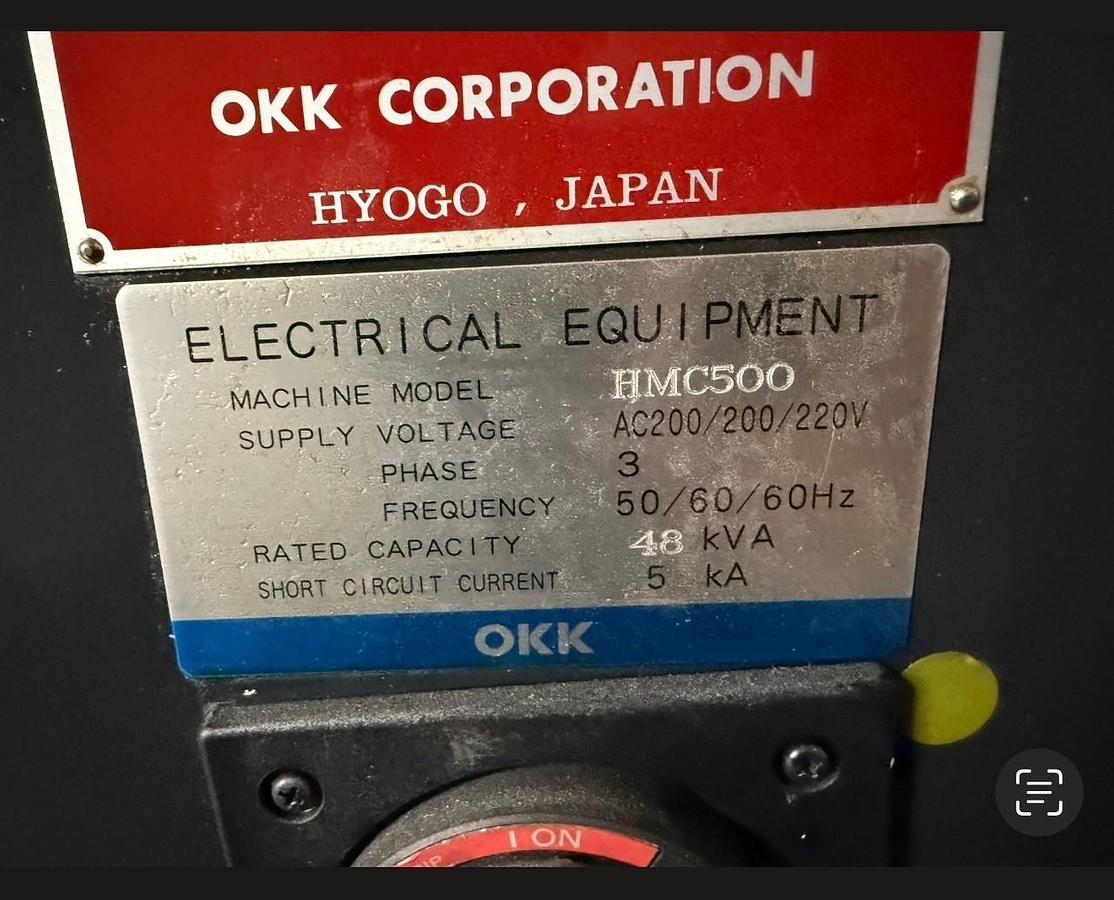

Wired 200-220V / 3 Phase / 50/60 Hz

All Available Manuals

**Power On Hours 13,878**

**Cutting Hours 3,659**

The 2017 OKK HMC-500 is a robust used CNC Horizontal Machining Center. Featuring a Fanuc 31i-MB CNC control, this machine supports precision operations with its full 4th axis pallet indexing at .001-degree resolution. It is equipped with two pallets measuring 19.7" x 19.7" and can handle a maximum table load of 1,543 lbs. The machine boasts a versatile travel range with X, Y, and Z axes at 29.9", 29.9", and 31.5" respectively. Designed for high-precision, high-speed machining, the HMC-500 includes a powerful 50 HP spindle that reaches speeds up to 15,000 RPM. This model is equipped with a CAT 40 Big Plus spindle taper, enhanced by high-pressure coolant through the spindle for efficient cooling and chip removal. Additionally, the machine features tool and part probing for improved accuracy and productivity and possesses a 60-station automatic tool changer to enable various machining processes without manual intervention. The OKK HMC-500 is constructed with a durable framework, weighing 23,200 lbs and built with dimensions of 191" x 108" x 142". It achieves rapid traverse rates of 2,480 IPM, making it well-suited for demanding industrial applications requiring speed and accuracy. This machining center is ideal for businesses looking for a combination of power, precision, and versatility in a used industrial machine.
