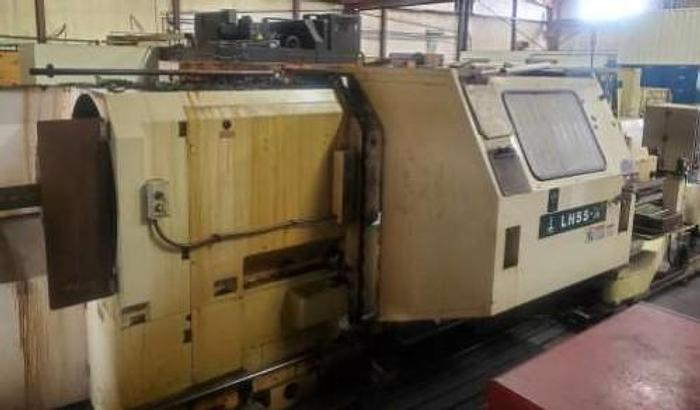

2005 Okuma LH-55N 12.99" Spindle Bore
No longer available
2005 Okuma LH-55N 12.99" Spindle Bore
Location:Texas
Description
Chip Conveyor
Tailstock
Steady Rest
Front & Rear 24" 4-Jaw Noble Chucks
All Available Manuals
Specifications
| Manufacturer | Okuma |
| Model | LH-55N 12.99" Spindle Bore |
| Year | 2005 |
| Condition | Refurbished |
| Stock Number | 119987 |

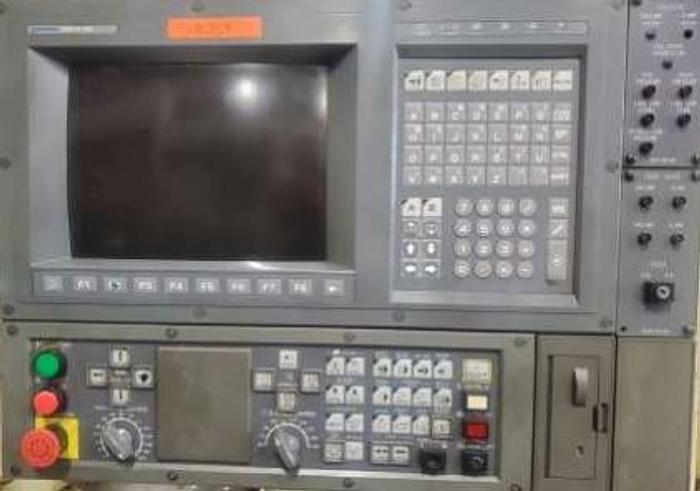

| Machine Control | Okuma OSP-E100L |
| Maximum Swing | 53.31" |
| Maximum machining diameter | 22.17" |
| Distance Between Centers | 120.4" |
| X-Axis Travel | 26.57" |
| Z-Axis Travel | 118" |
| Maximum Swing Over Cross Slide | 19.78" |
| Maximum Swing over Bed | 43.3" |
| Spindle Nose | A2-20 |
| Spindle Bore | 12.99" |
| Spindle speed | 500 rpm |
| Main Motor | 60 hp |
| Number of Turret Positions | 8 Vertical & 6 Horizontal |
| Tailstock Quill Diameter / Quill Travel / Taper | 5.94" / 7.72" / MT#6 |
| Machine Dimensions LxWxH | 320"x86"x80" |
| Machine weight | 29,500 lbs |
