2008 Haas VF-3YT/50 w/ Haas4th Axis Rotary Table, Coolant Through Spindle, Probing Package, 30 Station ATC, 5th Axis Prep
No longer available
2008 Haas VF-3YT/50 w/ Haas4th Axis Rotary Table, Coolant Through Spindle, Probing Package, 30 Station ATC, 5th Axis Prep
Location:North Carolina
Description
WIPS Renishaw Part & Tool Probes
Thru the Spindle Coolant
Extended Y Axis Travel
Wired for 4th & 5th Axis
Haas HRT Type 4th Axis Rotary Table
30 Station Side Mounted Tool Changer
Auger Style Chip Conveyor Programmable Coolant Nozzle
2 Speed Geared Head Spindle Orientation
User Definable Macros Coordinate Rotation & Scaling
Visual Quick Code Programming Remote Jog Handle
High-Intensity Lighting
Auto Door
USB Port Interface
RS 232 Port Interface Coolant System with Tank & Pump All Available Manuals
208V-230V 3 phase
90 Amps Full Load

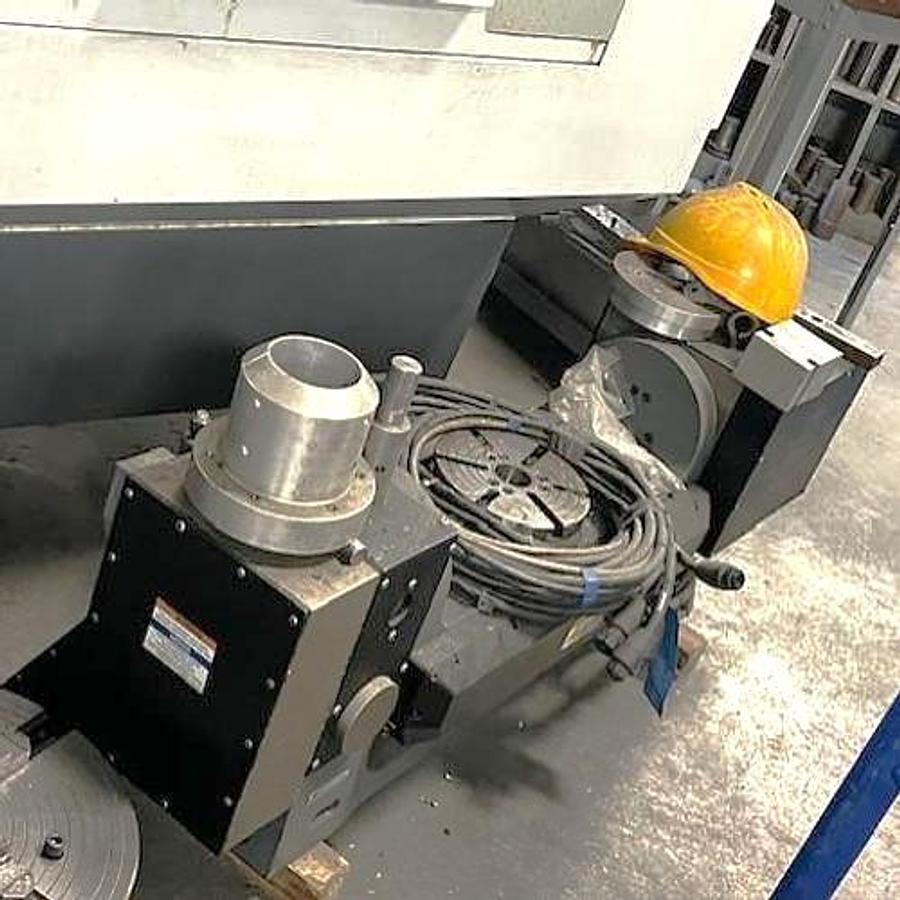

**Haas Trunnion Table Available for Additional Cost of $15,000**
Specifications
| Manufacturer | Haas |
| Model | VF-3YT/50 w/Rotary Table |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119960 |
| Control | Haas CNC Control |
| Table Size | 52" x 23" |
| Maximum Weight on Table | 4,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 7,500 RPM - 2 Speed Gearbox |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 6.3 seconds |
| Rapid Traverse Rates | 710 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 158" x 135" |
| Machine Weight | 15,900 lbs. |
