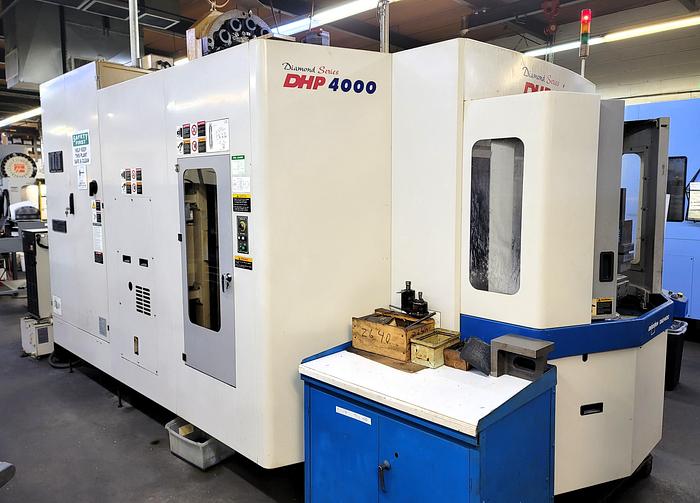

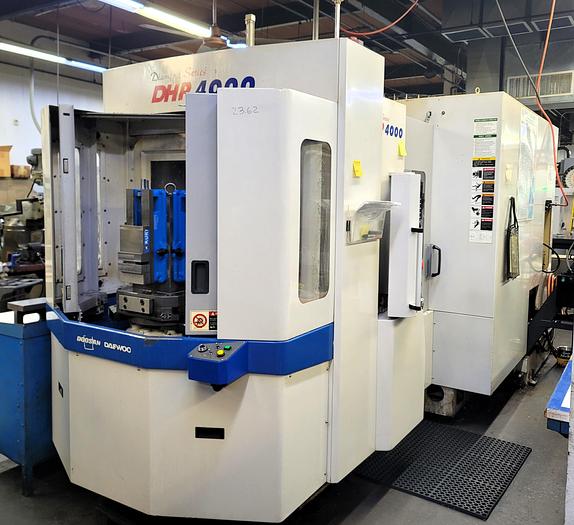

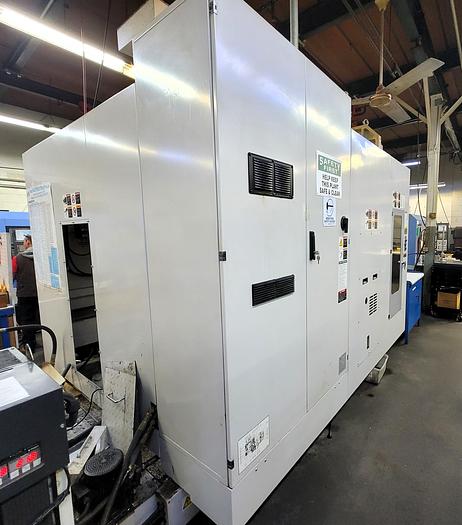

2006 Doosan DHP 4000 w/ 2 Plt Changer, 1 Degree, 60 ATC, Coolant Thru Spindle, 14,000 RPM
2006 Doosan DHP 4000 w/ 2 Plt Changer, 1 Degree, 60 ATC, Coolant Thru Spindle, 14,000 RPM
Contact us for price
Location:New York, NY
or
Call (863) 439-6066
Description

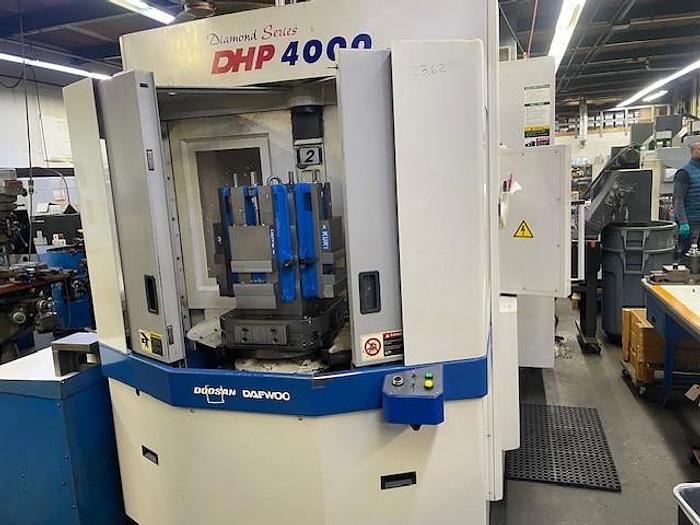

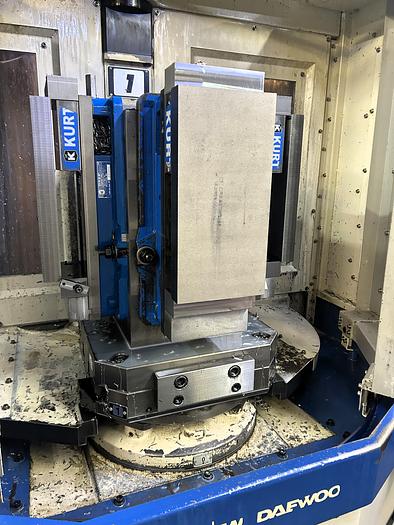

2 Pallet Changer System
Coolant Thru the Spindle - 284 PSI

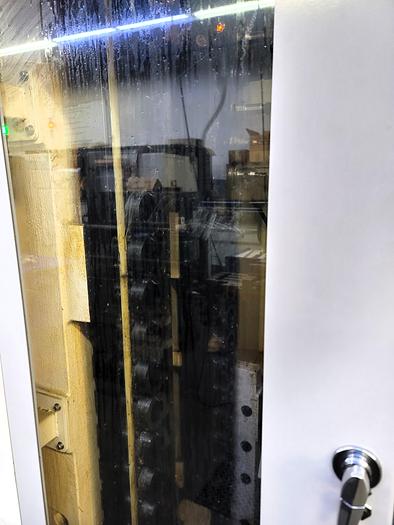

60 Station Tool Changer

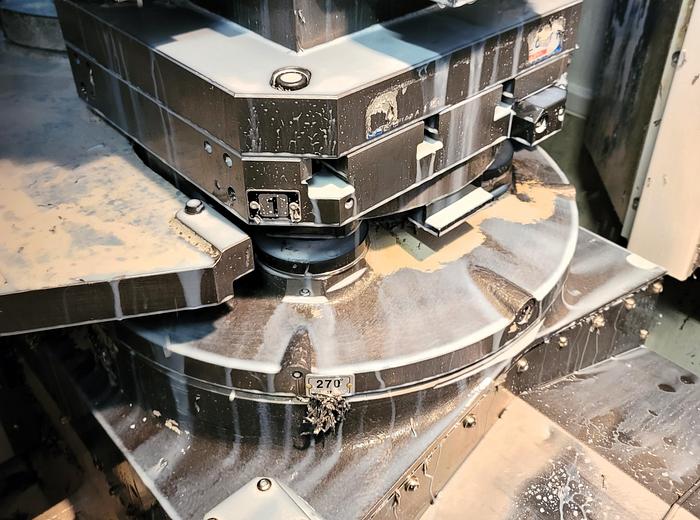

1 Degree Indexing of Pallet
Chip Conveyor

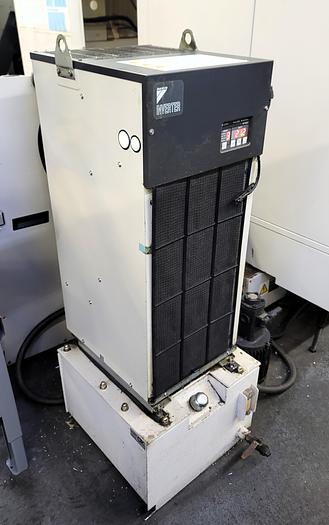

Daikin Spindle Chiller Unit
14,000 RPM Spindle
RS 232 Port Interface
Wired 200/220V Electrics
Specifications
| Manufacturer | Doosan |
| Model | DHP 4000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119947 |

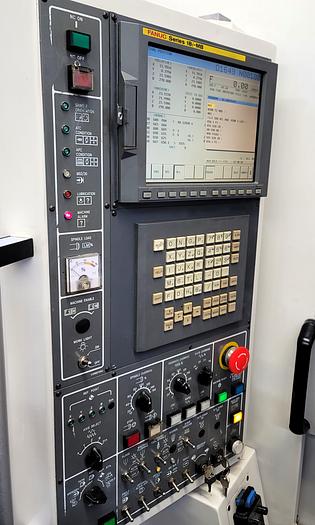

| Machine Control | Fanuc 18i MB |
| Pallet size | 15.75" x 15.75" |
| Pallet indexing | 1 Degree Indexing |
| Max table load | 1100 lbs |
| X axis travel | 23.62" |
| Y axis travel | 22.05" |
| Z axis travel | 23.62" |
| Spindle taper | CAT 40 |
| Spindle speed | 14,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Center | 5.91" - 29.53" |
| Distance Spindle Nose to Table Top | 1.97" - 24.02" |
| Tool magazine | 60 Station Tool Changer |
| Tool chage time | 1.7 Seconds |
| Rapid transverse rates | 2,362 IPM |
| Cutting Feedrates | 0.04" - 1181.1 IPM |
| Machine Dimensions LxWxH | 104" x 224" x 113" |
| Macine weight (approx) | 30,500 lbs |
