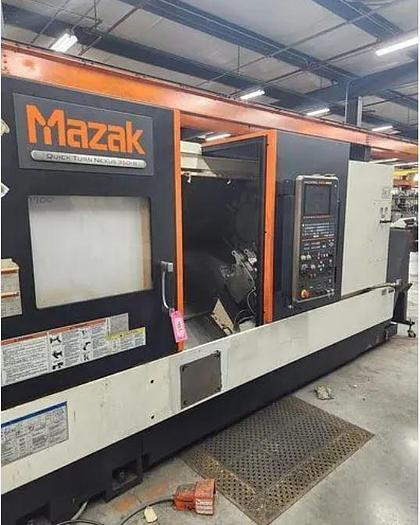

2013 Mazak Nexus QTN 350-II/1500 with Steady Rest, Chip Conveyor, Tailstock, 12" Chuck, 4" Bar Capacity
No longer available
2013 Mazak Nexus QTN 350-II/1500 with Steady Rest, Chip Conveyor, Tailstock, 12" Chuck, 4" Bar Capacity
$127,950 (USD)
Location:Kentucky
Description
12" 3-Jaw Hydraulic Chuck w/ 4" Through Hole

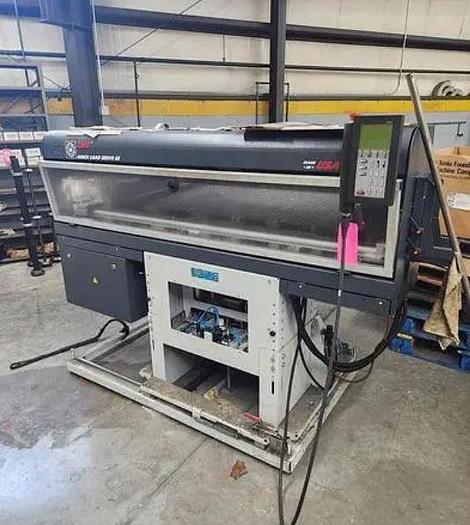

LNS Quick Load Servo S3 Short Bar Loader

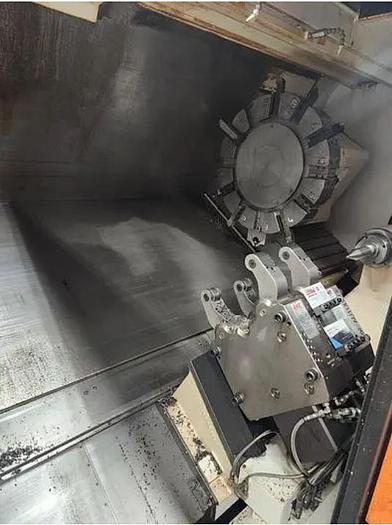

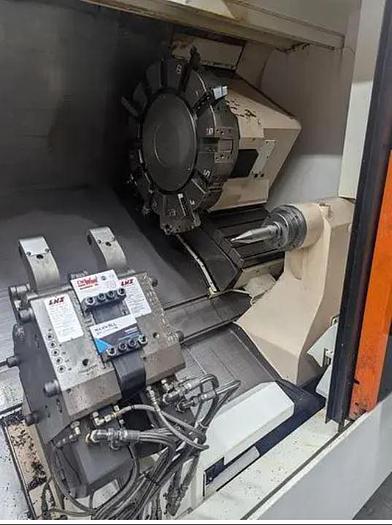

LNS / SMW Model SLU-X-3 Tandem Steady Rest w/ Independent Actuation

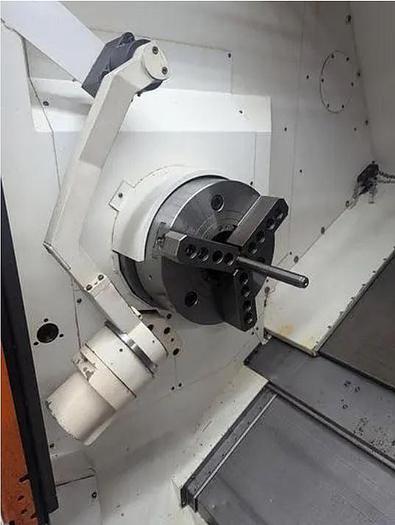

Automatic Tool Eye

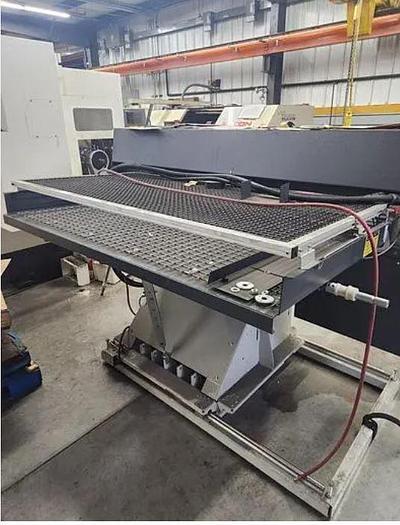

Jorgenson Chip Conveyor
60" Centers
Programmable High Power Coolant
Programmable Tailstock
59 PSI High Pressure Coolant
EIA/ISO Input Function
Windows Based Operating System
MultiTap Transformer
12.1" Color LCD Monitor
USB Interface (2 Ports)
LAN Port Interface
RS 232 Port Interface
600 Pairs User Macros
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350-II/1500 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119945 |
| Machine Control | Mazatrol Matrix Nexus Control |
| Chuck Size | 12" 3-Jaw Hydraulic |
| Maximum Swing | 26.77" |
| Maximum machining diameter | 16.54" |
| Maximum Cutting Length | 60" |
| X-Axis Travel | 8.85" |
| Z-Axis Travel | 63.38" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 4.4" / 4" |
| Spindle Speed | 3,300 rpm |
| Spindle Motor | 40 HP / 30 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 1,181 IPM / 984 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 160"x80"x79" |
| Machine Weight | 17,600 lbs |
