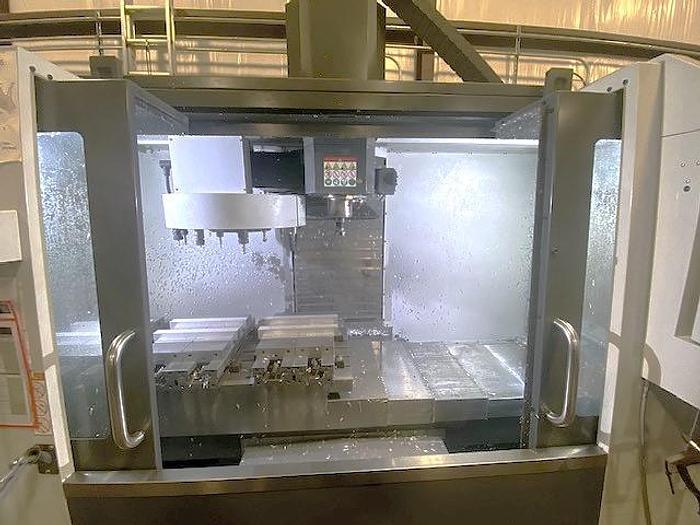

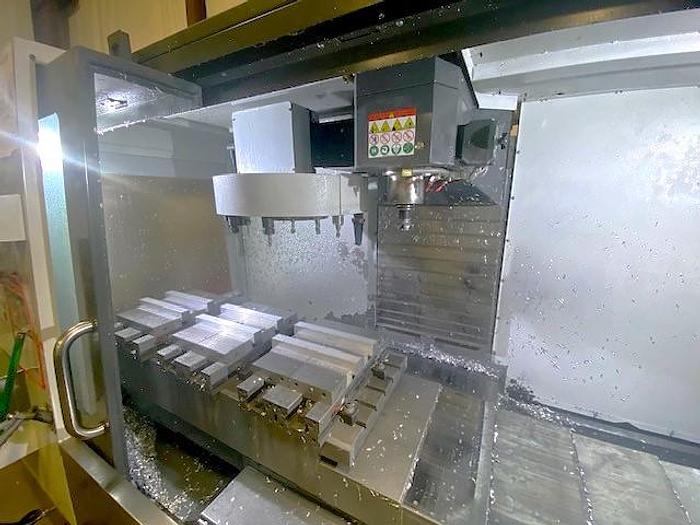

2020 Haas VF-4 with PCool, Chip Auger, Optional Haas HRT-160 4th Axis Table, Chuck and Tailstock
2020 Haas VF-4 with PCool, Chip Auger, Optional Haas HRT-160 4th Axis Table, Chuck and Tailstock
$49,950 (USD)
Location:Texas
or
Call (863) 439-6066
Description
4th Axis Drive and Wiring
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Flood Coolant System
1 GB Programmable Memory
Rigid Tapping
Media Display
Wireless Networking
Haas Connect
Media Display M-Code
WiFi Connection for Haas Control
Ethernet Interface
USB Port Interface
RS 232 Port Interface
55 Gallon Coolant System with Tank & Pump
Low Voltage Transformer
Wired 220V Electrics
**Vices in photos are NOT included in sale of machine**

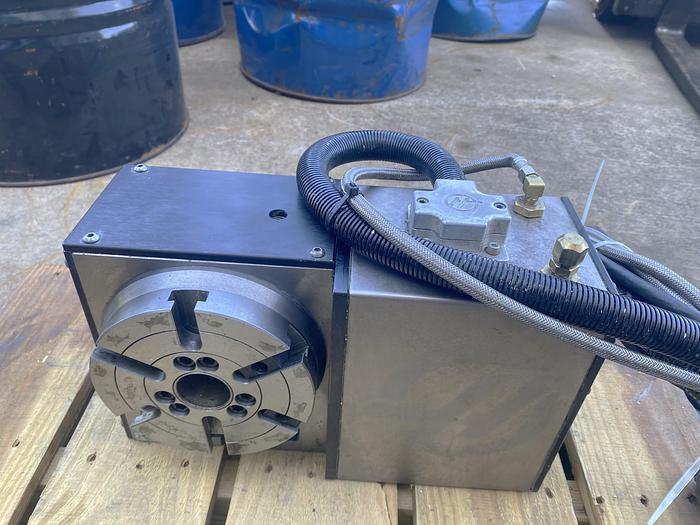

**Haas HRT-160 4th Axis Rotary Table with Chuck and Tailstock Available for Additional $5000**
**Price new as equipped at $87,280 or $99,775 if inclusive of HRT-160 rotary table**
**In plant under power**
**Same shop also has a 2020 Haas VF2 available for sale**
Specifications
| Manufacturer | Haas |
| Model | VF-4 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119934 |
| Control | Haas NextGen Control |
| Table size | 52" x 18" |
| Maximum Weight on Table | 3,500 lbs. |
| X-Axis Travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 0 - 8,100 RPM |
| Spindle Motor 30 Minutes/Continuous | 40 HP / 20 HP |
| Spindle Nose to Table Top | 4" - 29" |
| Number of Tool Positions | 20 Station ATC |
| Rapid Traverse Rates | 1000 IPM |
| Cutting Feedrates | 650 IPM |
| Machine Dimensions | 122" x 95" x 100" |
| Machine Weight | 13,300 lbs. |
