2010 Matsuura LX-0 5AX 5 Axis CNC High Speed VMC with 43,000 RPM, 30 Station ATC, BT 30 Spindle Taper, 3546 IPM RAPIDS !!
2010 Matsuura LX-0 5AX 5 Axis CNC High Speed VMC with 43,000 RPM, 30 Station ATC, BT 30 Spindle Taper, 3546 IPM RAPIDS !!
$79,500 (USD)
Location:Ontario, Canada
or
Call (863) 439-6066
Description
43,000 RPM Spindle

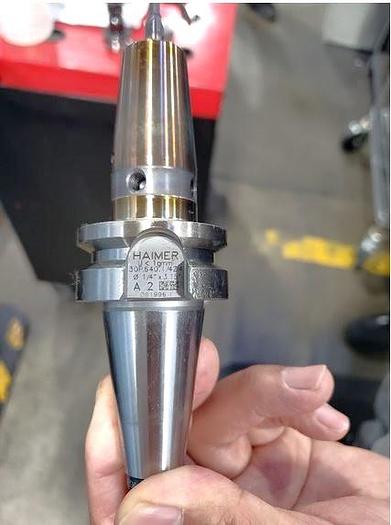

BT30 Taper Spindle
30 Station Tool Changer
Uses All Linear Motors for High Speed Machining
Some Tooling Included
All Available Manuals
Specifications
| Manufacturer | Matsuura |
| Model | LX-0 5AX |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119933 |

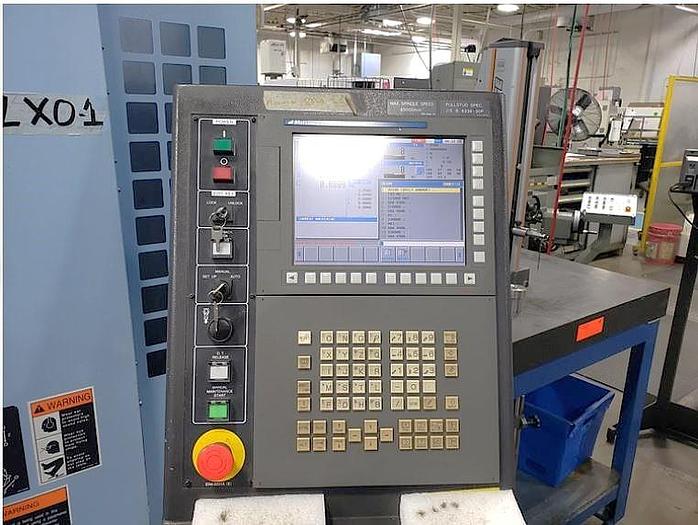

| Control | Matsuura L-Tech Fanuc 30i Control |
| Maximum Part Diameter x Part Height | 5.9" x 5.9" |
| Maximum Table Load | 44 lbs |
| X-Axis Travel | 12.92" |
| Y-Axis Travel | 7.87 |
| Z-Axis Travel | 9.84" |
| B Axis Movement | -110/+10 Degree |
| C axis table rotation | 360 Degrees |
| Spindle Taper | BT #30 |
| Spindle Speed | 43,000 RPM |
| Spindle Motor | not available |
| Tool Magazine Capacity | 30 Station Tool Changer |
| Rapid Traverse Rates | 3546 IPM |
| Machine Dimensions LxWxH | 71" x 105" x 110" |
| Machine Weight | not available |
