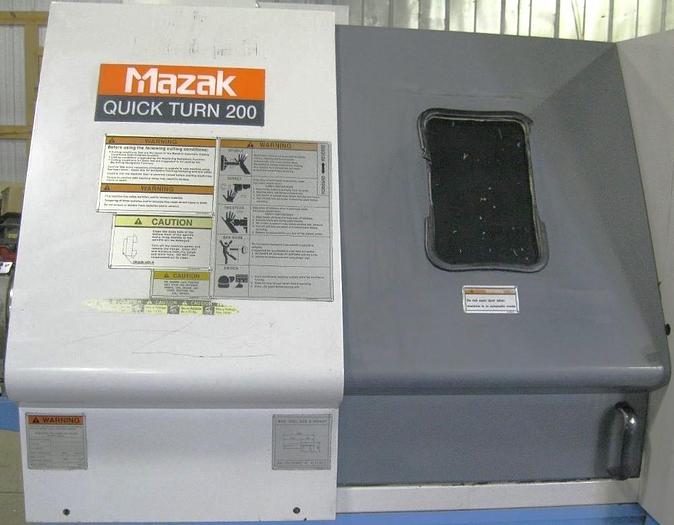

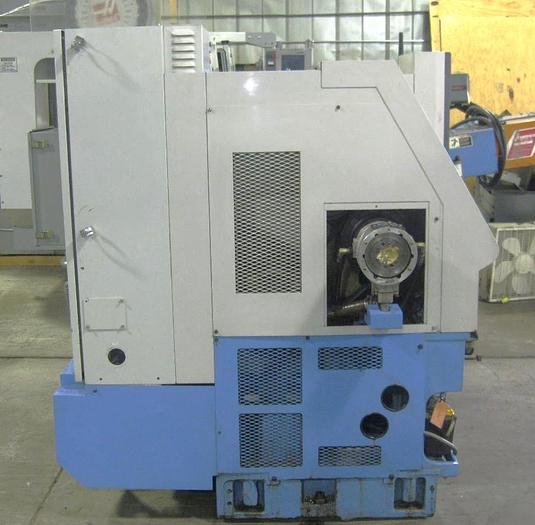

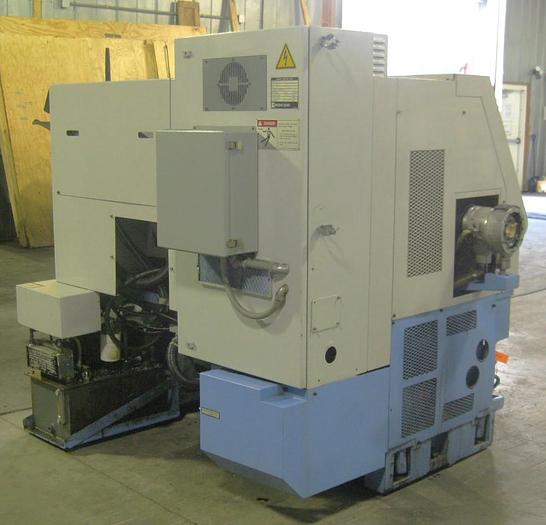

2000 Mazak QT200 Chucker (no tailstock) with Chip Conveyor, 8" Hydraulic Chuck, Tool Presetter
No longer available
2000 Mazak QT200 Chucker (no tailstock) with Chip Conveyor, 8" Hydraulic Chuck, Tool Presetter
$17,950 (USD)
Location:Illinois
Description

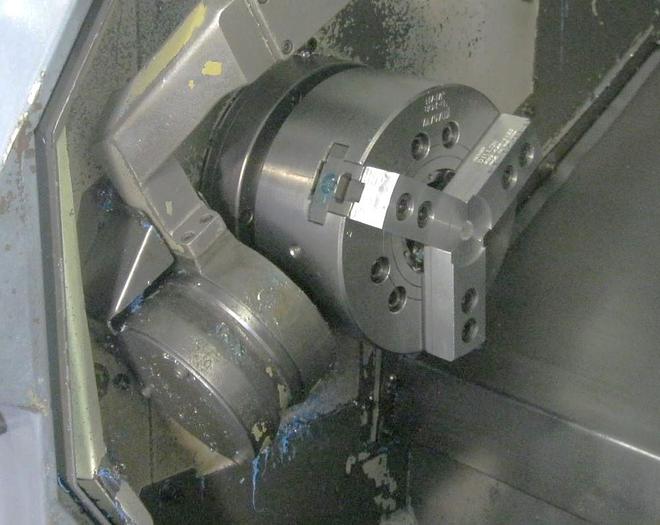

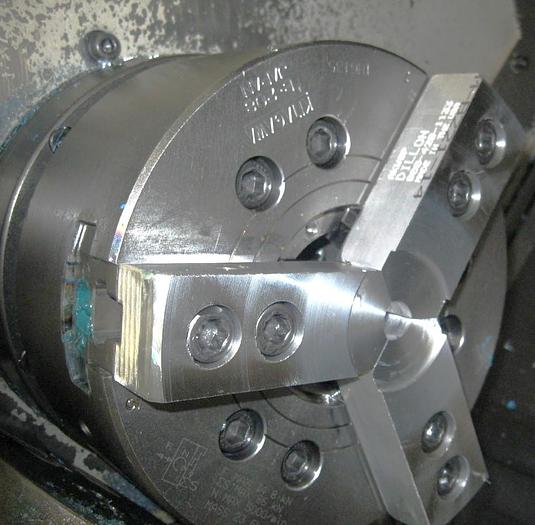

8" 3 Jaw Kitagawa B208 Hydraulic Chuck
Tool Presetter

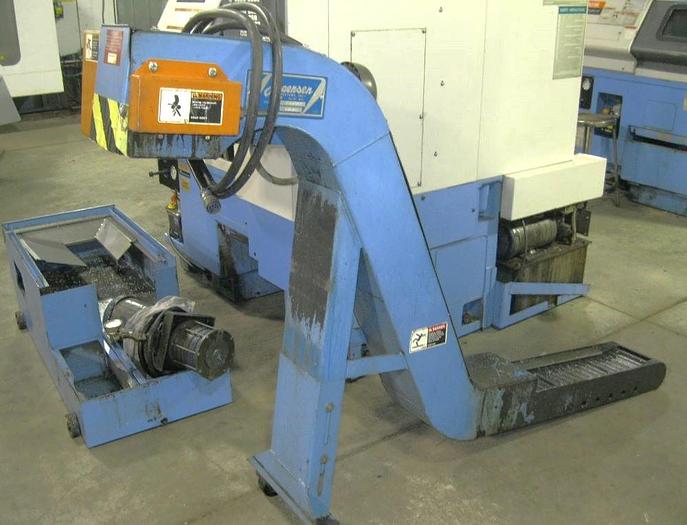

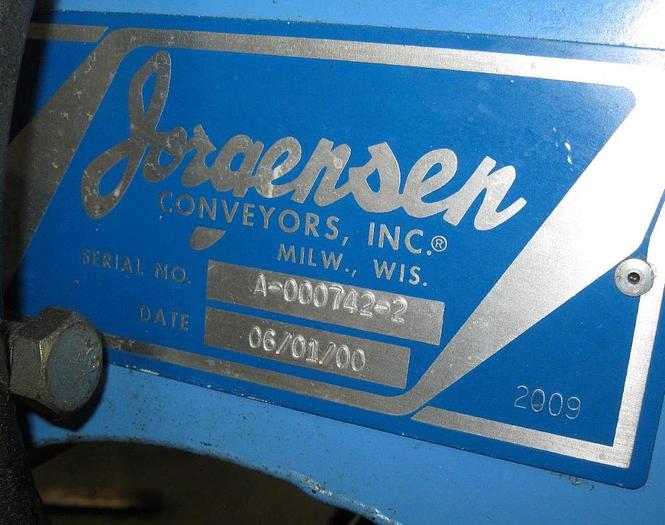

Chip Conveyor

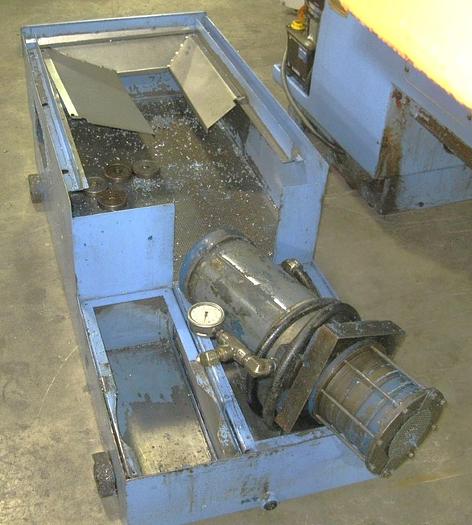

Coolant System with Tank & Pump
RS-232 for DNC Interface
All Available Manuals
All Available Tool Blocks
Specifications
| Manufacturer | Mazak |
| Model | QT200 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 119929 |

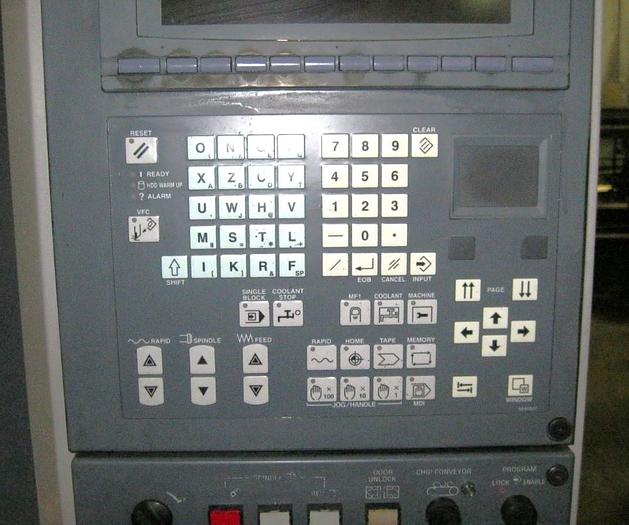

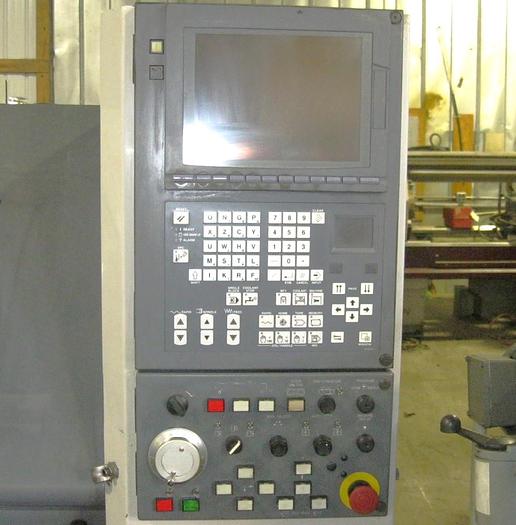

| Machine Control | Mazatrol Fusion 640T |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing | 18.5" |
| Maximum Cutting Diameter | 13.5" |
| Maximum Cutting Length | 12.4" |
| X-Axis Travel | 7.3" |
| Z-Axis Travel | 12.6" |
| Spindle Speeds | 40 - 4,000 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2" |
| Spindle Motor 30 Minutes/Continuous | 15 hp / 10 hp |
| Spindle Torque | 108.45 ft. lbs |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 ipm |
| Machine Dimensions LxWxH | 61"x58"x69" |
| Machine Weight | 6,300 lbs |
