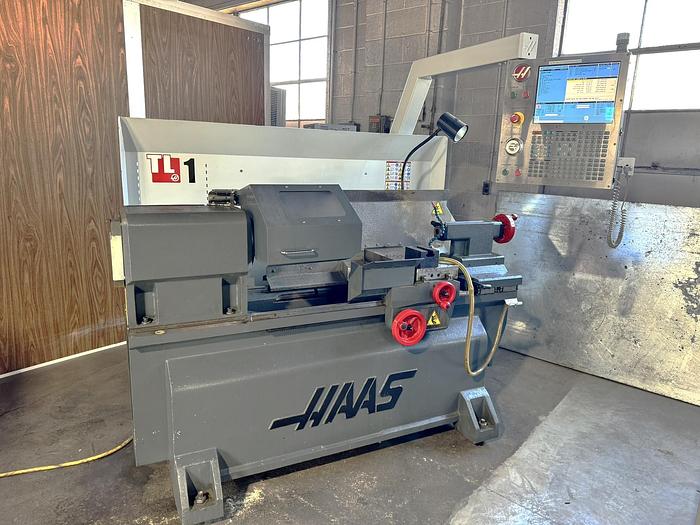

2014 Haas TL-1 with Tailstock, 8" Chuck, Manual Handwheels, Coolant Tank/Pump, Low Hours from Tech School
2014 Haas TL-1 with Tailstock, 8" Chuck, Manual Handwheels, Coolant Tank/Pump, Low Hours from Tech School
$19,950 (USD)
Location:Pennsylvania
or
Call (863) 439-6066
Description
8" 3 Jaw Manual Chuck
Tailstock
Manual Handles for Both Axis'
Work Light
Flip Up Chuck Cover
1 MB of Programming Memory
Haas Intuitive Programming System Coolant System with Tank & Pump Integral Chip-Flow Channel
Memory Lock Switch
USB Port Interface
RS 232 Port Interface
15″ Color LCD Monitor
Machine Can Be Wired at 240V Single Phase or 208V Three Phase Power
Currently Wired at 220V / 3 Phase

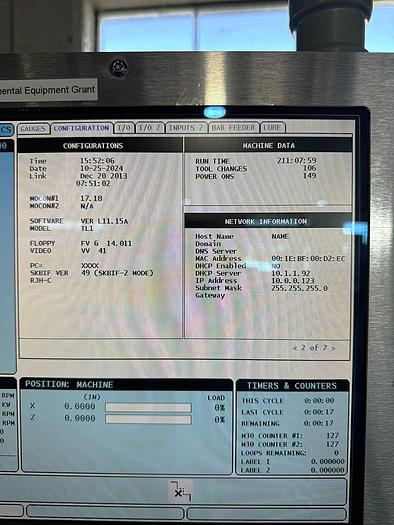

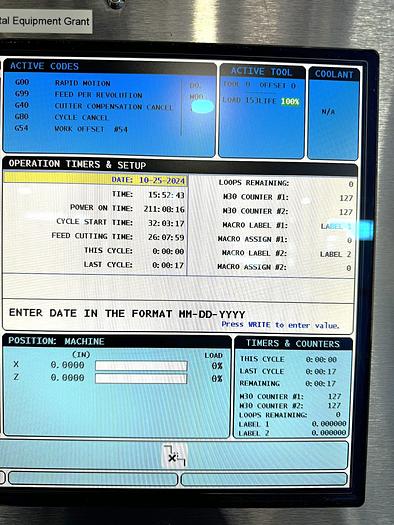

**Power On Hours 211**
**Cycle Start Hours 32**
**Feed Cutting Hours 26**
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119928 |
| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.5" |
| Spindle Speeds | 1800 RPM |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,100 lbs. |
