2013 Southwestern Industries Trak TRL 1630SX w/ Prototrak SLX Control, 4 Way Indexable Star Turret, Tailstock, 8" Chuck
2013 Southwestern Industries Trak TRL 1630SX w/ Prototrak SLX Control, 4 Way Indexable Star Turret, Tailstock, 8" Chuck
$19,950 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description

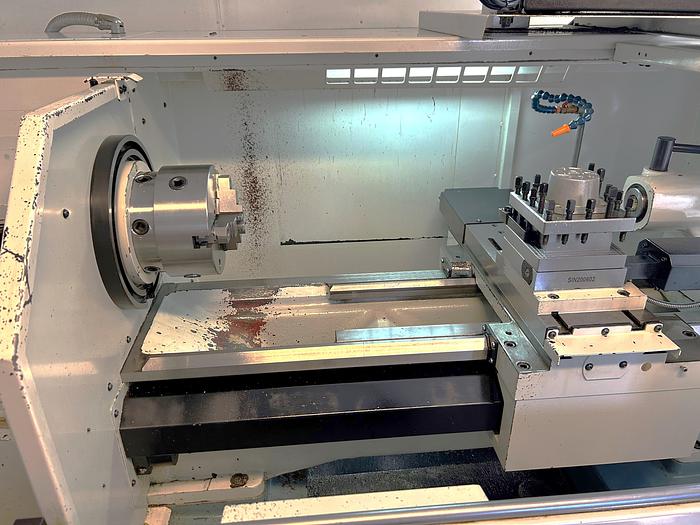

8" 3-Jaw Chuck

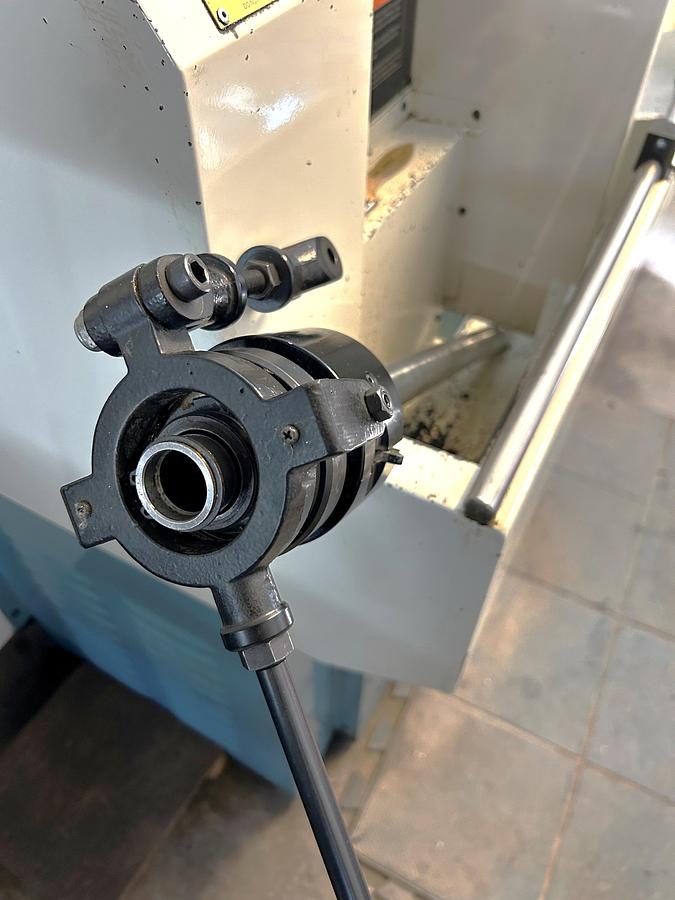

Collet Closer
Star 4 Position Indexable Turret

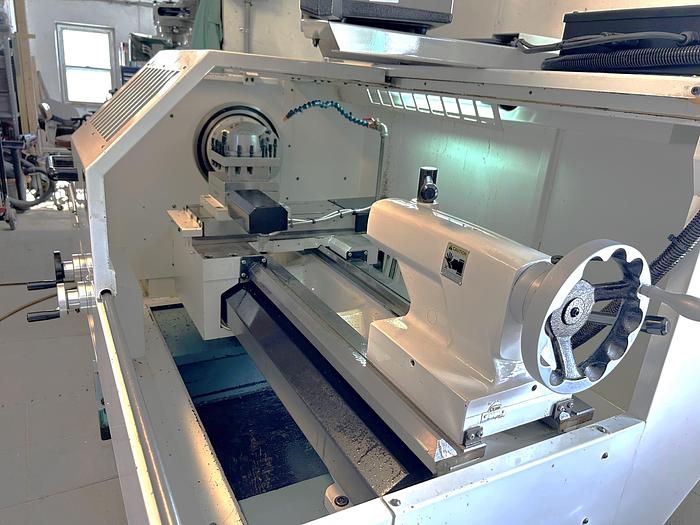

Tailstock
Electronic Hand Wheels & Jog Handle
Manual or CNC Operation
Coolant System with Tank & Pump
RS 232 Port Interface
Brushless Servos
Constant Surface Speed Programming
Inch Per Revolution Programming
Adjustable Saddle Gibs
Wired 220V 3 Phase Power
Specifications
| Manufacturer | Southwestern Industries Trak |
| Model | TRL 1630SX |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119922 |

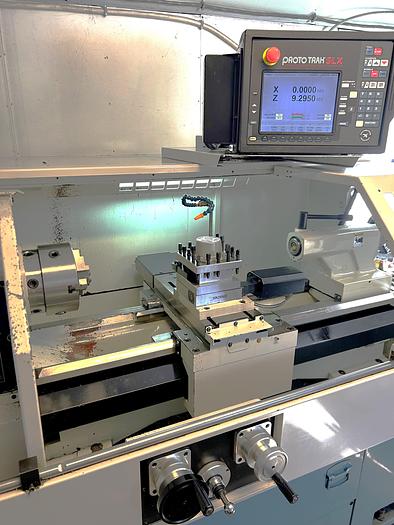

| Machine Control | ProtoTrak SLX Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing | 16" |
| Maximum Turning Diameter | 8.6" |
| Maximum Machining Length | 30" |
| Center distance | 40" |
| X-Axis Travel | 9.6" |
| Z-Axis Travel | 30" |
| Spindle Nose / Bore / Bar Capacity | D1-6" / 2.12" / 2.12" |
| Spindle Speed | 2,500 RPM |
| Spindle Motor | 7.5 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X / Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.36" / 5" / MT #4 |
| Machine Dimensions LxWxH | 87" x 45" x 67" |
| Machine Weight | 2,875 lbs. |
