2016 Mazak VCU-500C with Mazak 4th Axis Rotary Table, Coolant Thru Spindle, Probing
2016 Mazak VCU-500C with Mazak 4th Axis Rotary Table, Coolant Thru Spindle, Probing
Contact us for price
Location:Iowa
or
Call (863) 439-6066
Description

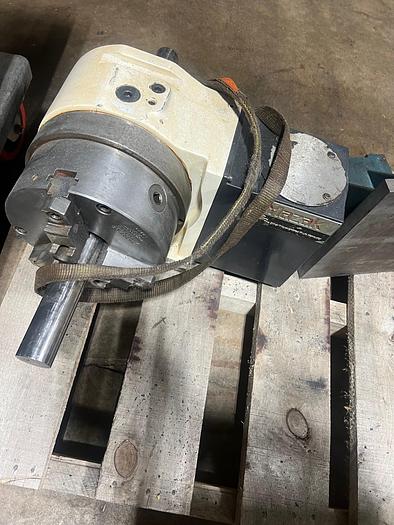

Mazak 4th Axis MR-250RAM01 NC Rotary Table Package
Mazak Auto Tool Length Measurement Tool Probing
Mazak Monitoring System B Part Probing
Coolant Through the Spindle 71 PSI

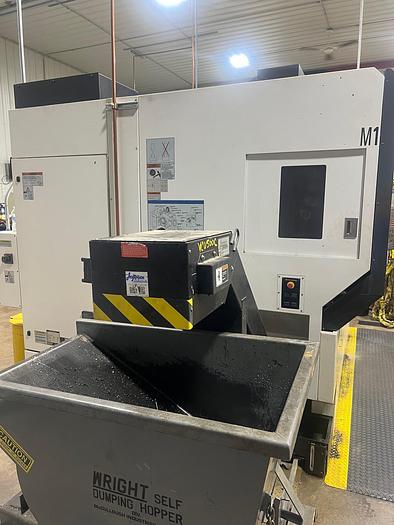

Chip Conveyor
EIA/ISP Input Function
EIA 3D Compensation
High Smoothing
Tilted Work Plane
High Speed Machining
Threading
Engraving
Flood Coolant System
Rigid Tapping
Complete Coolant System with Tank & Pump
Specifications
| Manufacturer | Mazak |
| Model | VCU-500C |
| Year | 2016 |
| Condition | Used |
| Stock Number | 119917 |

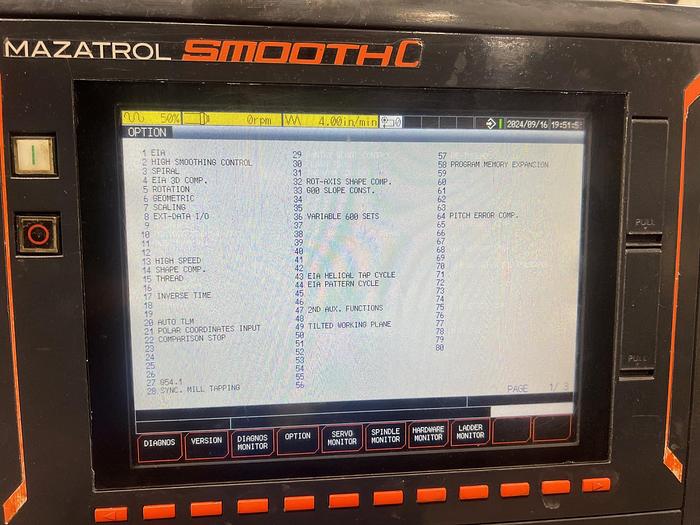

| Machine Control | Mazatrol SmoothC Control |
| Table Size | 19.68" x 39.37" |
| X-Axis Travel | 39.37" |
| Y-Axis Travel | 19.88" |
| Z-Axis Travel | 20.07" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 30 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.15"/ 10.23" / NA |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions | 108.26" x 125" x 131.81" |
| Machine Weight | 16,755 lbs. |
