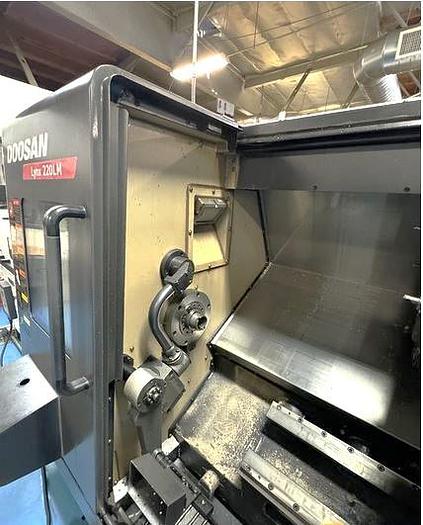

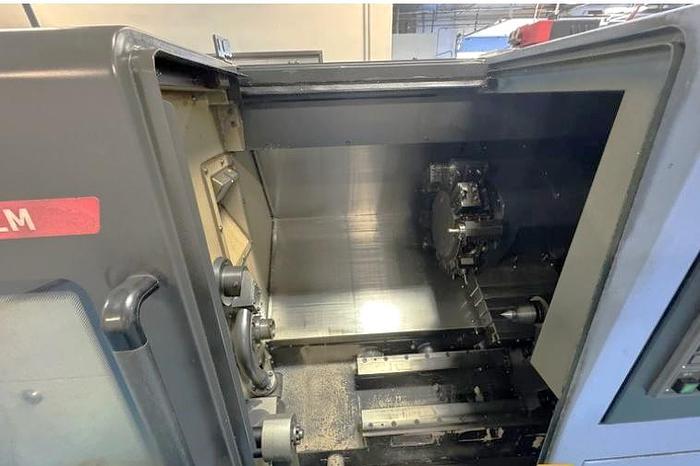

2012 Doosan Lynx 220LMA with LNS Barfeeder, C Axis, Milling, Parts Catcher, Chip Conveyor, 2" Bar Capacity
2012 Doosan Lynx 220LMA with LNS Barfeeder, C Axis, Milling, Parts Catcher, Chip Conveyor, 2" Bar Capacity
$46,950 (USD)
Location:California
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

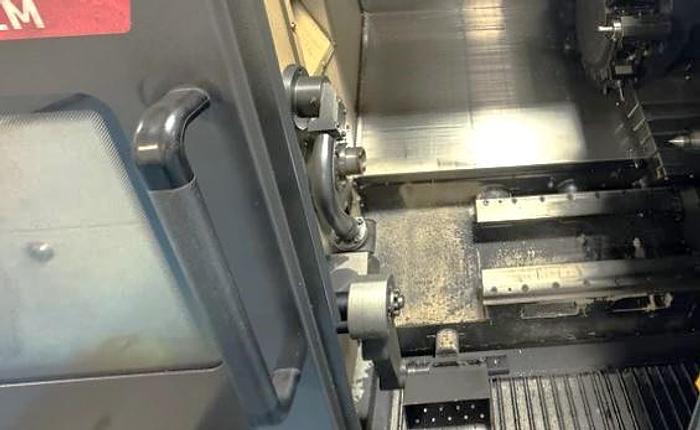

Parts Catcher

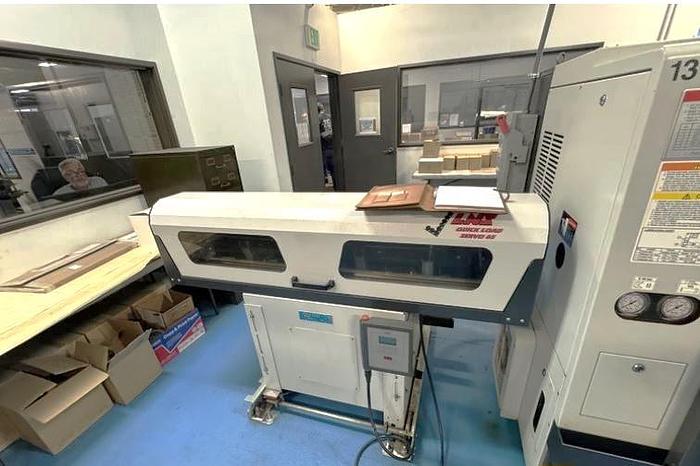

LNS Quick Load Servo 65 Barfeed
Chip Conveyor
Tailstock
Collet Chuck
Tool Presetter
Complete Coolant System with Tank & Pump
RS-232C Port for DNC Interface
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Lynx 220LMA |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119894 |

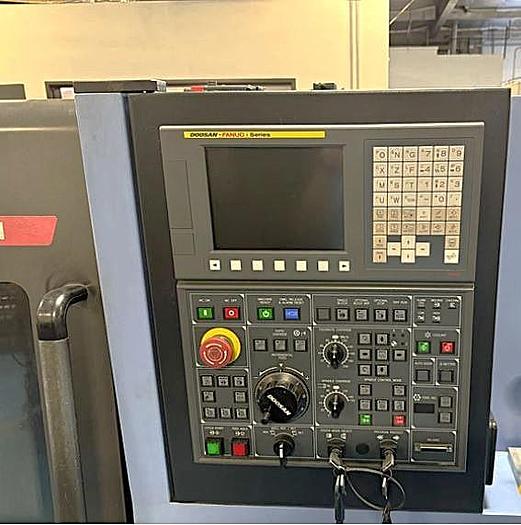

| Machine Control | Fanuc i Series Control |
| Chuck size | Collet Chuck |
| Maximum swing over bed | 20.1" |
| Maximum Turning Diameter | 9.84" |
| Maximum turning length | 20.1" |
| X-axis travel | 6.9" |
| Z-axis travel | 21.7" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2.04" |
| Spindle speed | 40 - 6,000 RPM |
| Spindle motor | 20 HP |

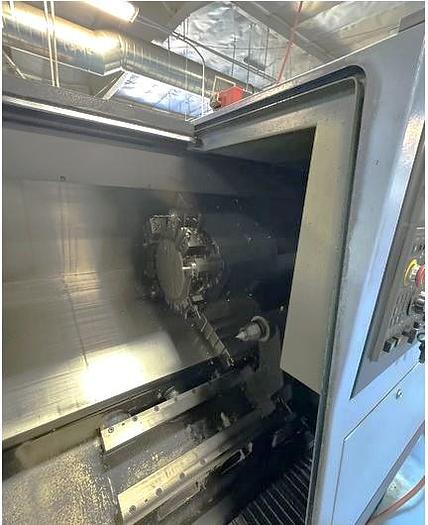

| Turret type | 12 Position Turret |
| Rotary tool motor / speeds | 5 HP / 6000 RPM |
| Rapid traverse rates x, z | 1181 PM / 1417 IPM |
| Tailstock Quill Diameter / Center | 3.93" / #4 MT |
| Tailstock quill stroke | 4.72" |
| Machine Dimensions LxWxH | 104"x64"x65" |
| Machine weight | 8,820 lbs |
