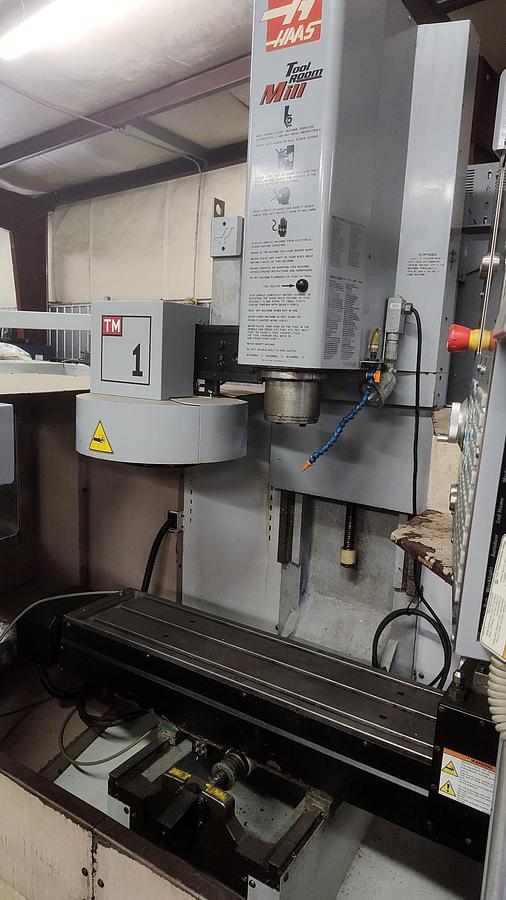

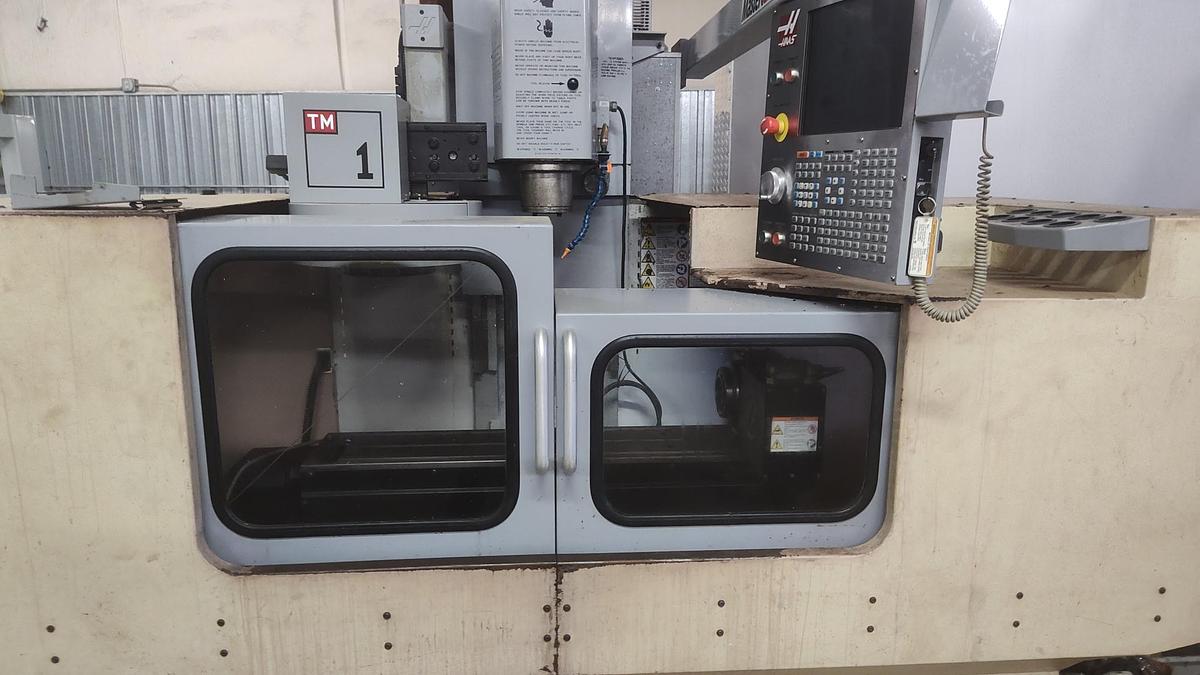

2009 Haas TM-1, Wired for 4th Axis, Single or Three Phase Power, 10 Station ATC, Coolant Pump
2009 Haas TM-1, Wired for 4th Axis, Single or Three Phase Power, 10 Station ATC, Coolant Pump
Contact us for price
Location:North Carolina
or
Call (863) 439-6066
Description
Wired for a 4th Axis
10 Station Tool Changer
Rigid Tapping
Coolant Tank with Pump
Vector Spindle Drive
Direct Belt Drive
RS-232 Port / DNC Link
3-Phase or Single Phase Capability
208 Volts 3-Phase 25 Amps Full Load
240 Volts Single Phase 40 Amps Full Load
All Available Manuals

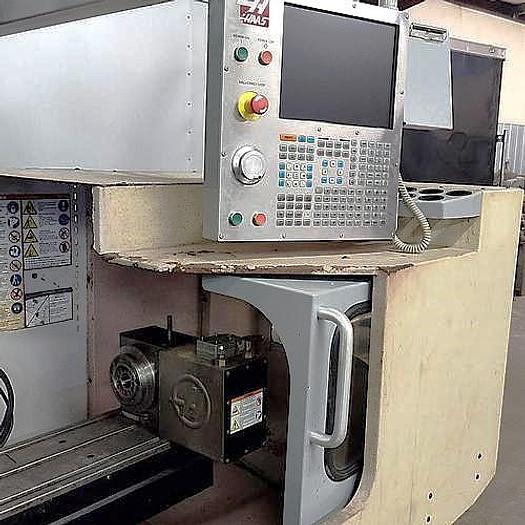

**NOTE, Rotary Table Seen In Photos, Does NOT Go With Machine
Specifications
| Manufacturer | Haas |
| Model | TM-1 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 119887 |

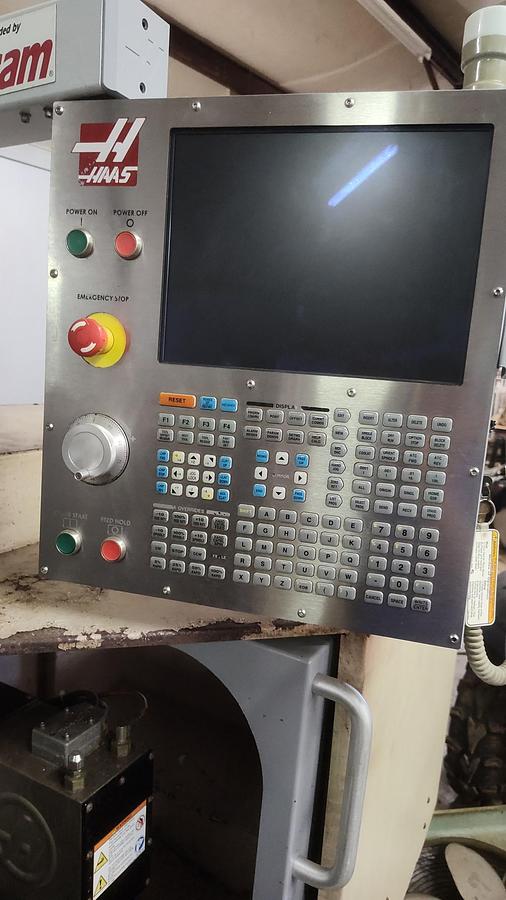

| Machine Control | Haas CNC Control |

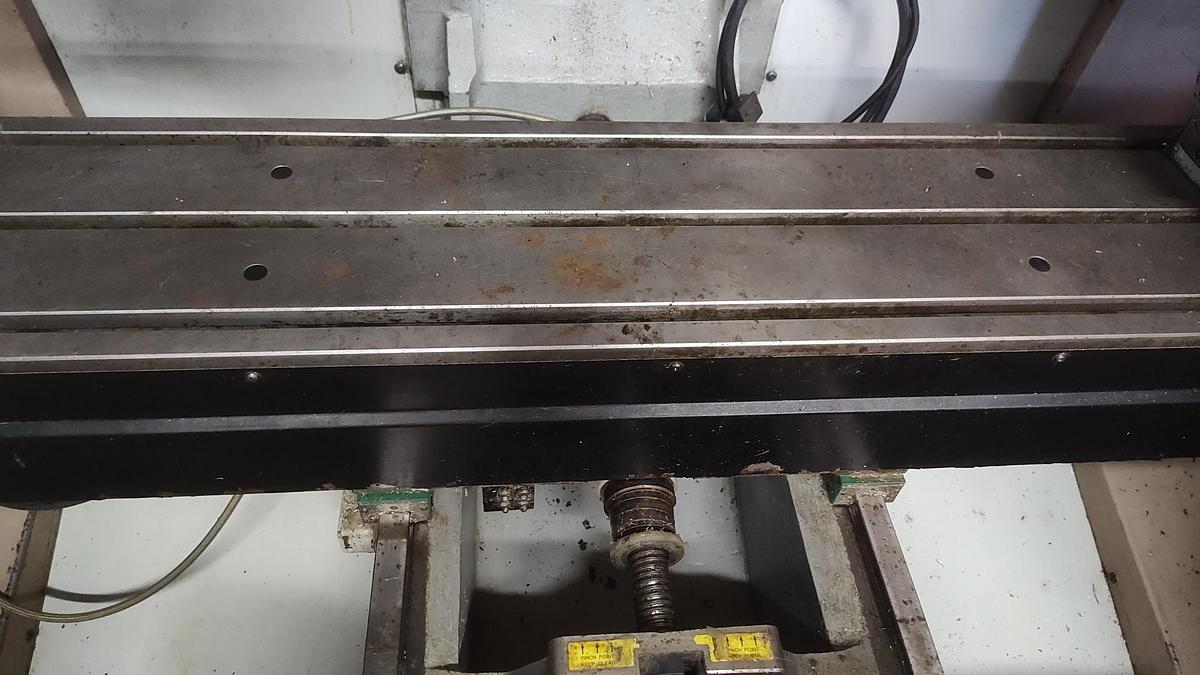

| Table Size | 47.75" x 10.5" |
| Distance Spindle Nose to Table Top | 4" - 20" |
| X-Axis Travel | 30" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 16" |
| Spindle Speed | 4,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 7.5 HP |
| Tool Magazine Capcity | 10 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 200 IPM |
| Machine Dimensions LxWxH | 85"x69"x109" |
| Machine Weight | 3,300 lbs |
