2010 Doosan Lynx 220LMA with Milling, Parts Catcher, Chip Conveyor, Barfeed Interface
2010 Doosan Lynx 220LMA with Milling, Parts Catcher, Chip Conveyor, Barfeed Interface
$59,500 (USD)
Location:Florida
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

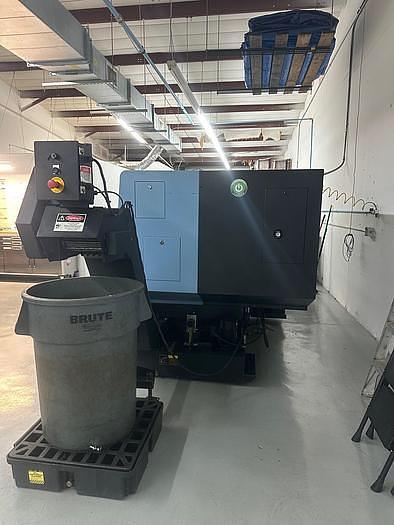

Chip Conveyor
Tool Presetter
Parts Catcher
Tailstock
6.5" 3 Jaw Hydraulic Chuck
Barfeed Interface ONLY

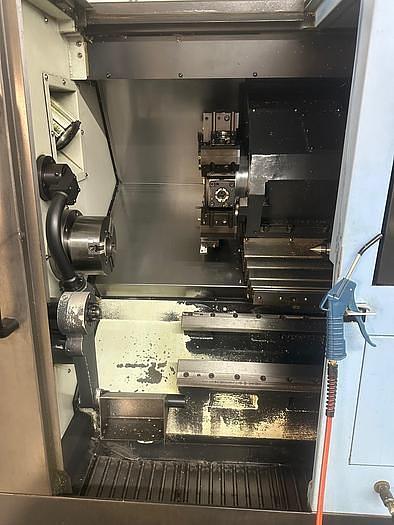

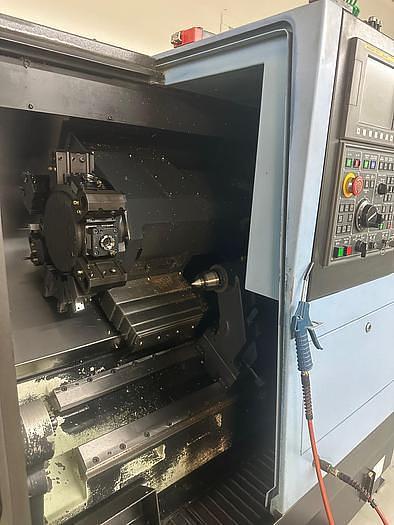

12 Sided / 24 Station Turret
Complete Coolant System
PCMCIA Card Slot
RS-232C Port for DNC Interface
All Available Manuals
All Available Tool Holders

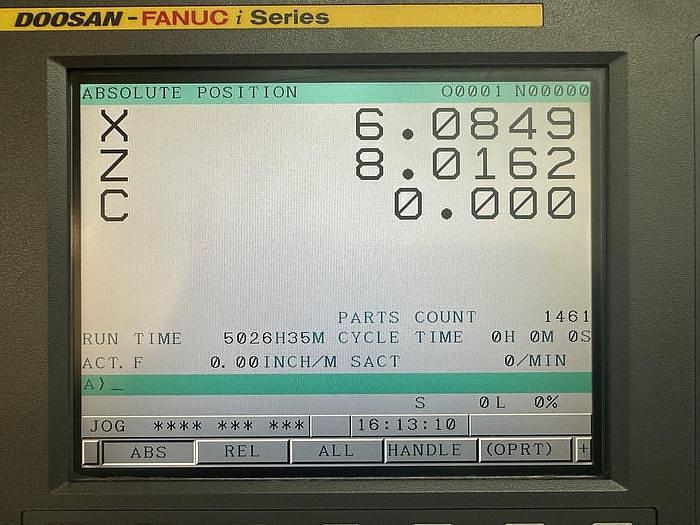

**Approximately 5,026 Run Hours**
**Barfeed in Photos is NOT included**
Specifications
| Manufacturer | Doosan |
| Model | Lynx 220LMA |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119883 |

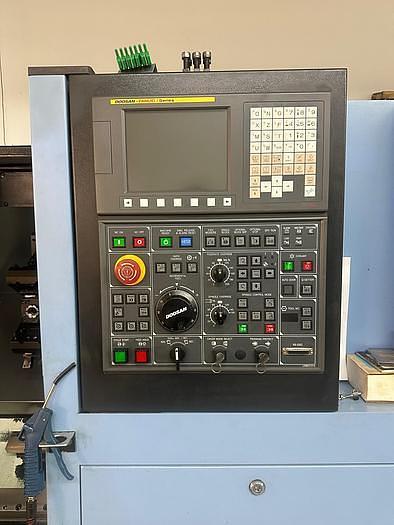

| Machine Control | Fanuc i Series Control |
| Chuck size | 6.5" Hydraulic Chuck |
| Maximum swing over bed | 20.1" |
| Maximum Turning Diameter | 9.84" |
| Maximum turning length | 20.1" |
| X-axis travel | 6.9" |
| Z-axis travel | 21.7" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2.04" |
| Spindle speed | 40 - 6,000 RPM |
| Spindle motor | 20 HP |
| Rotary tool motor / speeds | 5 HP / 6,000 RPM |
| Turret type | 24 Station Turret / 12 Sided |
| Rapid traverse rates x, z | 1181 PM / 1417 IPM |
| Tailstock Quill Diameter / Center | 2.6" / #4 MT |
| Tailstock quill stroke | 3.14" |
| Machine Dimensions LxWxH | 104"x64"x65" |
| Machine weight | 8,820 lbs |
