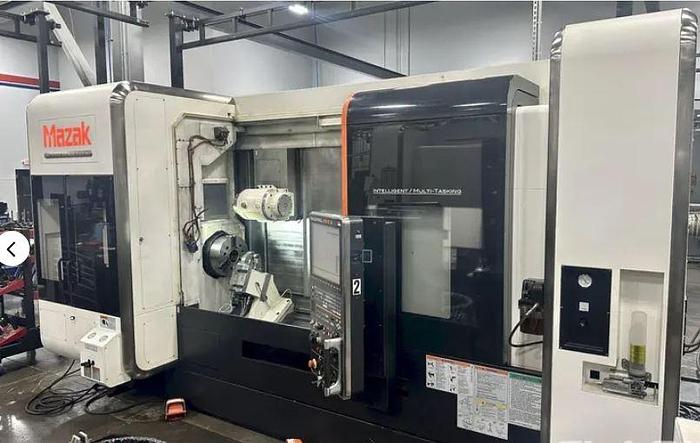

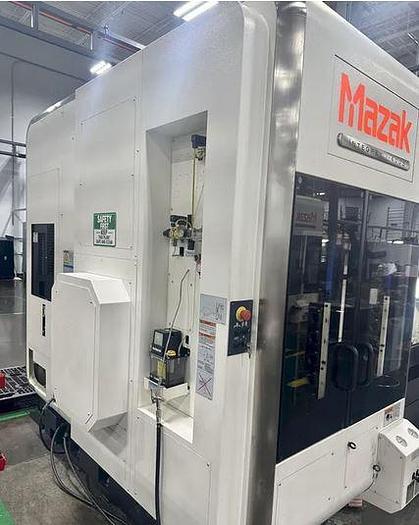

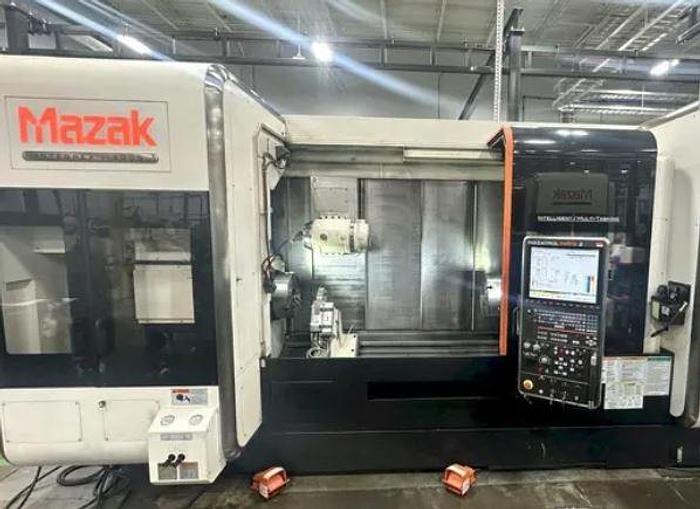

2013 Mazak Integrex i-400S 8 Axis Mill Turn Center with C Axis Main & Subspindle, Y Axis, Full 5 Axis Machining, 72 Position ATC
No longer available
2013 Mazak Integrex i-400S 8 Axis Mill Turn Center with C Axis Main & Subspindle, Y Axis, Full 5 Axis Machining, 72 Position ATC
Location:Maryland
Description

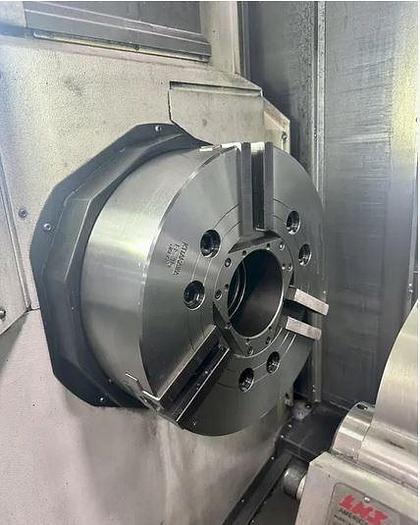

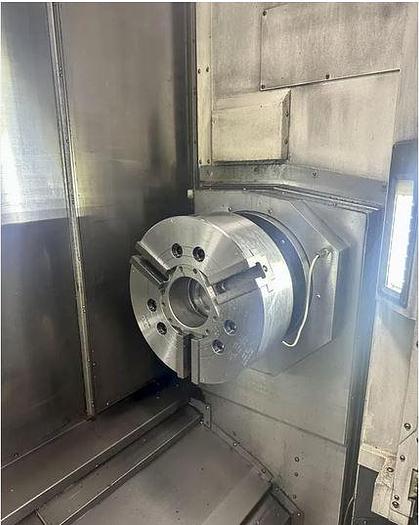

15" 3 Jaw Hydraulic Chucks on Both Main and Subspindle

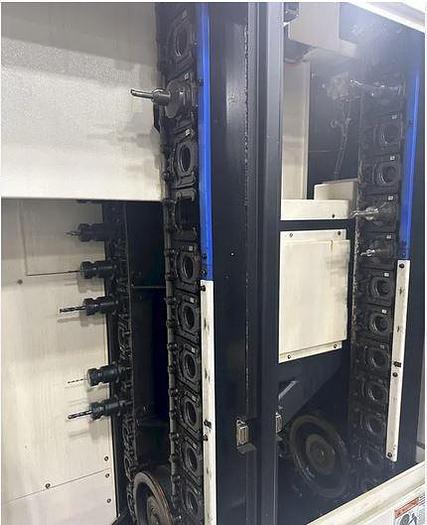

72 Position CAPTO C6 Tool Magazine
Y Axis Capability

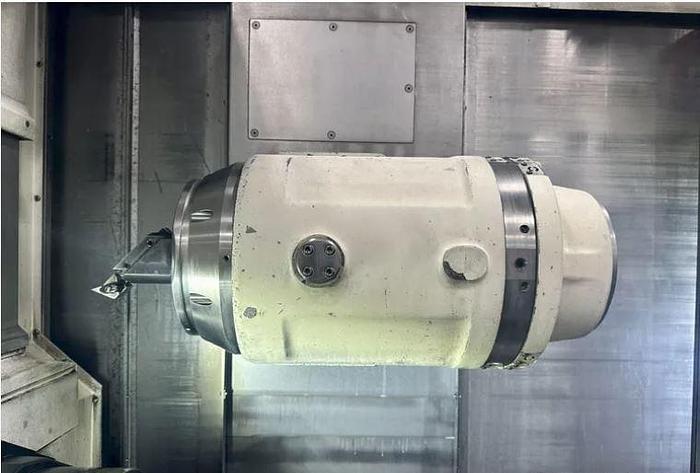

B Axis Pendulum Head
12,000 RPM B Axis Head Spindle
Subspindle

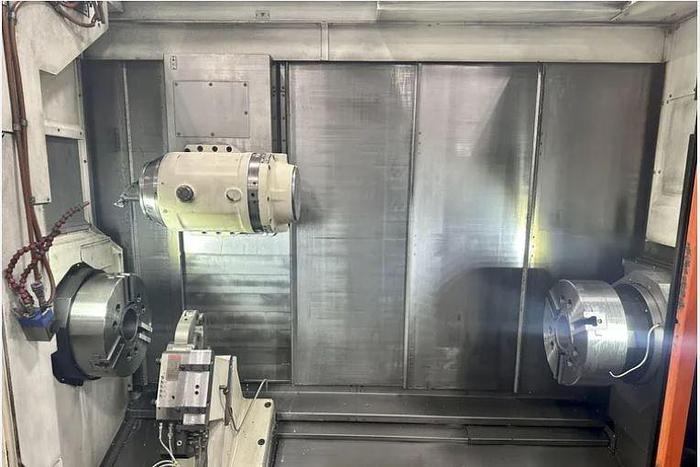

Full "C" Axis Main Spindle & Subspindle
Chip Conveyor

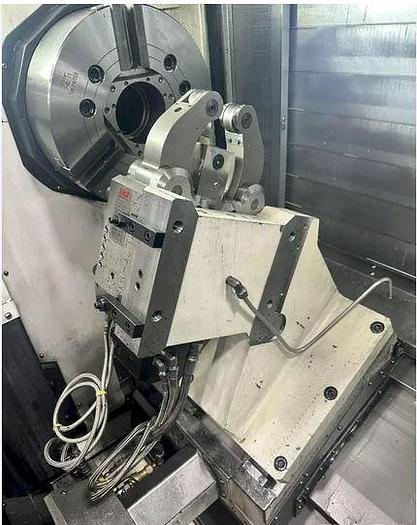

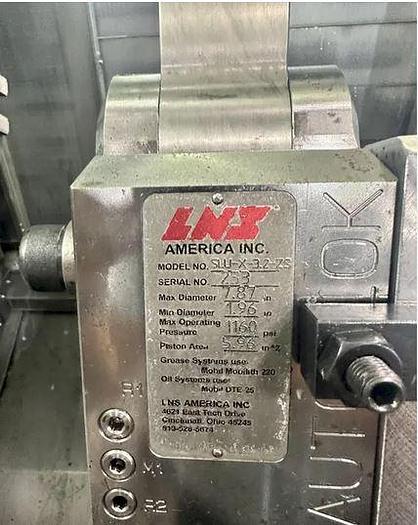

LNS Turn Through Type Steady Rest with 1.96" - 7.87" Capacity
Through the Spindle Coolant

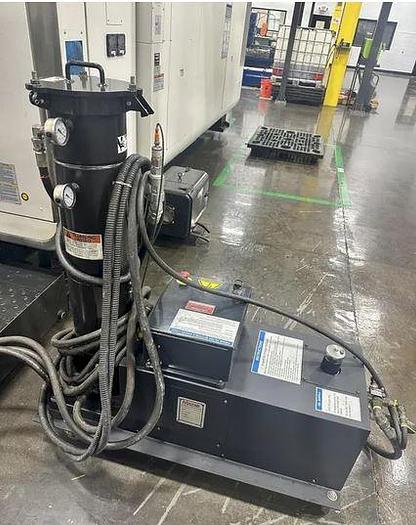

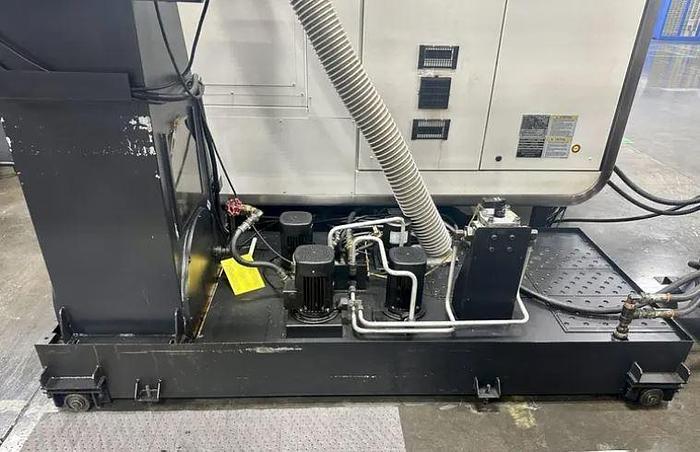

Mazak Super Flow High Pressure Coolant System

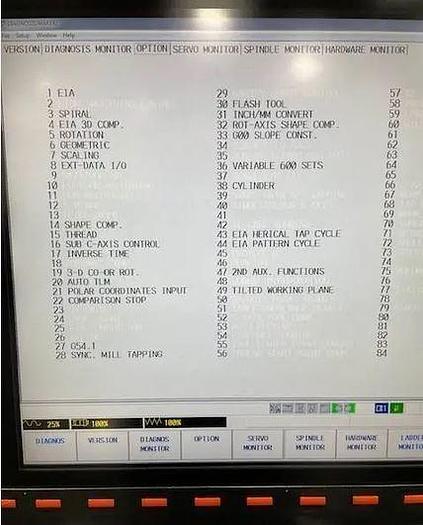

Simultaneous 5 Axis Machining Package
Main & Subspindle Synchronizaton
Milling Synchronous Tapping
EIA Input Function
Threading
Flash Tool
Tilted Work Plane
Sub C-Axis Control
IC Memory Card Interface
Cardbus Interface - 2 Slots
LAN Port Interface
USB Interface
All Available Manuals
**In Plant Under Power, Immediately Available**

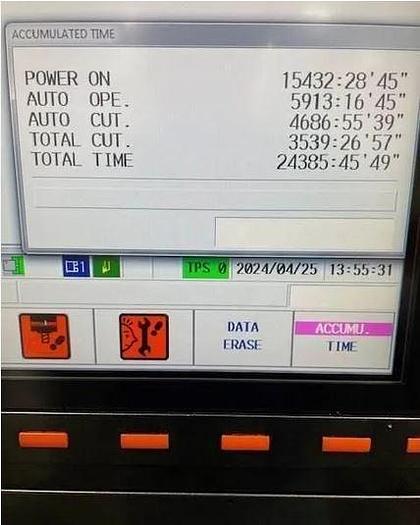

**Cutting Hours 3,539**
Specifications
| Manufacturer | Mazak |
| Model | Integrex i-400S |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119875 |

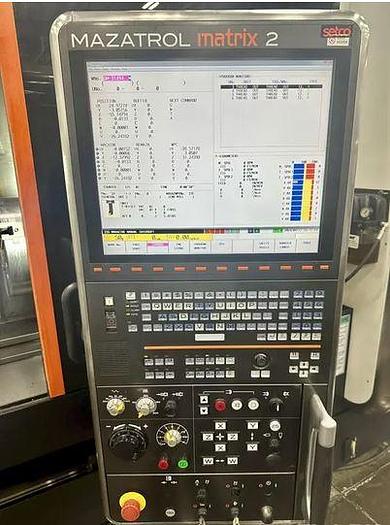

| Machine Control | Mazatrol Matrix 2 Control |
| Chuck size main / subspindle | 15" Hydraulic / 15" Hydraulic |
| Maximum swing | 25.91" |
| Maximum turning diameter | 25.91" |
| Maximum cutting length | 59.8" |
| Travel x axis | 24.21" |
| Travel y axis | 10.24" |
| Travel z axis | 62.41" |
| B axis movement | 240 Degrees |
| C axis main spindle & subspindle | .0001 Degree |
| W axis travel - subspindle | 60.24" |
| Spindle Bore | 4.5" |
| Spindle speeds | 35 - 3,300 RPM |
| Spindle motor | 40 HP |
| Subspindle nose/bore | A2-8" / 4.5" |
| Subspindle speeds | 4,000 RPM |
| Subspindle motor | 35 HP |
| Rotary tool spindle speed | 12,000 RPM |
| Rotary tool motor | 30 HP |
| Number of tools in atc | 72 Tools CAPTO C6 |
| Machine dimensions | 204"x110"x107" |
| Machine weight | 34,833 lbs. |
